Sku: 1187

Pan T Bot

Regular price
$2,499.00
Regular price
Sale price
$2,499.00
Shipping calculated at checkout.
Vendor: Mega Lite

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

A lot of stages are using strobe/blinder type fixtures, and this one takes it to the next level motorizing both tilt and pan control!  Now you can move it around, strobe, and get the blinder-type effects in full color, plus wash the area in a glow of light!

From the Manufacturer:

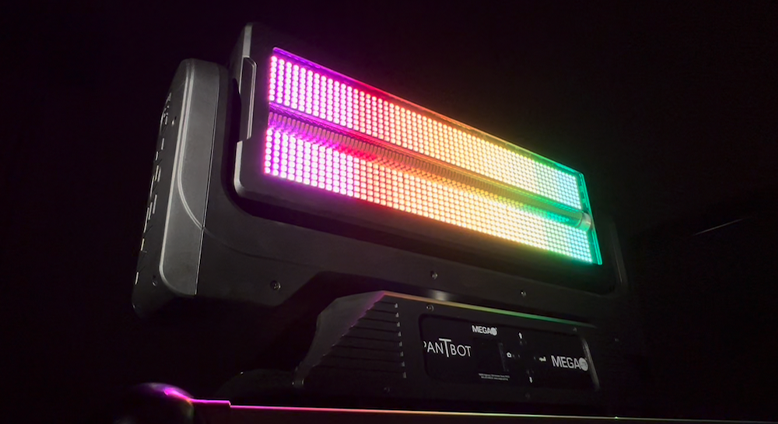

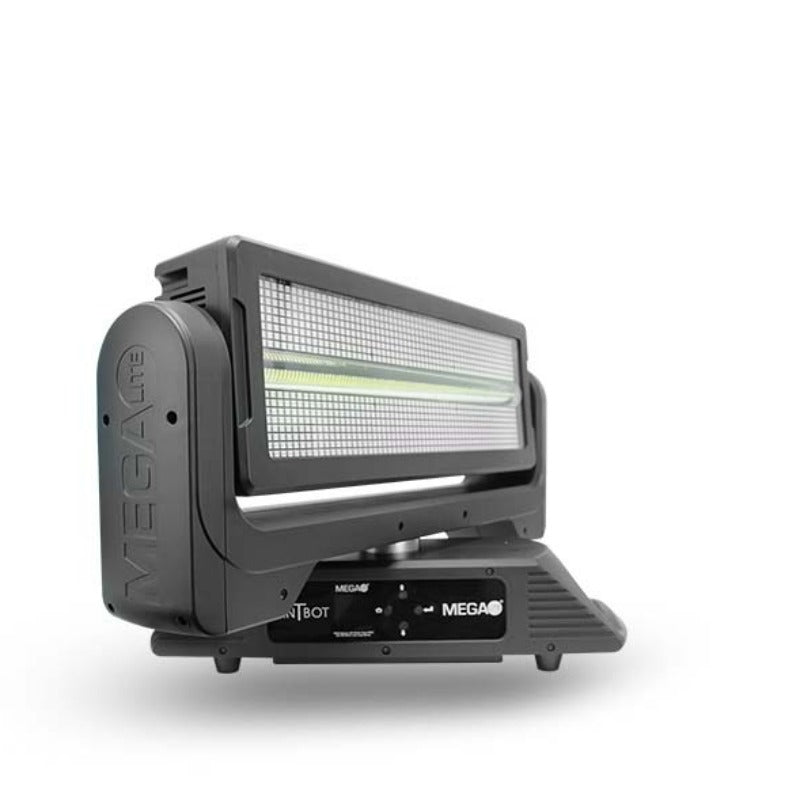

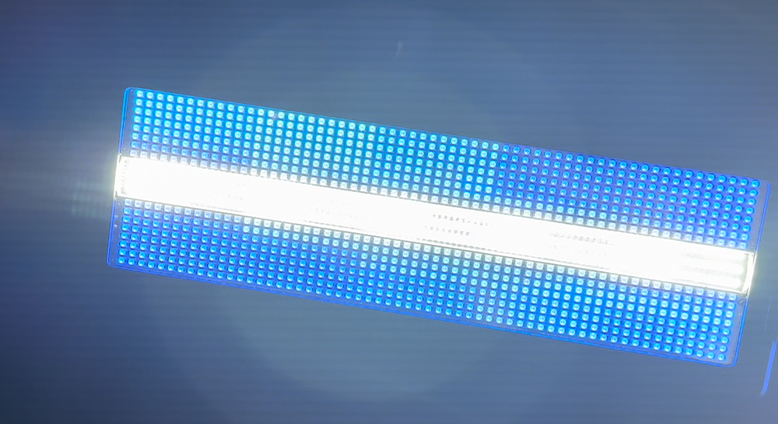

MEGA-LITE presents the Pan T Bot, a versatile LED fixture with robust features that enable the unit be used as a blinder, strobe and wash.

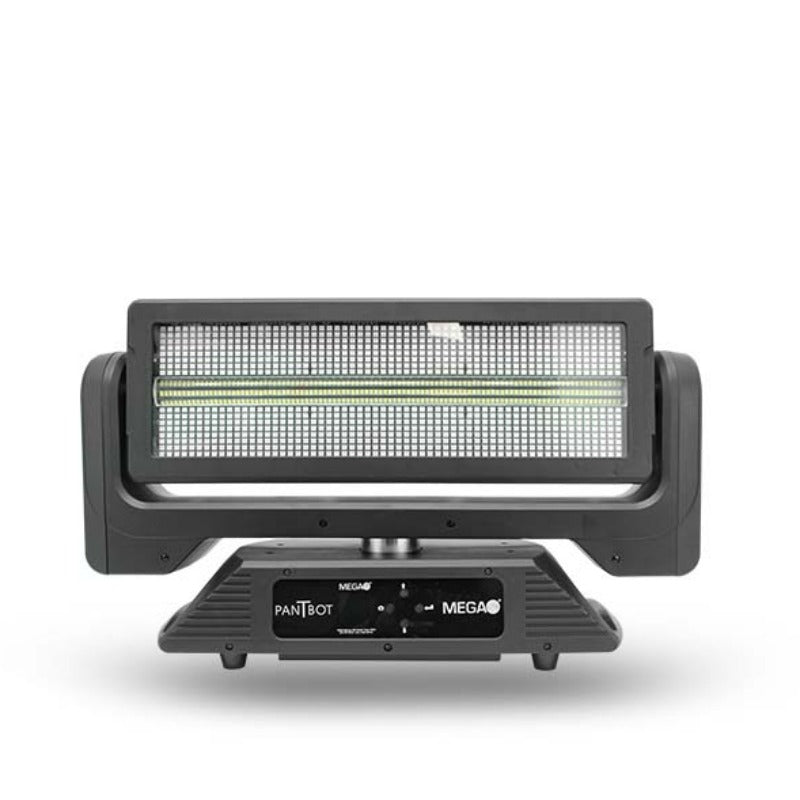

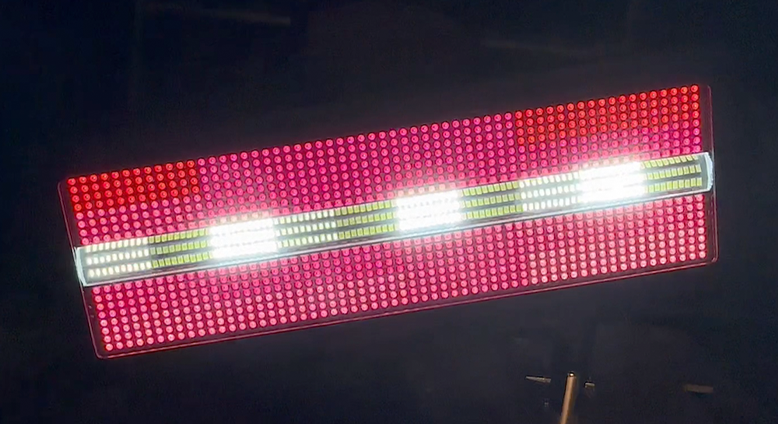

This production-grade unit is equipped with 960 0.5W RGB LEDs and 300 white 1W LEDs. The vibrant Red, Green and Blue LEDs offer 80 segments of control that further enhance the users creativity when programming. The blinding white LEDs can be used as a strobe or divided into 10 segments using pre-programmed macros. Both sections can be independently controlled or combined allowing users to program a variety of eye-catching radiant looks. The RGB LEDs are fully pixel-mappable in extended mode and offer the user ultimate flexibility in bringing their vision to life.

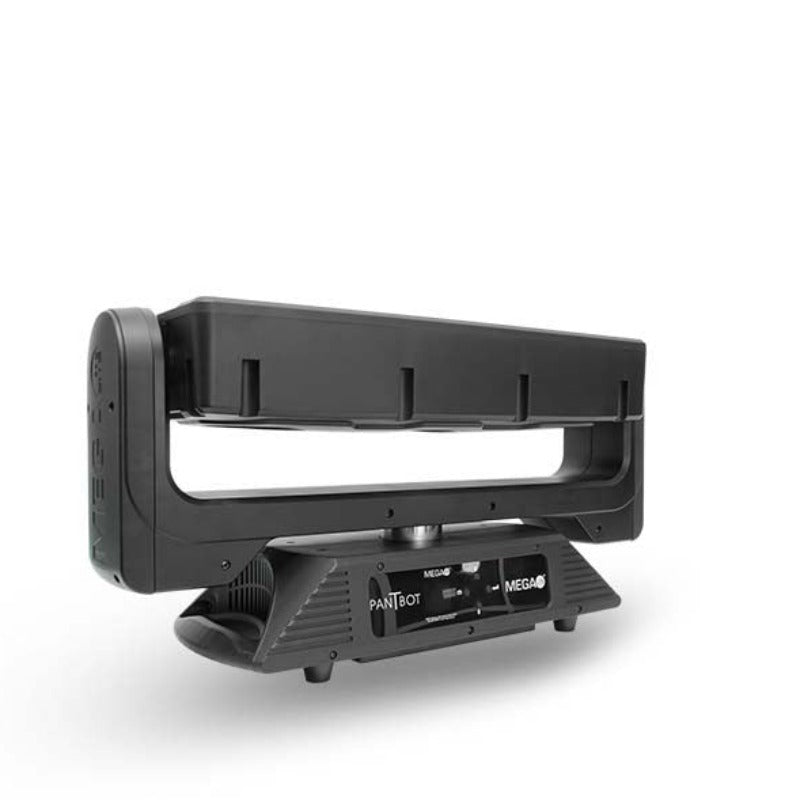

In addition to the 270º 16 bit tilt, the Pan T Bot as its name entails also features a 540º 16 bit pan. This unique movement of both pan and tilt further enhance the effects of the unit by creating a multidimensional appearance.
In the Box:
  • (1) Pan T Bot
  • (1) Power Cable

Features:

  • Light Source: LED
  • LED Type: 960 RGB 0.5W | 300 WHITE 1W (6670K)
  • Beam Angle: 89° RGB EMITTERS | 40° WHITE EMITTERS
  • Dimming: 255 Steps
  • Refresh Rate: 50/60 Hz
  • Functions: Blinder, Strobe, Wash
  • Macros: Shutter, Speed, Color (80 RGB) and White (10) pixel control
  • Color: RGB/W
  • Control Protocol: DMX, RDM
  • Operating Modes: 23ch/256ch, Stand alone 255 step dimmer, Pre Programmed

Tech Specs

Optics:

Light Source Type: LED

Light Source Wattage: 960 RGB .5W 300 White 1Ww

Minimum Beam Angle: 40.0°

Maximum Beam Angle: 89.0°

Control

DMX Channel Modes: 23/256

DMX 3-Pin Connectors?: Yes

DMX 5-Pin Connectors?: Yes

Physical:

Length: 24.5 in

Width: 7.6 in

Height: 14.5 in

Weight: 36 lb

Electrical

Voltage Range: 100 - 240

Maximum Wattage: 590w

Power Cable Connector - Fixture Side: Power Con

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 3 years
