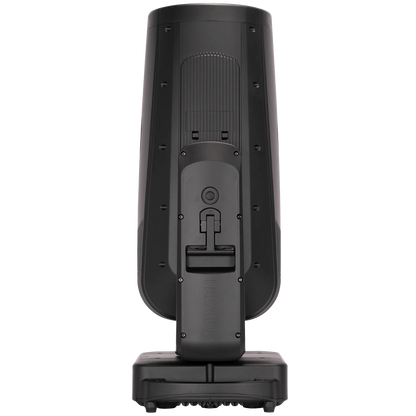

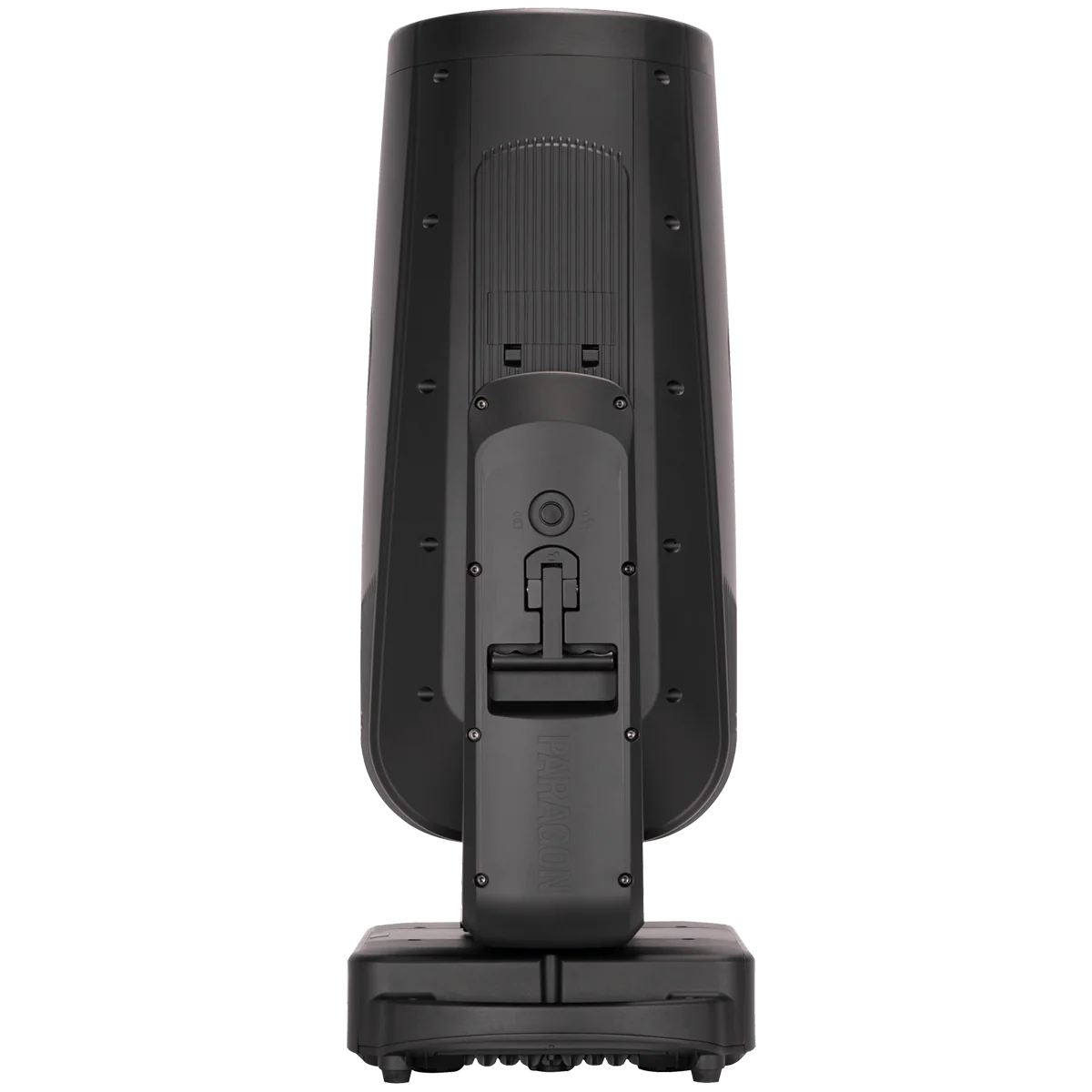

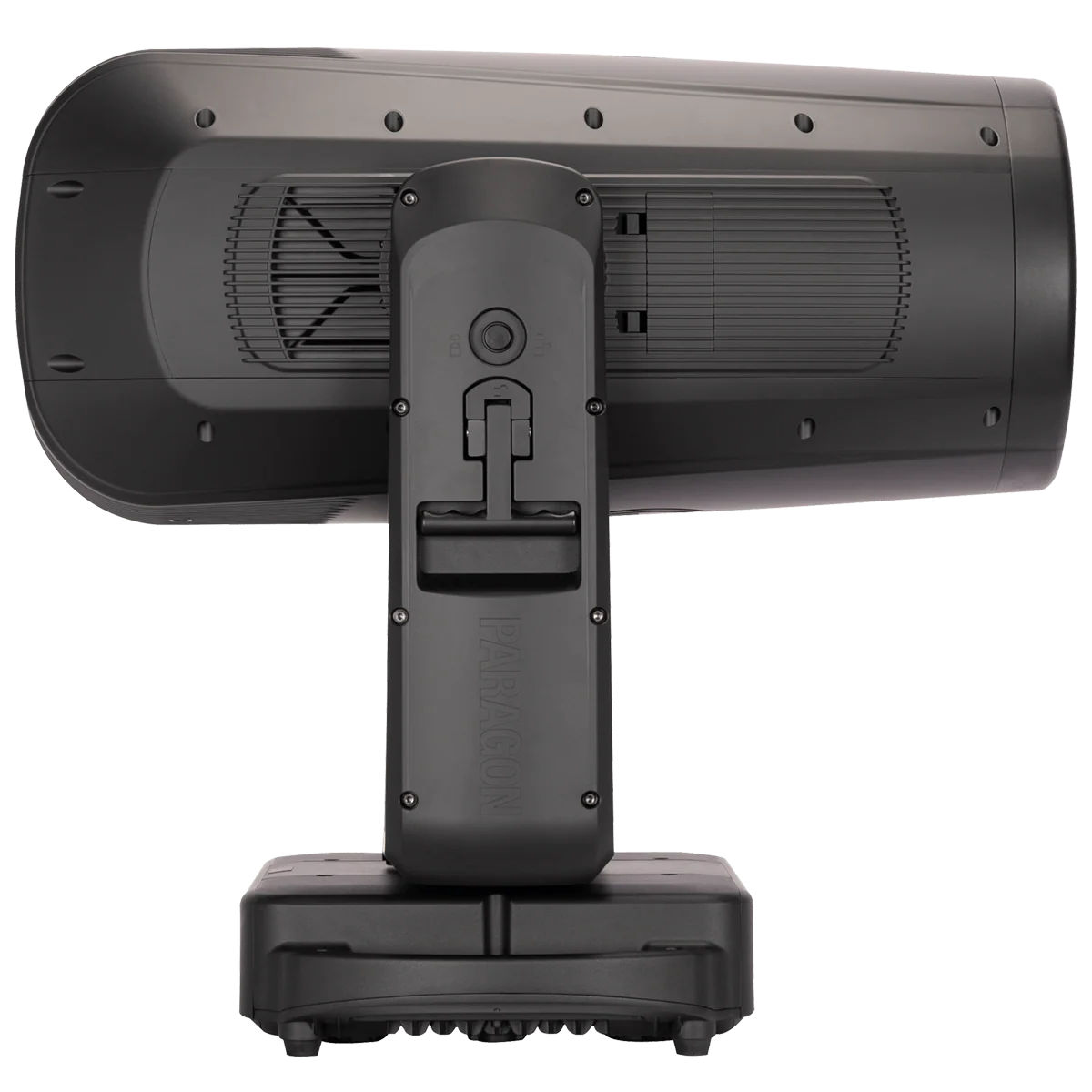

Paragon LT

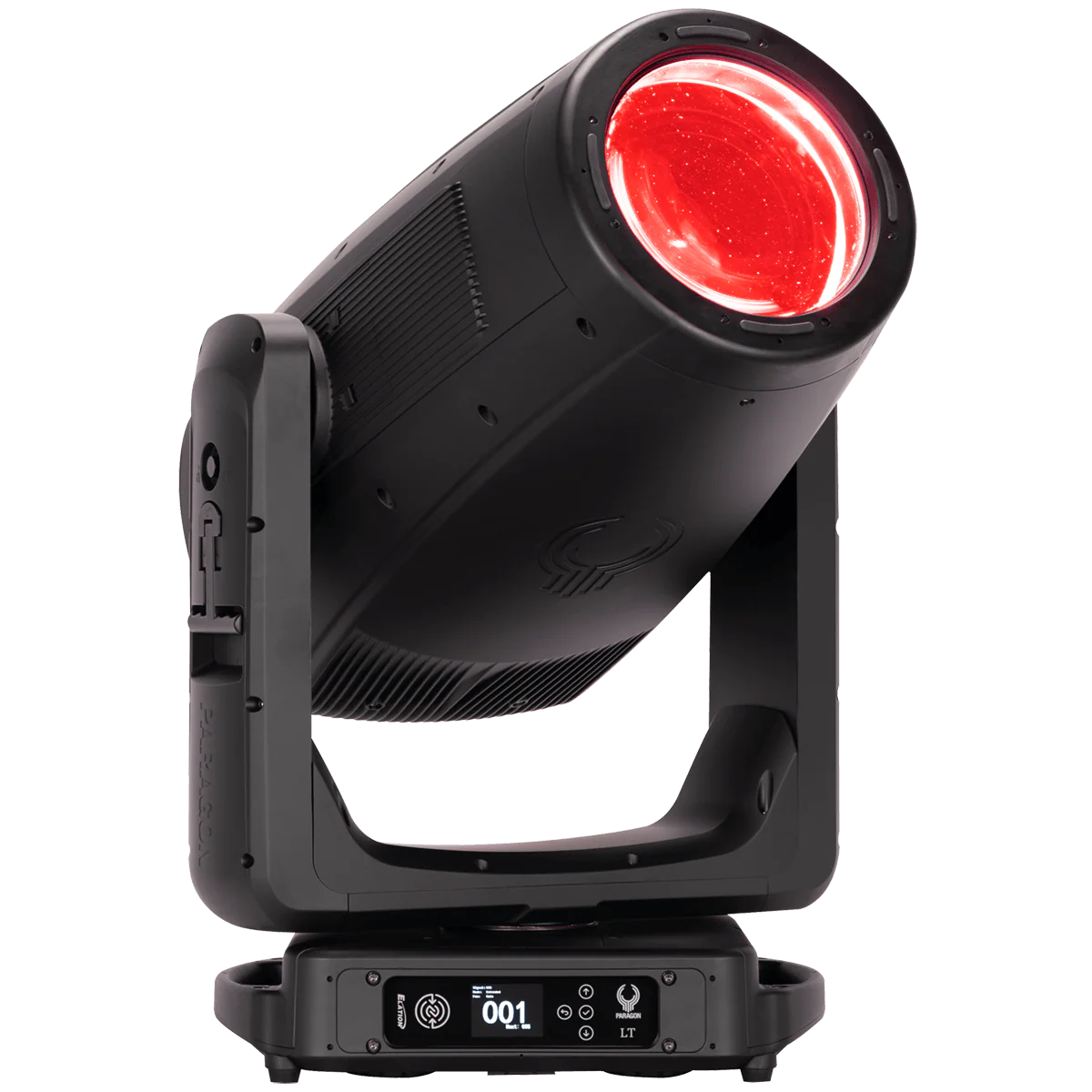

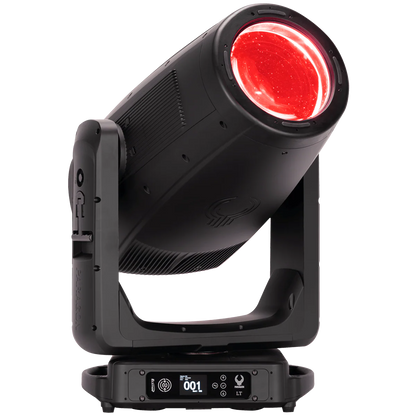

The Elation Professional Paragon LT is a 1300W variable CRI LED fixture, with the versatility to function as a profile, beam, or wash light.

From the Manufacturer:

The brightest in the award-winning PARAGON Series, the PARAGON LT delivers Profile, Beam, and Wash versatility in a single fixture. Its 1300W engine outputs up to 50,000 lumens, with a 3.7°–49.2° zoom and TruTone variable CRI (73–93) for vibrant, precise color. Rugged, compact, and IP54-rated, with easy lens changes and a full FX suite, the PARAGON LT replaces multiple fixtures for efficient designs and extraordinary visuals.

The brightest in the award-winning PARAGON Series, the PARAGON LT delivers Profile, Beam, and Wash versatility in a single fixture. Its 1300W engine outputs up to 50,000 lumens, with a 3.7°–49.2° zoom and TruTone variable CRI (73–93) for vibrant, precise color. Rugged, compact, and IP54-rated, with easy lens changes and a full FX suite, the PARAGON LT replaces multiple fixtures for efficient designs and extraordinary visuals.

Providing up to 50,000 lumens output from its custom-designed Variable CRI LED engine, the PARAGON LT is the ideal fixture for a variety of applications requiring superior output, bright and powerful beams, and quiet operation, as well as stunningly precise gobos and colors.

The TruTone variable CRI allows selecting the best blend of light output and color accuracy, depending on the requirements of the show or scene. It is seamlessly adjustable from CRI 73 to CRI 93. Paragon's extremely precise low-level Ultra Dimming operates at 25,000Hz, with perfect dimming performance at the highest refresh rates, eliminating all flicker or camera interferences.

PARAGON LT provides the designer a comprehensive FX package with 14 rotating glass gobos, a high-speed fixed gobo wheel, variable orientation animation wheel, overlapping dual prisms, dual frost, and a high-speed iris. Its indexable framing system allows full-blackout shutter cuts for precise beam shape control.

With a fast zoom range from 3.7° to 48 ° and a large 200mm front lens, the PARAGON LT has the power to cut through and make a statement on any stage.

The PARAGON LT ships in a cardboard box with a custom-fitted polyurethane foam FIL (Foam In Lay) insert. The foam insert easily fits into a custom flight case (not included) and provides enhanced impact protection during transport.

Features:

• IP54 rated for indoor and temporary outdoor use
• All weather protection through innovative chassis, sealing and cooling construction
• Impact resistant lightweight polycarbonate chassis
• High Efficiency 6,500K Variable CRI White LED Engine
• TruTone remote color fidelity adjustment up to CRI 93
• Exceeding 50000 Total Lumens Fixture Output in Turbo Mode
• Flat Field Engine for precise projection
• Ultra-fast CMY Array and Variable Linear CTO
• Optional SpectraColor RGB Array
• 5-Position Color Wheel with Quad Color
• Complete FX System featuring Dual Rotating Gobo Wheel, Fixed Gobo, Animation, Iris, Dual Prism, Dual Frost
• Indexable Full Blackout Framing System
• Wide Zoom Range from 3.7° to 49.2°
• Interchangeable Fresnel Wash and PC Beam Lens (optional)
• FIL (Foam In Lay) Polyurethane Foam Packaging Included

Specifications:

SOURCE

• High Efficiency 1300W 65000K Variable CRI White LED Engine
• 30,000 Hour Average LED Life*
  • *Test lab conditions. May vary depending on several factors including but not limited toL Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA

• 44000 Total Lumen Fixture Output @ CRI 80
• 50000 Total Lumen Output in Turbo Mode (CRI78)
• TruTone variable CRI up to CRI 93

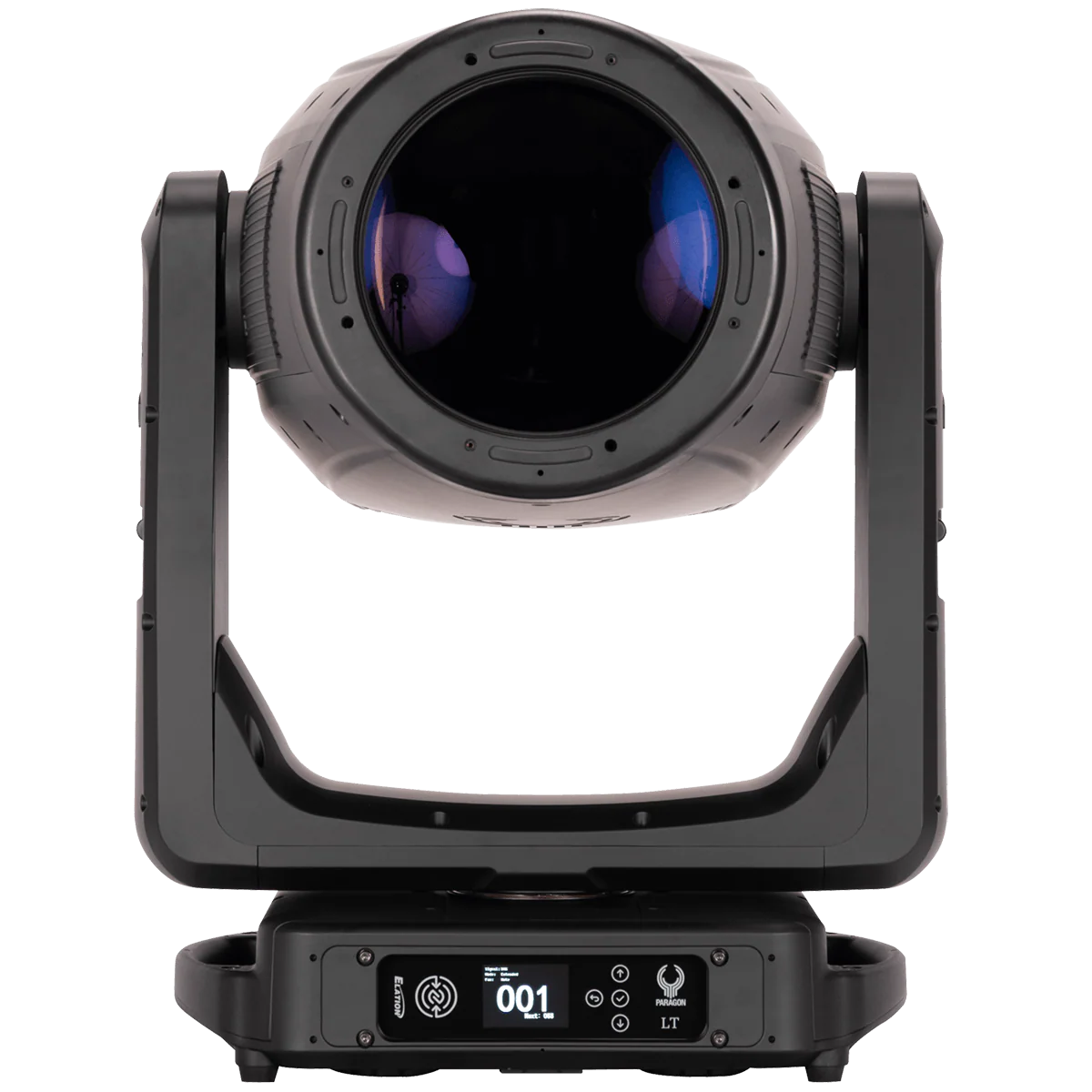

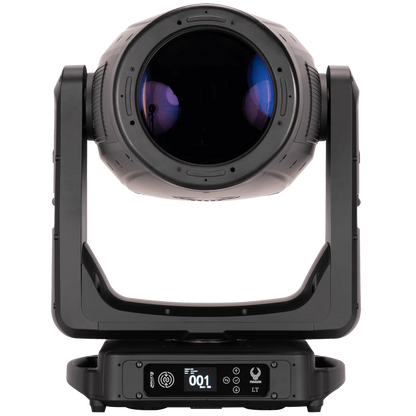

• Front Lens 8" (200mm)
• Profile Lens (standard)
  • Zoom Range 3.7° - 49.2°
  • Beam Angle 3.4° - 43.9°
  • Field Angle 3.7° - 46.9°
  • Cutoff Angle 3.8° - 47.8°
• PC Lens (optional)
  • Zoom Range 3.5° -47.2°
  • Beam Angle 3.5° - 43.4°
  • Field Angle 5.6° - 47.2°
  • Cutoff Angle 6.5° - 48.6°
• Fresnel Lens (optional)
  • Zoom Range 5° - 52.9°
  • Beam Angle 5° - 46.7°
  • Field Angle 10° - 52.9°
  • Cutoff Angle 15.1° - 59.9°

EFFECTS

• Motorized Zoom
• 4 Full Blackout Framing Blades, +/-45° Index
• +/-120° Framing Index
• Full 360° Bi-Directional Animation Wheel with variable Angle and Index orientation
• 4-Facet and Linear Rotating Prisms
• 2 Variable Frost Filters (Light and Wash)
• Motorized Iris with Variable Pulse Effects
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe
• DMX Controllable LED Refresh Rate
• Ultra Dimming 25000Hz
• Pan Angle: 540°
• Tilt Angle: 260°
• Motionless Reset

COLOR

• CMY Color Mixing Array
• Optional SpectraColor RGB Array
• Linear CTO Color Correction
• 5 Dichroic Colors including Quad Color

GOBOS

• 3 Gobo Wheels
• 2x 7 Rotating / Indexing Interchangeable Glass Gobos
• 5 Fixed Metal Gobos

CONTROL / CONNECTIONS

• 4 DMX Channel Modes (44/67/47/73)
• 16-bit Pan, Tilt and Dimming Control
• Motorized Focus and Auto-Focus Presets
• DMX, RDM, Art-NET, sACN Protocol Support
• (4) Button Touch Control Panel

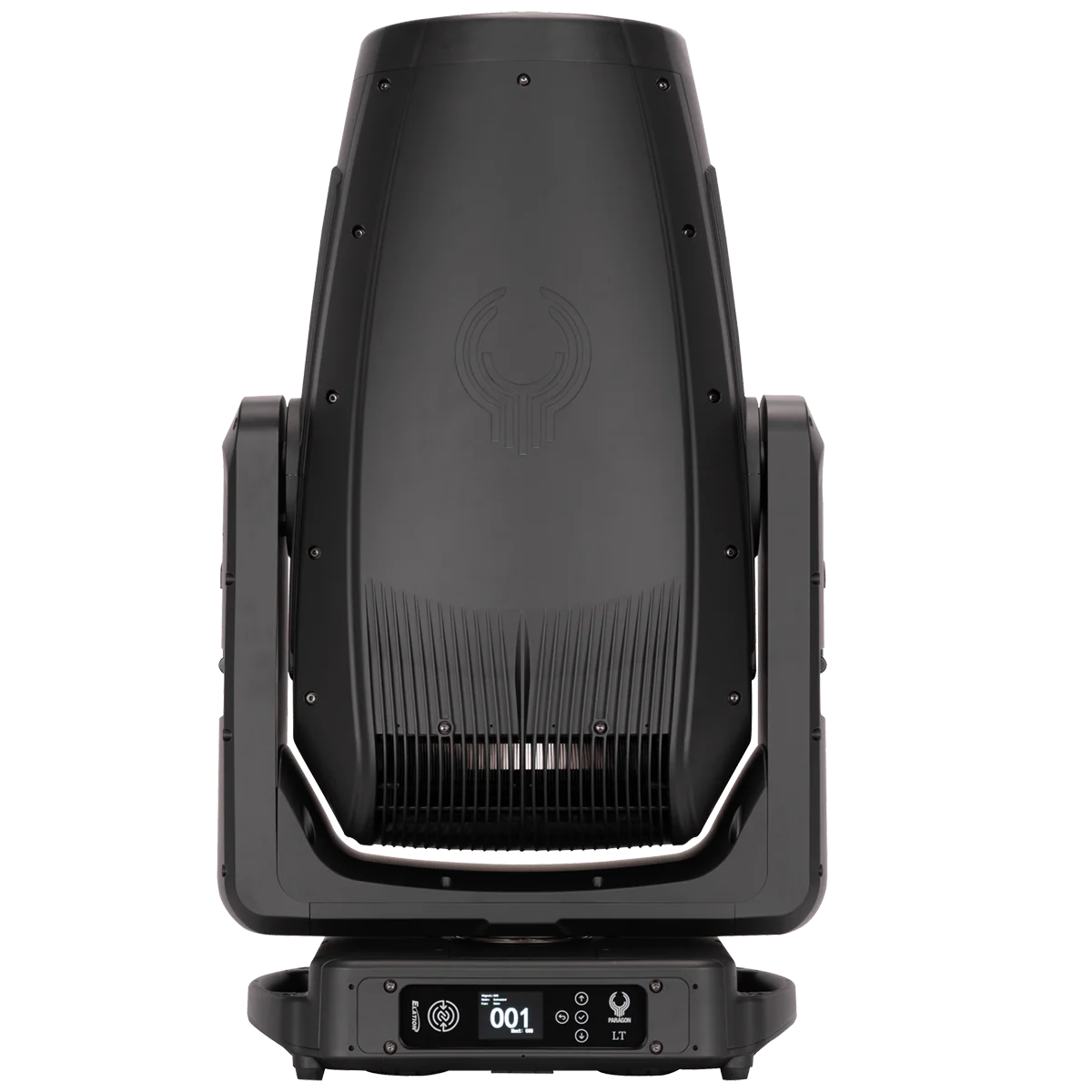

• Full Color 180° Reversible LCD Menu Display
• NFC
• Hibernation Mode (Power Save)

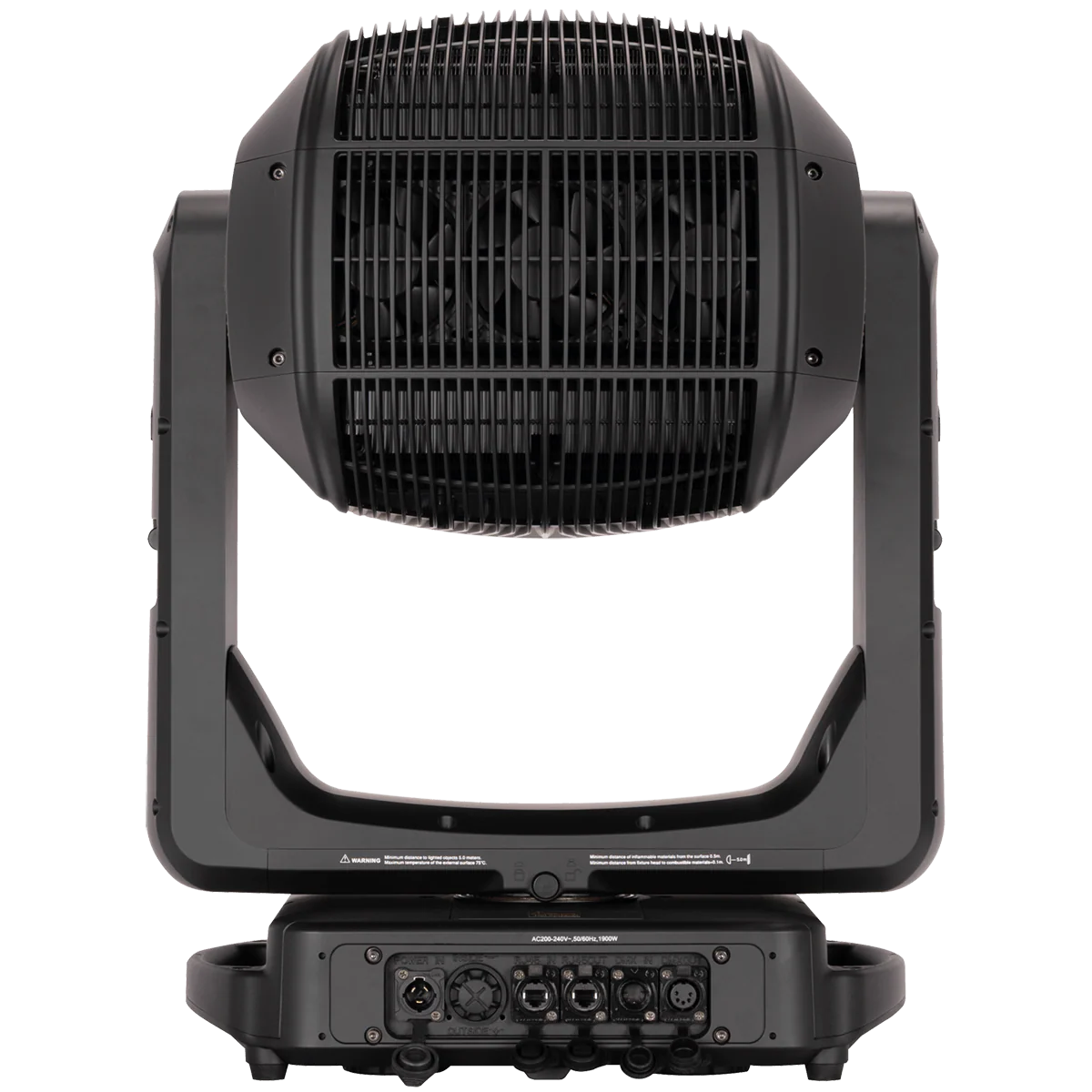

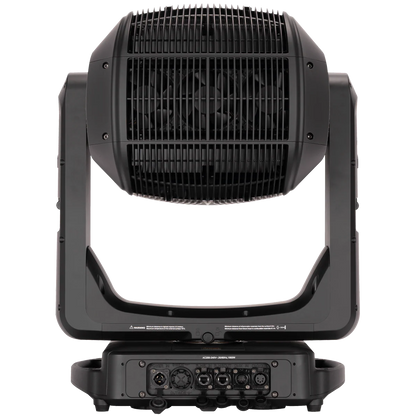

• IP65 Locking 5pin XLR In/Out
• IP65 Locking RJ45 Ethernet In/Out
• IP65 Locking Power In

SIZE / WEIGHT

• Length: 19.4 in (492mm)
• Width: 12.4 in (315mm)
• Height: 32.7 in (830mm)
• Weight: 96.1 lbs. (43.6 kg)
• Weight (w. RGB Module): 97.9 lbs. (44.4 kg)

ELECTRICAL

• AC 200-240V 50/60Hz
• Max Power Consumption 1900W
• -4°F to 113°F (-20°C to 45°C)

INCLUDED ITEMS

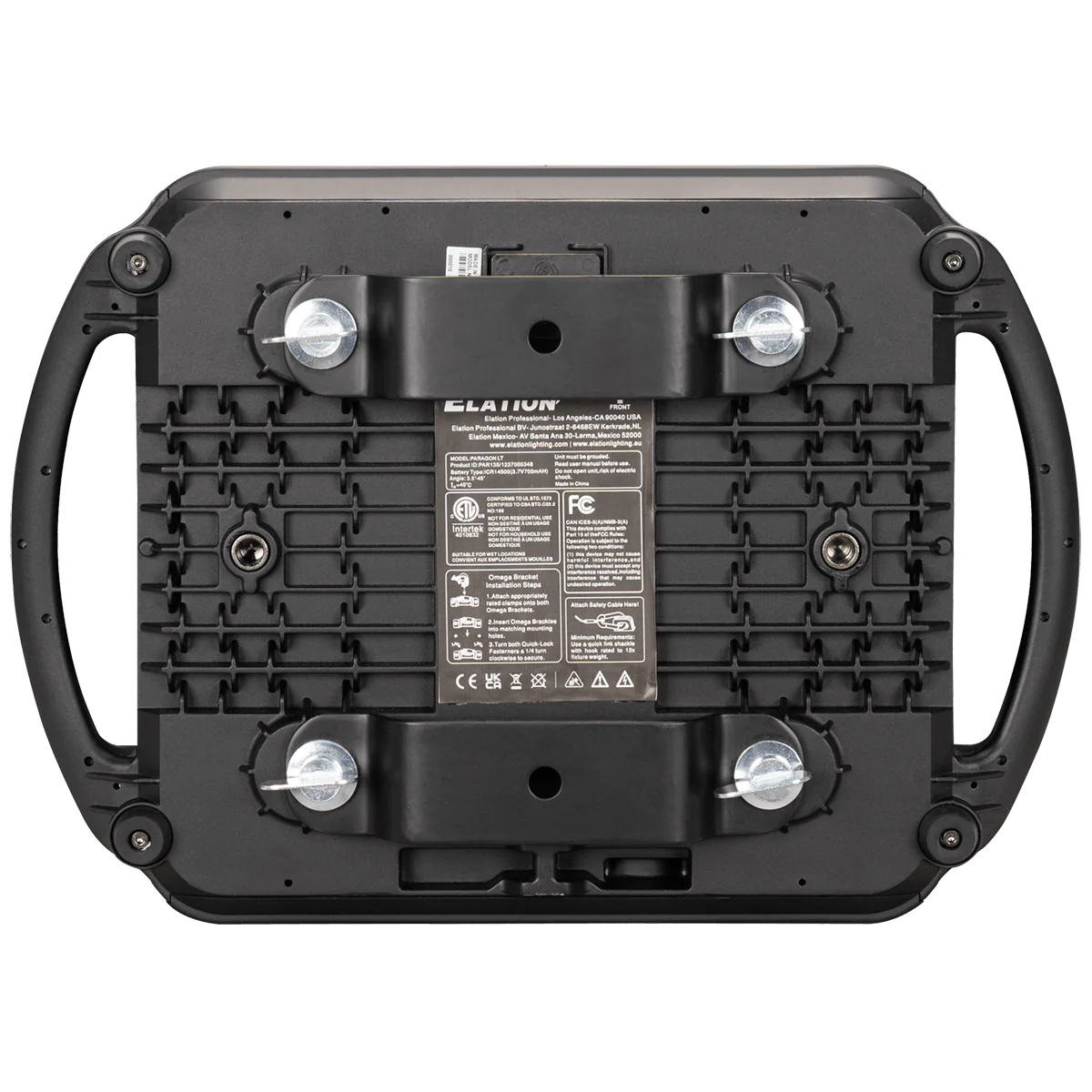

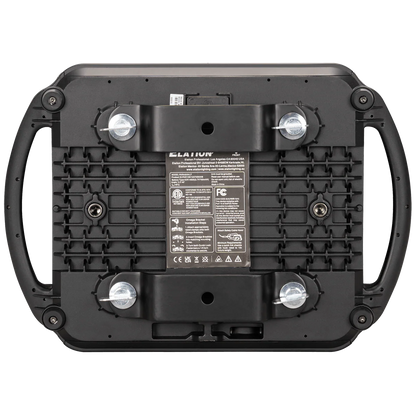

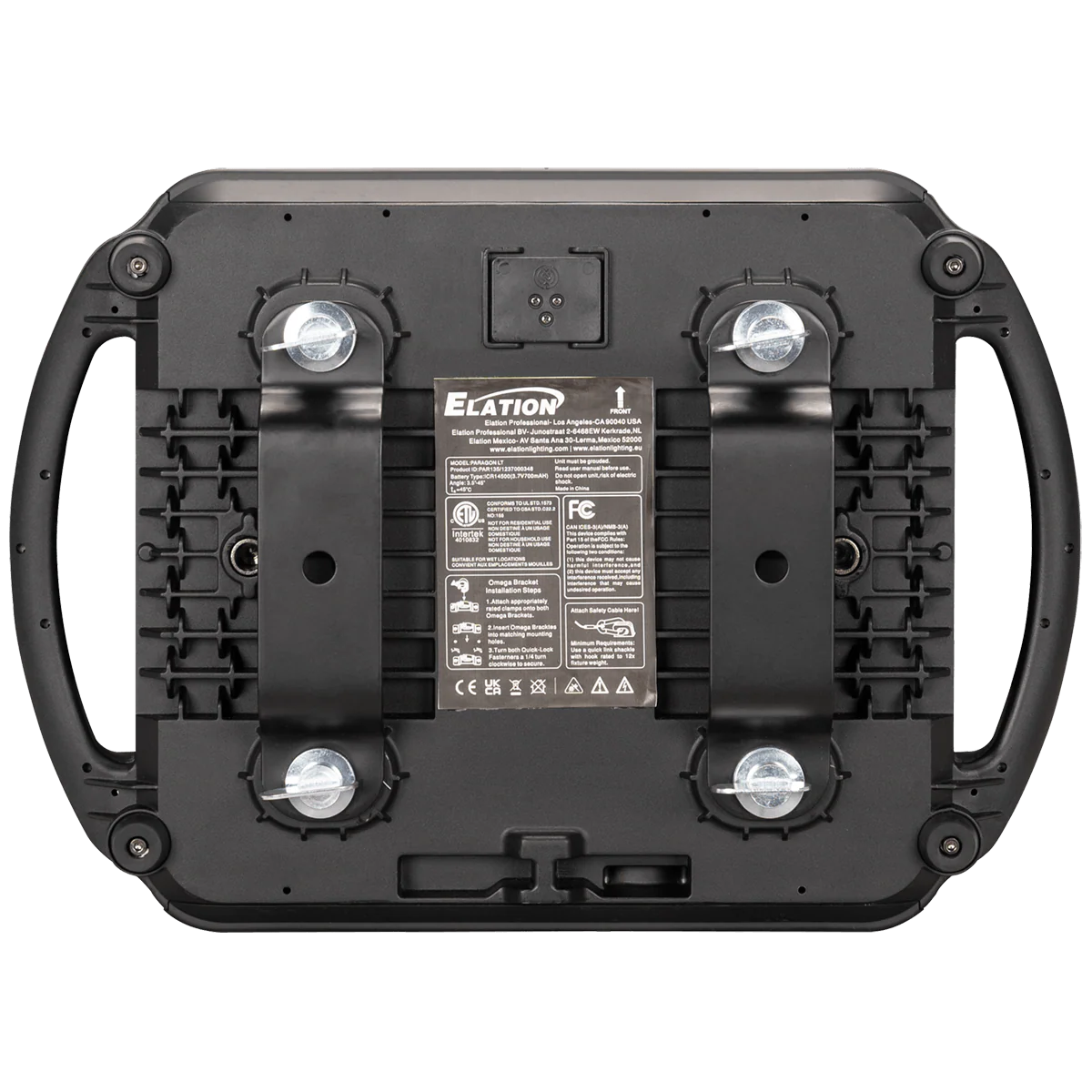

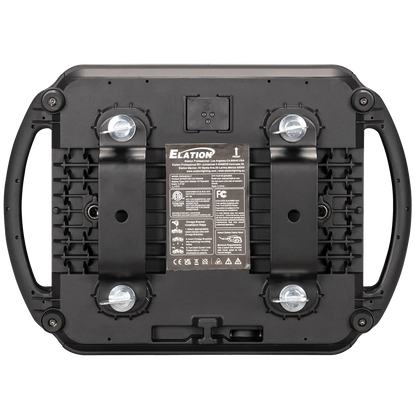

• Omega Brackets (x2)
• IP65 Rated Locking Power Cable
• Stainless Steel Safety Cable
• Foam Inlay

OPTIONAL ITEMS

• PARAGON LT RGB Module (PAR201)
• PARAGON LT PC Lens (PAR224)
• PARAGON LT Fresnel Lens (PAR213)
• PARAGON LT Snoot (PAR235)

APPROVALS / RATINGS

• CE | cETLus | FCC | UKCA | IP54
