Sku: 91610001

Passive Junction Box Power-DMX-Ethernet to PDE

Regular price
$283.50
Regular price
Sale price
$283.50
Shipping calculated at checkout.
Vendor: Martin

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

A Box that merges power, DMX and Ethernet signals into a single connector and cable system.

From The Manufacturer:

The Martin PDE Junction Box Passive merges power, DMX and Ethernet signals into a single connector and cable system, as used by the Martin VDO Atomic family of fixtures.

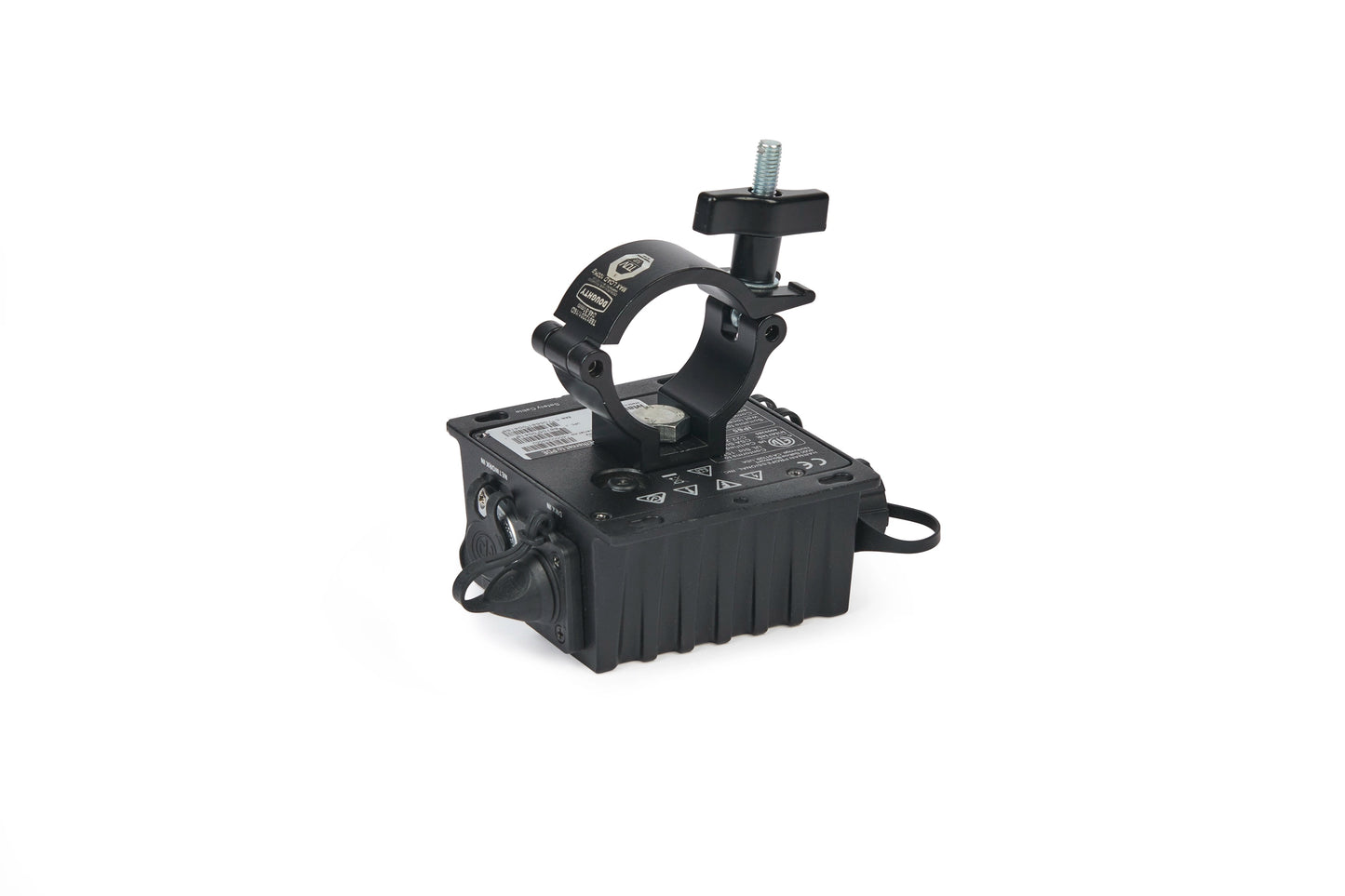

The box is fully IP65 rated for outdoor use and features a robust metal housing. The flanges on the side allow for mounting to any surface, while the M10 threaded hole allows for the attachment of a rigging clamp.

Features:

  • powerCON TRUE1 TOP power input

  • XLR 5 TOP DMX input

  • etherCON TOP Ethernet input

  • Martin PDE Hybrid output

  • IP65 rated

  • Robust metal housing

  • Wall or truss-mountable

Specifications:

  • Physical

    • Length: 107 mm (4.2 in.) (incl. mounting flanges)

    • Width: 94 mm (3.7 in.)

    • Height: 51 mm (2.0 in.)

    • Weight: 0.5 kg (1.1 lbs.)

  • Construction

    • Housing: Aluminum

    • Color: Black

    • Protection rating: IP65

  • Installation

    • Location: indoor or temporary outdoor use

    • Orientation: Any

    • Wall Mount: Using mounting flanges

    • Truss Mount: Using half-coupler clamp in M10 threaded hole, max. bolt length 22 mm

  • Connections

    • AC power input: Neutrik powerCON TRUE1 TOP (IP65)

    • Ethernet Input: Neutrik etherCON TOP (IP65)

    • DMX input: Neutrik XLR 5-pin Male TOP (IP65)

    • AC Power, DMX and Network out: PDE hybrid connector (IP65)

(All connections hot plugging compatible)

  • Electrical

    • AC power: 100-240 V AC nominal, 50/60 Hz

  • Thermal

    • Maximum ambient temperature (Ta max.): 75 C

    • Minimum ambient temperature (Ta min.): -15 C

  • Environmental

    • RoHS: Compliant

    • REACH: Compliant

  • Approvals

    • EU safety: EN 60598-2-17

    • US safety: UL 1573

    • Canadian safety: CSA 22.2 No. 166

    • Australia/NZ: RCM

    • United Kingdom: UKCA
