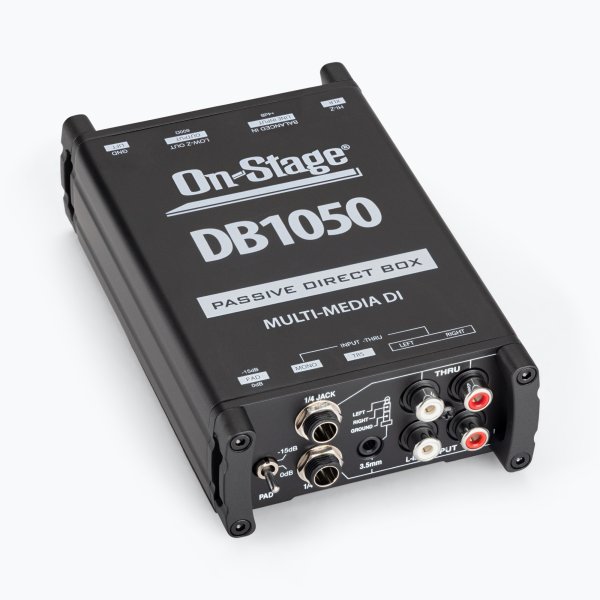

Passive Multimedia DI Box

The DB1050 Passive DI Box converts stereo line-level sources to a low-impedance XLR mono signal for long cable runs. It features passive, low-distortion circuitry, a -15 dB pad, ground-lift switch, Hi-Z/XLR input selector, and a durable metal housing for reliable use.

From The Manufacturer:

Our DB1050 Passive Multimedia DI Box converts any line-level stereo source to a low-impedance XLR mono signal ready to send via a long cable run to a mixer or PA system. Features include low-distortion passive circuitry that doesn't require power, a -15 dB pad switch to prevent clipping, a ground-lift switch to defeat ground-loop hum, throughput connectors to pass unaltered signal to a stage amp, a Hi-Z/XLR input selector, and a variety of input connectors to enable convenient use with various sources. Its heavy-duty metal enclosure protects the internal components and ensures reliable performance.

Features:

• Output signal can be sent via a long cable to a mixer or PA system without frequency loss

• Passive circuit does not require a power supply or batteries

• High-quality transformer for low distortion and an isolated signal path

• Converts a line-level stereo input to a balanced, low-impedance mono (XLR) output

Specification:

• Application

• Computers, mp3 players, keyboards, projectors, and DJ equipment

• Construction

• Metal w/ nylon bumpers

• Dimensions

• 6" x 3.5" x 1.5"

• Frequency Response

• 10Hz - 40kHz

• Ground lift

• Yes

• Input Resistance

• 220K Ohms

• Inputs

• Stereo 1/4", 3.5mm, stereo RCA, and XLR

• Output

• Mono XLR Low-Z out

• Pad

• 15dB

• Power

• Passive/not required

• Product Type

• Direct Box

• Weight

• 0.70 lb
