PC415X

Versatile 3-in-1 interface providing wireless DMX control, power distribution and an advance RDM/DMX management system.

From the Manufacturer:

The PC415X is a versatile powerhouse for lighting professionals looking for seamless power distribution, wireless DMX control, and advanced DMX/RDM management in one compact unit. This 3-in-1 interface combines a 4-output power distribution center, Aria X2 transceiver, and 4-output DMX/RDM splitter, delivering an unmatched control experience anywhere.

Features

• Multi-functional Design: The PC415X offers 4 power outputs, an Aria X2 transceiver, and DMX/RDM splitter in one device

• Flexible DMX Channel Modes: Operate in 1, 2, or 4 DMX channel modes, ensuring compatibility across different setups

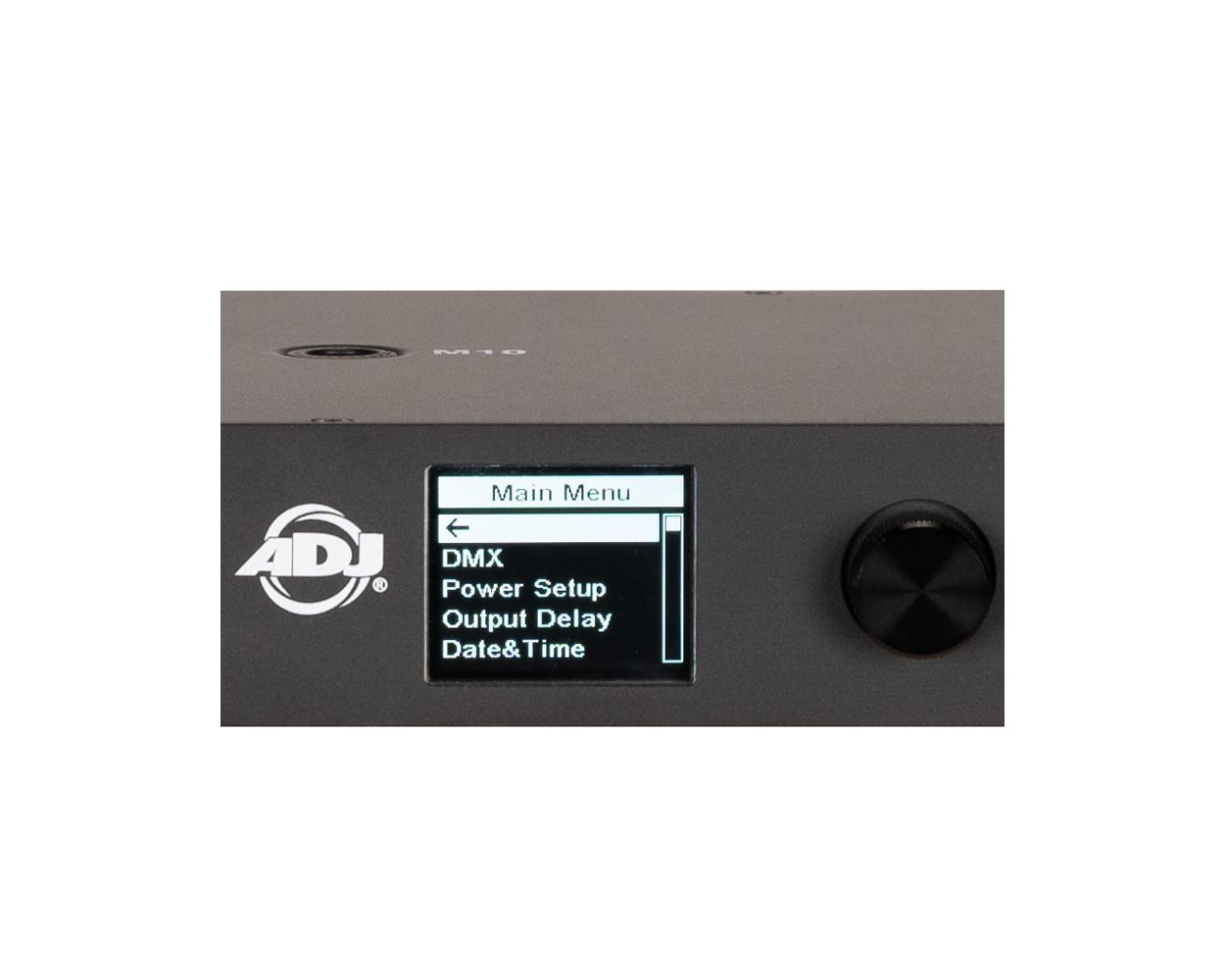

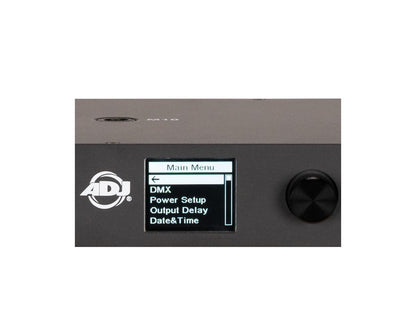

• User-Friendly Control: Navigate with ease using the push button and encoder wheel, complemented by an OLED control menu display

• Event Scheduler: Manage power and DMX outputs with an internal On/Off scheduler for automated operation

• Single DMX Universe: Works seamlessly as a single DMX universe transmitter, ideal for precise control over lighting configurations

• Multi-Protocol Support: Features Sub-GHz, 2.4 GHz WiFi, Bluetooth, and proprietary Aria X2 Mesh Protocol for reliable wireless communication

• Future-Ready: Configuration via front panel and app support (app coming soon) for on-the-go adjustments

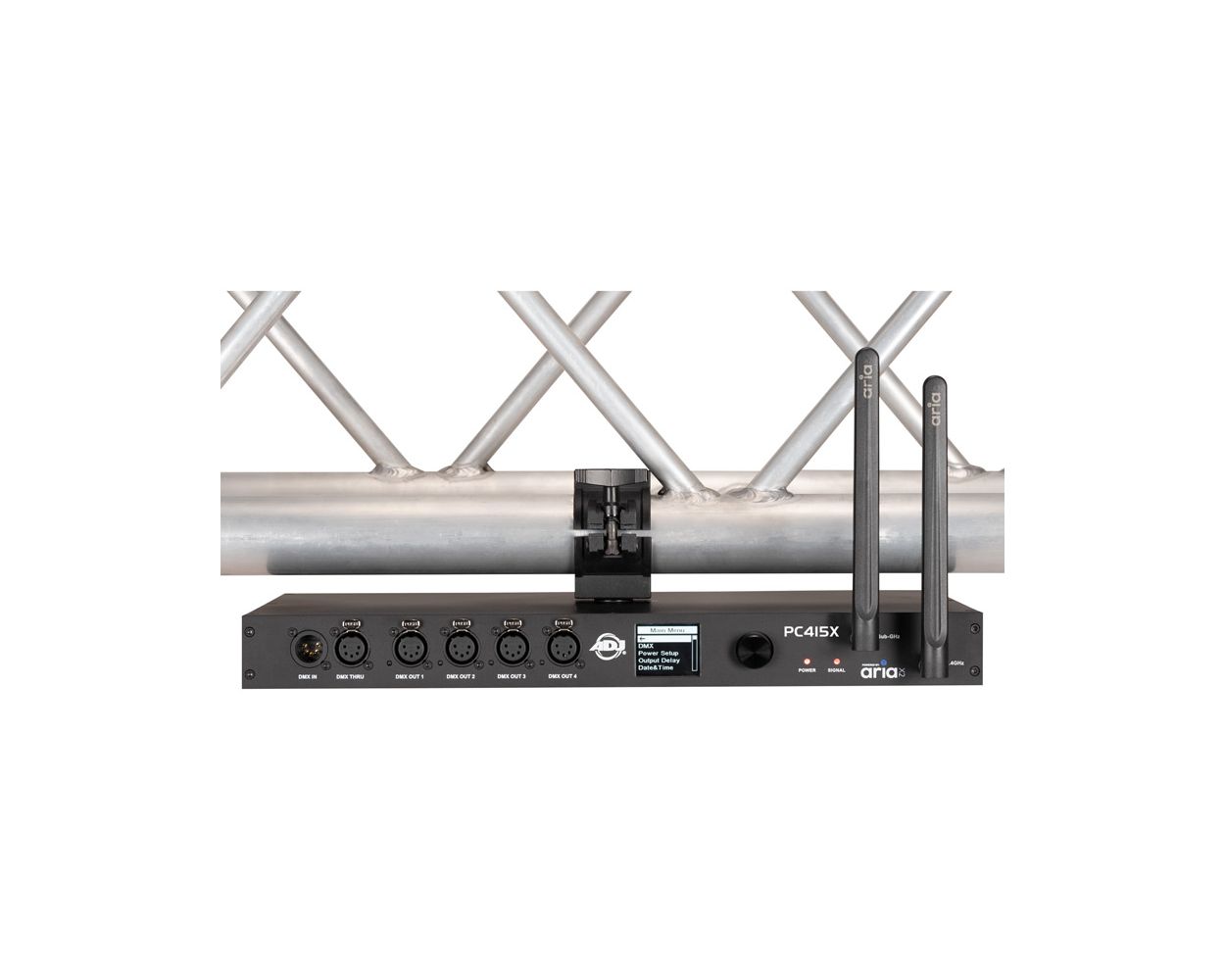

• Mounting Flexibility: Rack-mountable and truss-mountable for versatile installation options

Specifications:

• Supported Protocols:

• DMX/RDM: Designed for DMX lighting control, with RDM support planned in a future software release

• Proprietary Protocols: Supports Aria X2 Mesh Protocol and 802.15.4 communication, plus Bluetooth 5.2 for versatile device connectivity

• RF Characteristics:

• Frequency Range: Operates between 2404-2480 MHz, with additional EU (863-870 MHz) and US (902-928 MHz) bands.

• Enhanced Reliability: CSMA and planned adaptive frequency hopping ensure minimal interference

• Over-the-Air Updates: Future-proof your setup with OTA updates

• Standards & Compliance:

• Safety: Meets EN IEC 62368-1 and BS EN standards for safe operation

• Health & EMC: Complies with EN IEC 62311:2020 and ETSI EMC standards, ensuring safety and low interference

• Connectors:

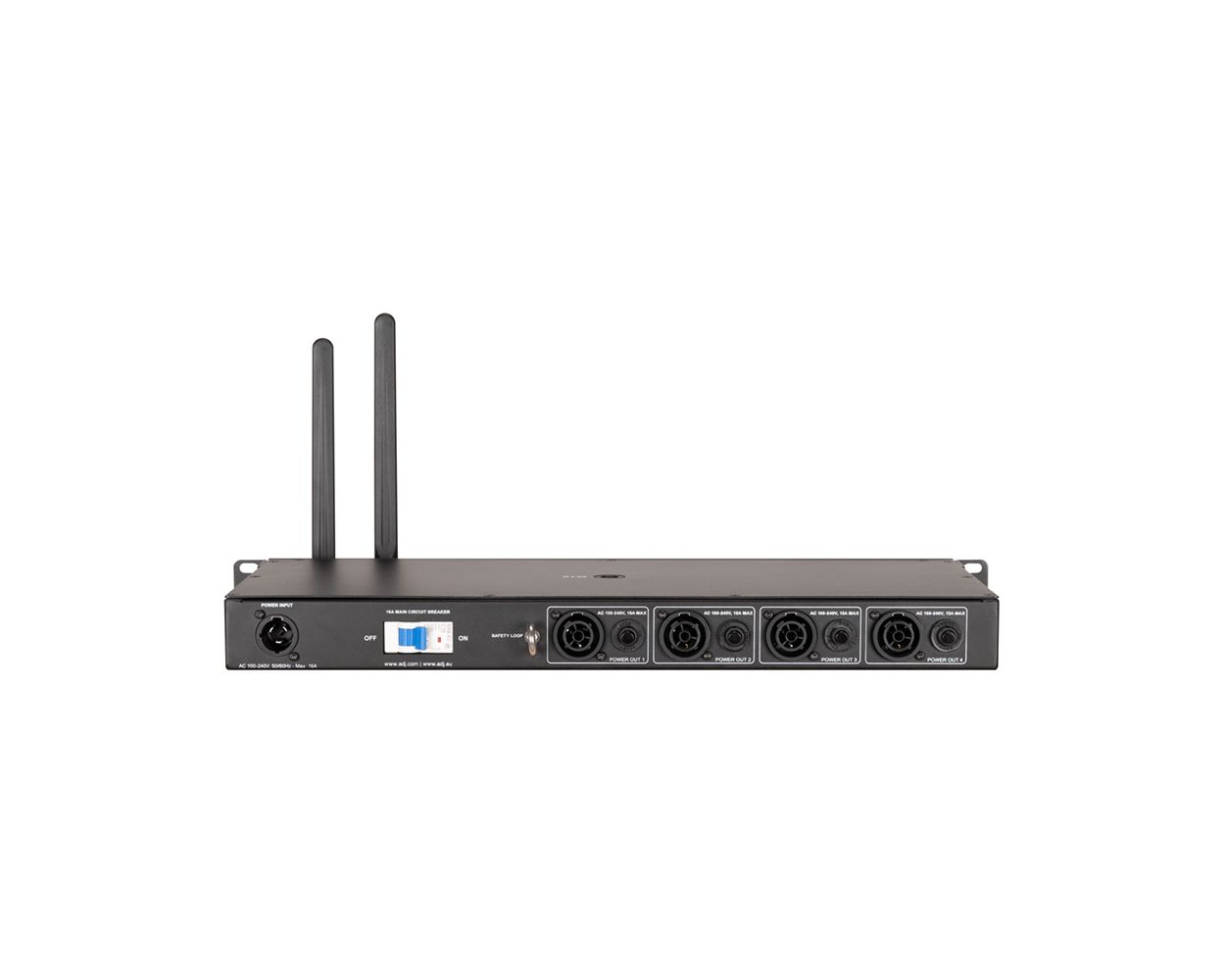

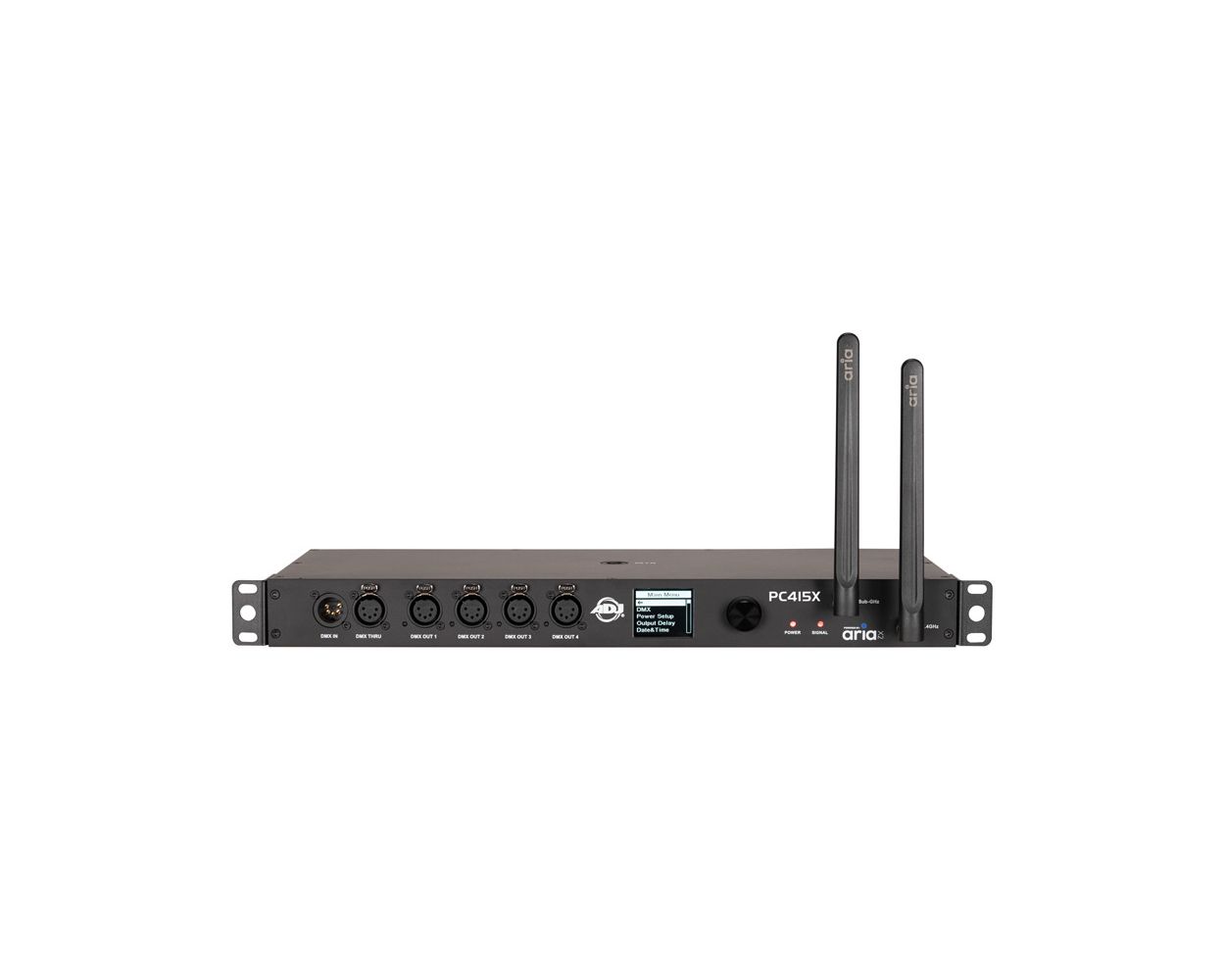

• DMX and Power Options: Features (1) DMX input, (4) DMX outputs, and (4) IP65 locking power outputs with 15A resettable breakers.

• Antenna Compatibility: Equipped with dual 5G JT SMA antennas.

• Power Requirements:

• Versatile Power Input: Compatible with AC100-240V 50/60Hz and equipped with a 16A main power switch

• Low Power Consumption: Runs efficiently with minimal power requirements and features a CR2032 lithium battery for critical backup

• Physical Specifications:

• Robust Design: Durable IP20 metal enclosure with a digital screen, rotary knob, and safety eyelet

• Temperature Tolerant: Operates in ambient temperatures up to 113°F and humidity below 75%

• Compact Dimensions: At just 7.4 lbs, it’s designed for easy handling and secure installation

• Dimensions & Weight:

• Length: 19" (482mm)

• Width: 9.81" (249.17mm)

• Height: 1.73" (43.80mm)

• Weight: 7.4 lbs (3.36 kg)

• Approvals & Included Accessories:

• Approvals: CE, cETLus (pending), IP20-rated for indoor use

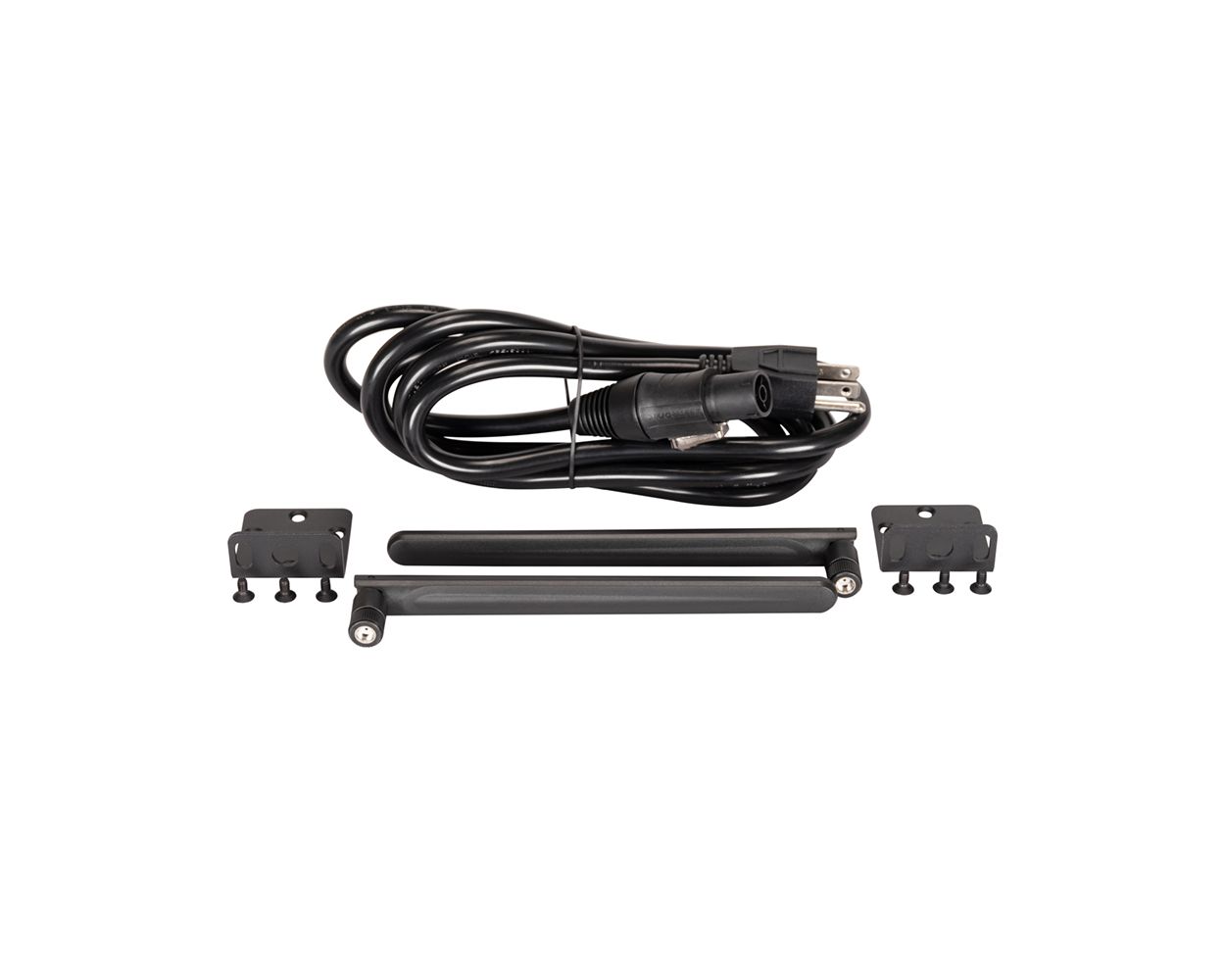

• Accessories: Comes with rack ears for a standard 19-inch rack mount, two Aria X2 antennas and one IP65 locking power cable
