PCB5P

A DMX port for custom wall plates or other custom integration, it is ideally suited to work with the Netron Net Plate which provides 14 pre-machined positions.

From the Manufacturer:

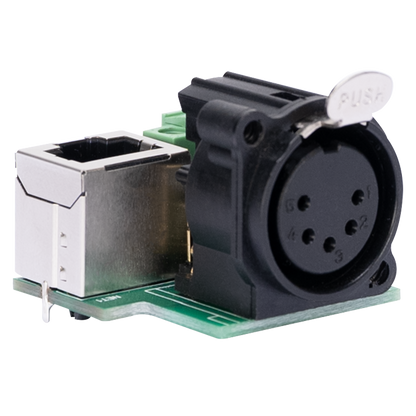

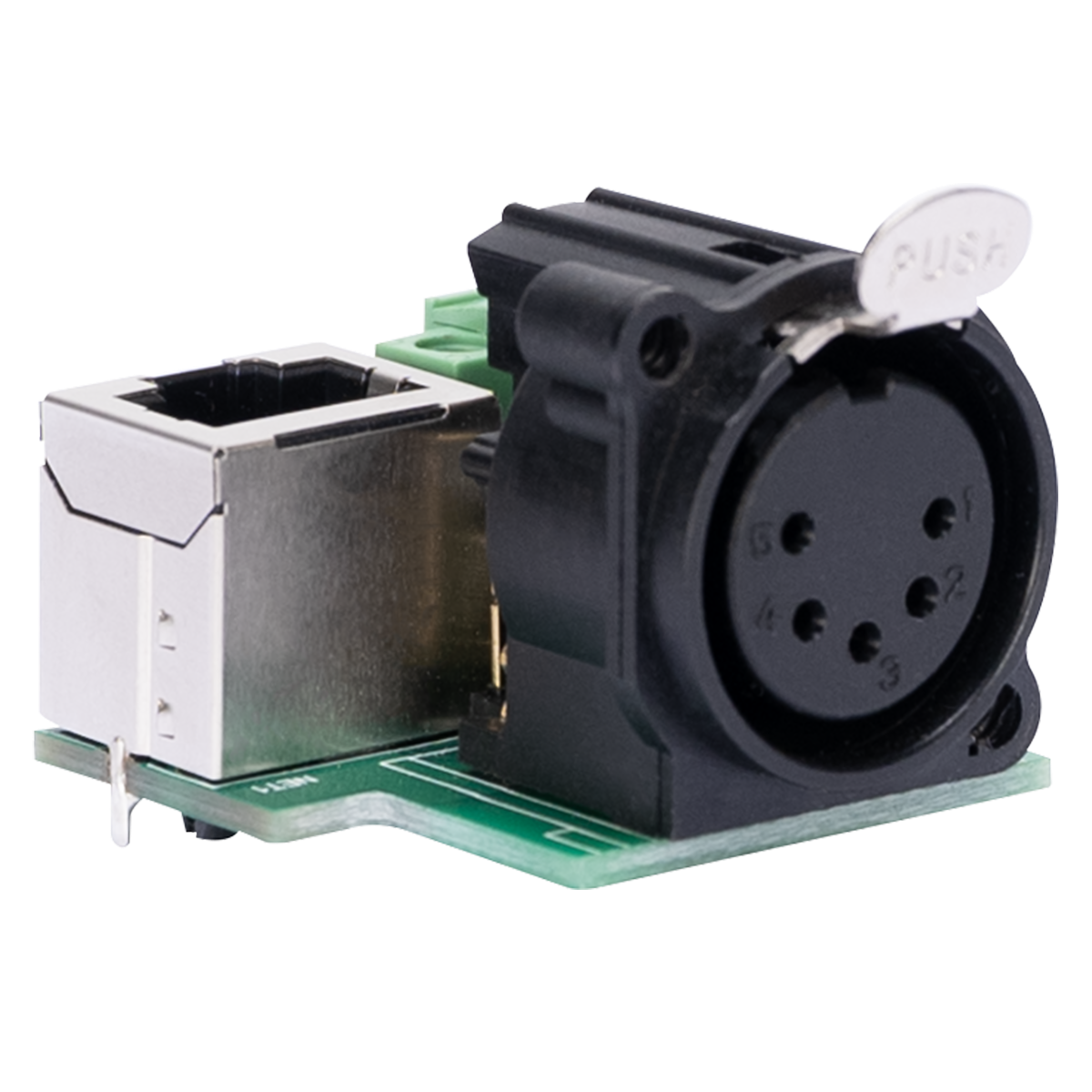

The Netron PCB5P provides a standard D-Size DMX Output connector on a small PCB. 3 pin Phoenix, 3 pin IDC and RJ45 ESTA compliant DMX input are all provided to offer the most flexibility to system integrators.

Useful for custom wall plates or other custom integration, it is ideally suited to work with the Netron Net Plate which provides 14 pre-machined positions.

Key Features:

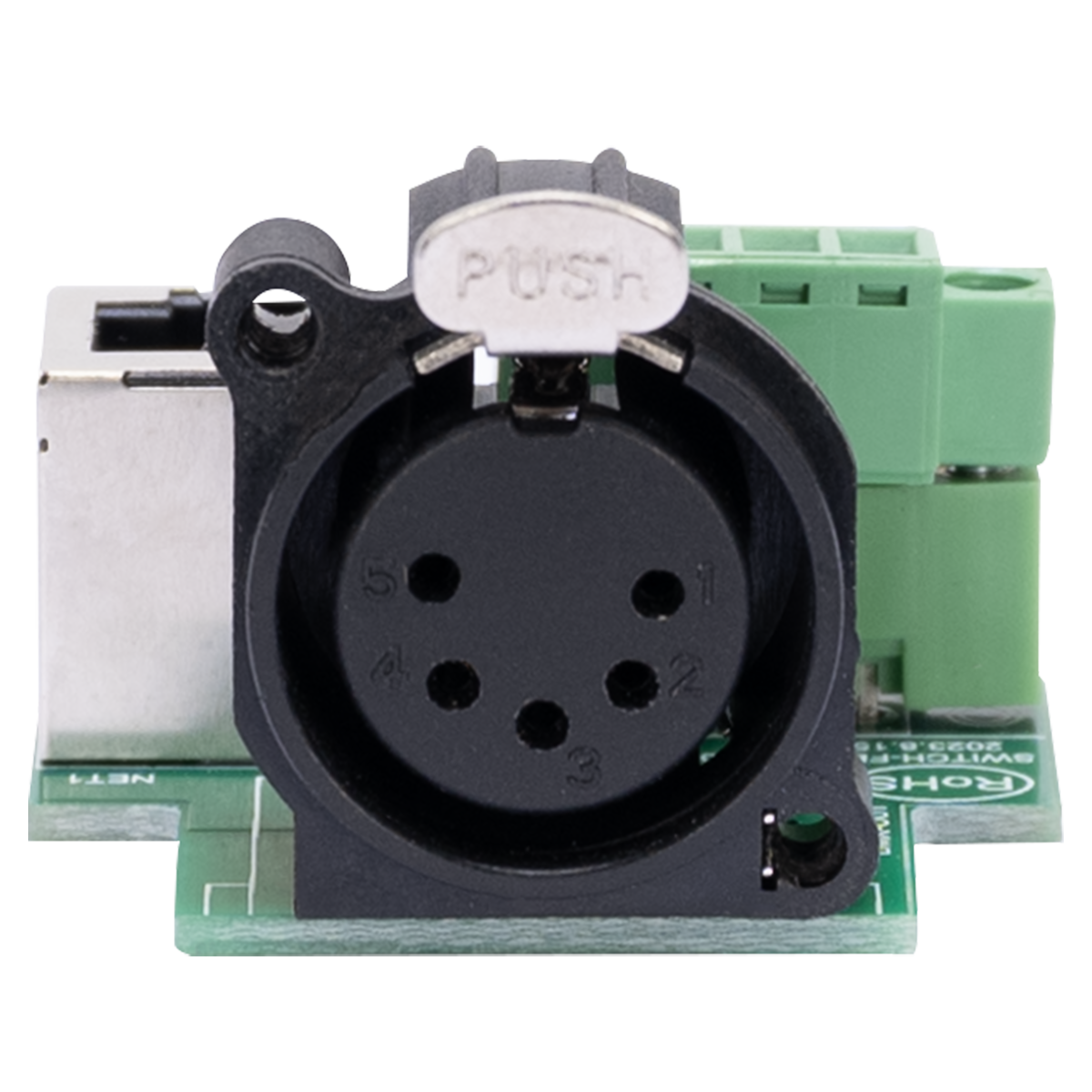

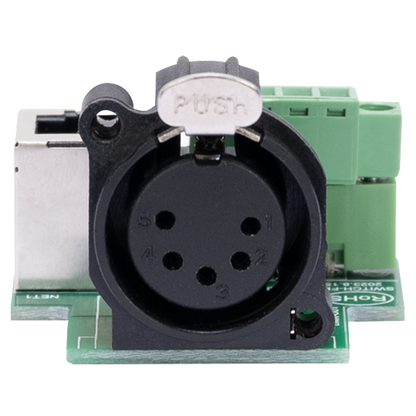

• D-Size 5 pin DMX Output connector

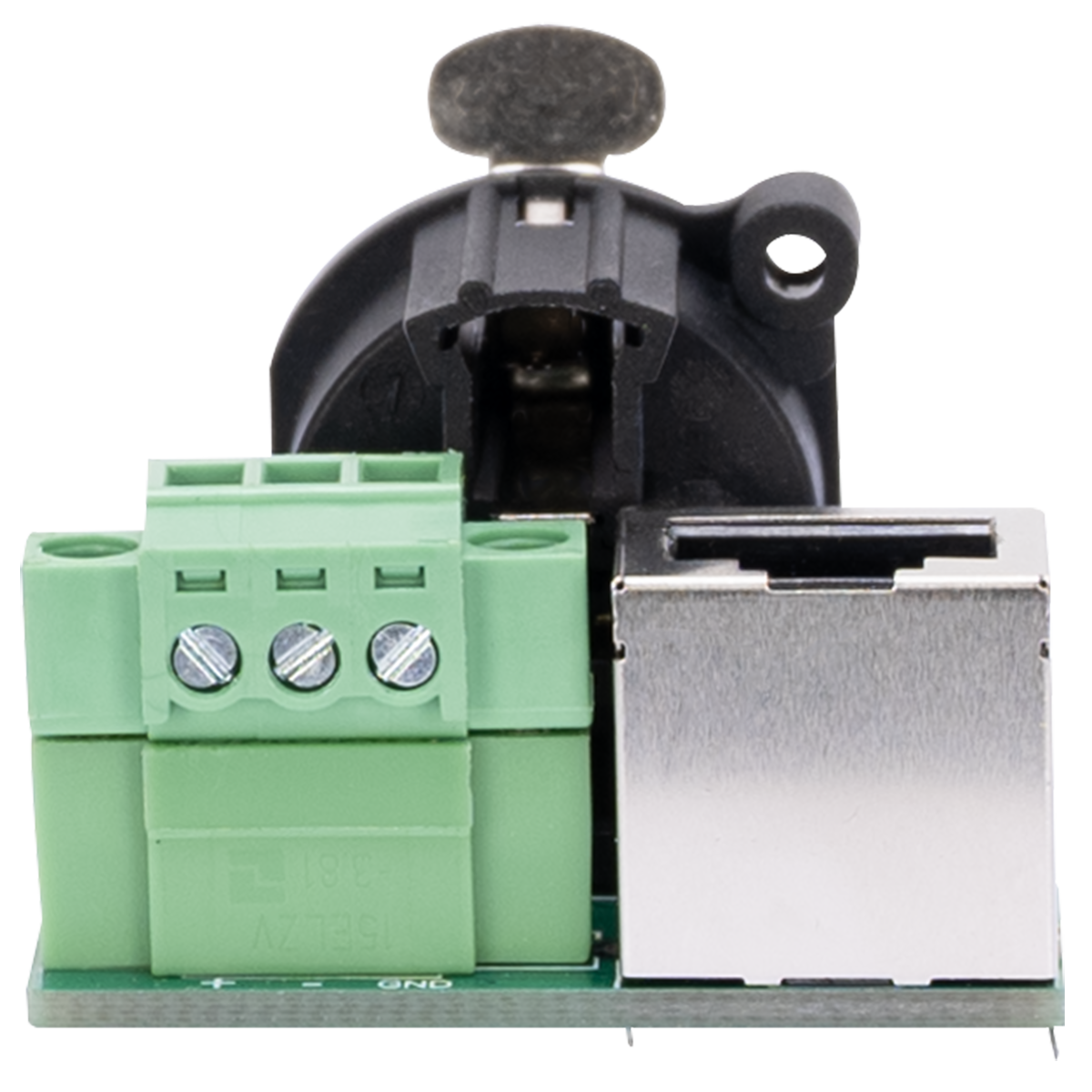

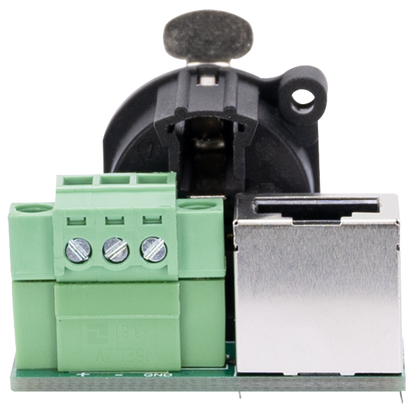

• Terminal and RJ45 DMX input

Connections:

• (1) 5pin DMX Out
• (1) Terminal Block
• (1) RJ45 DMX

Dimensions:

• Length: 1.02 in. (26mm)
• Width: 1.64 in. (34.8mm)
• Height: 1.22 in. (31mm)

Approvals / Ratings

• CE / CETLUS / UKCA / IP20

Included Items:

• (1) Screw Terminal with security screws
• (1) IDC Connector with security screws
