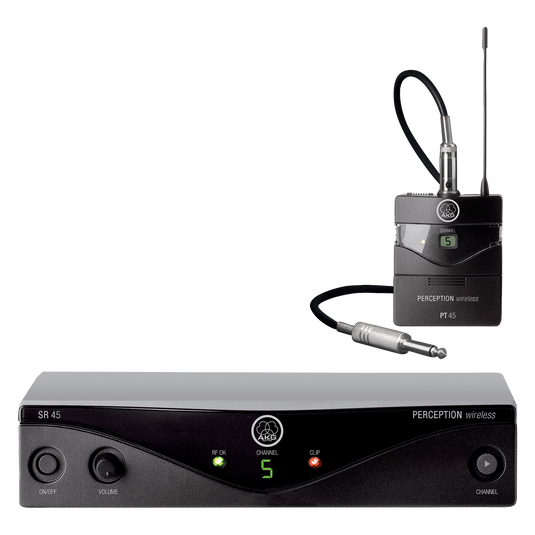

Perception Wireless 45 Instr Set BD A

A professional UHF wireless instrument system featuring the SR45 receiver and PT45 bodypack transmitter, delivering reliable wireless audio for guitars, bass, and instruments with easy setup and up to 30 m operating range.

From The Manufacturer:

The AKG Perception Wireless 45 Instrumental Set Band-A is a high-performance wireless system designed for instruments such as electric guitar and bass. The system includes the compact PT45 bodypack transmitter, one of the smallest transmitters in its class, and the SR45 stationary receiver with professional XLR and 1/4″ outputs.

It provides dependable UHF wireless performance with a 30 MHz tuning bandwidth and selectable frequencies, making it suitable for small multi-channel systems. The transmitter uses a professional 3-pin mini-XLR connector and works with the included guitar cable or compatible AKG miniature microphones.

Features:

• Complete wireless instrument system for guitar or bass

• SR45 stationary receiver with XLR and 1/4″ outputs

• PT45 bodypack transmitter with mini-XLR connector

• 30 MHz selection bandwidth with multiple selectable frequencies

• Auto-setup mode for quick configuration

• Up to 8–14 hours battery life from a single AA battery

• 30 m wireless operating range

• Compatible with AKG miniature microphones or instrument cables

Specification:

• Wireless System

• Carrier Frequency Range: 500 – 865 MHz

• Frequency Band (BD-A): 530.025 – 559 MHz

• Modulation: FM

• Audio Bandwidth: 40 Hz – 20 kHz

• Signal-to-Noise Ratio: 105 dB(A)

• THD: 0.8 % (typ.)

• RF Output Power: 10 mW

• Receiver (SR45)

• Outputs: Balanced XLR and 1/4″ TS jack

• Power Supply: External adapter

• Dimensions: 200 × 190 × 44 mm

• Weight: ≈360 g

• Transmitter (PT45)

• Connector: 3-pin mini-XLR

• Power: 1 × AA battery

• Battery Life: 8–14 hours

Included

• SR45 Receiver

• PT45 Bodypack Transmitter

• MKG-L Instrument Cable

• Universal Power Supply
