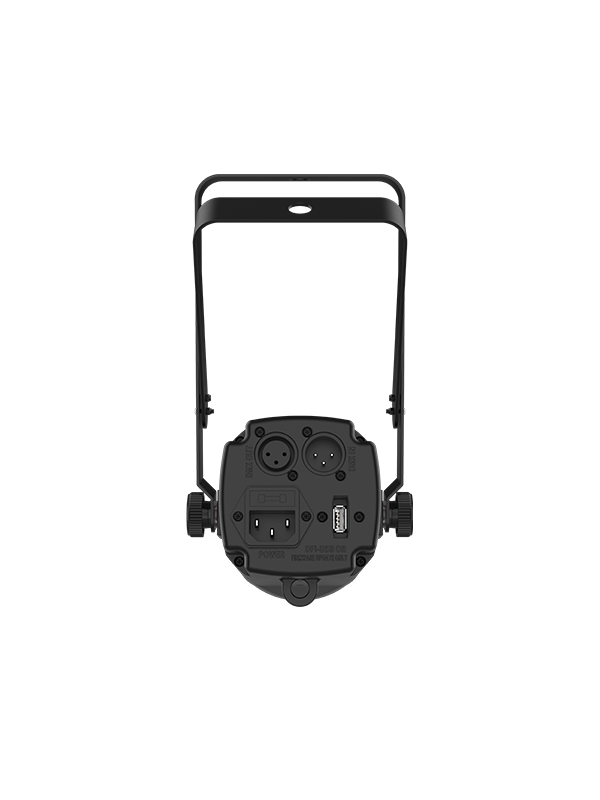

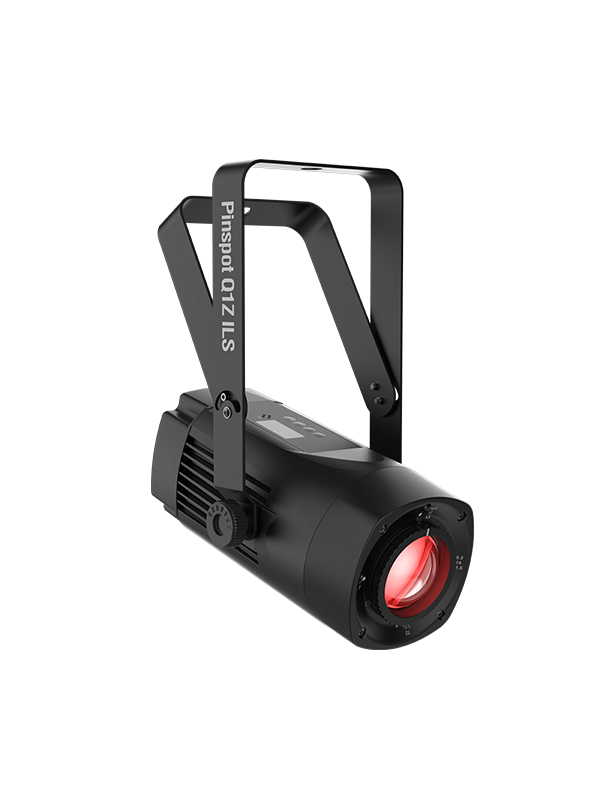

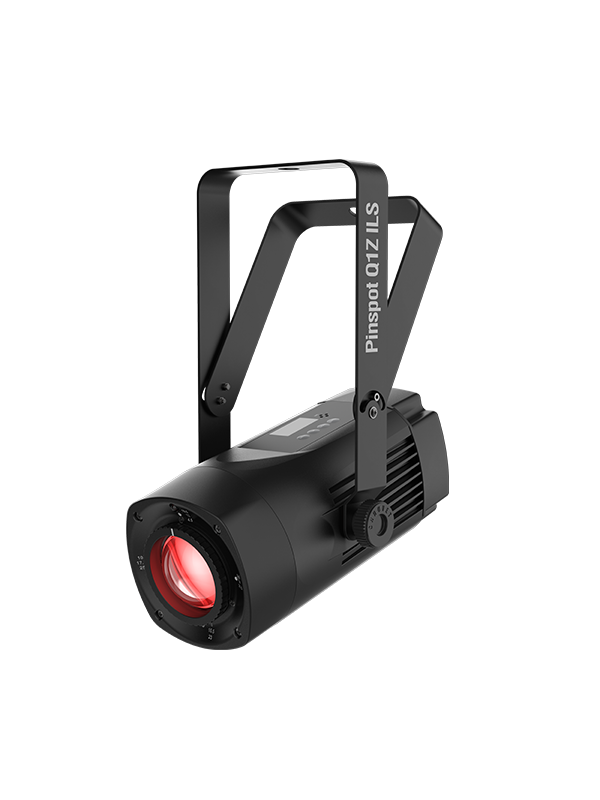

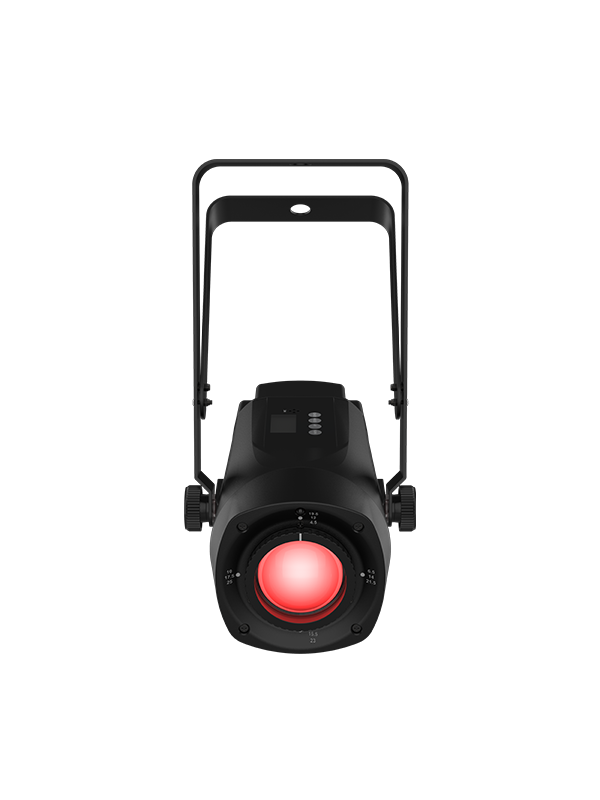

Pinspot Q1Z ILS

The PinSpot Q1Z ILS is a compact 20-watt quad-color (RGBW) LED pinspot. It is easy to control with the IRC-6 remote and is a great option for production companies who are on the move to be used on smaller and medium sized stages.

From the manufacturer:

PinSpot Q1Z ILS is a compact 20-watt quad-color (RGBW) LED pinspot fixture with easy menu navigation from the OLED display. ILS compatibility makes creating coordinated light shows with this unit and different fixture types as easy as 1, 2, 3. Its manual zoom brings versatility to both short and long throw applications. Conveniently control this easy-to-use fixture with the IRC-6 remote, or your chosen ILS leader such as the ILS Command.

Specification:

• DMX Channels: 4, 6, or 7

• DMX Connectors: 3-pin XLR

• Light Source: 1 LED (quad-color RGBW) 20 W, (5.3A), 50,000 hours life expectancy

• Strobe Rate: 0 to 33 Hz

• Zoom Angle: 5° to 25°

• Lumens: 617

• Approvals: CE, UKCA, ROHS

• Power and Current:

• 9 W, .3 A @ 120 V, 60 Hz

• 20 W, .2 A @ 230 V, 50 Hz

• Optional Controllers: IRC6, ILS COMMAND

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

• Bracket Mounting Hole: M12

• Illuminance: (narrow): 4,081 lux @ 2 m

• Illuminance: (Wide): 623 lux @ 2 m

Dimensions:

• Size: 12.1 x 3.5 x 8.5 in (308 x 89 x 217 mm)

Weight:

• 3 lb (1.36 kg)

What’s Included:

• Pinspot Q1Z ILS

• Power cord

• Quick Reference Guide
