Pixel Strip 60LED/m RGB 5V or 12V

The ENTTEC LED Pixel Strip is a professionally-designed, individually-addressable pixel strip available in three voltage variants for professional architectural and entertainment installations.

Packaging Options

All variants are sold as 5-meter rolls and are available with either a black or white PCB. Select the variant that best suits your project's voltage requirements and PCB color preference:

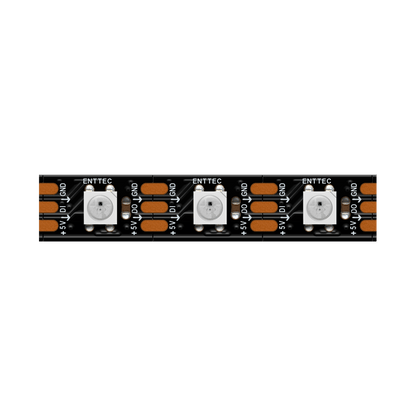

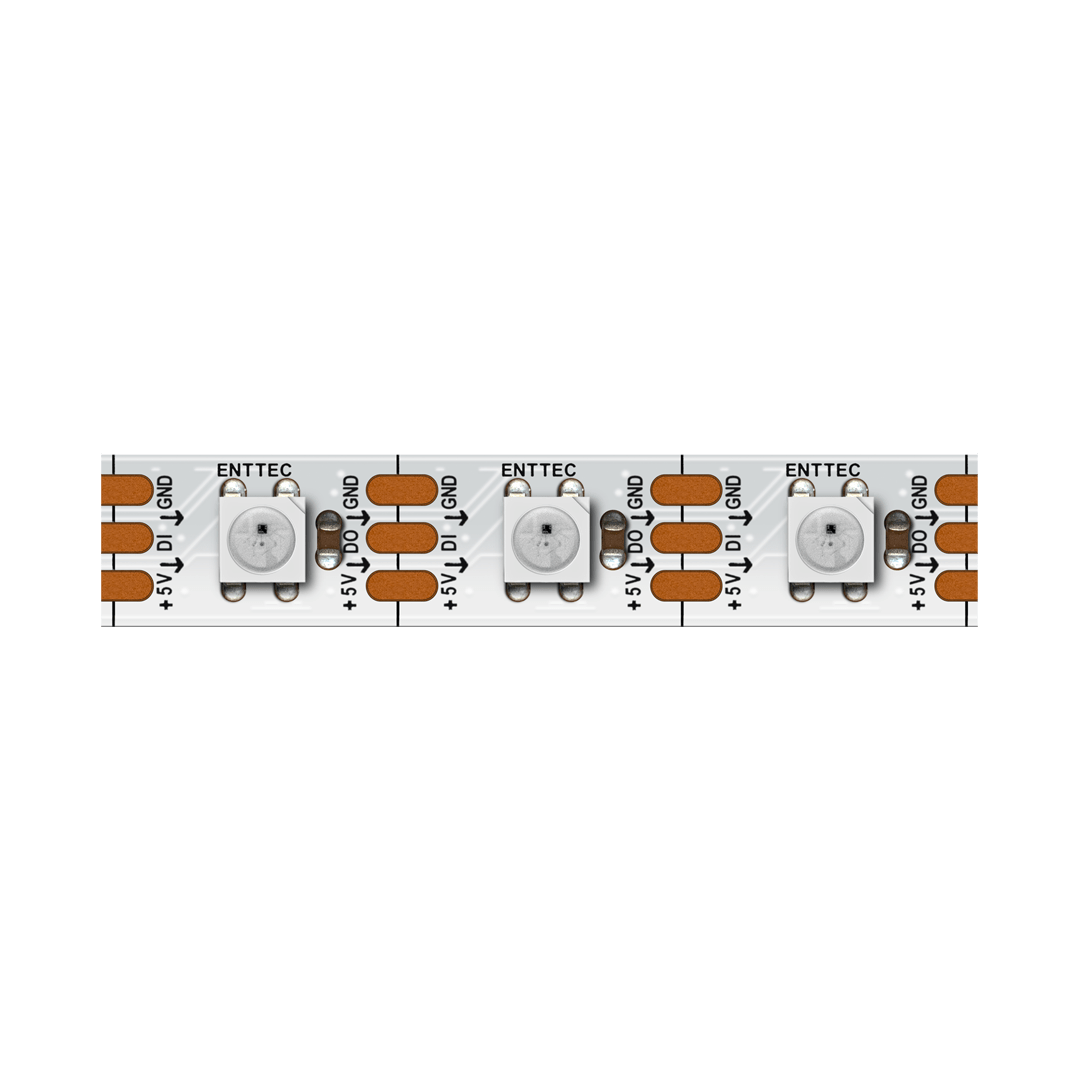

• 5V RGB (SKU: 8PXA60-RGB-5V) — Black or White PCB: 60 RGB pixels/m, SK6812 IC (WS2811-compatible), 10.5W/m max, 259.4 lm/m

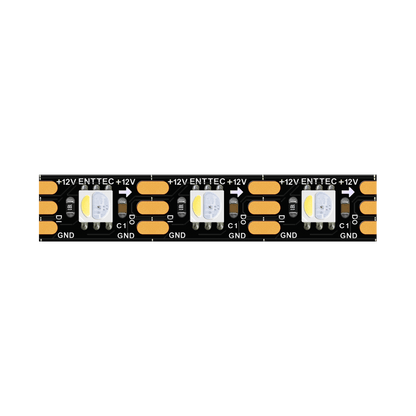

• 12V RGB (SKU: 8PXA60-RGB-12V) — Black or White PCB: 60 RGB pixels/m, SK6813 IC (WS2812/GS8208B-compatible), backup data line, 7.2W/m max, 188.2 lm/m

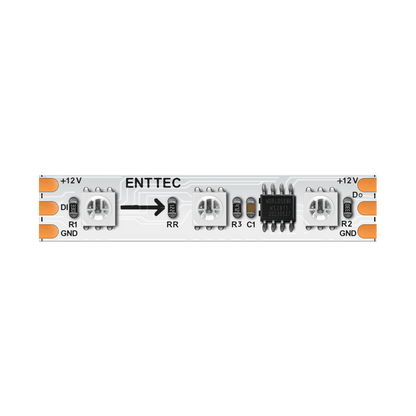

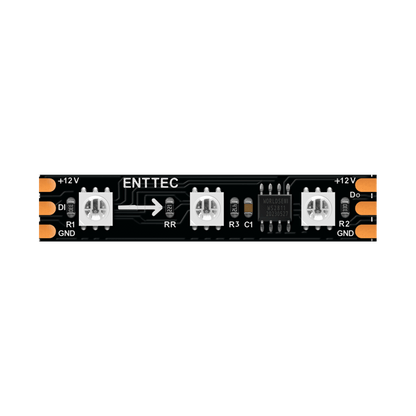

• 12V RGB Long Range (SKU: 8PXB60-RGB-12V) — Black or White PCB: 60 RGB LEDs/m grouped as 20 pixels/m (3 SMD chips per pixel), WS2811 IC, 10.5W/m max, 188.2 lm/m — optimized for controlling longer runs with fewer DMX channels

From the Manufacturer

ENTTEC's LED pixel strip series are professionally-designed, addressable RGB LED pixel strips built for architectural and entertainment installations of any scale. Whether you need soft pastels or fully saturated colors, each strip delivers consistent brightness and an extended color gamut across every pixel. Designed by ENTTEC in Australia, these strips feature superior thickened copper tracks to reduce the effects of voltage drop and maintain even intensity along the full length of the run.

All variants can be joined together, cut to length, and operated from up to 300m away using the ENTTEC PLink system. Choose a black PCB to minimize external light reflection and conceal your installation's workings, or a white PCB for a clean, polished look. These strips are recommended for indoor use only.

Features

• 60 LEDs per meter — each individually addressable for pixel-level control
• Available in 5V RGB, 12V RGB, and 12V RGB Long Range variants — choose the right voltage for your project
• 12V RGB variant features SK6813 IC with a backup data line for improved reliability
• 12V Long Range variant groups 3 SMD chips per pixel (20 pixels/m), tripling output capacity for controlling longer setups with fewer DMX channels
• 24-bit True Color per pixel (16,777,216 possible colors)
• Superior thickened copper tracks reduce voltage drop for more even intensity along the strip

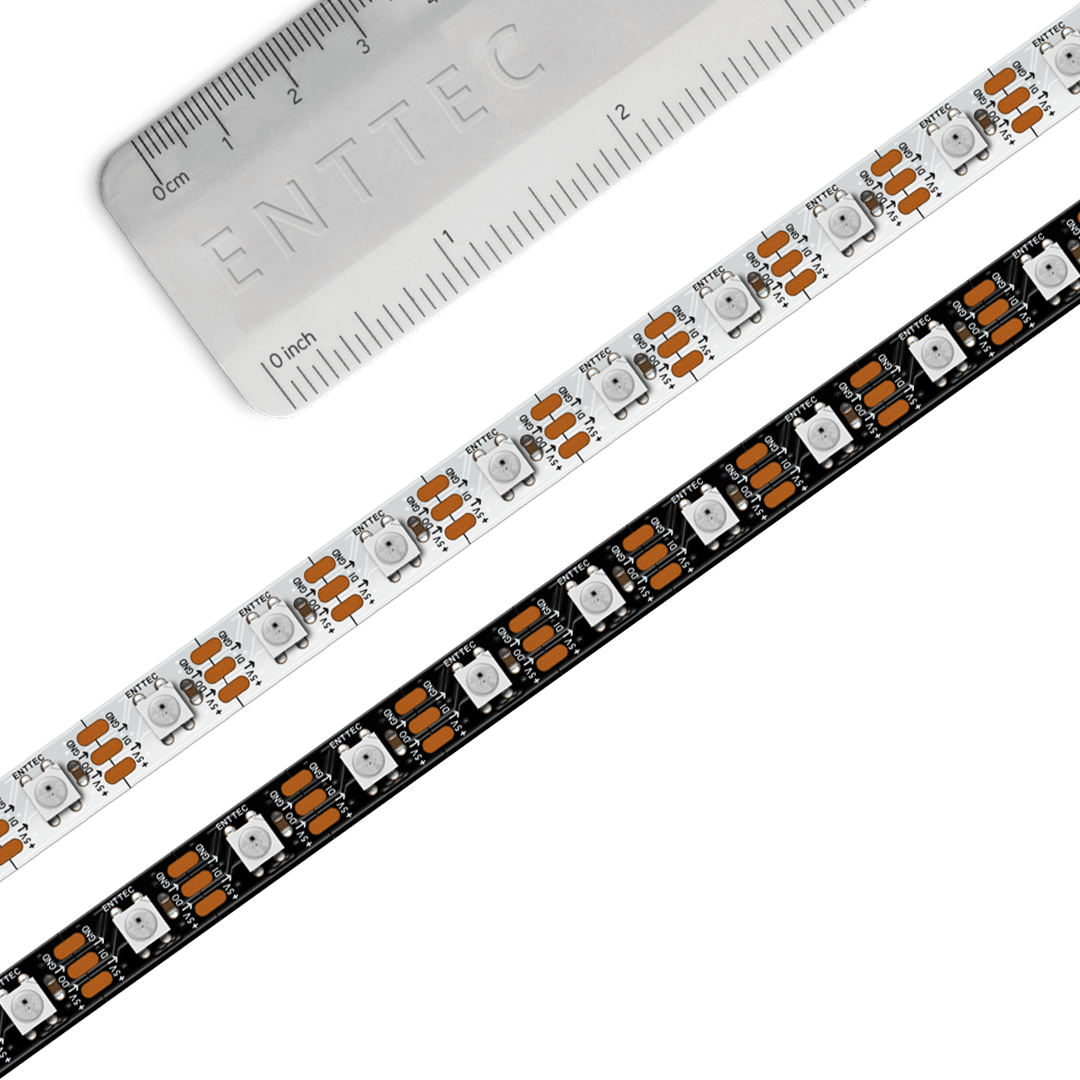

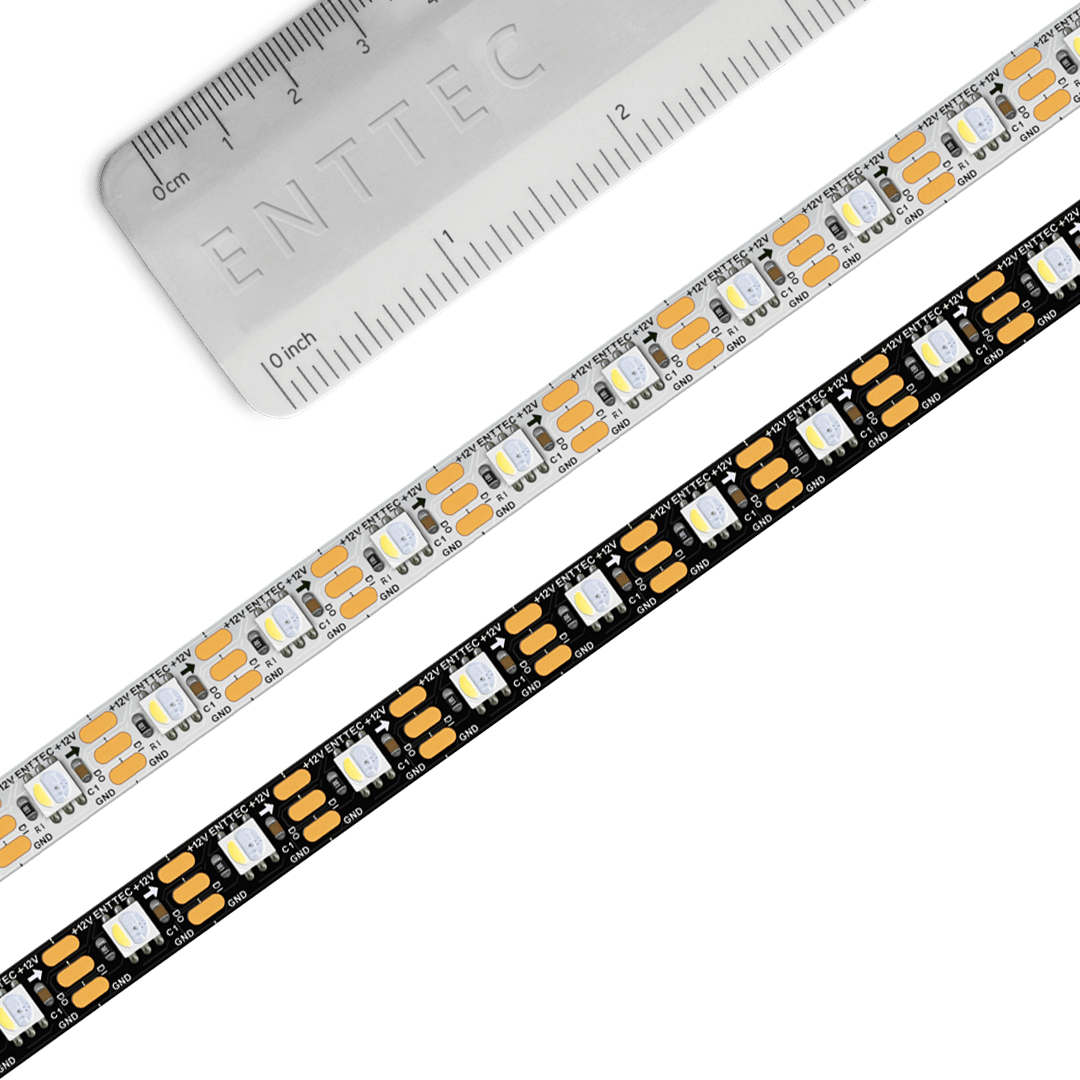

• Available with black or white PCB — black minimizes light reflection; white delivers a clean, finished look
• Cut to any length or join multiple rolls together for larger installations
• Compatible with the ENTTEC PLink system for operation up to 300m from the controller
• 120° beam angle
• IP20 rated — recommended for indoor use
• 1-year return to base manufacturer warranty
• Recommended use: Architectural lighting, entertainment installations, stage and theatrical lighting, pixel mapping, large-scale color effects

Specifications

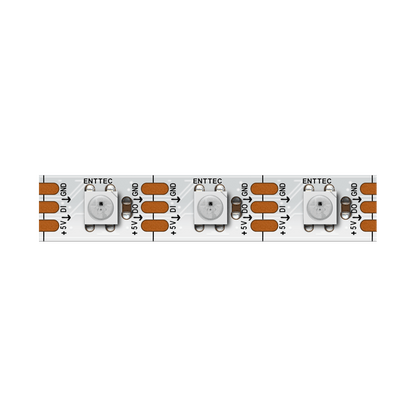

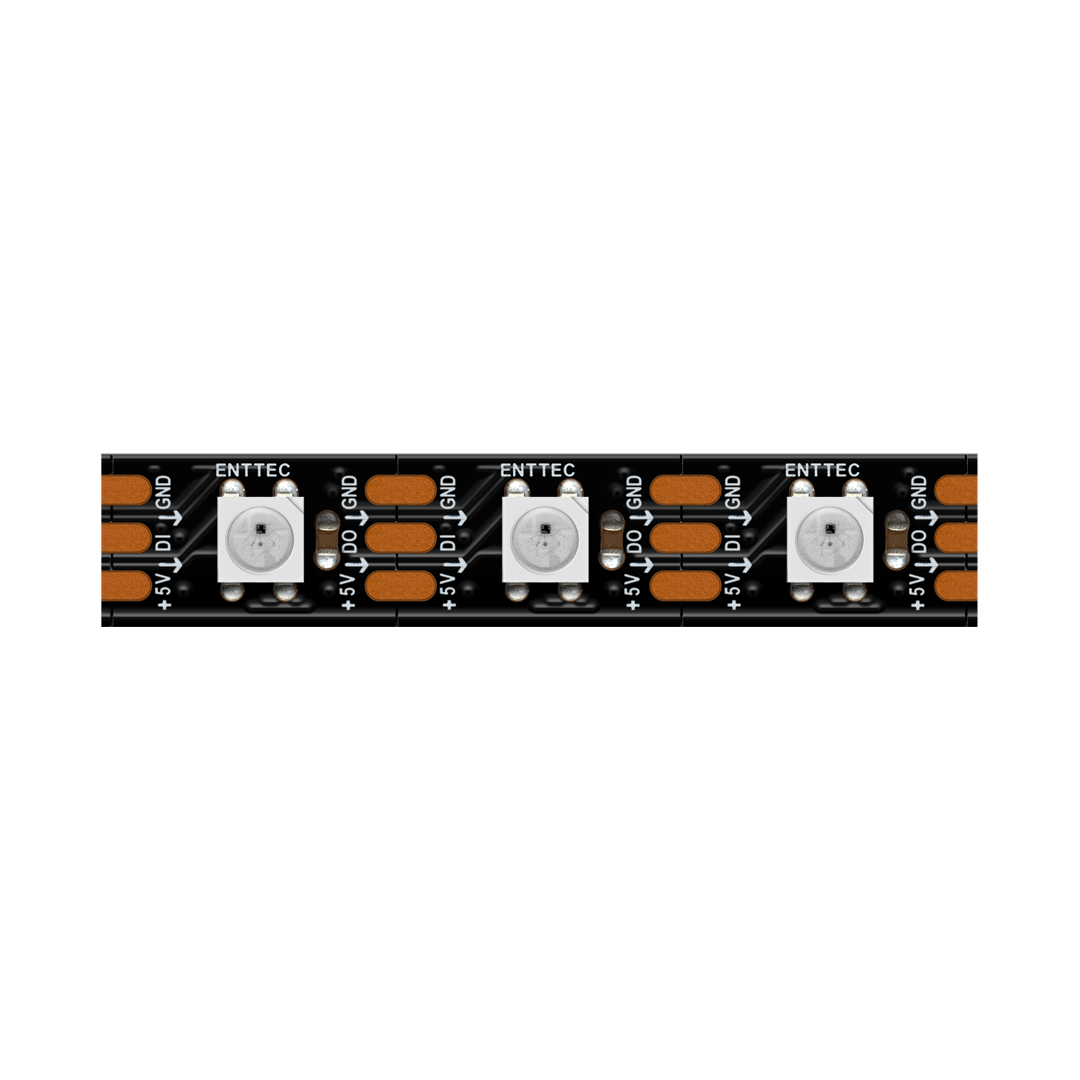

5V RGB (8PXA60-RGB-5V)

• Input Voltage: 5V
• Color Channels: RGB
• Max. Watts per Meter: 10.5W
• Lumens per Meter: 259.4 lm
• Efficacy: 24.7 lm/W
• Control Protocol: SK6812 IC chips (compatible with WS2811 protocol)
• DMX Channels per Pixel: 3
• Pixel Mapping Order: GRB
• Backup Data Line: No
• Connectors: 2 x 3-pin JST SM connectors (3A Max)
• Beam Angle: 120°
• PCB Color: Black or white
• Min. Bend Radius: 30mm / 1.2"
• Spacing Between Cuttable Sections: 16.6mm / 0.66"
• IP Rating: IP20
• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 5–95% (non-condensing)
• Weight (5m roll): 0.115 kg / 0.254 lbs
• Dimensions (5m roll): 240 x 215 x 16mm / 9.45 x 8.47 x 0.63"
• Shipping Weight (5-roll carton): 0.80 kg / 1.76 lbs
• Shipping Dimensions (5-roll carton): 260 x 225 x 93mm / 10.24 x 10.04 x 3.66"
• Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 1-year return to base manufacturer warranty

12V RGB (8PXA60-RGB-12V)

• Input Voltage: 12V
• Color Channels: RGB
• Max. Watts per Meter: 7.2W
• Lumens per Meter: 188.2 lm
• Efficacy: 26.14 lm/W
• Control Protocol: SK6813 (compatible with WS2812 and GS8208B protocol)
• DMX Channels per Pixel: 3
• Pixel Mapping Order: RGB
• Backup Data Line: Yes
• Connectors: 2 x 4-pin JST SM connectors (3A Max)
• Beam Angle: 120°
• PCB Color: Black or white
• PCB Width: 10mm / 0.40"
• Min. Bend Radius: 30mm / 1.2"
• Spacing Between Cuttable Sections: 16.6mm / 0.66"
• IP Rating: IP20
• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 5–95% (non-condensing)
• Weight (5m roll): 0.18 kg / 0.40 lbs
• Dimensions (5m roll): 240 x 215 x 16mm / 9.45 x 8.47 x 0.63"
• Shipping Weight (5-roll carton): 0.80 kg / 1.76 lbs
• Shipping Dimensions (5-roll carton): 260 x 225 x 93mm / 10.24 x 10.04 x 3.66"
• Compliance: UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 1-year return to base manufacturer warranty

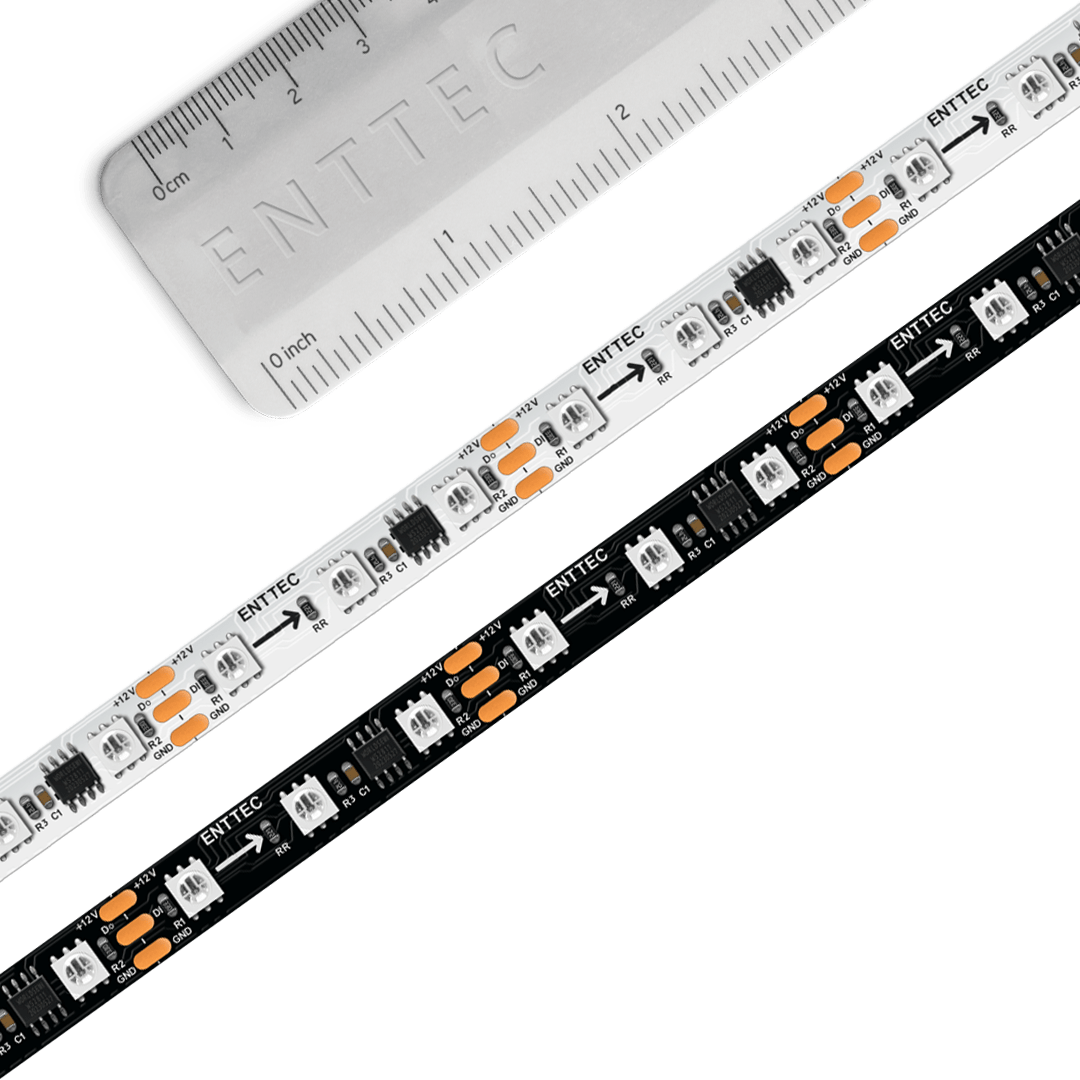

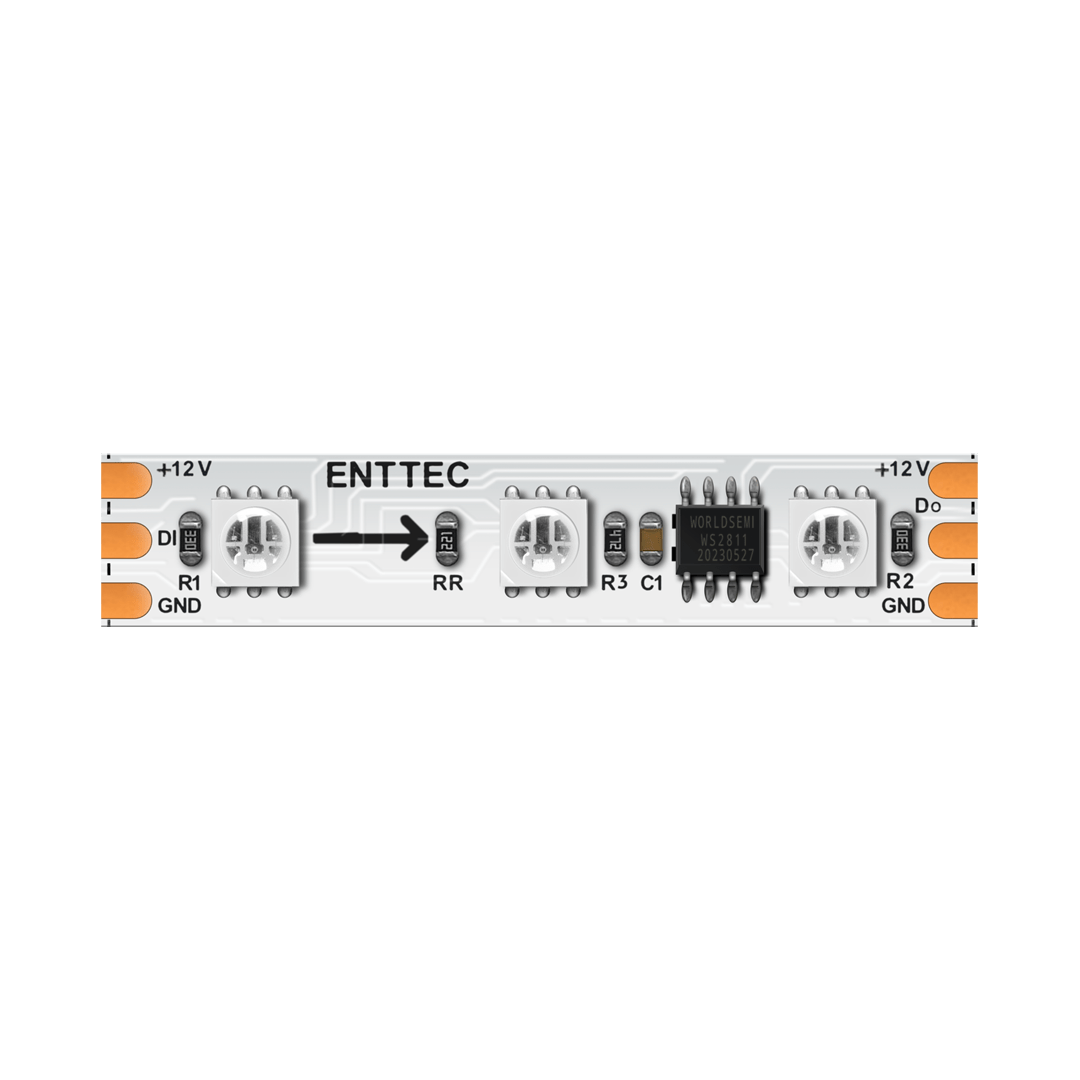

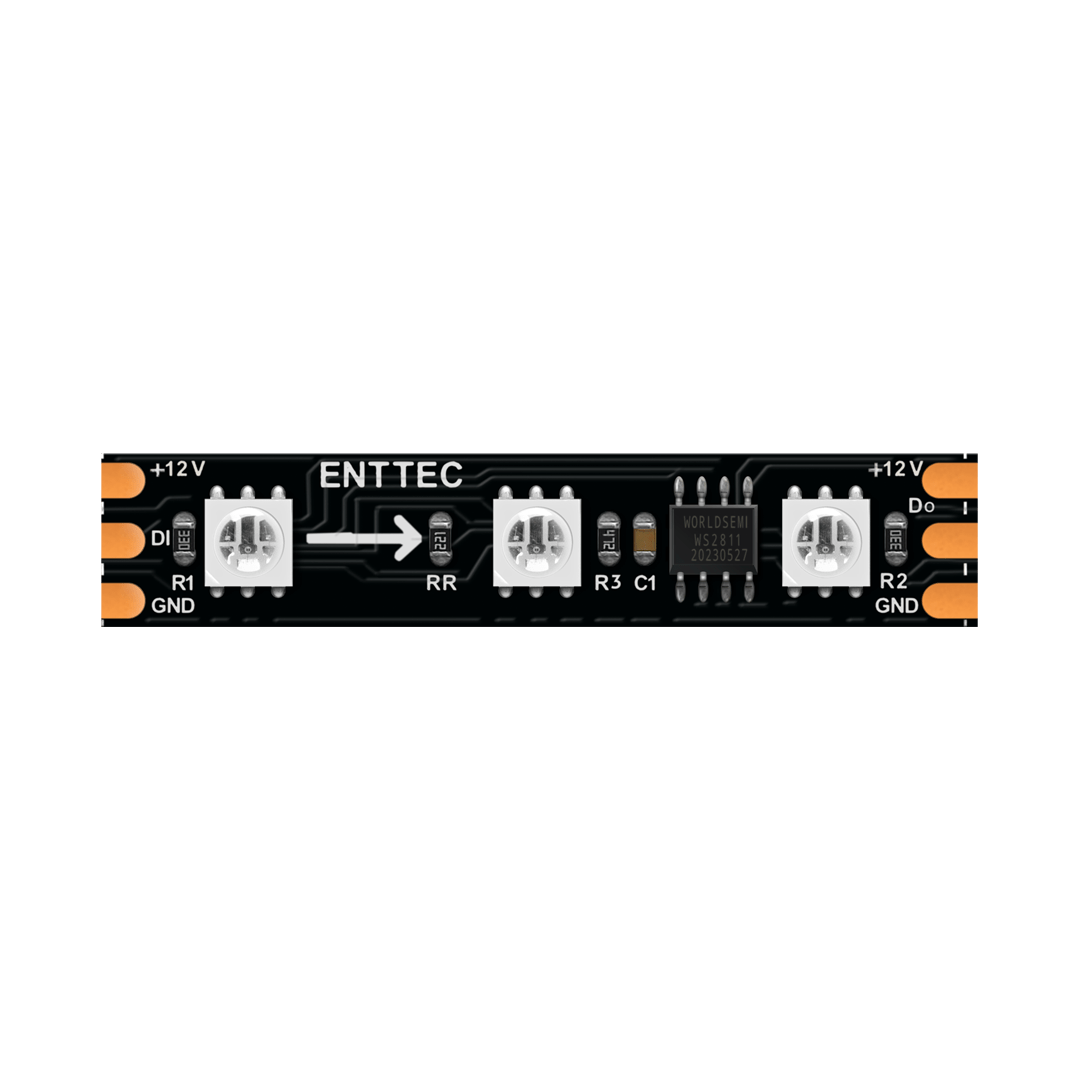

12V RGB Long Range (8PXB60-RGB-12V)

• Input Voltage: 12V
• Color Channels: RGB
• Max. Watts per Meter: 10.5W
• Lumens per Meter: 188.2 lm
• Efficacy: 34.66 lm/W
• Control Protocol: WS2811
• DMX Channels per Pixel: 3
• Pixel Mapping Order: RGB
• Pixels per Meter: 20 (3 SMD chips per pixel)
• Backup Data Line: No
• Connectors: 2 x 3-pin JST SM connectors (3A Max)
• Beam Angle: 120°
• PCB Color: Black or white
• PCB Width: 10mm / 0.40"
• Min. Bend Radius: 30mm / 1.2"
• Spacing Between Cuttable Sections: 50mm / 1.98"
• IP Rating: IP20
• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 5–95% (non-condensing)
• Weight (5m roll): 0.18 kg / 0.40 lbs
• Dimensions (5m roll): 240 x 215 x 16mm / 9.45 x 8.47 x 0.63"
• Shipping Weight (5-roll carton): 0.80 kg / 1.76 lbs
• Shipping Dimensions (5-roll carton): 260 x 225 x 93mm / 10.24 x 10.04 x 3.66"
• Compliance: UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 1-year return to base manufacturer warranty
