Sku:
8PXA60-RGBW-5V-B
Pixel Strip 60LED/m RGBW 5V/12V
Regular price
$188.00
Regular price
Sale price
$188.00
Unit price
per
Shipping calculated at checkout.
Vendor:
ENTTEC
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The ENTTEC RGBW LED Pixel Strip is a professionally-designed, individually-addressable RGBW pixel strip available in three voltage variants for professional architectural and entertainment installations.
Packaging Options
All variants are sold as 5-meter rolls and are available with either a black or white PCB. Select the variant that best suits your project's voltage requirements and PCB color preference:

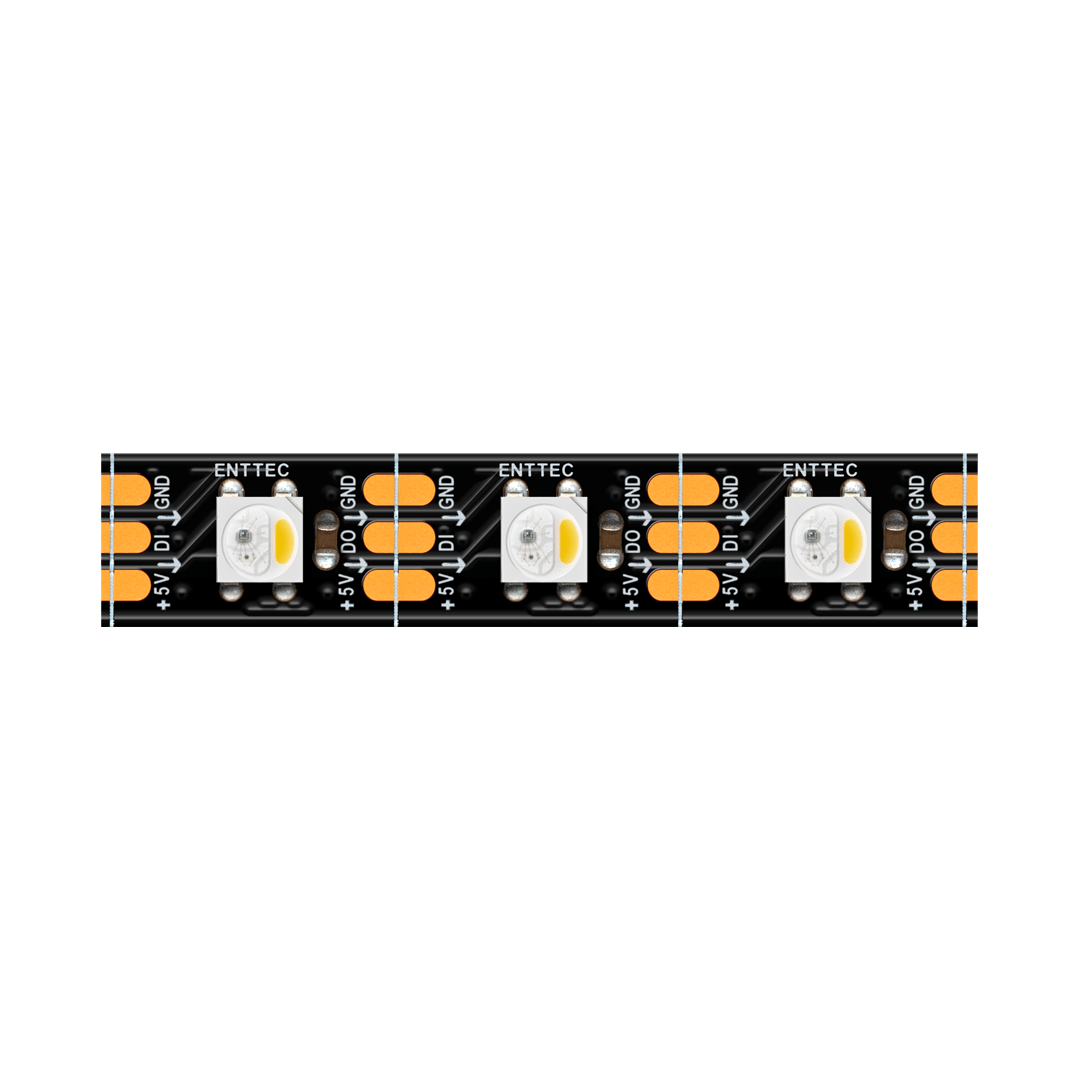

- 5V RGBW (SKU: 8PXA60-RGBW-5V) — Black or White PCB: 60 RGBW pixels/m, SK6812 IC (WS2811-compatible), 4000K white, 11.9W/m max, 588.8 lm/m

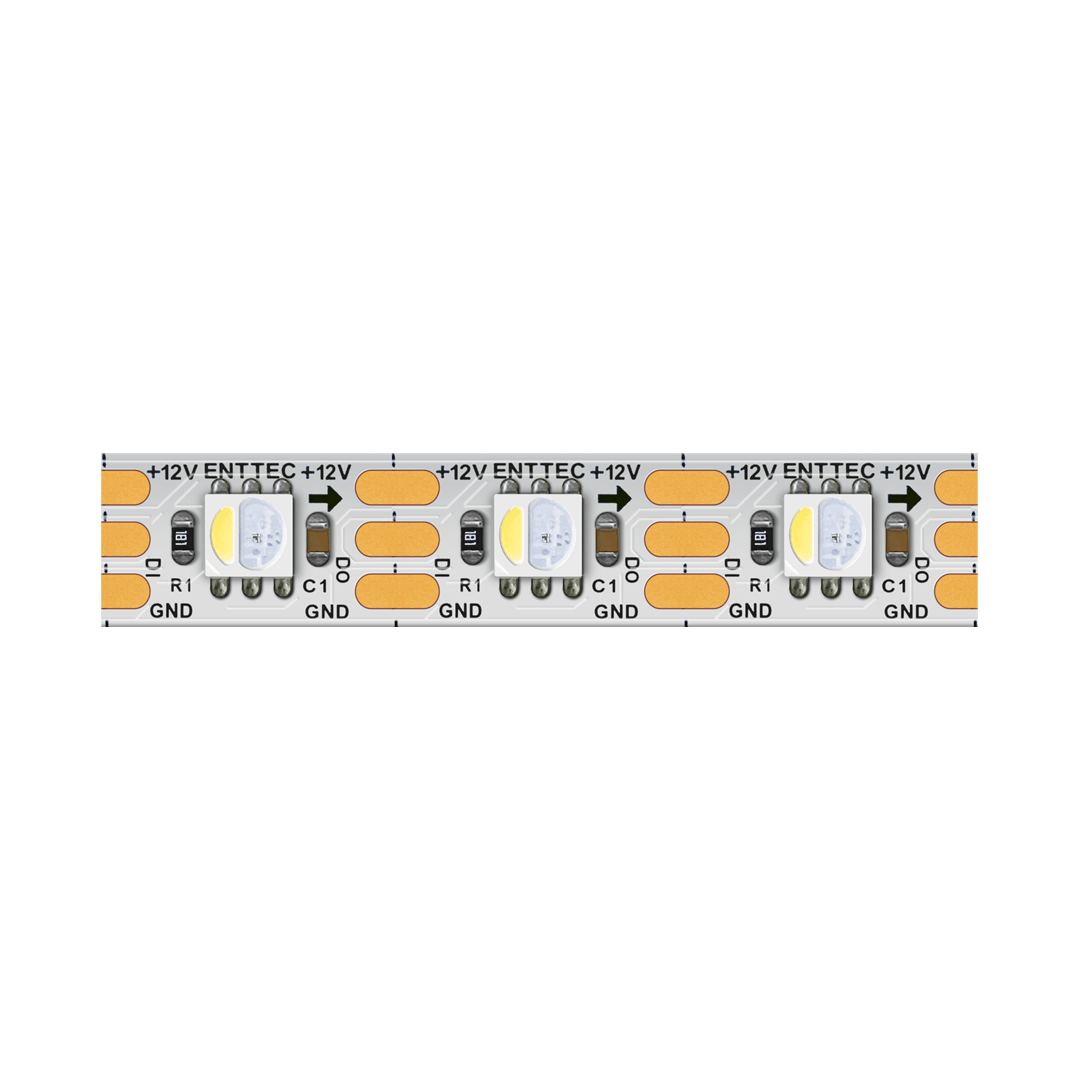

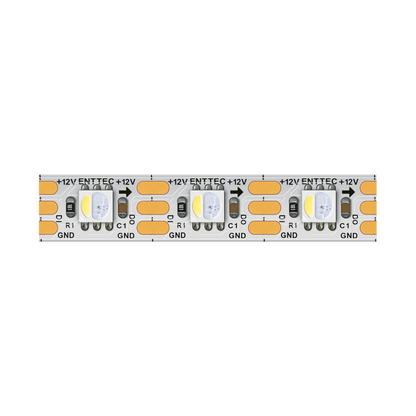

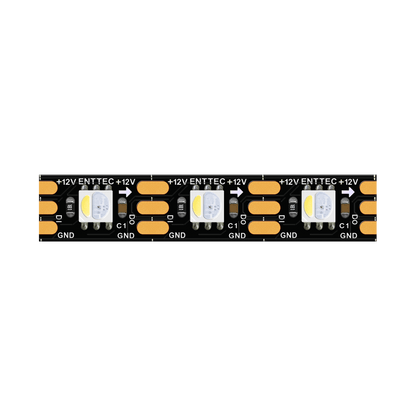

- 12V RGBW (SKU: 8PXA60-RGBW-12V) — Black or White PCB: 60 RGBW pixels/m, SK6805 IC (SK6812-compatible), 21.8W/m max, 1,088 lm/m

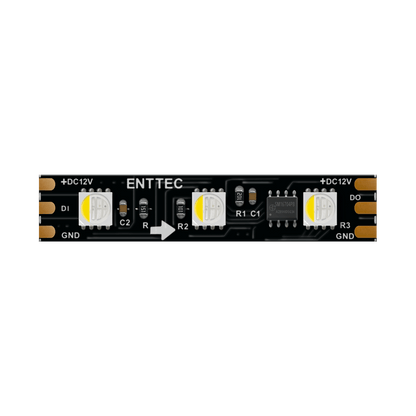

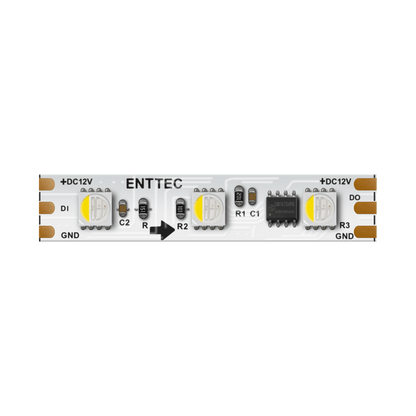

- 12V RGBW Long Range (SKU: 8PXB60-RGBW-12V) — Black or White PCB: 60 RGBW LEDs/m grouped as 20 pixels/m (3 SMD chips per pixel), SM16704 IC (UCS2904-compatible), 17.64W/m max, 655.6 lm/m — optimized for controlling longer runs with fewer DMX channels
From the Manufacturer
ENTTEC's RGBW LED pixel strip series are professionally-designed, addressable RGBW LED pixel strips built for architectural and entertainment installations of any scale. The addition of a dedicated white channel alongside red, green, and blue delivers richer pastels, cleaner whites, and a broader color gamut compared to RGB-only strips. Designed by ENTTEC in Australia, these strips feature superior thickened copper tracks to reduce the effects of voltage drop and maintain even intensity along the full length of the run.
All variants can be joined together, cut to length, and operated from up to 300m away using the ENTTEC PLink system. Choose a black PCB to minimize external light reflection and conceal your installation's workings, or a white PCB for a clean, polished look. These strips are recommended for indoor use only.
Features
- 60 LEDs per meter — each individually addressable for pixel-level control
- RGBW color mixing — dedicated white channel enables cleaner whites and richer pastel tones
- Available in 5V RGBW, 12V RGBW, and 12V RGBW Long Range variants — choose the right voltage for your project
- 12V Long Range variant groups 3 SMD chips per pixel (20 pixels/m), tripling output capacity for controlling longer setups with fewer DMX channels
- 32-bit True Color per pixel (4,294,967,296 possible colors)
- Superior thickened copper tracks reduce voltage drop for more even intensity along the strip

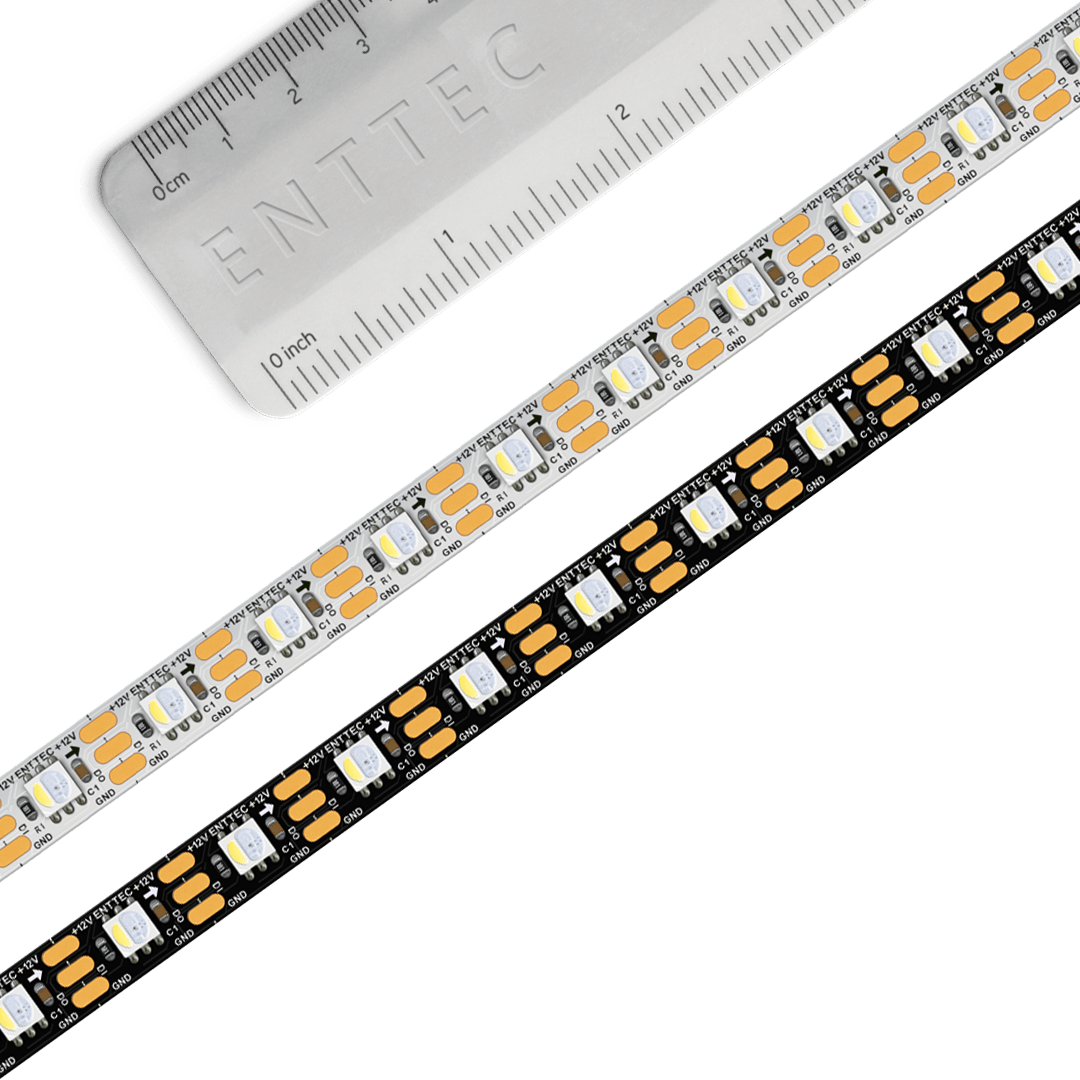

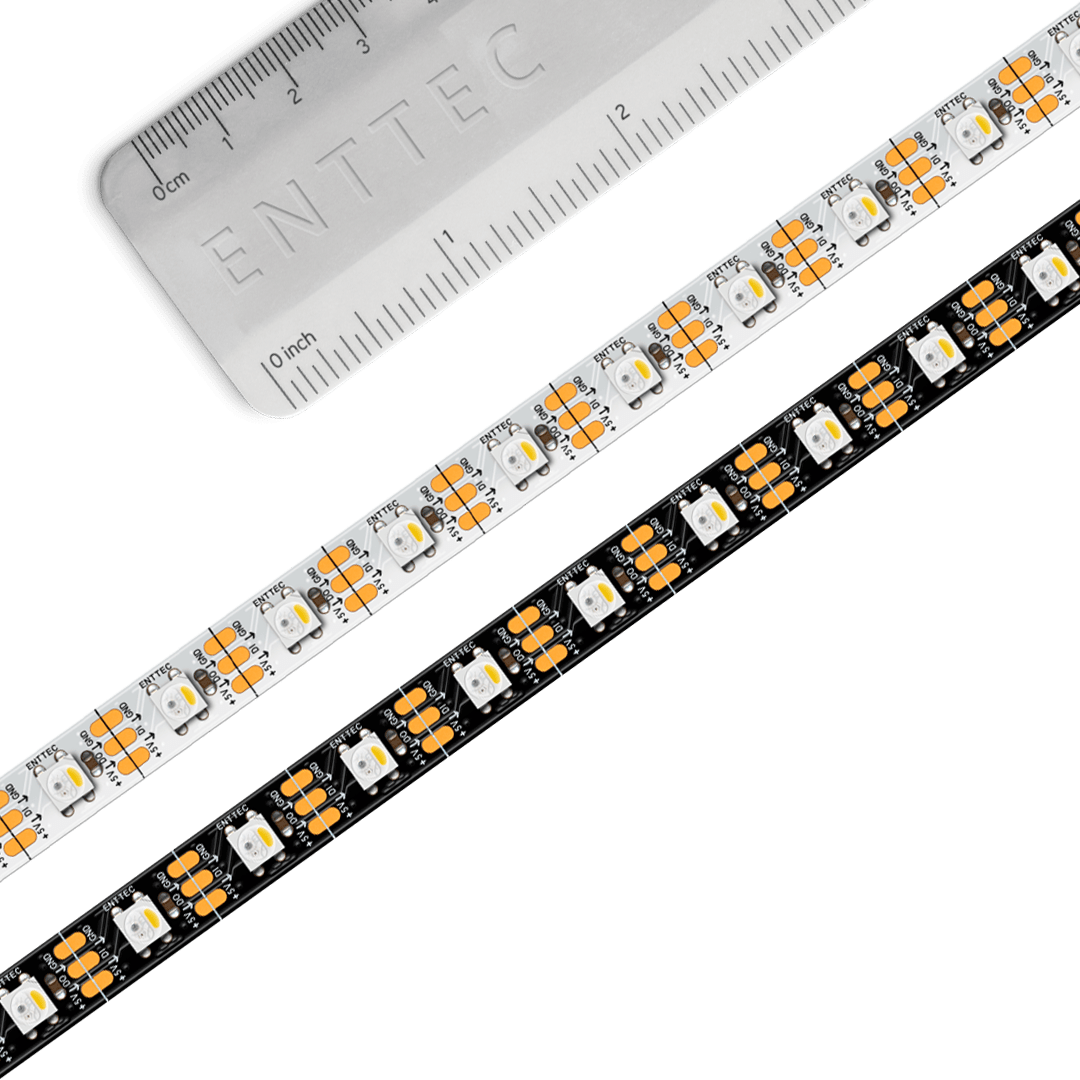

- Available with black or white PCB — black minimizes light reflection; white delivers a clean, finished look
- Cut to any length or join multiple rolls together for larger installations
- Compatible with the ENTTEC PLink system for operation up to 300m from the controller
- 120° beam angle
- IP20 rated — recommended for indoor use
- 1-year return to base manufacturer warranty
- Recommended use: Architectural lighting, entertainment installations, stage and theatrical lighting, pixel mapping, large-scale color effects
Specifications

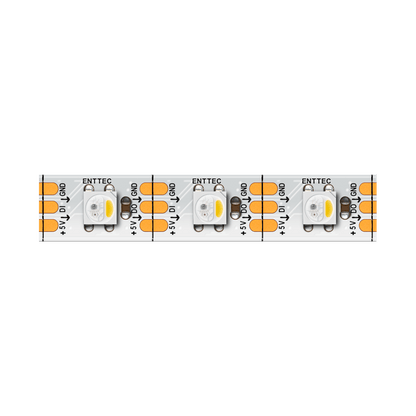

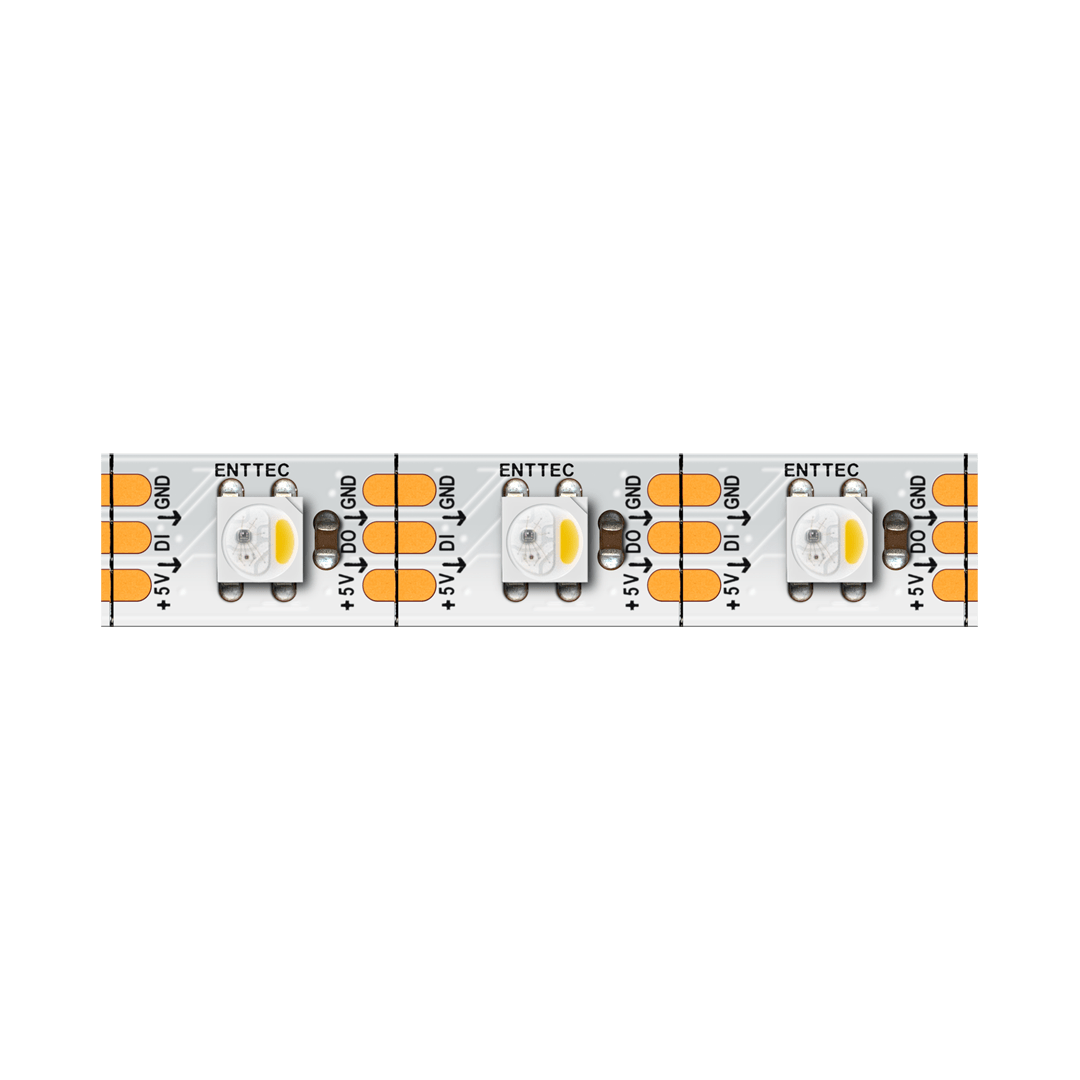

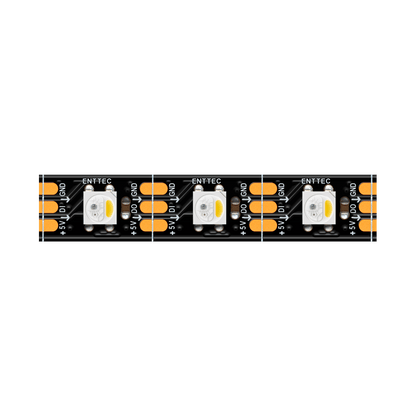

5V RGBW (8PXA60-RGBW-5V)
- Input Voltage: 5V
- Color Channels: RGBW
- Max. Watts per Meter: 11.9W
- Lumens per Meter: 588.8 lm
- Efficacy: 49.48 lm/W
- Control Protocol: SK6812 IC chips (compatible with WS2811 protocol)
- DMX Channels per Pixel: 4
- Pixel Mapping Order: GRBW
- White Temperature: 4000K
- Backup Data Line: No
- Connectors: 2 x 3-pin JST SM connectors (3A Max)
- Beam Angle: 120°
- PCB Color: Black or white
- PCB Width: 10mm / 0.40"
- Min. Bend Radius: 30mm / 1.2"
- Spacing Between Cuttable Sections: 16.6mm / 0.66"
- IP Rating: IP20
- Operating Temperature: 0°C to 50°C / 32°F to 122°F
- Operating Humidity: 5–95% (non-condensing)
- Weight (5m roll): 0.18 kg / 0.40 lbs
- Dimensions (5m roll): 240 x 215 x 16mm / 9.45 x 8.47 x 0.63"
- Shipping Weight (5-roll carton): 0.80 kg / 1.76 lbs
- Shipping Dimensions (5-roll carton): 260 x 225 x 93mm / 10.24 x 10.04 x 3.66"
- Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
- Warranty: 1-year return to base manufacturer warranty

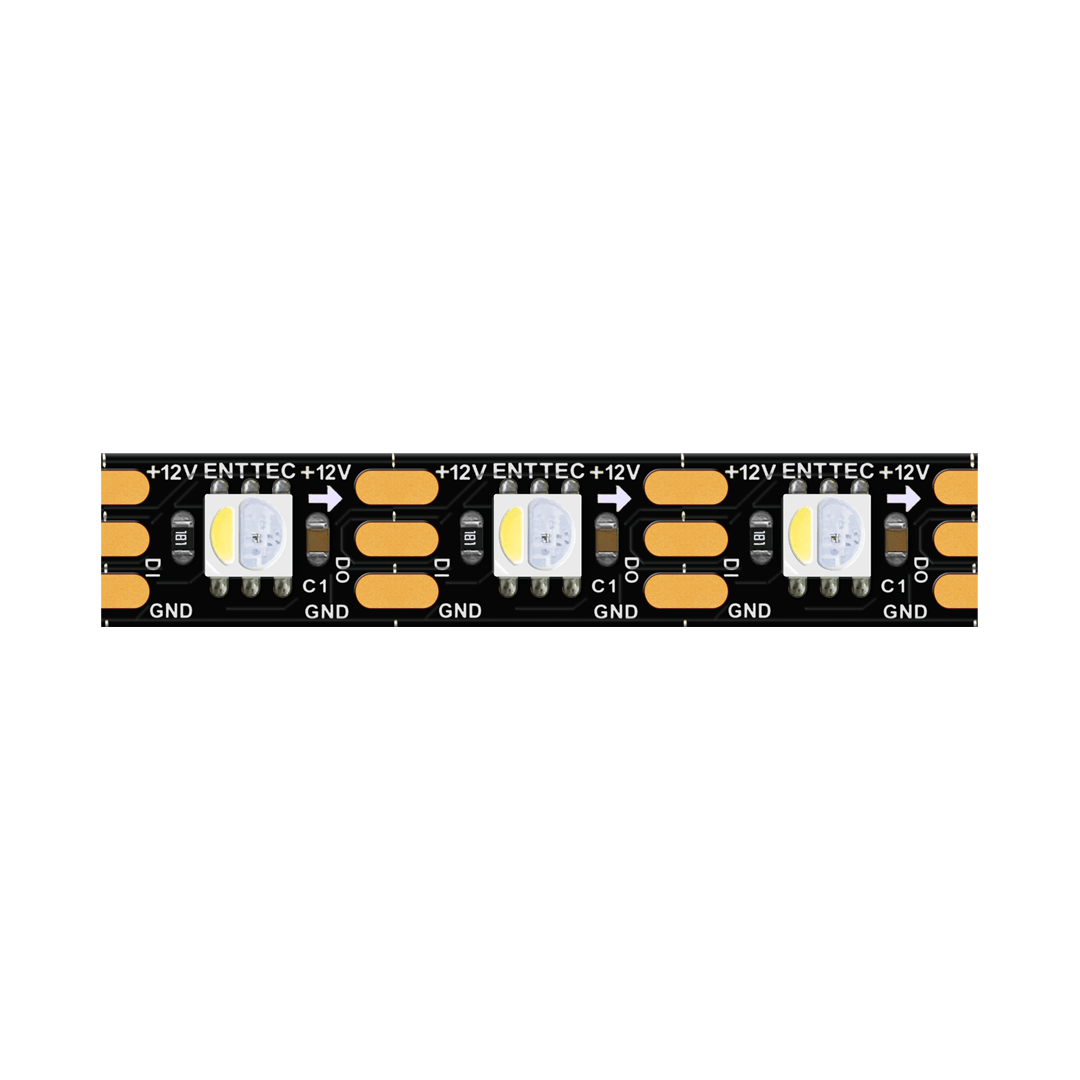

12V RGBW (8PXA60-RGBW-12V)
- Input Voltage: 12V
- Color Channels: RGBW
- Max. Watts per Meter: 21.8W
- Lumens per Meter: 1,088 lm
- Efficacy: 49.82 lm/W
- Control Protocol: SK6805 IC chips (compatible with SK6812 protocol)
- DMX Channels per Pixel: 4
- Pixel Mapping Order: GRBW
- Backup Data Line: No
- Connectors: 2 x 3-pin JST SM connectors (3A Max)
- Beam Angle: 120°
- PCB Color: Black or white
- PCB Width: 10mm / 0.40"
- Min. Bend Radius: 30mm / 1.2"
- Spacing Between Cuttable Sections: 16.6mm / 0.66"
- IP Rating: IP20
- Operating Temperature: 0°C to 50°C / 32°F to 122°F
- Operating Humidity: 5–95% (non-condensing)
- Weight (5m roll): 0.18 kg / 0.40 lbs
- Dimensions (5m roll): 240 x 215 x 16mm / 9.45 x 8.47 x 0.63"
- Shipping Weight (5-roll carton): 0.80 kg / 1.76 lbs
- Shipping Dimensions (5-roll carton): 260 x 225 x 93mm / 10.24 x 10.04 x 3.66"
- Compliance: UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
- Warranty: 1-year return to base manufacturer warranty

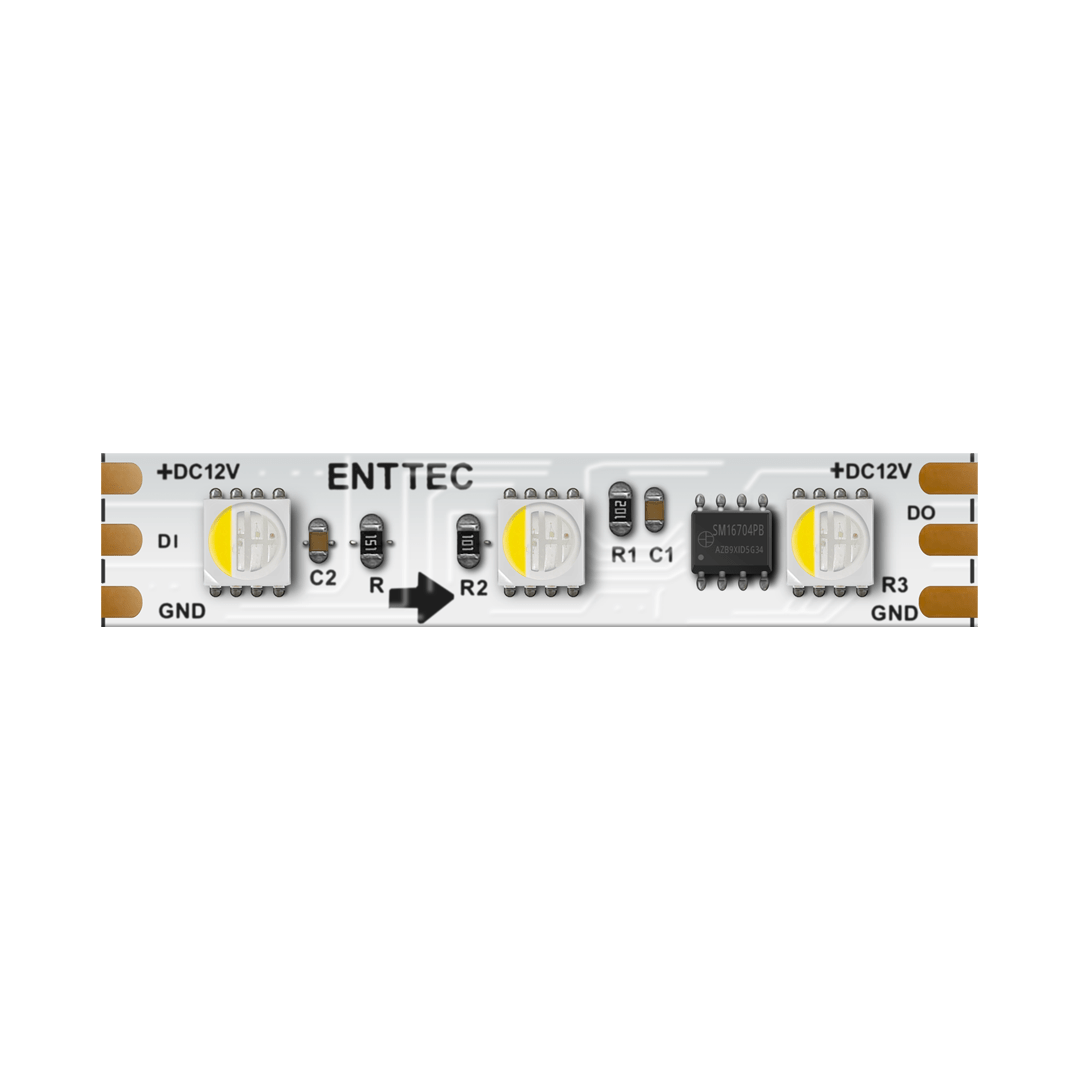

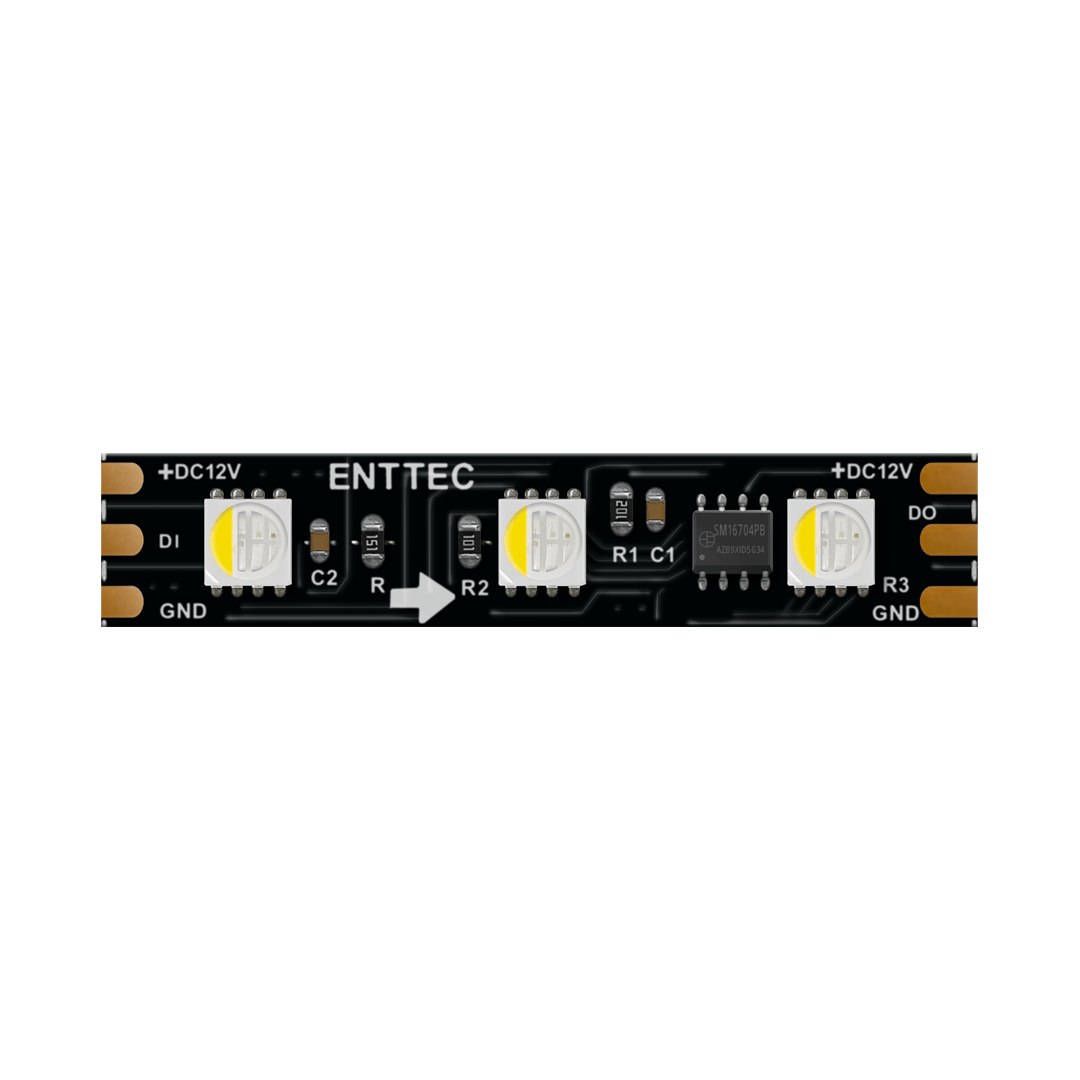

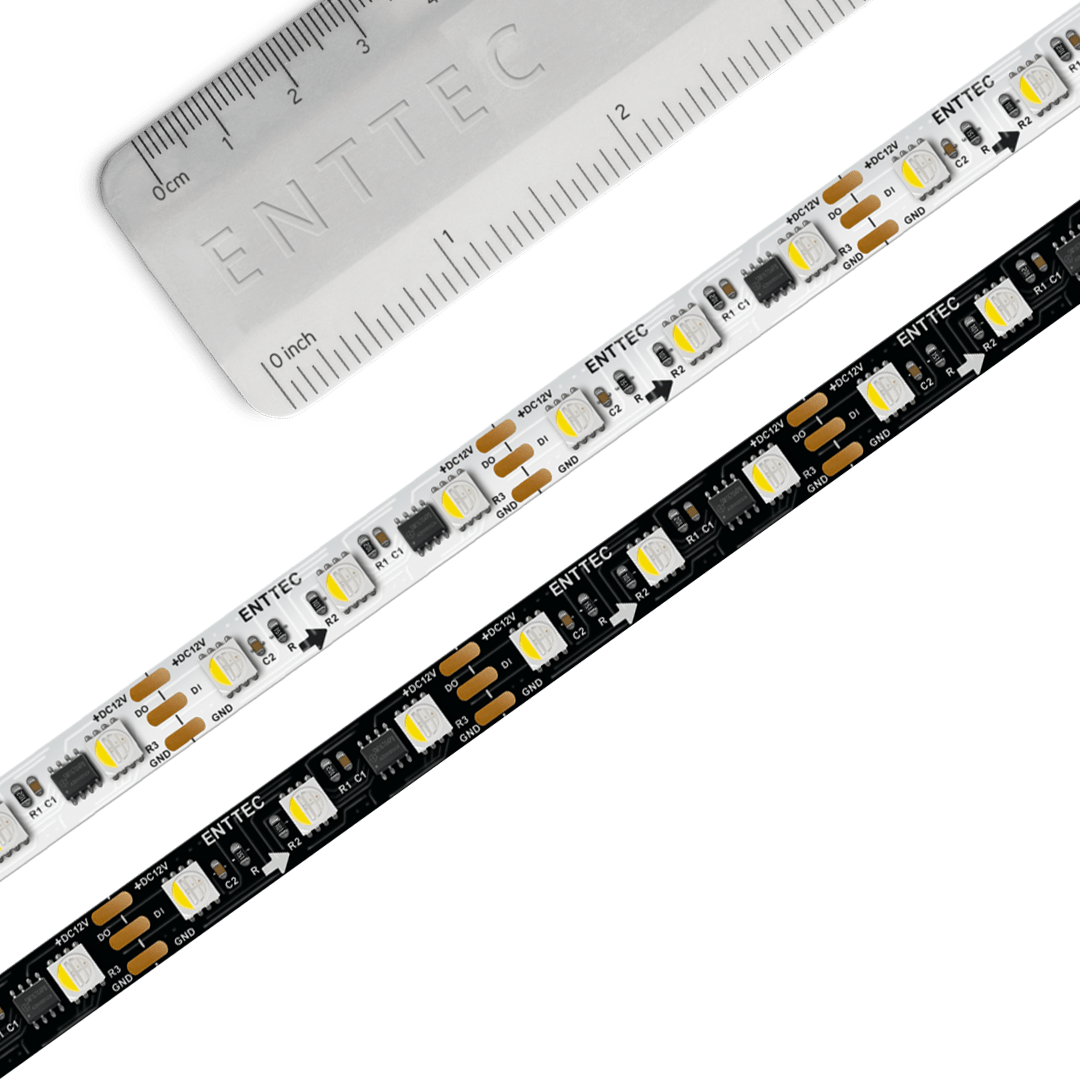

12V RGBW Long Range (8PXB60-RGBW-12V)
- Input Voltage: 12V
- Color Channels: RGBW
- Max. Watts per Meter: 17.64W
- Lumens per Meter: 655.6 lm
- Efficacy: 37.17 lm/W
- Control Protocol: SM16704 (compatible with UCS2904)
- DMX Channels per Pixel: 4
- Pixel Mapping Order: RGBW
- Pixels per Meter: 20 (3 SMD chips per pixel)
- Backup Data Line: No
- Connectors: 2 x 3-pin JST SM connectors (3A Max)
- Beam Angle: 120°
- PCB Color: Black or white
- PCB Width: 10mm / 0.40"
- Min. Bend Radius: 30mm / 1.2"
- Spacing Between Cuttable Sections: 50mm / 1.98"
- IP Rating: IP20
- Operating Temperature: 0°C to 50°C / 32°F to 122°F
- Operating Humidity: 5–95% (non-condensing)
- Weight (5m roll): 0.18 kg / 0.40 lbs
- Dimensions (5m roll): 240 x 215 x 16mm / 9.45 x 8.47 x 0.63"
- Shipping Weight (5-roll carton): 0.80 kg / 1.76 lbs
- Shipping Dimensions (5-roll carton): 260 x 225 x 93mm / 10.24 x 10.04 x 3.66"
- Compliance: UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
- Warranty: 1-year return to base manufacturer warranty
