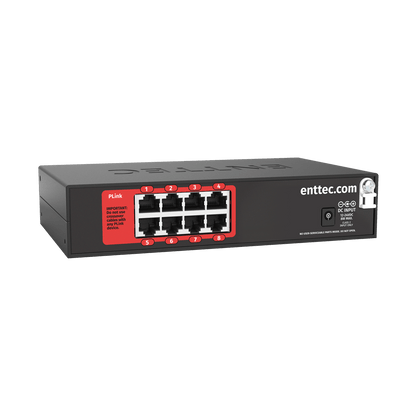

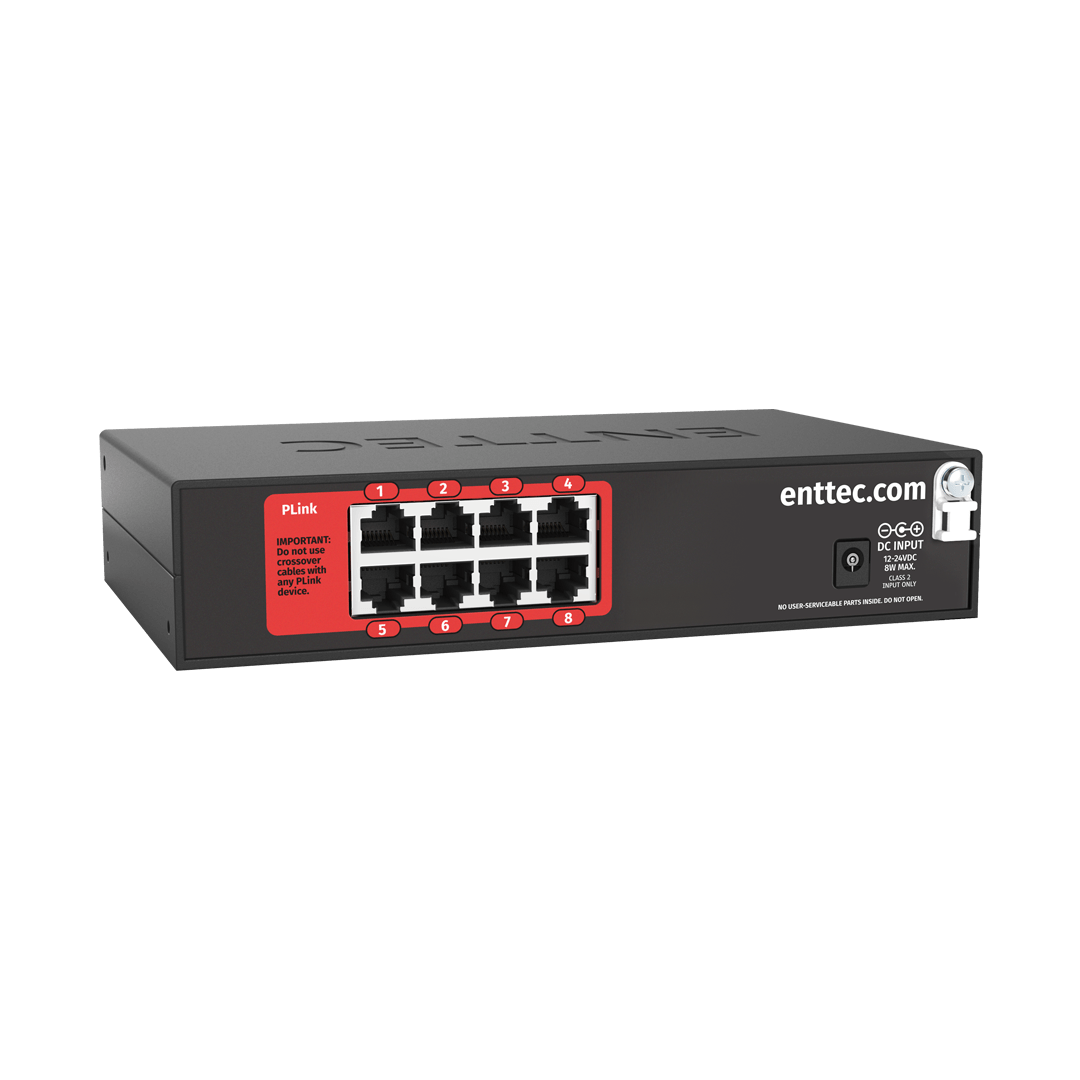

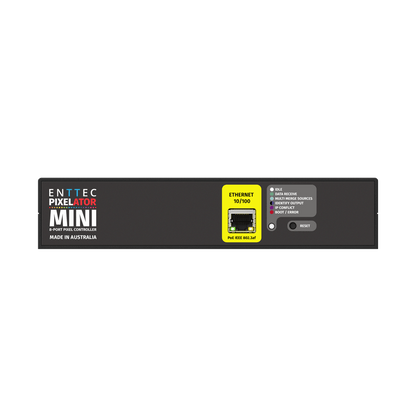

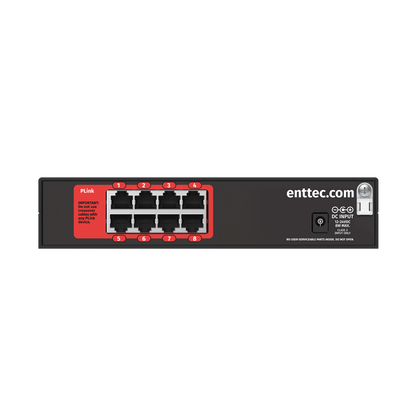

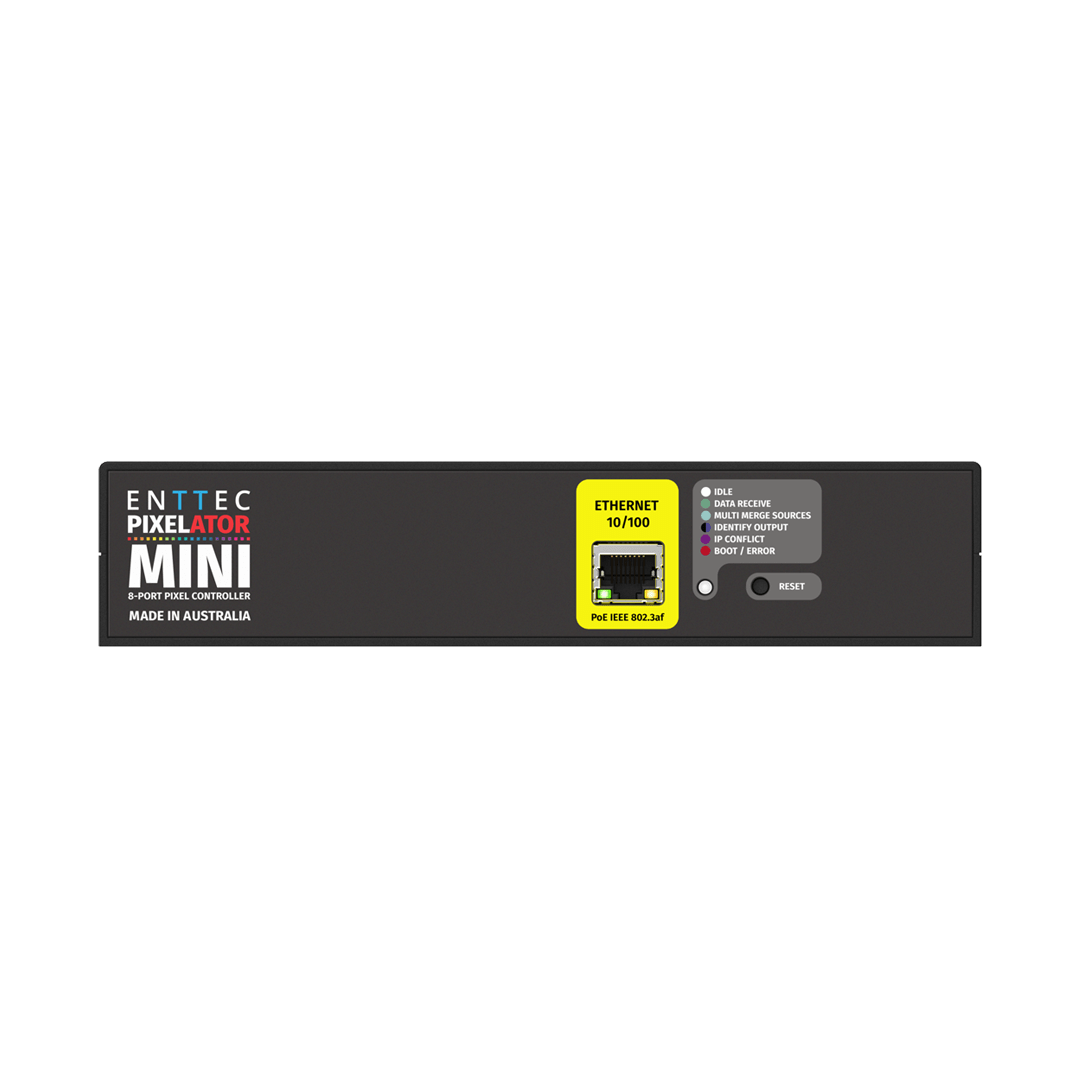

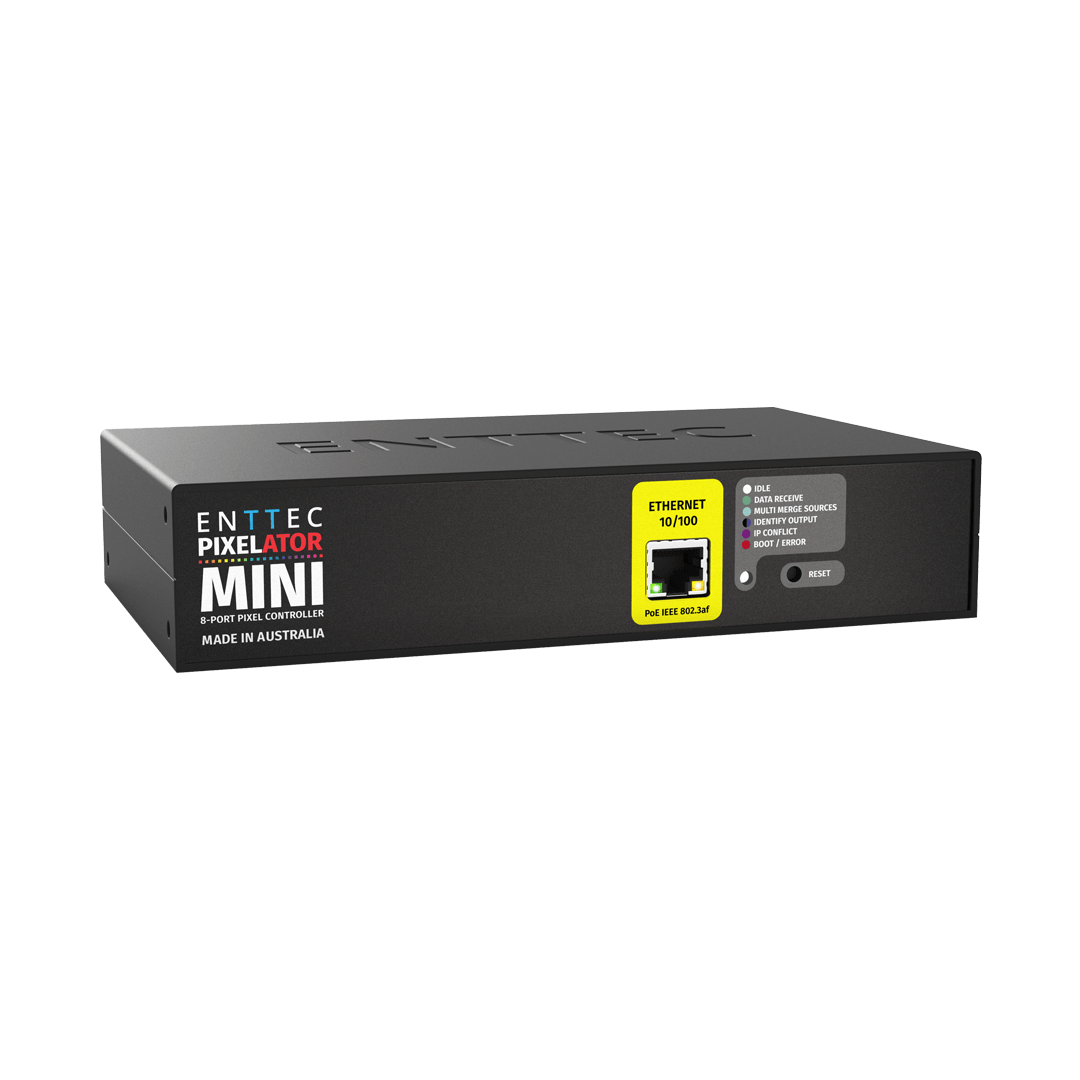

PIXELATOR MINI

The ENTTEC Pixelator Mini is an installation-grade 32-universe eDMX-to-SPI pixel converter with 8 PLink output ports, PoE support, and built-in surge protection, designed for large-scale LED pixel dot and strip installations — and includes a free 16-universe ENTTEC LED Mapper (ELM) license.

From the Manufacturer

The Pixelator Mini is the central hub of ENTTEC's PLink pixel control system, converting Art-Net, sACN, and ESP input into SPI pixel data across 8 RJ45 PLink output ports. Each port carries up to 2 universes of data in standard mode, with Overdrive Mode automatically activating when more than 2 universes per port are configured — bringing total output capacity to 32 universes (16,384 channels). Connect a PLink Injector or IP PLink Injector to each output port to drive LED pixel strips and dots over distances of up to 300 metres per run. For constant voltage strip applications, pair with ENTTEC's CVC4 dimmers. The Pixelator Mini supports over 20 pre-listed pixel protocols and allows users to create custom protocols via the web interface without requiring a firmware update.

An internal buffer and sync logic keeps all eight PLink output ports perfectly synchronized, and ArtSync ensures multiple Pixelator Mini units across a project remain frame-accurate — eliminating jitter, lag, and content tearing across large LED matrices. Universe-to-port assignment is fully flexible, pixel grouping is supported to reduce DMX channel counts, and pixel ordering can be configured to match any standard fixture type. Surge protection with resettable fuses and TVS suppression is built into every port for reliable 24/7 operation. The ABS and anodized aluminium enclosure mounts to a rack, surface, or TS35 DIN rail with included hardware, and power is supplied via 12–24V DC jack or IEEE 802.3af PoE. Every Pixelator Mini purchase includes a free 16-universe license for ENTTEC LED Mapper (ELM) pixel mapping software.

Features

• 32-universe eDMX-to-SPI pixel conversion (16 universes standard; 32 universes in Overdrive Mode)

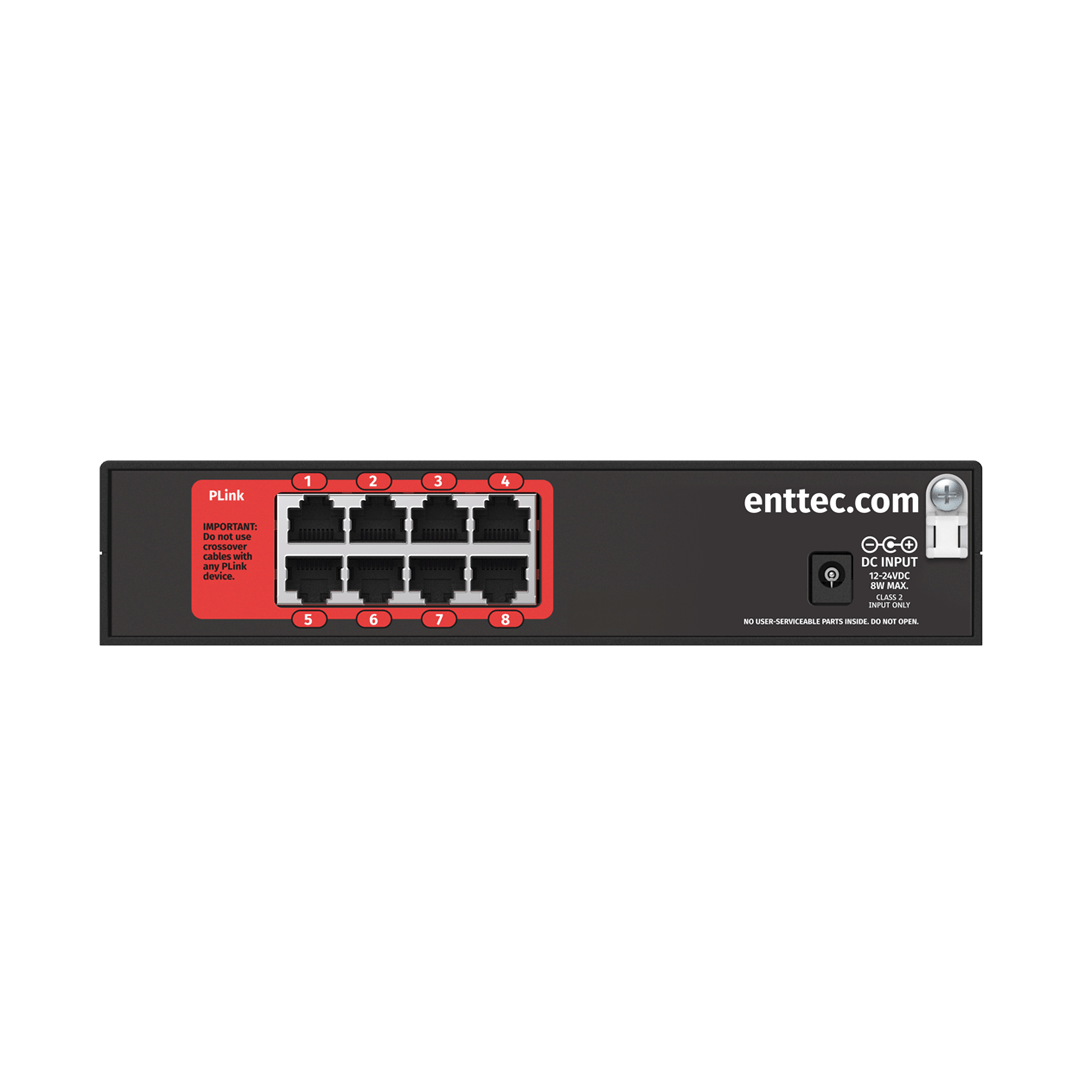

• 8 x RJ45 PLink output ports — up to 2 universes per port standard, 4 universes per port in Overdrive Mode
• Art-Net, sACN, and ESP input protocols supported
• PLink data transmission up to 300 metres per run over Cat5/Cat5e/Cat6
• Supports up to 4,096 RGBW pixels, 5,440 RGB pixels, or 16,384 White pixels per device
• Internal buffer and sync logic keeps all 8 output ports frame-synchronized; ArtSync support for multi-device synchronization
• Flexible universe-to-port assignment; pixel grouping to reduce DMX channel count; configurable pixel ordering
• Supports two different pixel protocols simultaneously: one on ports 1–4, another on ports 5–8
• 20+ pre-listed pixel protocols supported; custom protocol creation available via web interface
• Resettable fuse and TVS surge suppression per port for reliable 24/7 operation
• Powered via 12–24V DC jack or IEEE 802.3af PoE
• Web interface for configuration, firmware updates, and network management
• Static or DHCP network configuration; discoverable via ENTTEC EMU and ArtPoll
• Forward-facing LED status indicator; network link/activity indicators integrated into RJ45 ports
• Rack, surface, and TS35 DIN-rail mountable — clips, screws, and powder-coated aluminium rack ears included
• Fanless convection cooling
• Includes free 16-universe ENTTEC LED Mapper (ELM) license
• UL Listed; RCM, CE/WEEE, UKCA, and FCC certified
• 3-year manufacturer warranty
• Recommended use: Large-scale architectural and entertainment LED pixel installations, permanent installations, theatrical productions, outdoor pixel installations when paired with IP PLink Injectors

Specifications

Control

• Input Protocols: Art-Net, sACN, ESP
• Output Protocol: SPI via PLink system
• Input Port: 1 x RJ45 Ethernet / PoE IEEE 802.3af
• Output Ports: 8 x RJ45 PLink
• Max. Universe Output: 32 universes (Overdrive Mode)
• Max. Pixels: 4,096 RGBW / 5,440 RGB / 16,384 White
• Network Speed: 10/100Base-T
• Network Configuration: Static / DHCP
• Configuration & Firmware Updates: Web interface
• Network Discovery: ENTTEC EMU, ArtPoll

Supported Pixel Protocols

• APA104, GS8208B, SPXL (16-bit & 8-bit), SK6812, SJ1221 (16-bit & 8-bit), TM1804, TM1812, TM1814, TLC5973 (16-bit & 8-bit), UCS1903, UCS2903, UCS2904, UCS8903 (16-bit & 8-bit), UCS8904 (16-bit & 8-bit), WS2811, WS2812, WS2812B, WS2813, WS2815, WS2818, 9PDOT (16-bit & 8-bit)
• Custom protocol creation available via web interface

Electrical

• Input Voltage: 12–24V DC / PoE IEEE 802.3af
• Power Input Connector: DC jack (12V PSU with international plugs included)
• Max. Power Draw: 8W
• ESD Protection: Resettable fuse and TVS suppression per port
• Surge Protection: Yes (all ports)
• Cooling Method: Convection

Construction / Physical

• Body Material: ABS and anodized aluminium
• IP Rating: IP20
• Mounting Options: Rack, surface, TS35 DIN-rail (clips, screws, and powder-coated aluminium rack ears included)
• Unit Dimensions: 200 x 120 x 42 mm
• Unit Weight: 0.43 kg / 0.95 lbs
• Shipping Dimensions: 335 x 265 x 78 mm
• Shipping Weight: 1.15 kg / 2.54 lbs

Environmental

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 5–95% (non-condensing)

Certifications

• Compliance: UL Listed, RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 3-year return to base manufacturer warranty

What's in the Box

• ENTTEC Pixelator Mini
• 12V power supply with international plugs
• DIN rail clips and mounting screws
• Powder-coated aluminium rack ears
• Free 16-universe ENTTEC LED Mapper (ELM) license
