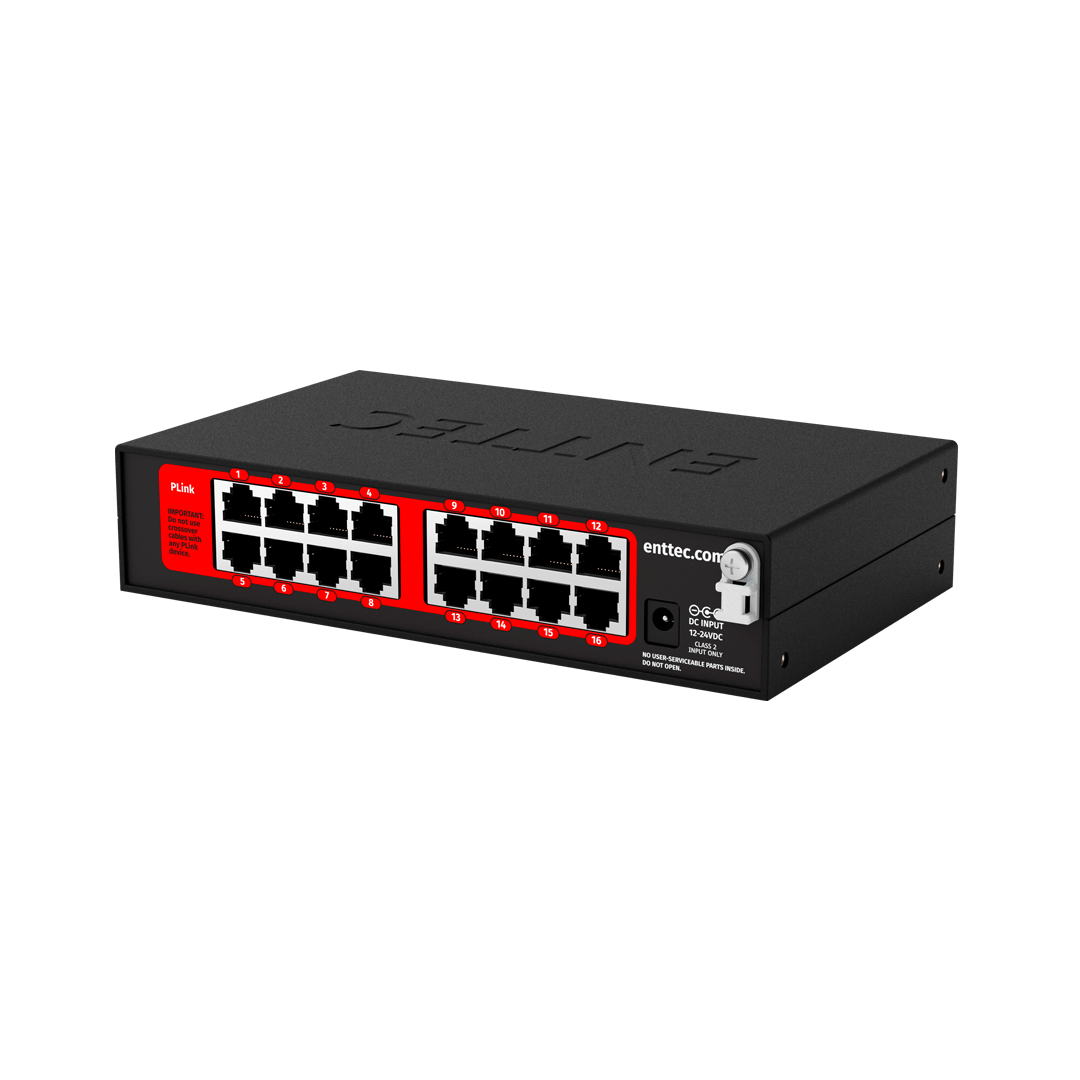

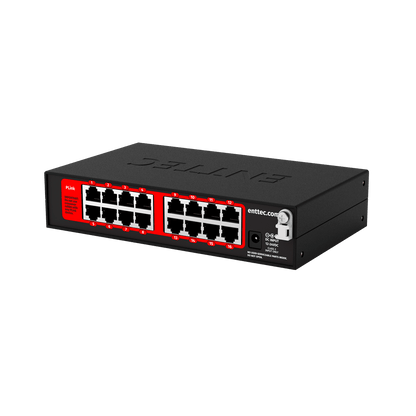

PIXELATOR MINI MK2

The ENTTEC Pixelator Mini Mk2 is an installation-grade 128-universe eDMX-to-SPI pixel converter with 16 PLink output ports, dual Ethernet for daisy-chaining, PoE support, and built-in surge protection — designed for the most demanding large-scale LED pixel installations — and includes a free 16-universe ENTTEC LED Mapper (ELM) license.

From the Manufacturer

The Pixelator Mini Mk2 is the highest-density hub in ENTTEC's PLink pixel control system, doubling the output port count of the original Pixelator Mini to 16 RJ45 PLink ports and quadrupling its universe capacity to 128 universes. It accepts Art-Net, sACN, and ESP input and converts it to PLink data for transmission to PLink Injectors or IP PLink Injectors located up to 300 metres away — which then convert the signal to the required SPI protocol at the fixture. Each port handles up to 6 universes in standard mode, with Overdrive Mode automatically activating when more than 6 universes per port are configured, bringing maximum capacity to 128 universes (65,536 channels). Up to four different pixel protocols can be output simultaneously — one per group of four ports — giving designers complete flexibility across dense, high-resolution installations.

A dedicated Ethernet through port enables daisy-chaining of multiple devices for large network deployments, and an internal buffer with sync logic keeps all 16 PLink output ports frame-accurate. ArtSync support extends that synchronization across multiple Pixelator Mini Mk2 units on the same project, eliminating jitter, lag, and content tearing across vast LED matrices. Universe-to-port assignment is fully flexible, pixel grouping is supported to reduce DMX channel counts, and pixel ordering is configurable for any standard fixture type. Resettable fuses and TVS surge suppression on every port ensure reliable 24/7 operation. All configuration and firmware updates are handled via the web interface. Every Pixelator Mini Mk2 purchase includes a free 16-universe license for ENTTEC LED Mapper (ELM) pixel mapping software.

Features

• 128-universe eDMX-to-SPI pixel conversion (96 universes standard; 128 universes in Overdrive Mode)
• 16 x RJ45 PLink output ports — up to 6 universes per port standard, 8 universes per port in Overdrive Mode
• Art-Net, sACN, and ESP input protocols supported

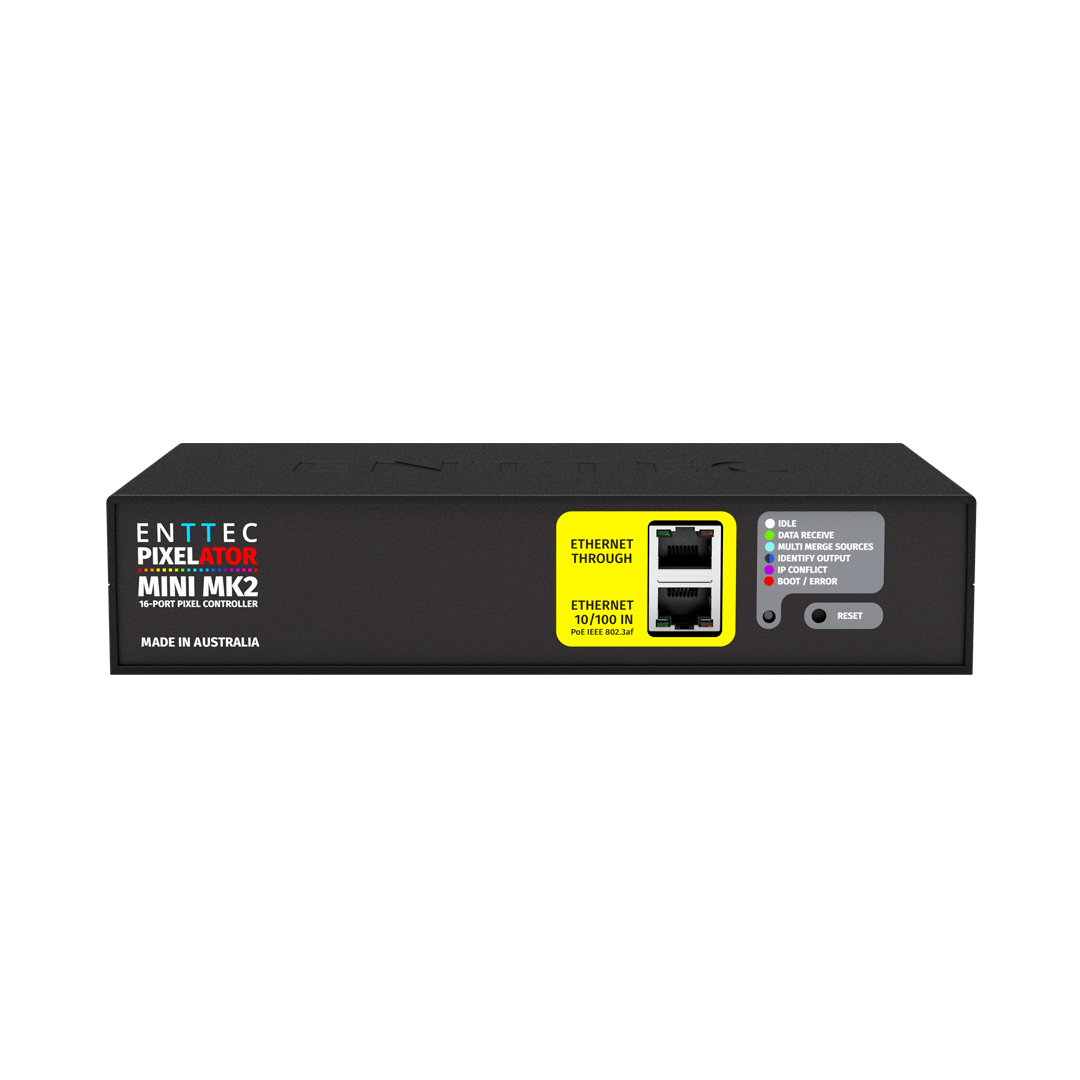

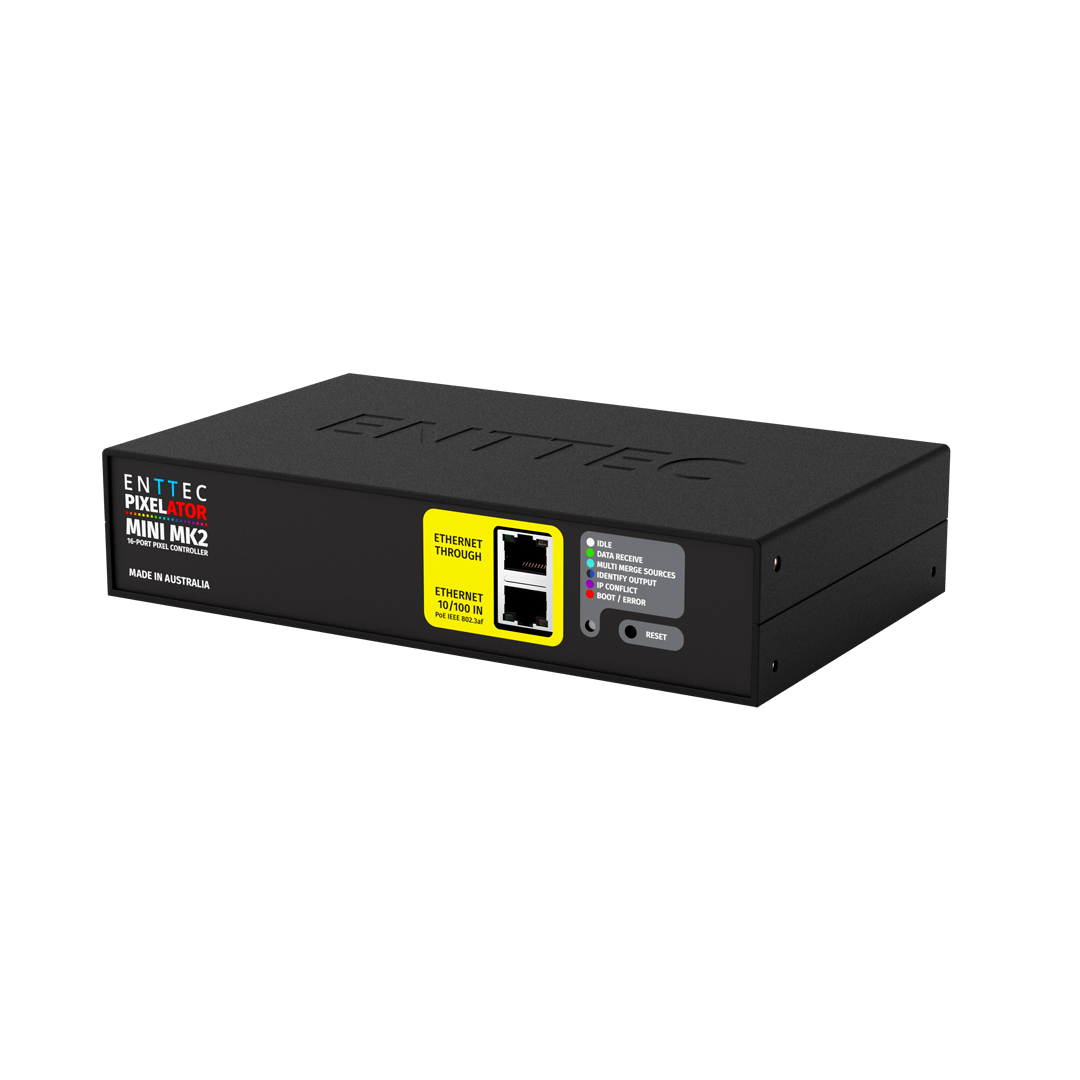

• Dedicated Ethernet through port for daisy-chaining multiple devices
• PLink data transmission up to 300 metres per run over Cat5/Cat5e/Cat6
• Supports up to 16,384 RGBW pixels, 21,840 RGB pixels, or 65,536 White pixels per device
• Up to 4 different pixel protocols output simultaneously — one per port group (ports 1–4, 5–8, 9–12, 13–16)
• Internal buffer and sync logic keeps all 16 output ports frame-synchronized; ArtSync support for multi-device synchronization
• Flexible universe-to-port assignment; pixel grouping to reduce DMX channel count; configurable pixel ordering
• Compatible with CVC4 constant voltage dimmers and CCC4 constant current dimmers for CV/CC fixture control via PLink ports
• 20+ pre-listed pixel protocols supported; custom protocol creation available via web interface
• Resettable fuse and TVS surge suppression per port for reliable 24/7 operation
• Powered via 12–24V DC jack or IEEE 802.3af PoE
• Web interface for configuration, firmware updates, and network management
• Static or DHCP network configuration; discoverable via ENTTEC EMU and ArtPoll

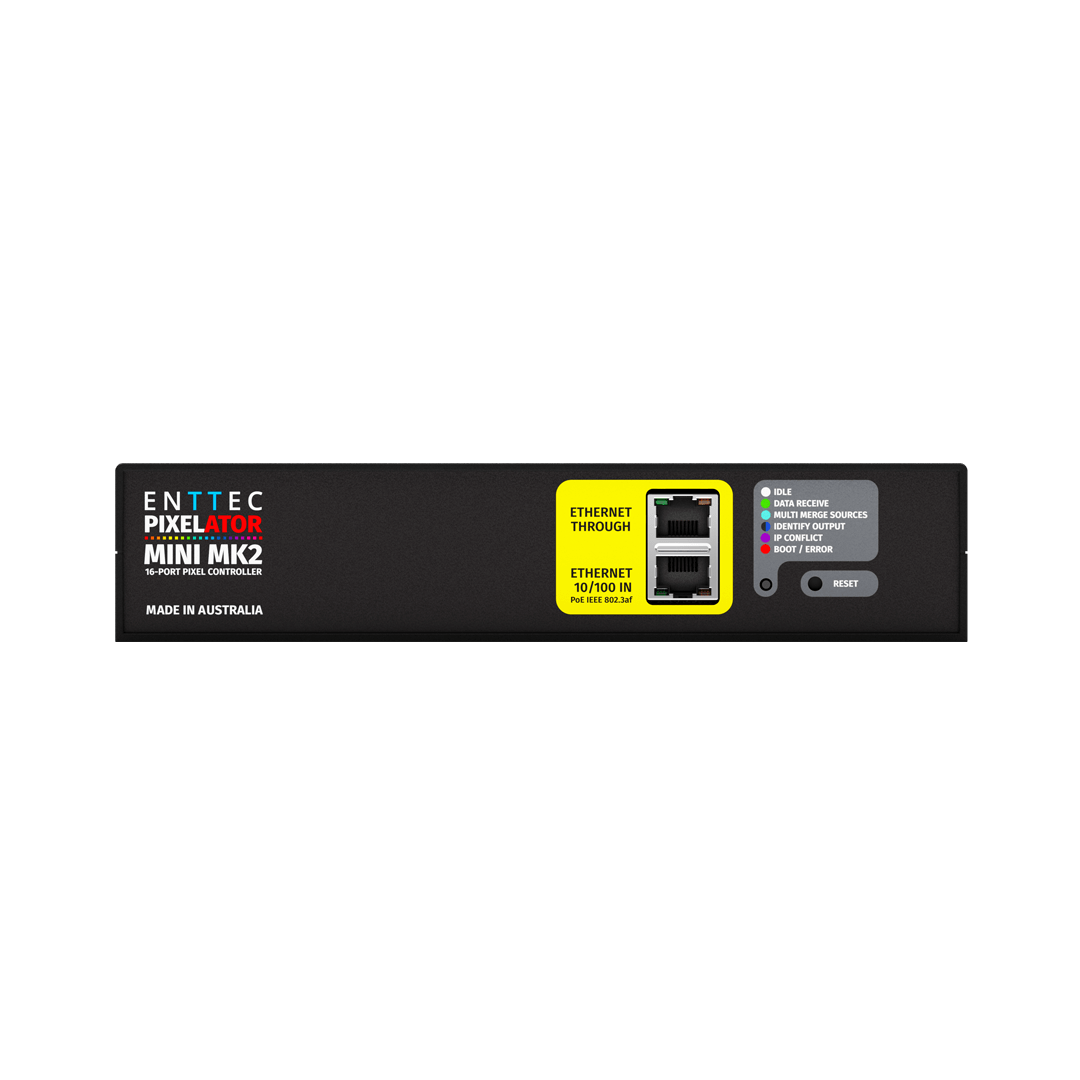

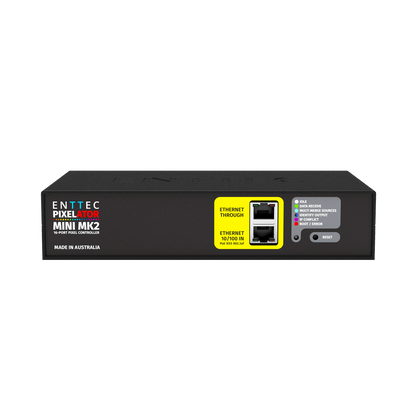

• Forward-facing LED status indicator; network link/activity indicators integrated into RJ45 ports
• Rack, surface, and TS35 DIN-rail mountable — clips, screws, and powder-coated aluminium rack ears included
• Fanless convection cooling
• Includes free 16-universe ENTTEC LED Mapper (ELM) license
• RCM, CE/WEEE, UKCA, and FCC certified
• 3-year manufacturer warranty
• Recommended use: Large-scale and high-density architectural LED pixel installations, media façades, permanent installations, theatrical productions, outdoor pixel installations when paired with IP PLink Injectors

Specifications

Control

• Input Protocols: Art-Net, sACN, ESP
• Output Protocol: SPI via PLink system
• Input Port: 1 x RJ45 Ethernet / PoE IEEE 802.3af
• Through Port: 1 x RJ45 Ethernet (for daisy-chaining)

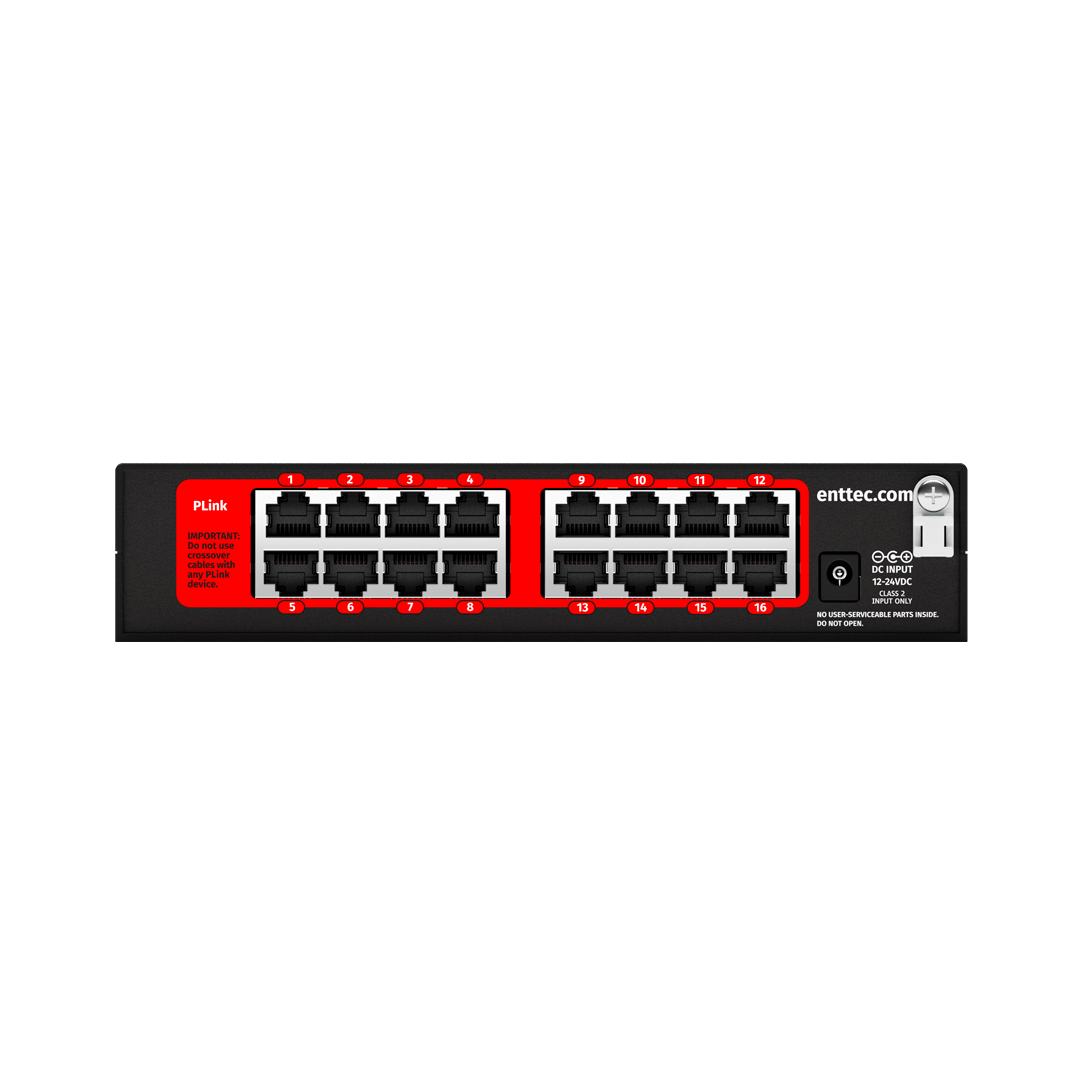

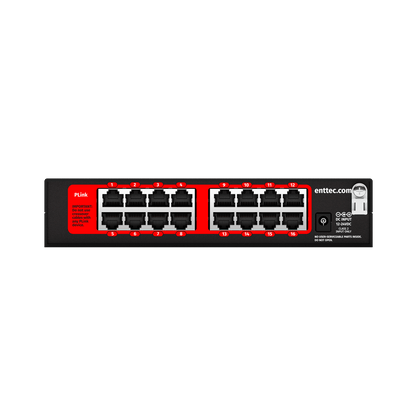

• Output Ports: 16 x RJ45 PLink
• Max. Universe Output: 128 universes (Overdrive Mode)
• Max. Pixels: 16,384 RGBW / 21,840 RGB / 65,536 White
• Network Speed: 10/100Base-T
• Network Configuration: Static / DHCP
• Configuration & Firmware Updates: Web interface
• Network Discovery: ENTTEC EMU, ArtPoll

Supported Pixel Protocols

• APA104, GS8208B, SPXL (16-bit), SK6812, SJ1221 (16-bit & 8-bit), TM1804, TM1812, TM1814, TLC5973 (16-bit & 8-bit), UCS1903, UCS2903, UCS2904, UCS8903 (16-bit & 8-bit), UCS8904 (16-bit & 8-bit), WS2811, WS2812, WS2812B, WS2813, WS2815, WS2818, 9PDOT (16-bit & 8-bit)
• Custom protocol creation available via web interface

Electrical

• Input Voltage: 12–24V DC / PoE IEEE 802.3af
• Power Input Connector: DC jack (12V PSU with international plugs included)
• Max. Power Draw: 3.2W
• ESD Protection: Resettable fuse and TVS suppression per port
• Surge Protection: Yes (all ports)
• Cooling Method: Convection

Construction / Physical

• Body Material: ABS and anodized aluminium
• IP Rating: IP20
• Mounting Options: Rack, surface, TS35 DIN-rail (clips, screws, and powder-coated aluminium rack ears included)
• Unit Dimensions: 200 x 120 x 42 mm
• Unit Weight: 0.47 kg / 1.04 lbs
• Shipping Dimensions: 335 x 265 x 78 mm
• Shipping Weight: 1.2 kg / 2.65 lbs

Environmental

• Operating Temperature: 0°C to 50°C / 32°F to 122°F
• Operating Humidity: 5–95% (non-condensing)

Certifications

• Compliance: RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 3-year return to base manufacturer warranty

What's in the Box

• ENTTEC Pixelator Mini Mk2
• 12V power supply with international plugs
• DIN rail clips and mounting screws
• Powder-coated aluminium rack ears
• Free 16-universe ENTTEC LED Mapper (ELM) license (promo code included)
