Sku: PIX100

Pixie Strip 30

Regular price
$124.99
Regular price
Sale price
$124.99
Shipping calculated at checkout.
Vendor: ADJ

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

ADJ's Pixie Strip's are a cool, indoor LED pixel strip product.

It is part of a system - see the "From the GEAR Pro's" section for more information about what you need to make these function.

From the Manufacturer:

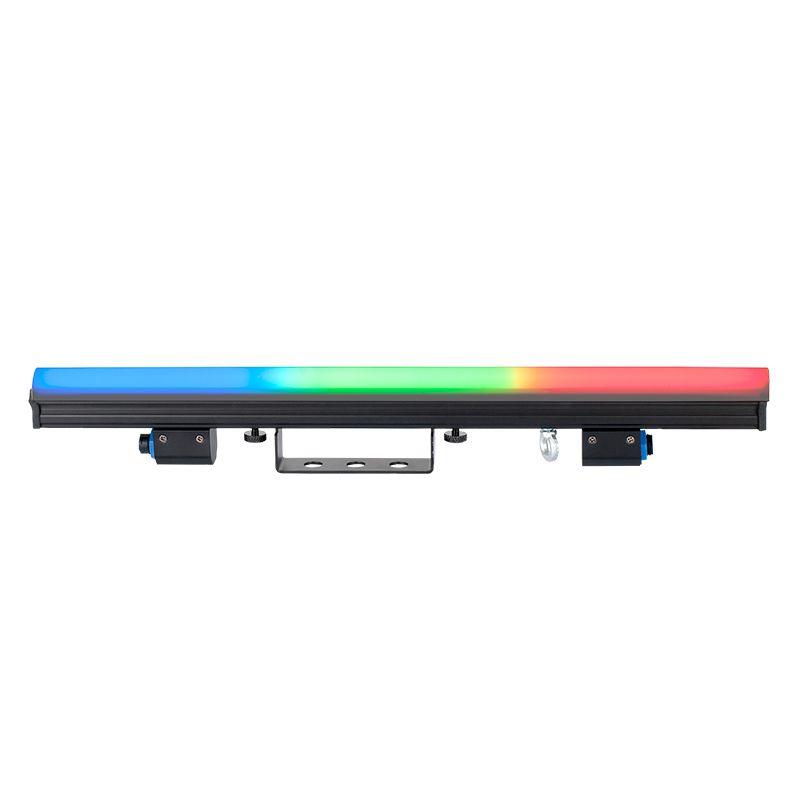

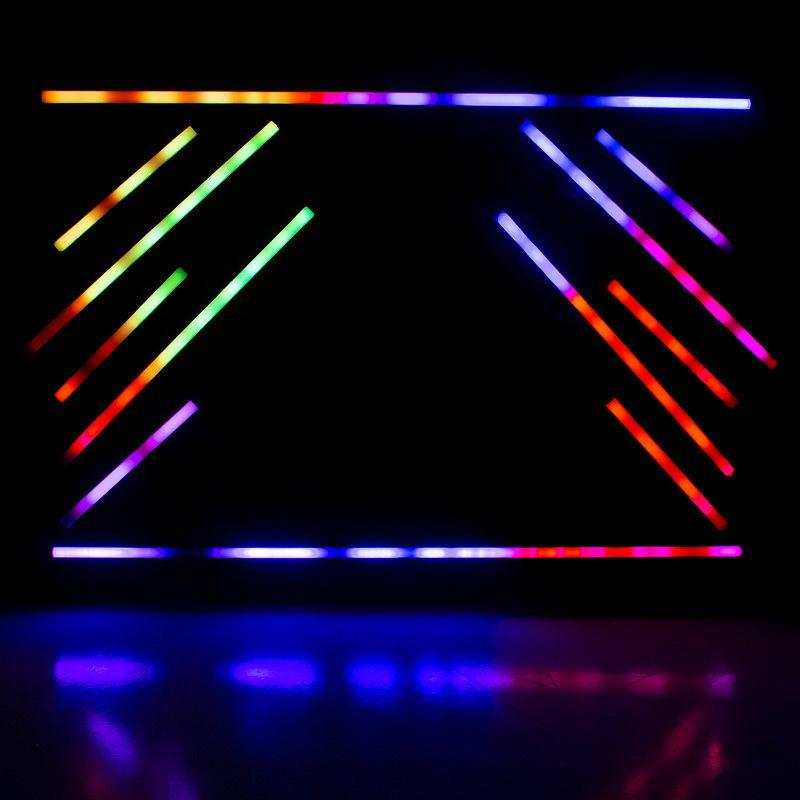

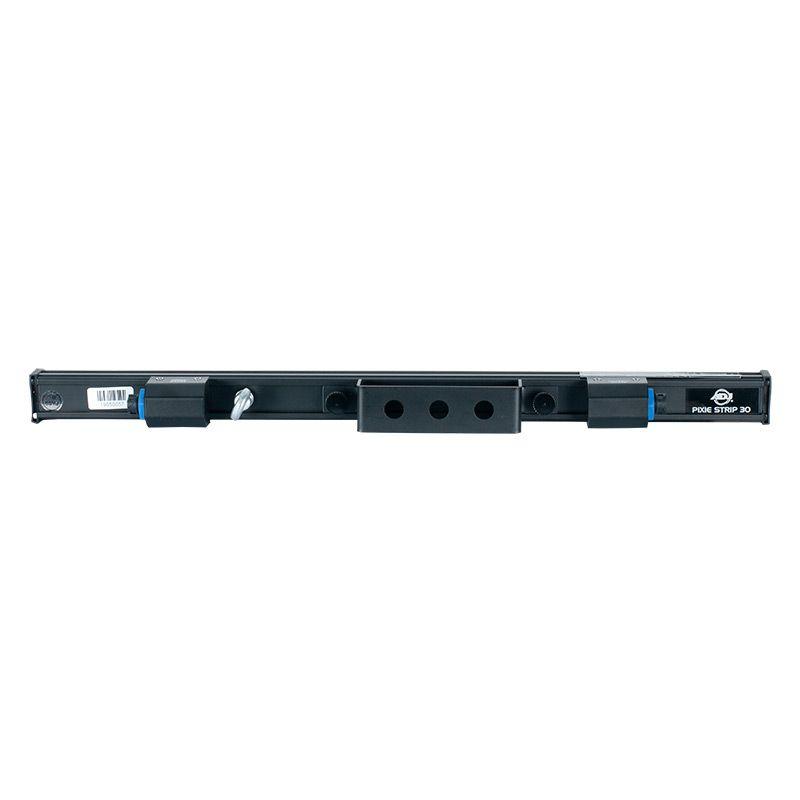

The PIXIE STRIP 30 is a 0.5 meter, indoor LED pixel strip featuring (30) tri-color RGB SMD LEDs with a 16.5mm pixel pitch. ADJ’s Pixie Strip Series is a versatile collection of pixel battens combine vibrant LEDs with intelligently-designed housings to create a powerful and versatile system. They can be used to design dazzling pixel-mapped displays for touring shows and one-off events as well as for a wide variety of permanent installations.
From the GEAR Pro's:
The Pixie Strip's are a nice-looking indoor pixel-strip light that allows you to create a lot of different, cool designs with 1 set of lights.  This is not a weird papery-tube filled with flavored sugar!

Each Pixie Strip system is designed based on your needs.  In order to light up a Pixie Strip light, you need the light, a controller, and the 4-pin data/power cable.  Multiple Pixie strips can be plugged into each of the (2) outputs of the controller - the exact quantities depend on what you need and how far the units are apart.

The controller then receives sACN, Art-Net or Kling-Net from a lighting console or media-server type software.

The easiest way to configure a package is to ask us!  Just add some to our quote, and give us some more information as to what you're doing and we'll put together a package for you.



In the Box:

  • (1) Pixie Strip 30

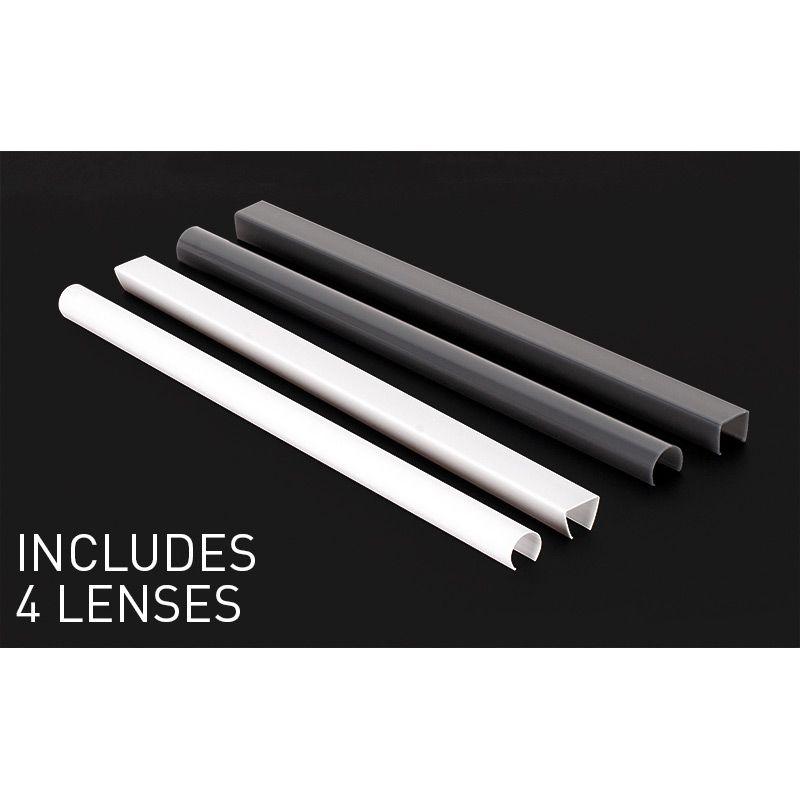

  • (1) Round Frosted Cover
  • (1) Square Frosted Cover
  • (1) Round Smoked Cover
  • (1) Square Smoked Cover
  • (1) 4 Pin Data/Power Cable

Features:

  • Light Source: SMD RGB 3-in-1 LED’s
  • Beam Angle: 120° x 120°
  • Color Resolution: 8bit per color (24bit per pixel)
  • Pixels Per Fixture: 30
  • Pixels Per Meter: 60
  • Pixel Pitch: 16.5mm
  • Refresh Rate: 44,000Hz
  • Control Protocol: Proprietary, requires Pixie Driver 2000(sold separately)
  • IP Grade: IP20

Tech Specs

Optics:

Light Source Type: SMD RGB 3-in-1 LED

Light Source Wattage: 6w

Minimum Beam Angle: 120.0°

Maximum Beam Angle: 120.0°

Physical:

Length: 20 in

Width: 2.33 in

Height: 2.33 in

Weight: 1.31 lb

Electrical

Voltage Range: 24 VDC

Maximum Wattage: 6w

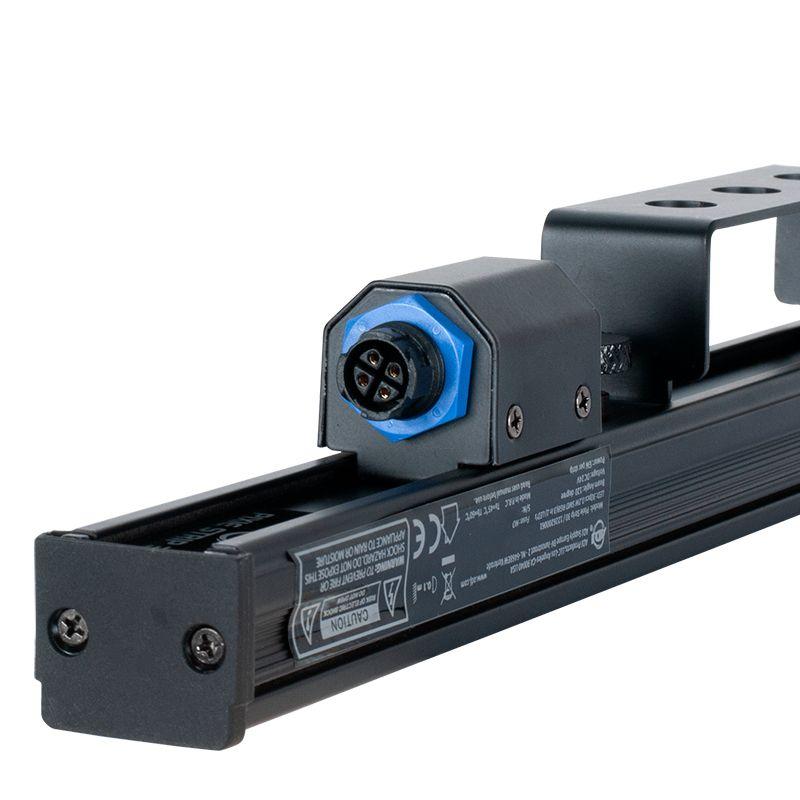

Power Cable Connector - Fixture Side: 4-Pin

Main Power Connector on Included Cable: 4-Pin
