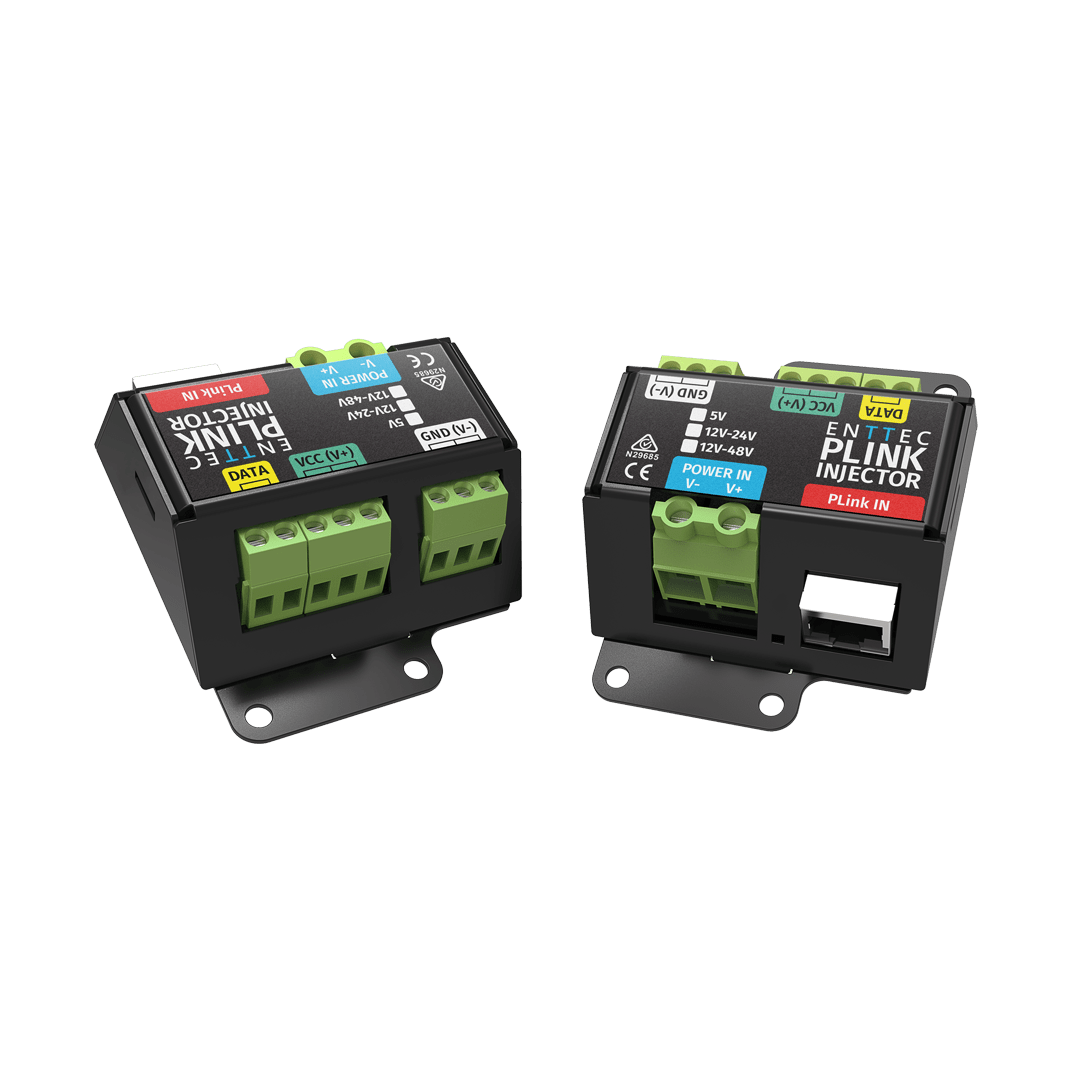

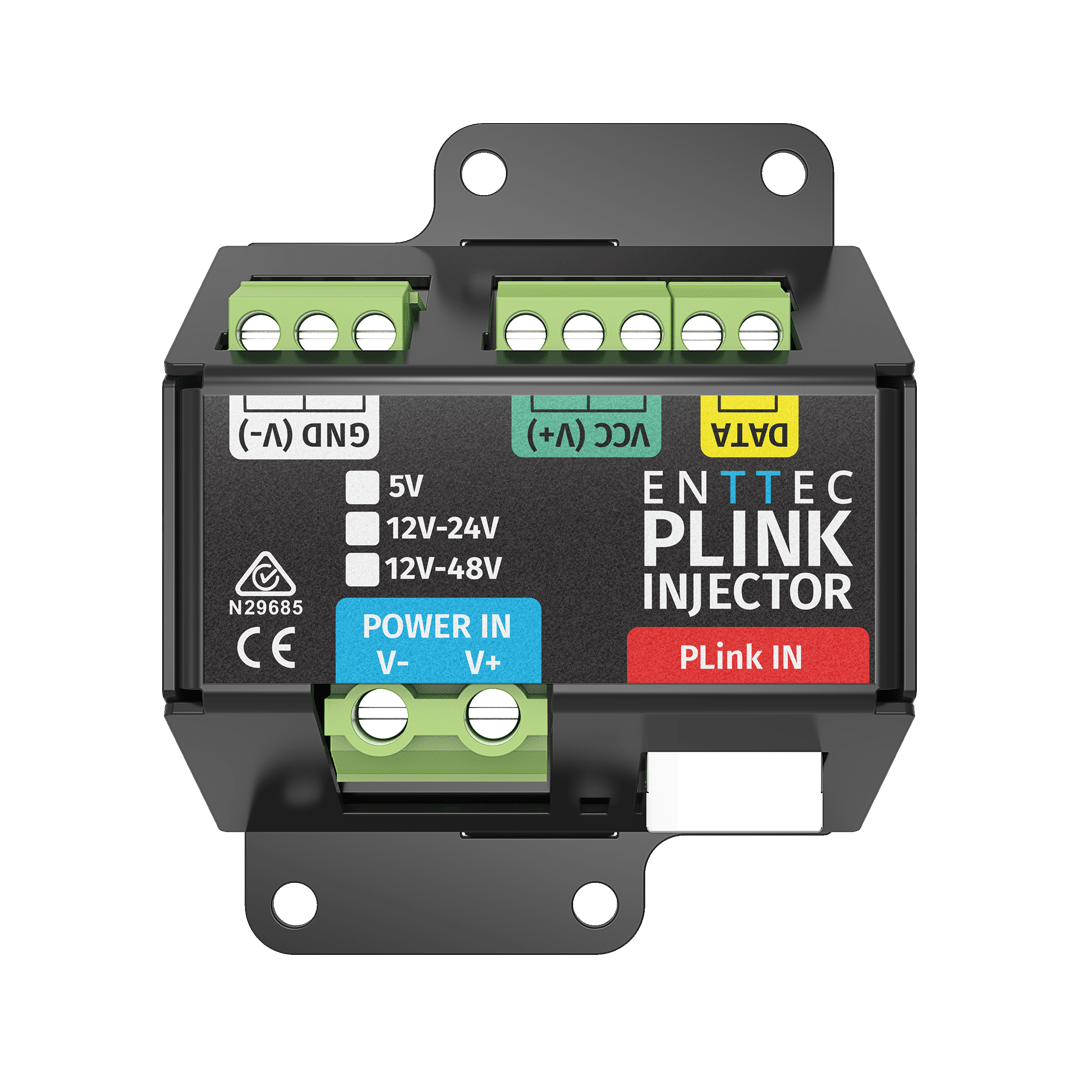

PLINK INJECTOR

The ENTTEC PLink Injector is a compact PLink-to-SPI pixel data injector designed for use with the Pixelator Mini family, enabling long-distance pixel data transmission up to 300 metres over Cat5e/Cat6 cabling with zero configuration required.

From the Manufacturer

The PLink Injector is the essential link between an ENTTEC Pixelator controller and the LED pixel fixtures in a PLink system. Because SPI protocol degrades quickly over distance, the Pixelator sends robust PLink data over Cat5e/Cat6 cabling — maintaining signal integrity up to 300 metres from the controller. Each PLink Injector receives that data and converts it locally into SPI output, delivering clean, accurate signals to pixel strips, dots, and custom fixtures located up to 3 metres from the injector. Power passes directly through to the fixtures with no voltage conversion, simplifying wiring and reducing system complexity.

PLink Injectors are available in three voltage variants to match your pixel fixture requirements. The 5V model suits low-voltage RGB and RGBW pixel strips. The 12–24V model covers mid-voltage installations including Neon Flex, Smart PXL40 dots, and 12V pixel strip. The 12-48V model supports high-voltage and 48V architectural fixtures like the Smart PXL60 or 100x25 dots.

All variants feature high-power screw terminal connectors for fast, secure wiring and a compact, lightweight design for easy concealment. Auto-addressing means no configuration is required — simply connect and go. Note: PLink Injectors are compatible exclusively with the Pixelator Mini family and are not compatible with OCTO or DIN PIXIE controllers.

Packaging Options

• PLink Injector (5V) — SKU 73546 — ideal for low-voltage 5V RGB or RGBW pixel strip; UL Class 2 Listed
• PLink Injector (12V–24V) — SKU 73544 — suited to mid-voltage installations including Neon Flex, Smart PXL40 dots, and 12V pixel strip; UL Class 2 Listed
• PLink Injector (12V–48V) — SKU 73557 — suited to high-voltage installations including Smart PXL60, and 100x25 dots; UL Class 2 Listed

Features

• Converts long-distance PLink data from Pixelator controllers into local SPI output for LED pixel fixtures
• Data transmission up to 300 metres over Cat5e/Cat6 cabling from the Pixelator controller
• SPI output drives pixel fixtures up to 3 metres from the injector
• Zero configuration — auto-addressing; connect and go
• Power passed directly through to fixtures with no voltage conversion required
• Available in three voltage variants: 5V, 12–24V, and 12-48V
• High-power screw terminal connectors for fast, secure wiring
• Compact, lightweight design for easy concealment in installations
• Scalable architecture — add injectors to expand system reach and density
• Compatible with Pixelator Mini and Pixelator Mini Mk2 only — not compatible with OCTO or DIN PIXIE
• All models UL Class 2 Listed; RCM, CE/WEEE, UKCA, and FCC certified
• 3-year manufacturer warranty
• Recommended use: Large-scale indoor LED pixel installations, architectural accent lighting, permanent installations requiring long data runs between controller and fixtures

Specifications

Control

• Input Protocol: PLink
• Output Protocol: SPI
• Max. Data Cable Length: 300 metres (Cat5e/Cat6 from Pixelator controller)
• Max. Fixture Distance: 3 metres from injector
• Addressing: Auto-addressing (no configuration required)
• Compatible Controllers: Pixelator Mini, Pixelator Mini Mk2

Electrical

• Input Voltage (5V model): 5V DC
• Input Voltage (12–24V model): 12–24V DC
• Input Voltage (12-48V model): 12-48V DC
• Power Pass-Through: Direct — no voltage conversion

Connections

• Data Input: RJ45 (PLink)

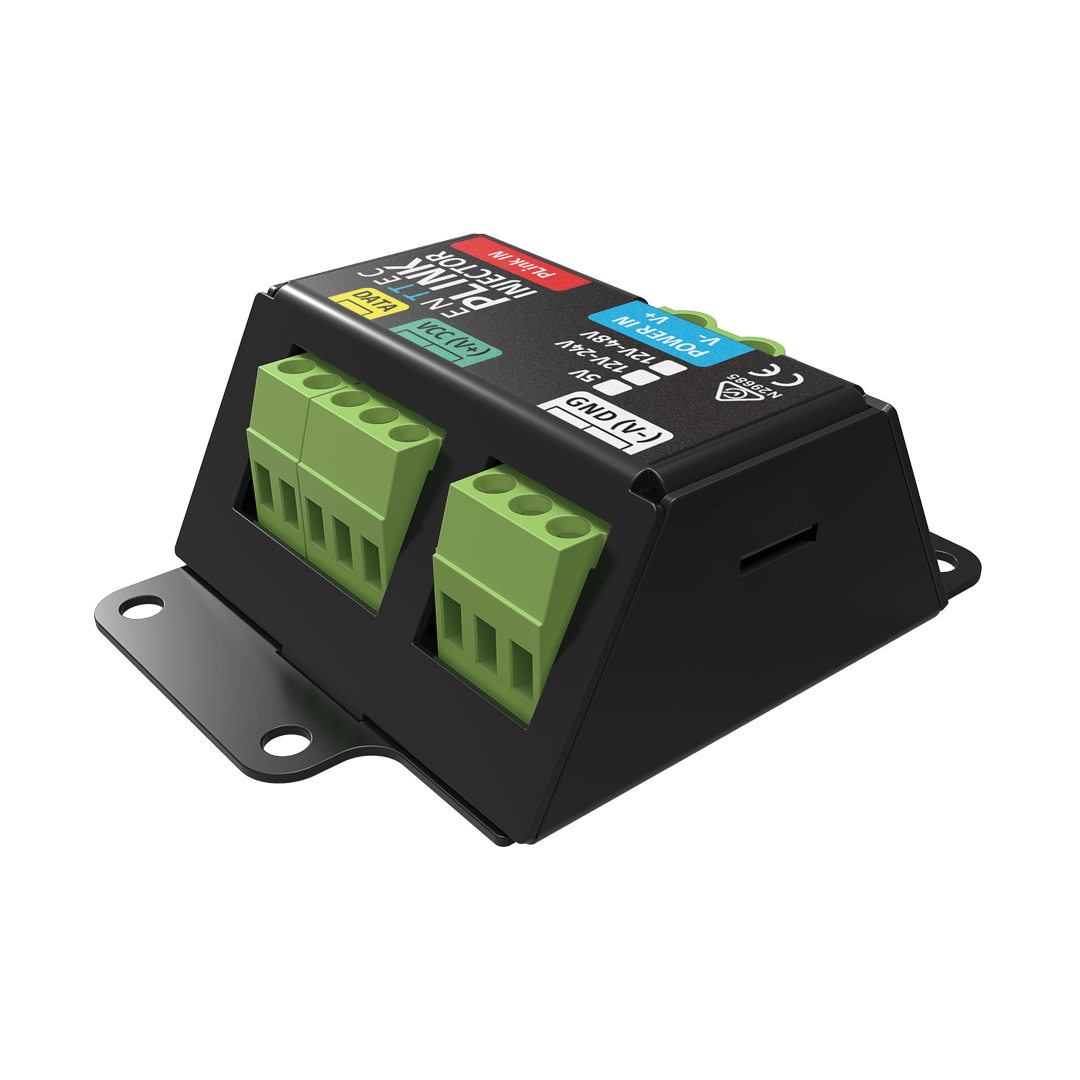

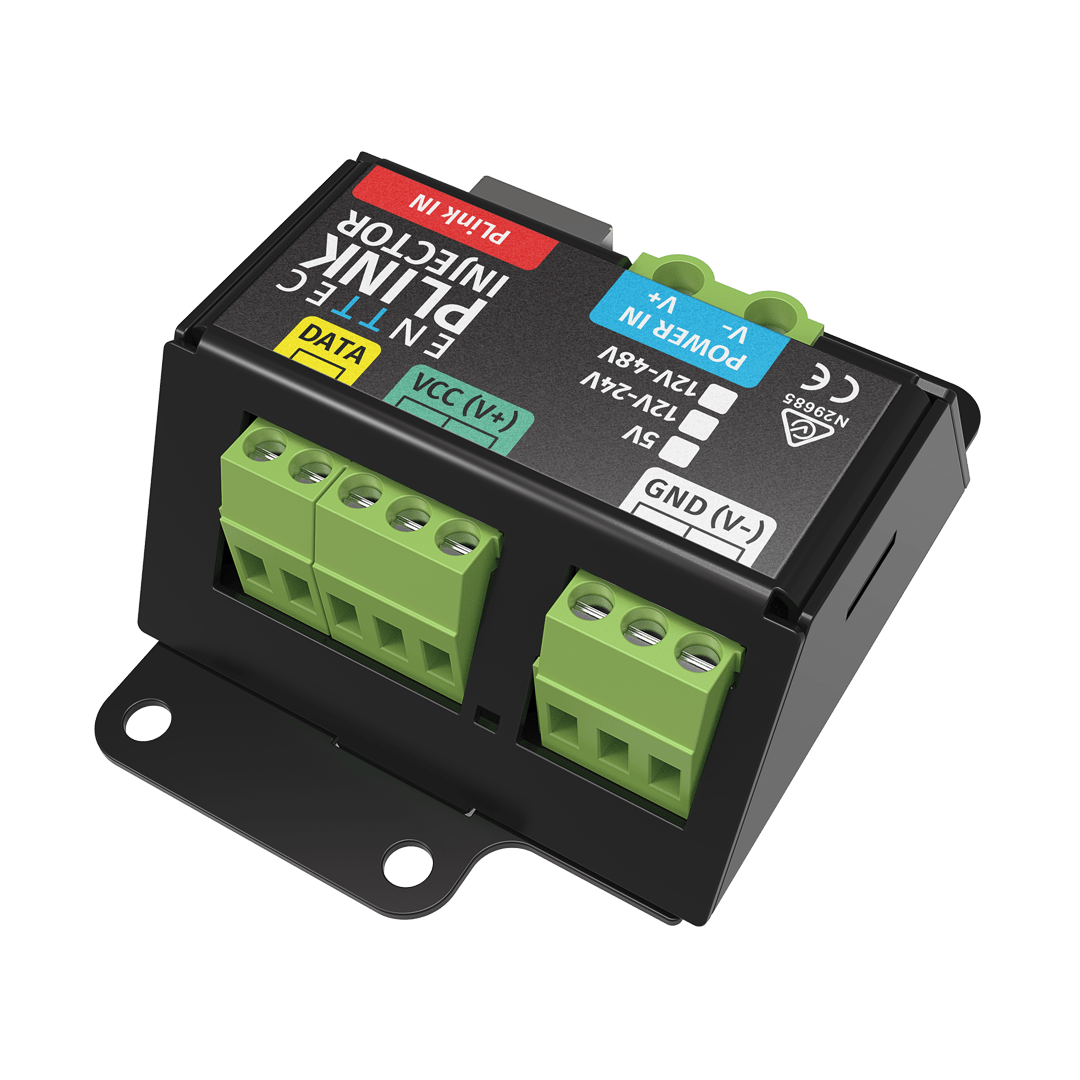

• Power & Data Output: High-power screw terminal connectors

Certifications

• Compliance: UL Class 2 Listed, RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 3-year return to base manufacturer warranty
