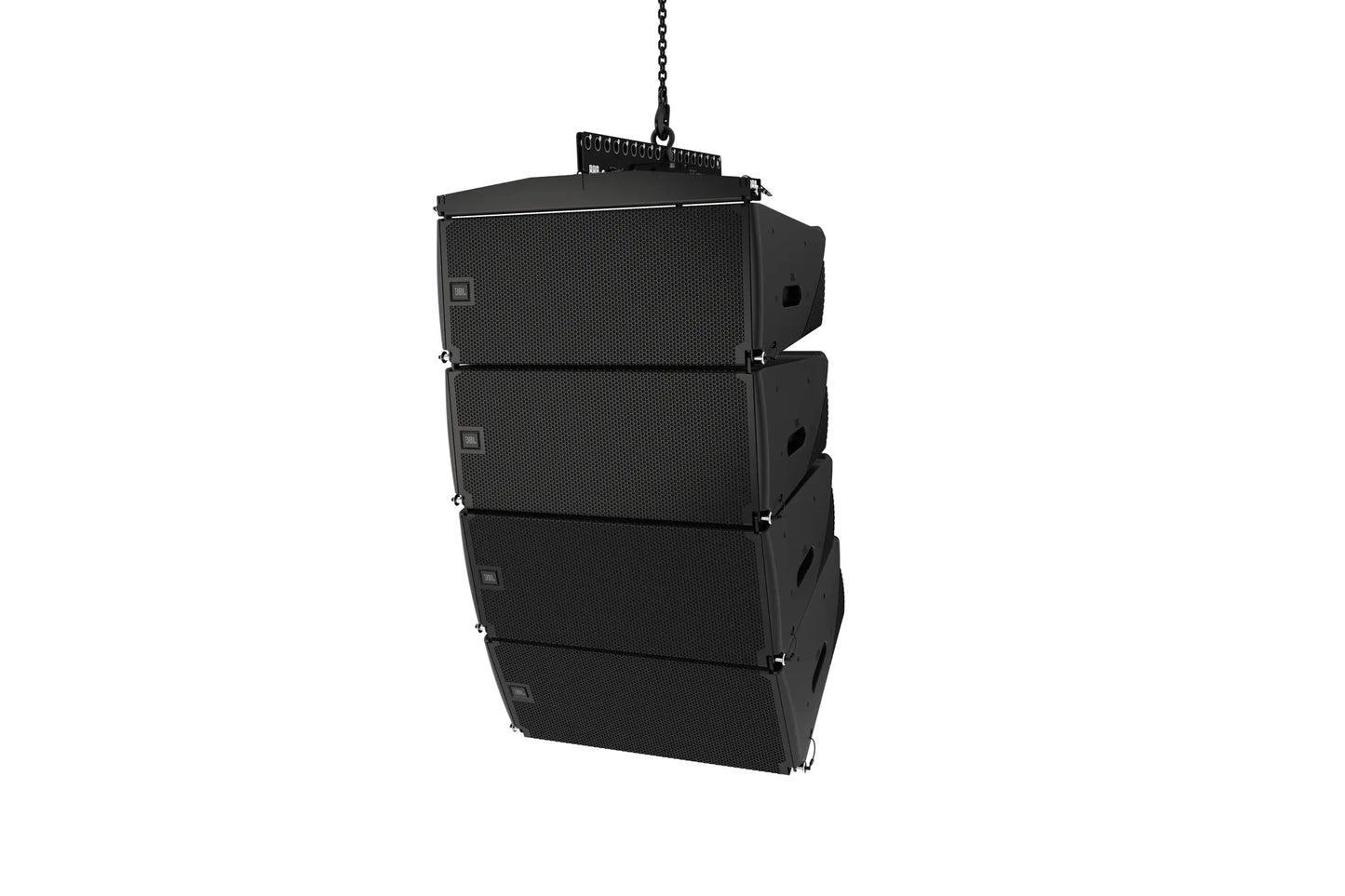

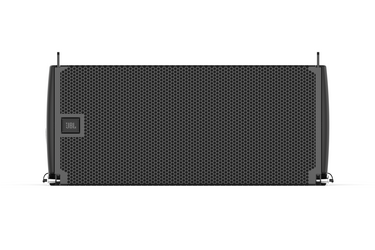

SRX910LA

The SRX910LA is a small scalable line array system. It is a great option for production companies that often do small to medium sized events.

From the Manufacturer:

The SRX900 Series embodies the advanced performance principles that drive JBL's development of audio products that make a real difference in the world of professional audio. This next-generation family of powered line arrays and subwoofers addresses the growing need for scalable small and medium-format professional sound-reinforcement solutions for rental companies, fixed installations and musicians seeking the ultimate combination of performance and portability.

The SRX910LA is a two-way active line array element that can cover a variety of mid to large-sized applications, including rental houses, touring artists, DJs, and installations. Built-in DSP and amplification offer a plug and play experience while providing consistency and optimum performance anywhere in the world.

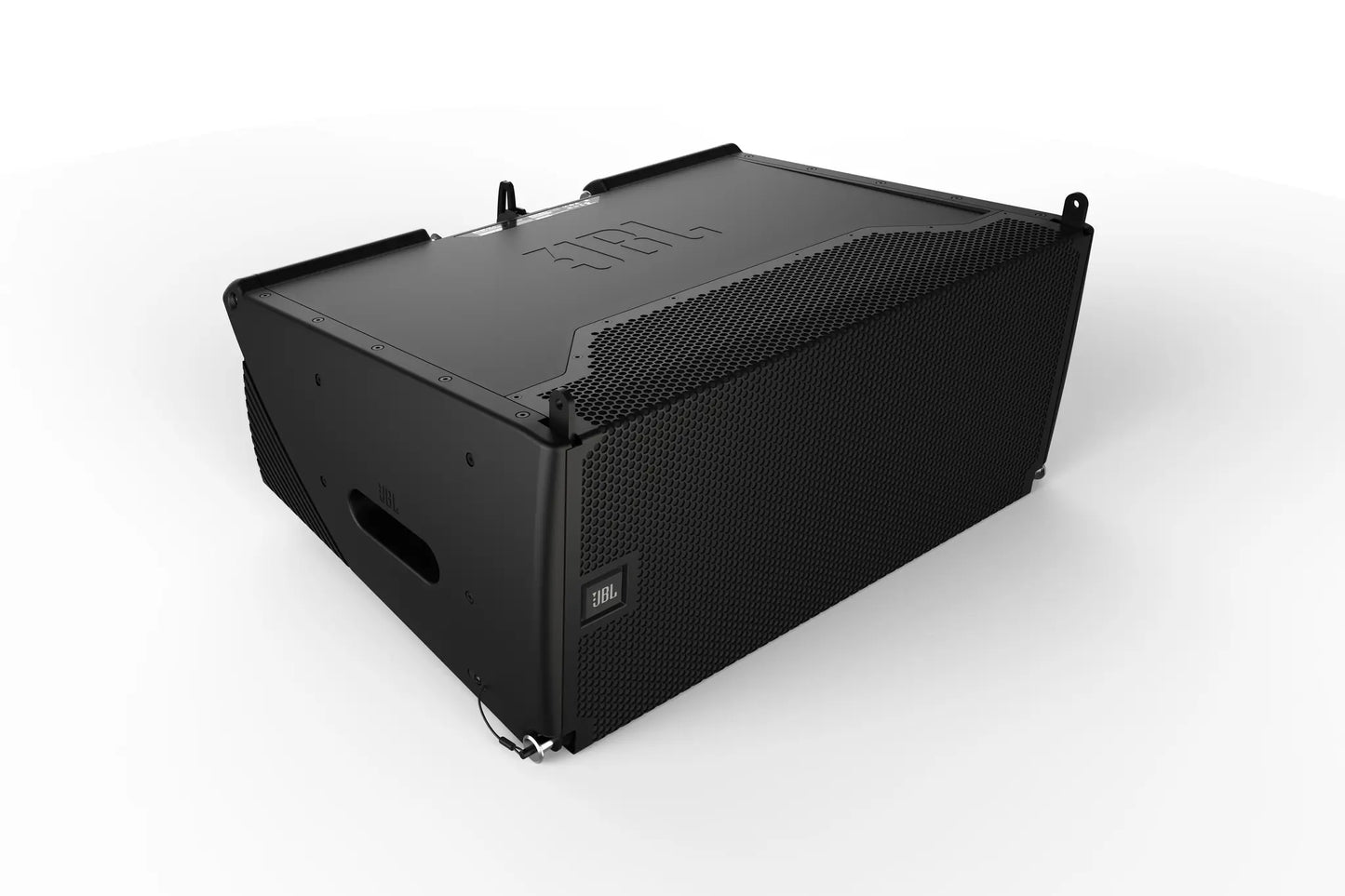

JBL transducers and a new acoustic design provide excellent sound fidelity and best-in-class maximum SPL. The product features dual 10-inch neodymium Differential Drive® woofers and a three-inch compression driver. The computer-optimized enclosure is made out of composite material and offers excellent performance while remaining compact and lightweight.

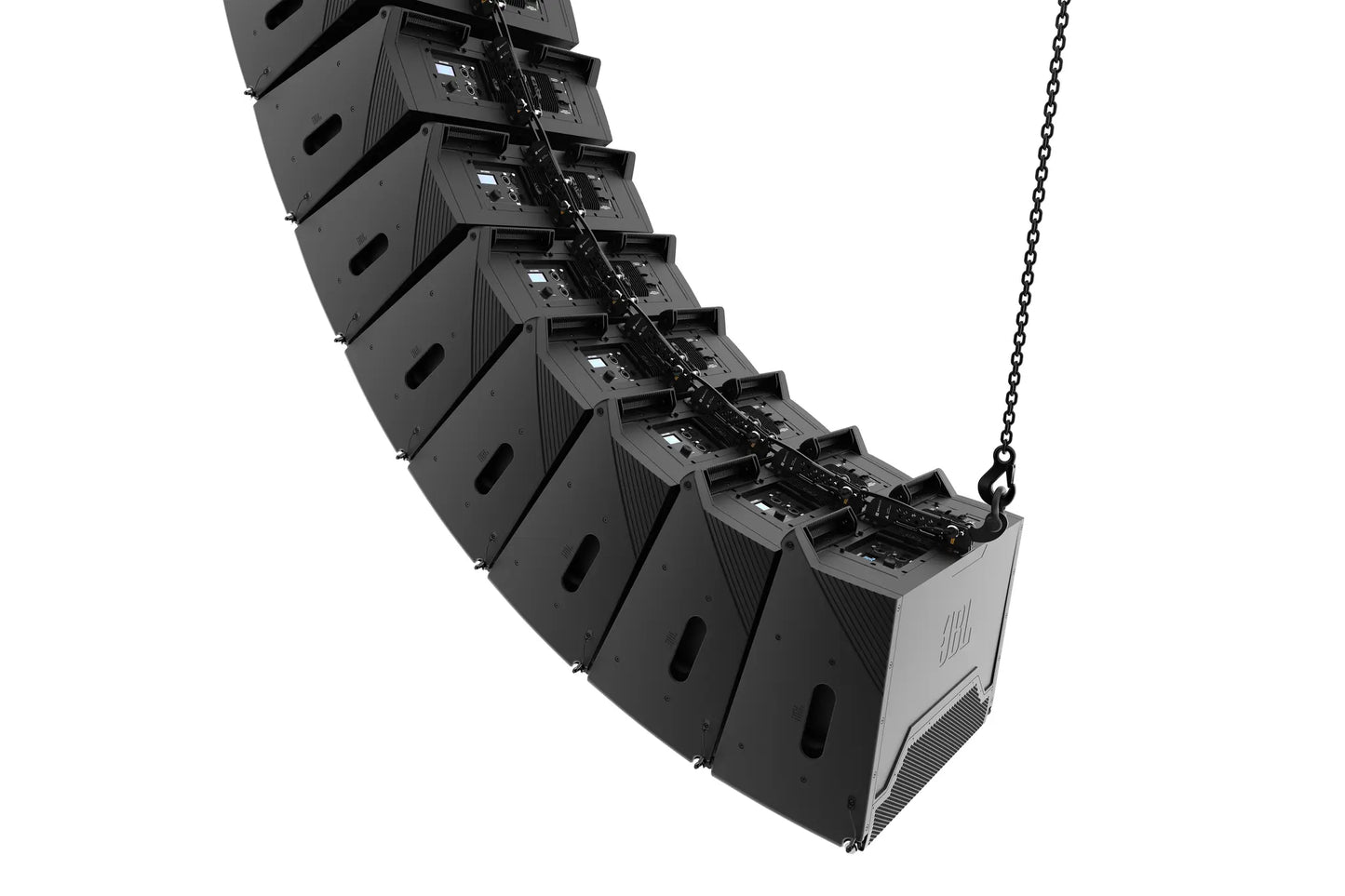

An innovative three-point rigging system and a full set of accessories allow systems to scale and solve the diverse needs of production companies and installation houses. JBL Performance is a new, full-featured software package that gives users control of the system on various platforms, including Windows, macOS, and iPad OS.

Features:

• High-performance, high-density system solution in a truck-pack friendly format

• High-power-handling transducers deliver low distortion, high fidelity, and class-leading output

• Built-in, passively cooled Class D amplification with a universal power supply

• Dual Ethernet ports with Neutrik etherCON connectors

• Supports HARMAN HControl Ethernet

• User-controllable DSP

• LevelMax limiting uses sophisticated excursion-control algorithms to protect transducers

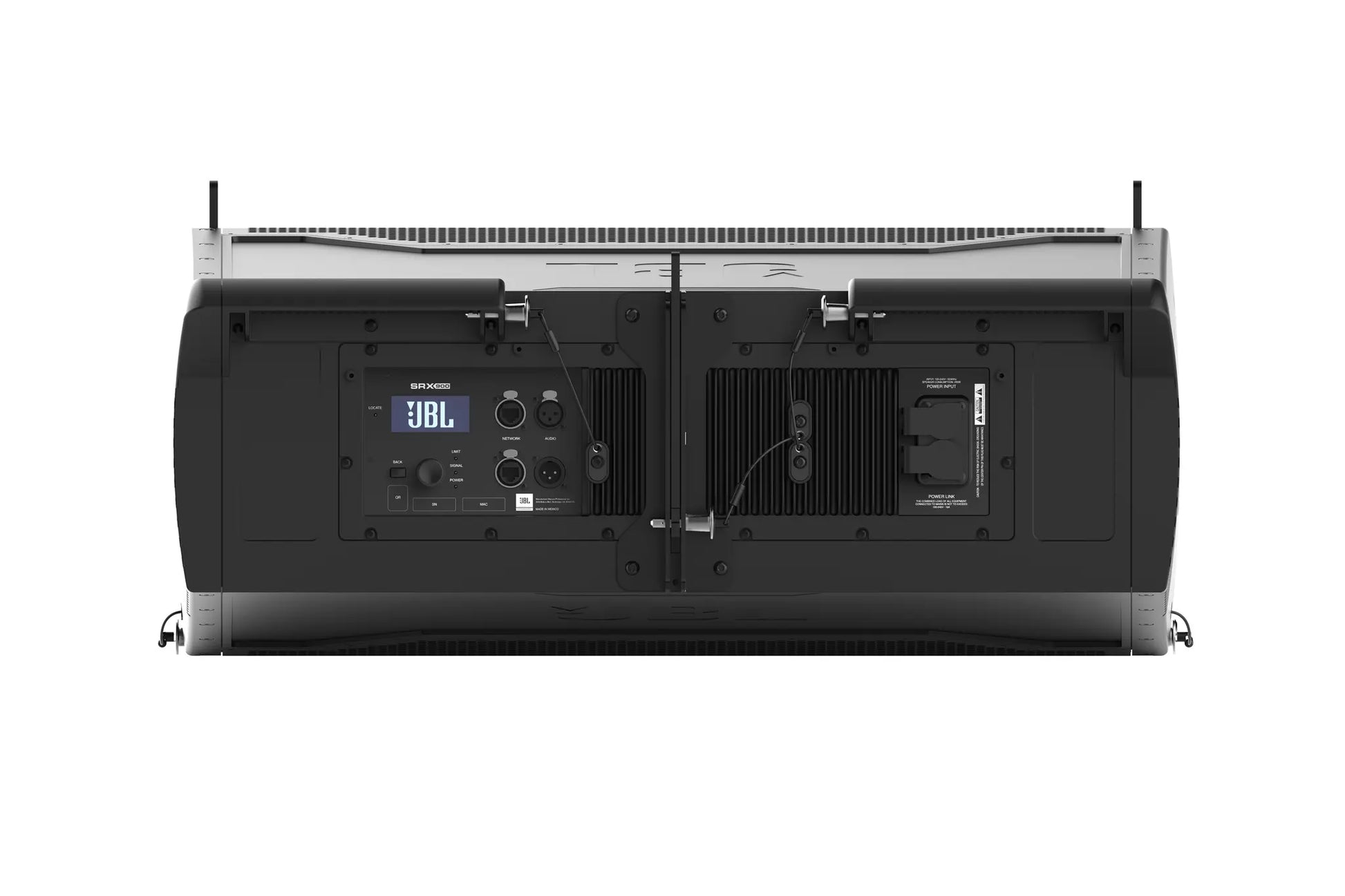

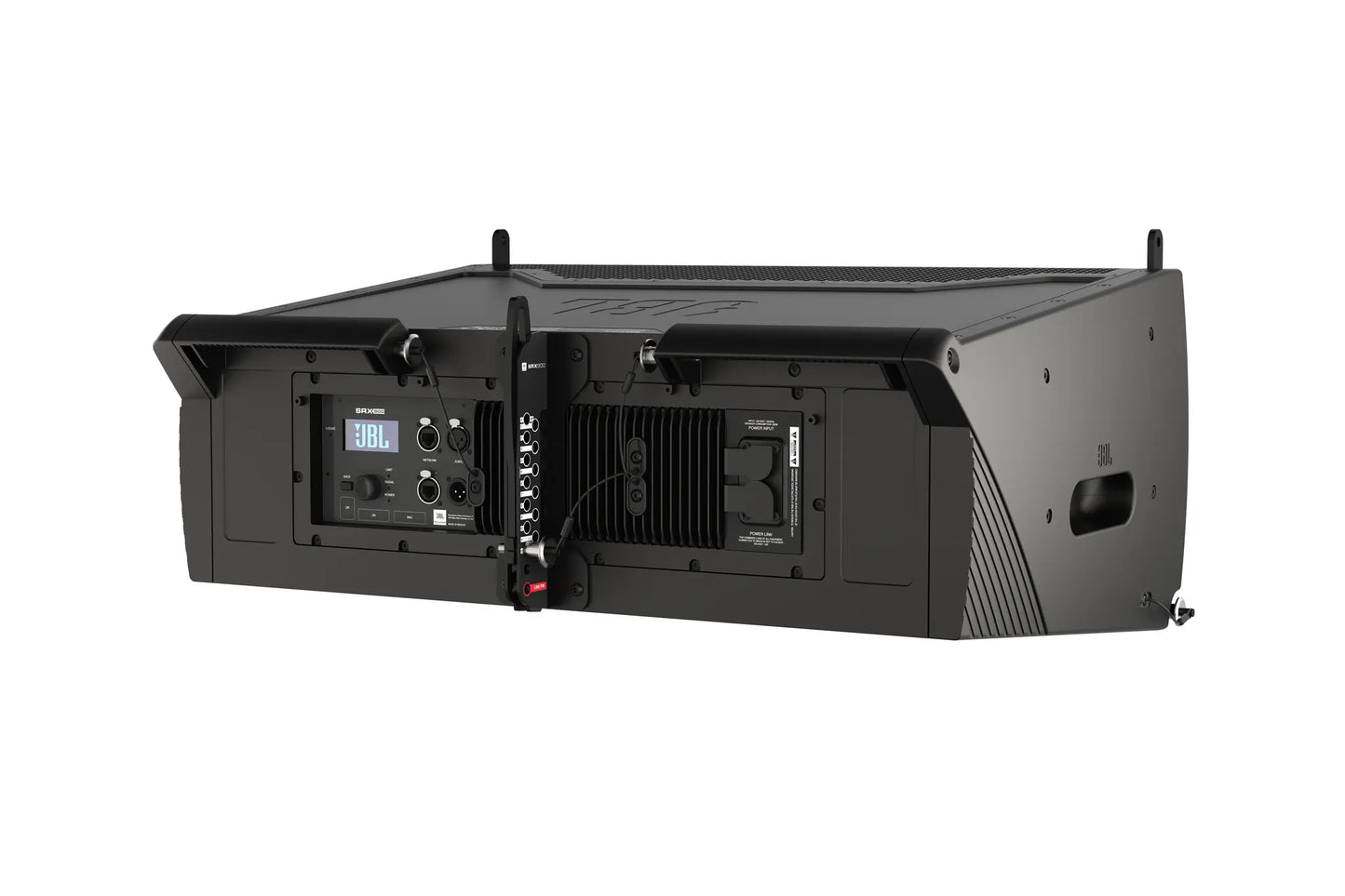

• Rear-panel LCD provides complete access to control features

• Reinforced composite loudspeaker enclosures

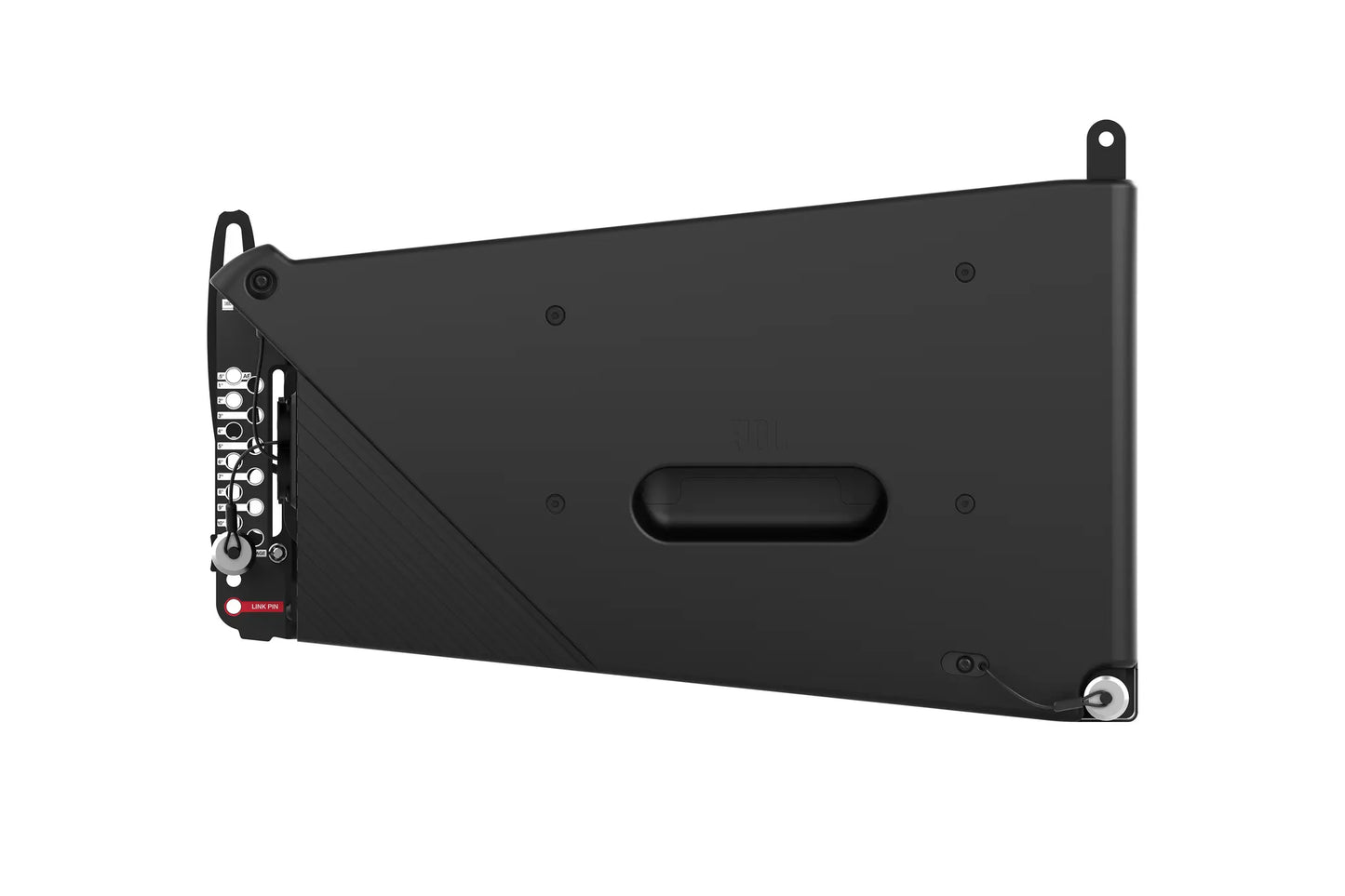

• Innovative three-point rigging system

Specifications:

• Frequency Range (-10dB)

• 53 Hz-19 kHz (array preset)

• Coverage Pattern

• 105 degrees nominal (400 Hz-16 kHz)

• Maximum SPL

• 135 dB

• System Type

• Line Array, two-way active

• Amplifier Design

• Class-D

• Continuous Power Rating

• 600 Watts | LF: 400 Watts | HF: 200 Watts

• LF Driver

• (2) JBL 261G-1, 10 in diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive®

• HF Driver

• (1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil

• Enclosure

• Polypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds

• Inter-Enclosure Angles

• 0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12

• Dimensions (H x W x D)

• 305 mm x 716 mm x 519 mm

• (12.0 in x 28.2 in x 20.5 in)

• Net Weight (each)

• 26.7 kg

• 59 lbs
