Sku: PSD162

Prisma Driver 8 IP

Regular price
$833.00
Regular price
Sale price
$833.00
Shipping calculated at checkout.
Vendor: Magmatic

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

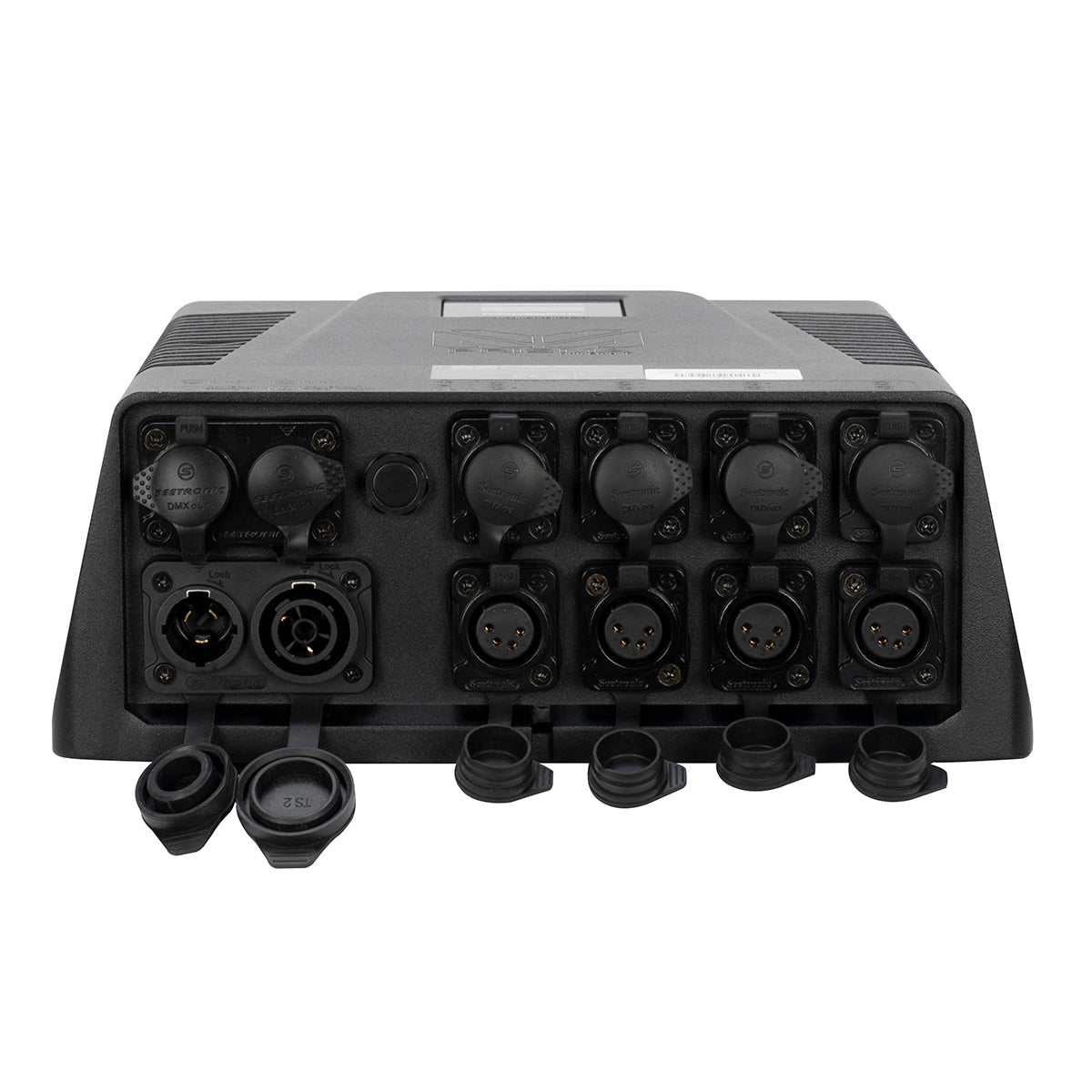

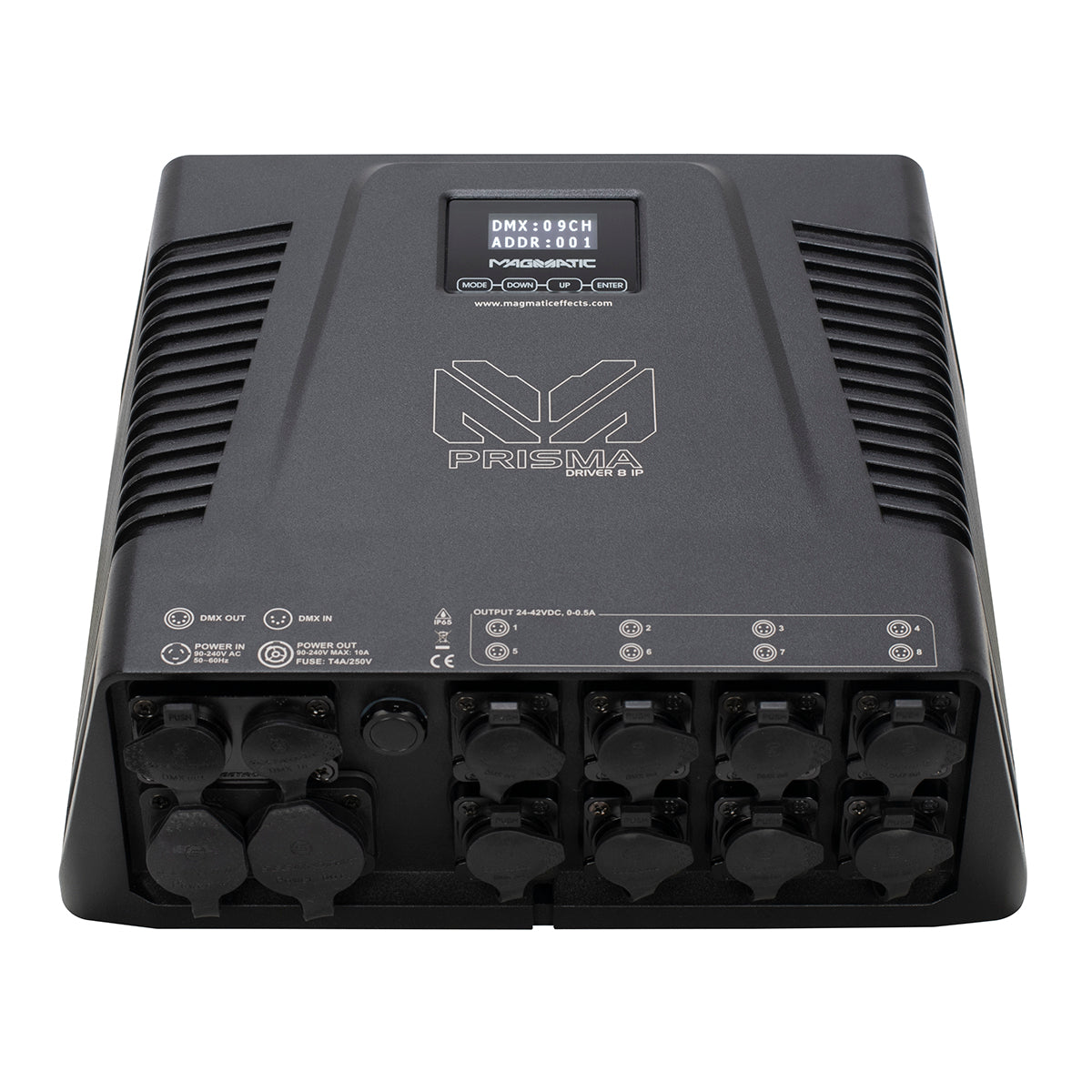

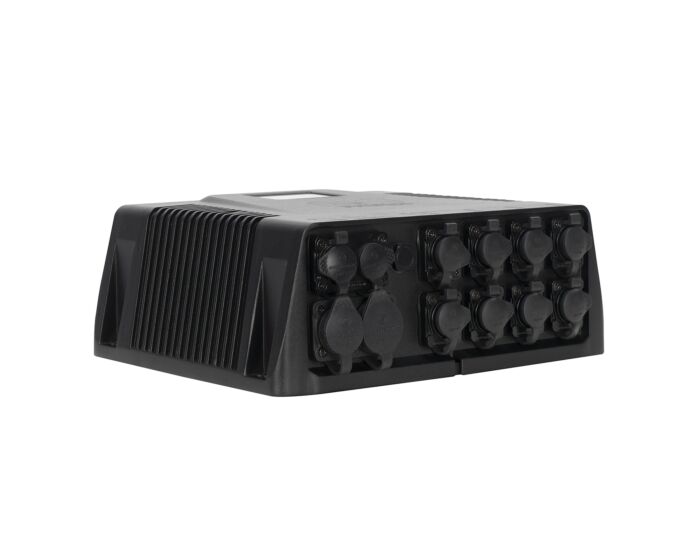

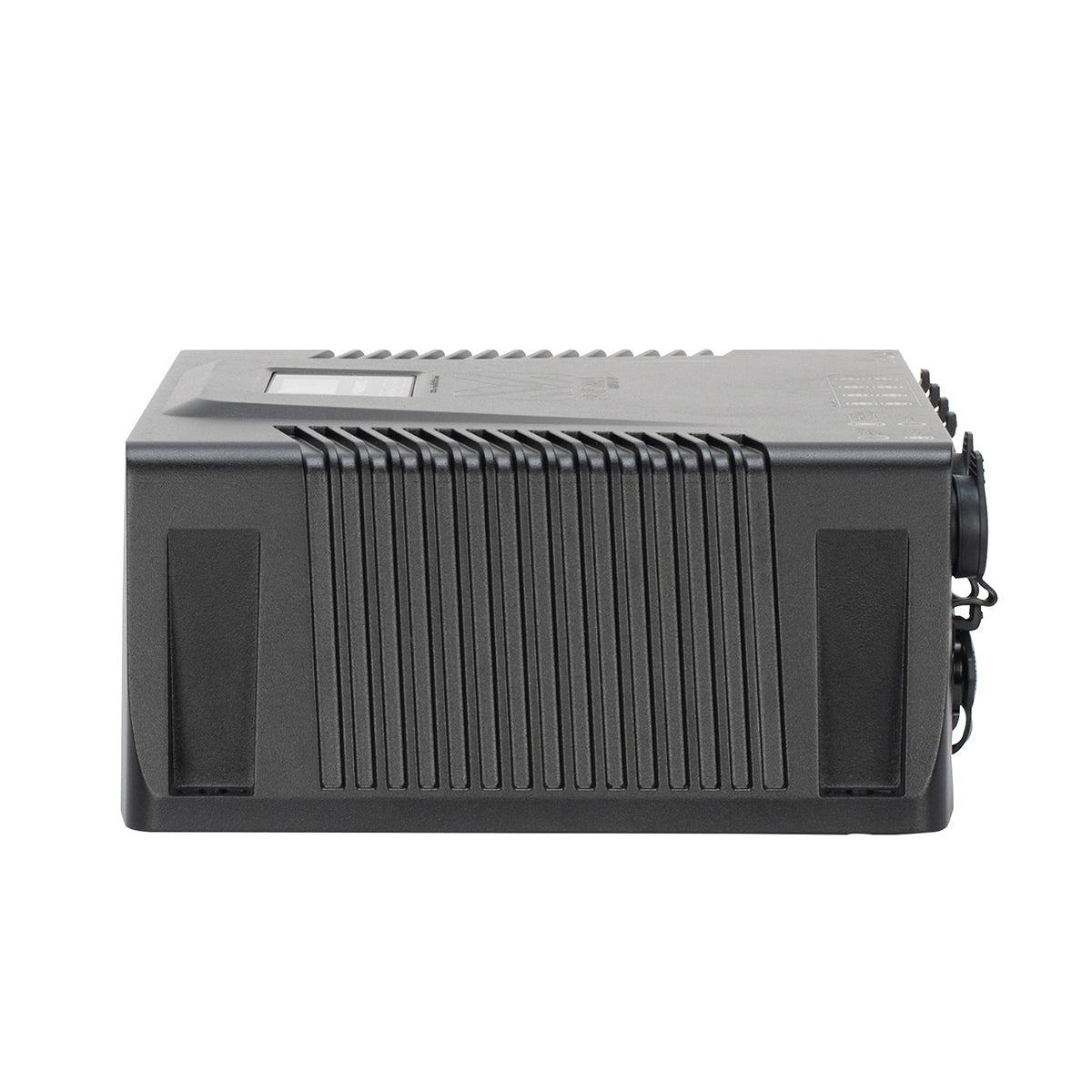

PRISMA DRIVER 8IP™ is an easy to use 48VDC, IP65 protected, driver system which provides individual DMX-512 control including variable delayed time dimming modes for up to (8) PRISMA MINI UV LED series fixtures including the PRISMA MINI PAR 20™, PRISMA MINI PAR 45™ and the PRISMA MINI BAR 20™.


In the Box:

  • (1) Prisma Driver 8 IP
  • (1) IP65 Locking Power Cable



     Features:

    • Outputs: 8x 4-Pin locking outputs
    • Dimming: Variable Dimming Curve Modes
    • Control Protocol: DMX, RDM
    • Operating Modes: DMX, Manual
    • IP Grade: IP65

    Tech Specs

    Control

    DMX Channel Modes: 8 / 9 / 12

    DMX 3-Pin Connectors?: No

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 9 in

    Width: 10.4 in

    Height: 4.2 in

    Weight: 8.05 lb

    Electrical

    Voltage Range: 90 - 240 VAC 50/60Hz

    Maximum Wattage: 167w

    Power Cable Connector - Fixture Side: PowerCON True1

    Main Power Connector on Included Cable: Edison

    Warranty

    Warranty: 2 Years
