Sku:
PSB121
Prisma Mini Bar 20
Regular price
$485.00
Regular price
Sale price
$485.00
Unit price
per
Shipping calculated at checkout.
Vendor: Magmatic
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
*This device requires an external driver linked here.
From the Manufacturer:

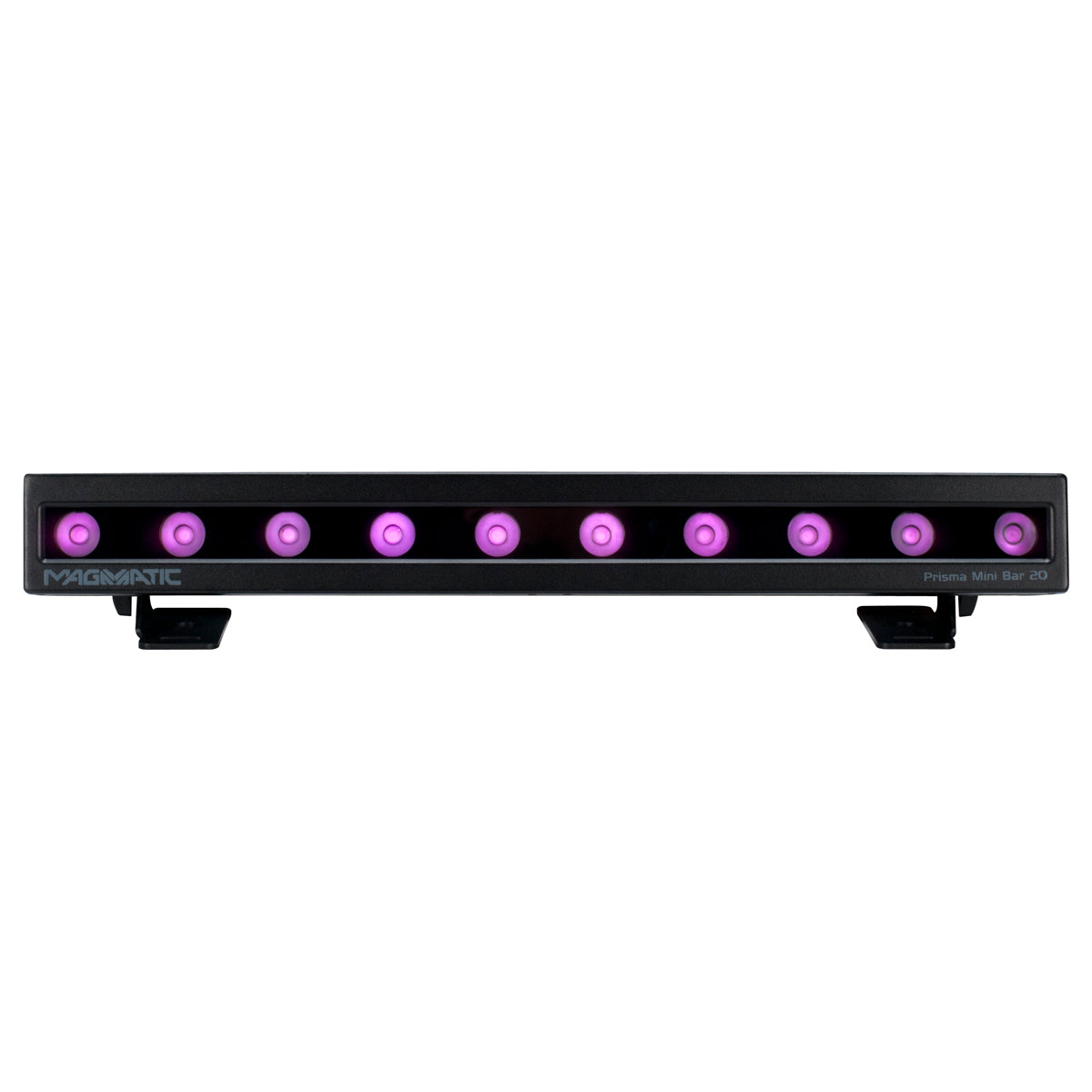

PRISMA MINI BAR 20™ is is an IP65 rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, and an impressive 20 degree beam angle.

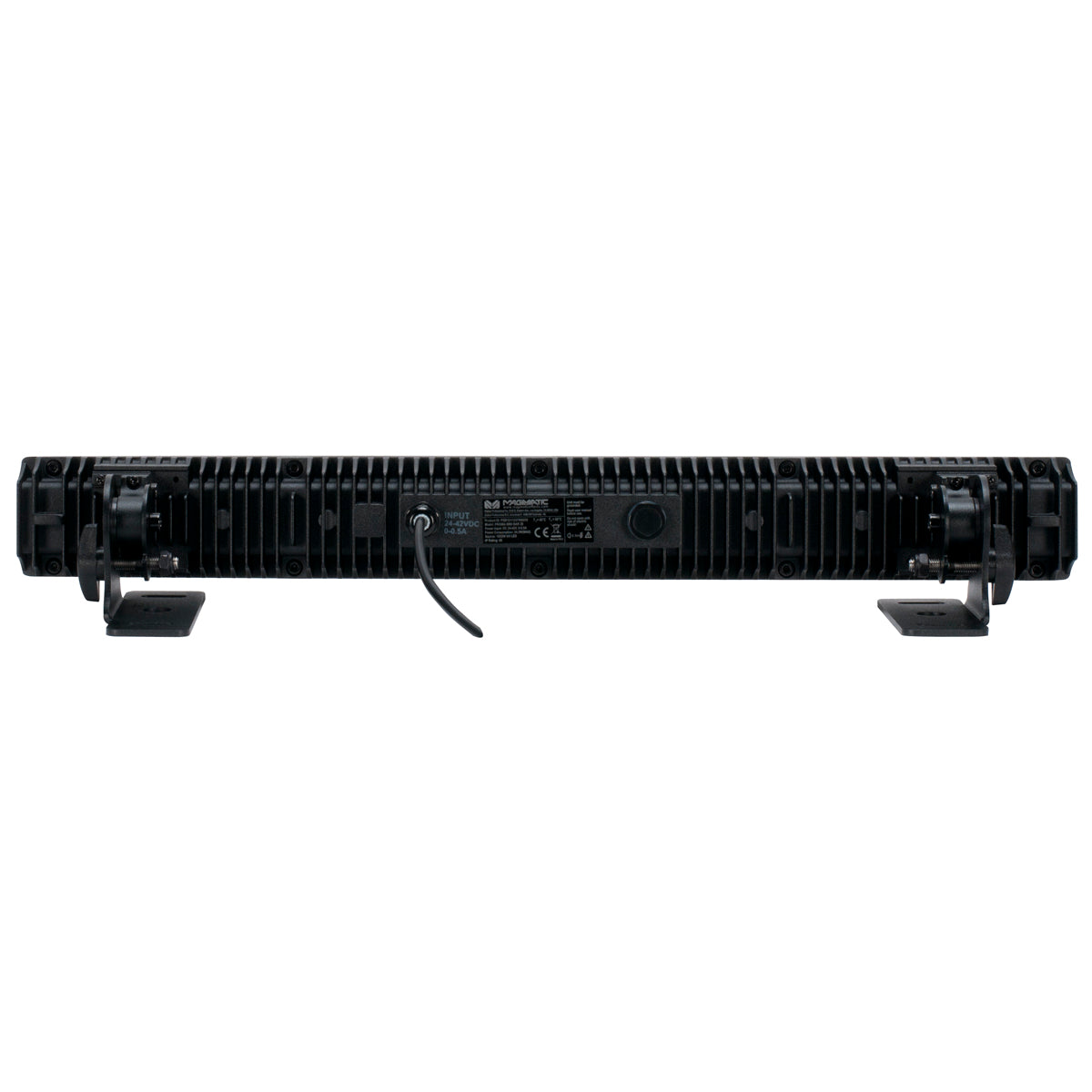

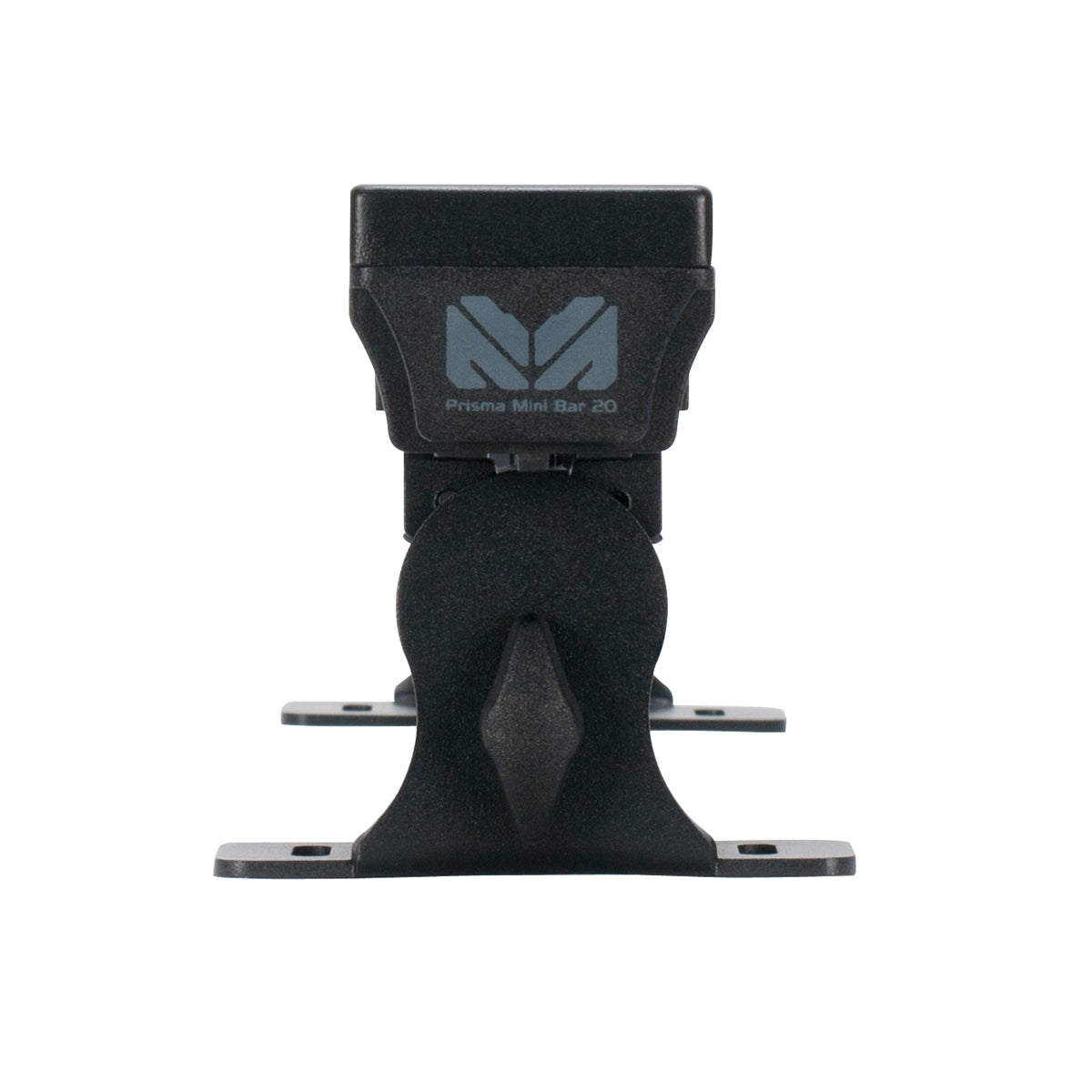

Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™, features 2 adjustable mounting brackets, a durable aluminum housing, and a 9 ft (2.7m) 2-Conductor 14 Gauge IP rated power/data pigtail cable.
Powered by the PRISMA DRIVER 8™ or PRISMA DRIVER 8IP™, features 2 adjustable mounting brackets, a durable aluminum housing, and a 9 ft (2.7m) 2-Conductor 14 Gauge IP rated power/data pigtail cable.
In the Box:
- (1) Prisma Bar 20
- (1) Phoenix Connector
Features:
- Light Source: 10x 3W UV LEDs
- Beam Angle: 20°
- Wavelength: 365nm
- Dimming: Variable Dimming Curve Modes
- Refresh Rate: Variable
- Strobe: Variable
- Control Protocol: DMX, RDM
- Operating Modes: DMX, Manual
- IP Grade: IP65
Tech Specs
Optics:
Light Source Type: UV LED
Light Source Wattage: 10x 3w
Minimum Beam Angle: 20.0°
Maximum Beam Angle: 20.0°
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: No
Physical:
Length: 3.97 in
Width: 18.9 in
Height: 4.19 in
Weight: 4.2 lb
Electrical
Voltage Range: 36.7 VDC
Maximum Wattage: 24.3w
Main Power Connector on Included Cable: Pigtail
Warranty
Warranty: 2 Years
