ProAV1

A great versatile mono DI made for a variety of applications, from 1/4” to 3.5mm and RCA.  For a stereo version, check out the ProAV2.

From the manufacturer

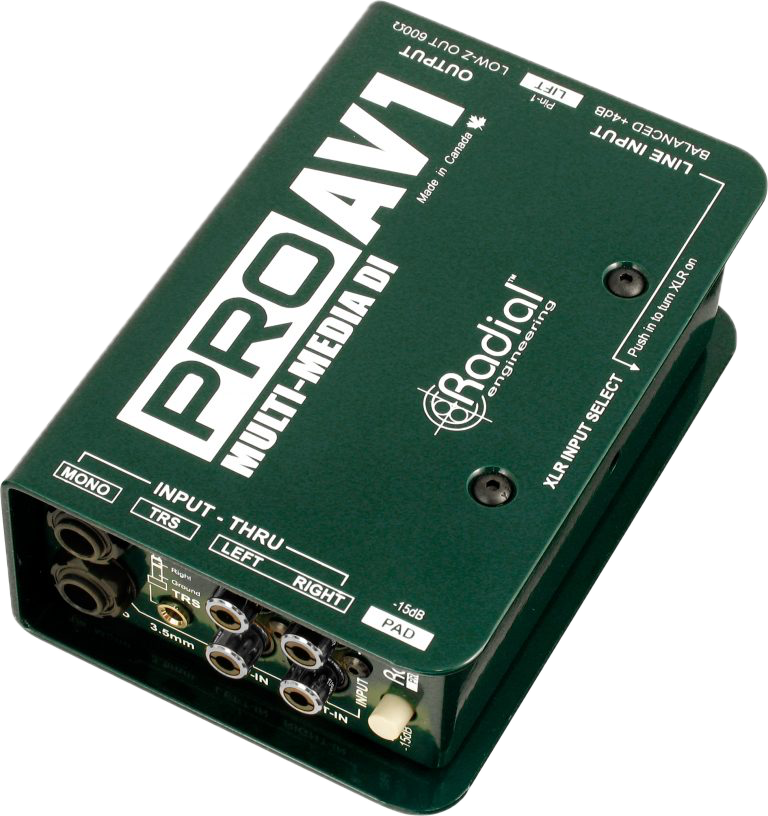

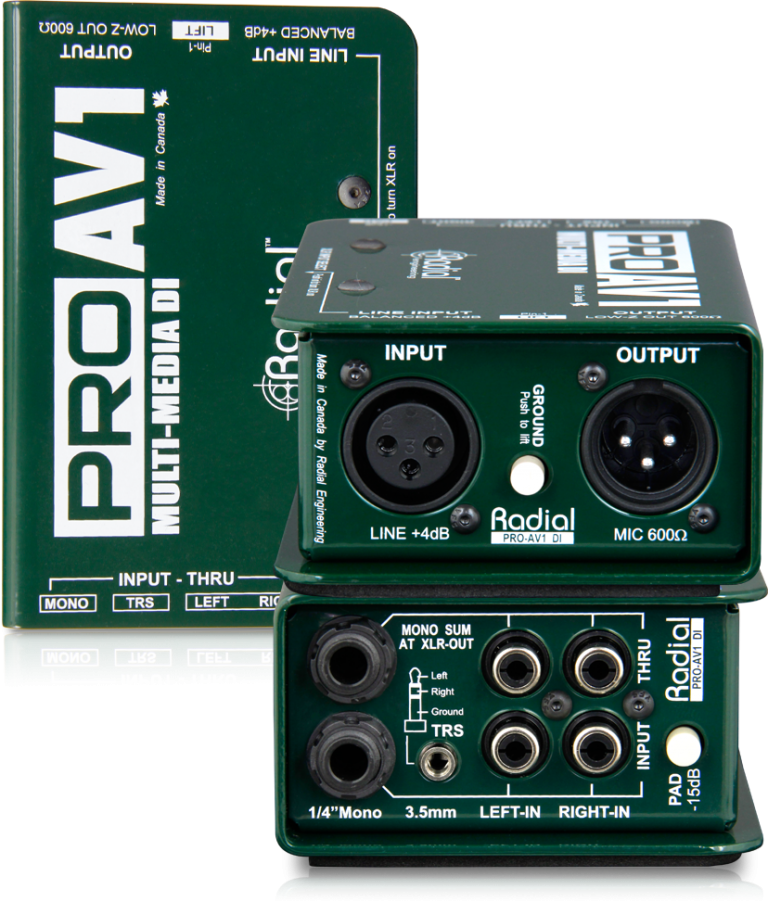

The ProAV1 is a passive direct box with multiple input connector types and a stereo-to-mono merge function designed specifically for AV integrators to reduce channel requirements.

The ProAV1 provides you with the ability to connect almost any audio source to a PA system, while automatically summing stereo sources to mono to preserve channels and simplify the audio setup. Inputs are available via 1/4", RCA, 3.5mm stereo, and line-level XLR connections, giving you the ability to easily connect to smartphones, tablets, laptops, CD players, or even a +4dB line level output from a console or recording interface. Transformer isolation helps eliminate noise while maintaining a linear frequency response, and a mono balanced XLR output allows you to feed a recording interface or a PA system.

Features:

• Max output: -3.4 dBV balanced with 0 dBfs input

• Supported sample rates: 32 kHz, 44.1 kHz, 48 kHz

• Input pad attenuation: -20 dB

• USB Port on PCUSB: USB Type B

• USB Type A to USB Type B cable included.
