Sku: PRB201

Proteus Brutus

Regular price
$12,150.00
Regular price
Sale price
$12,150.00
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

When you need a BRIGHT, beam/wash fixture with gobos, the Proteus Brutus is worth a look.  And, did we mention it's weatherproof?

From the Manufacturer:

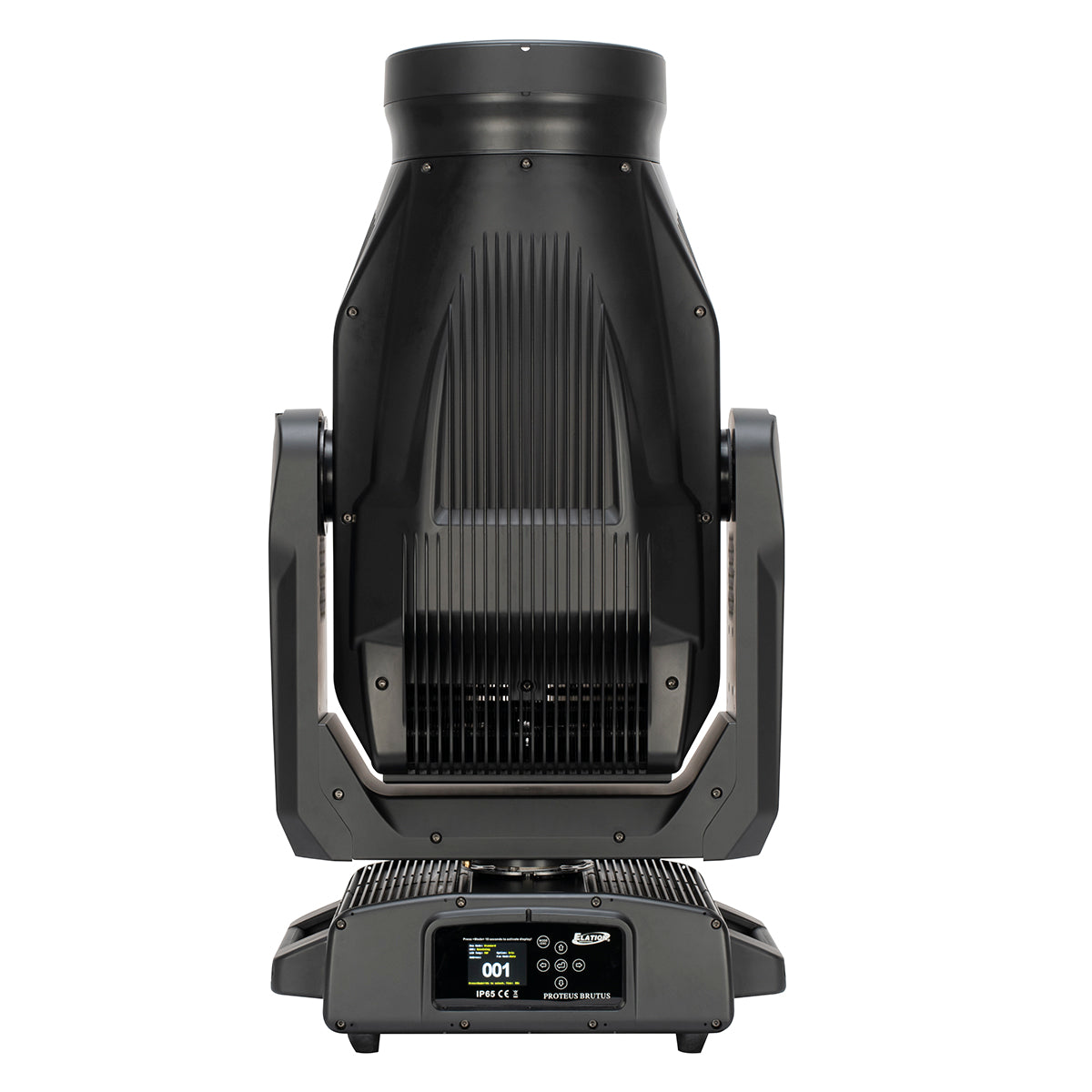

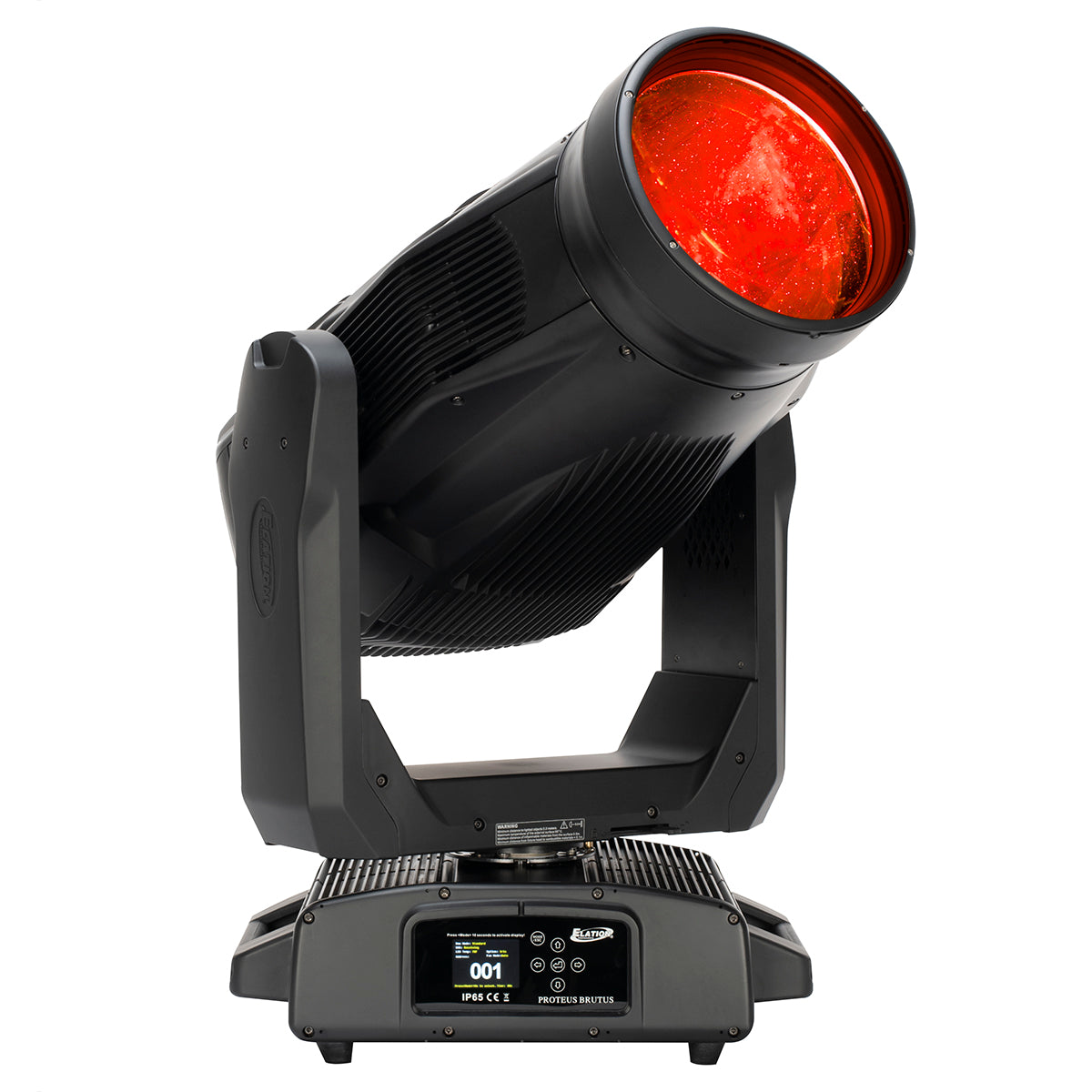

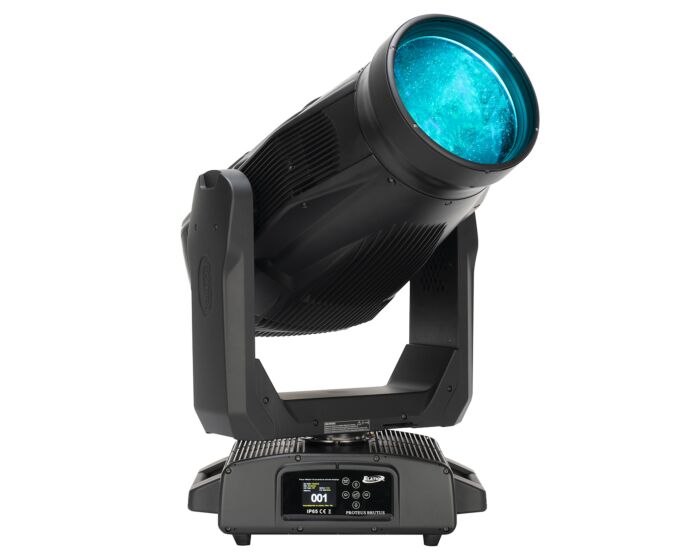

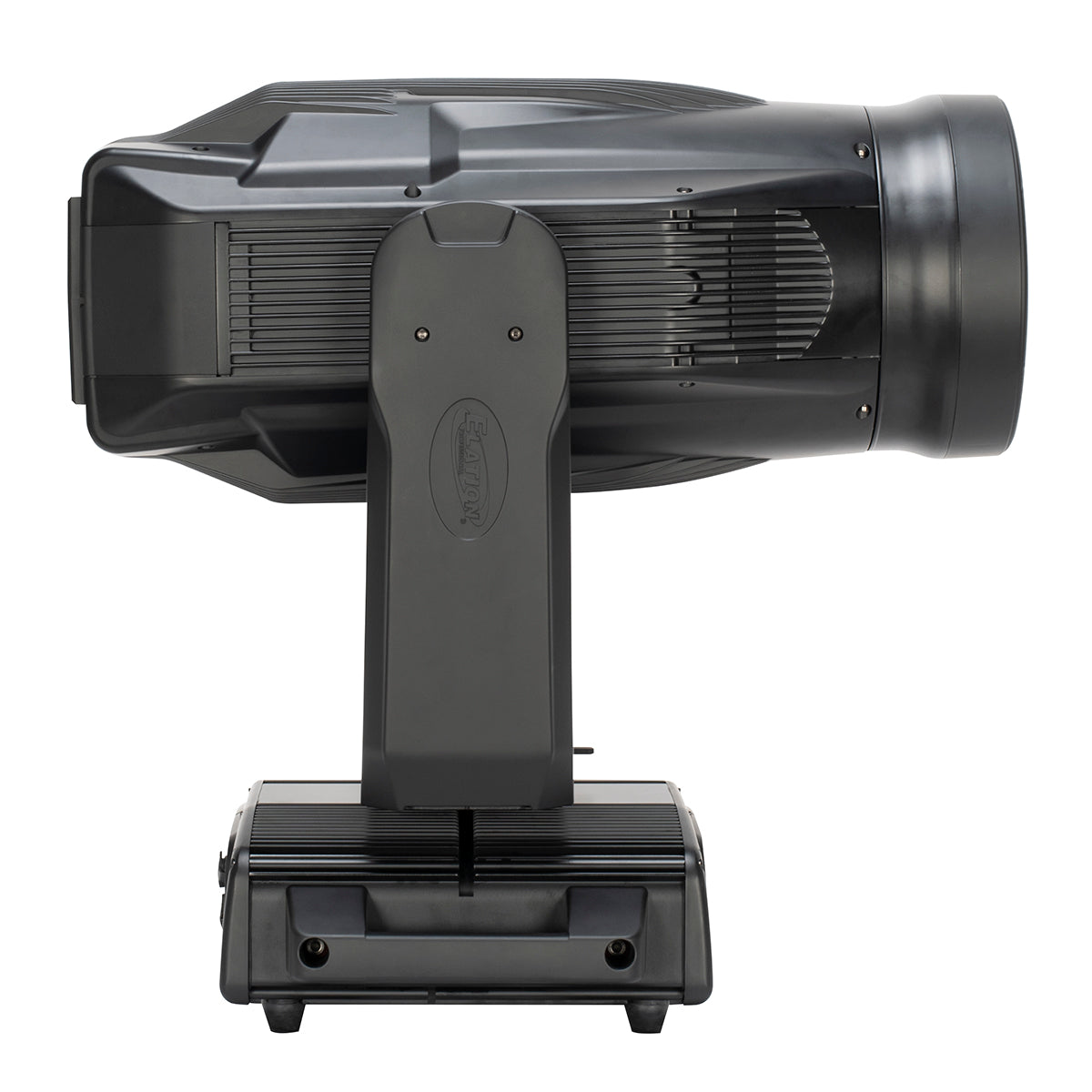

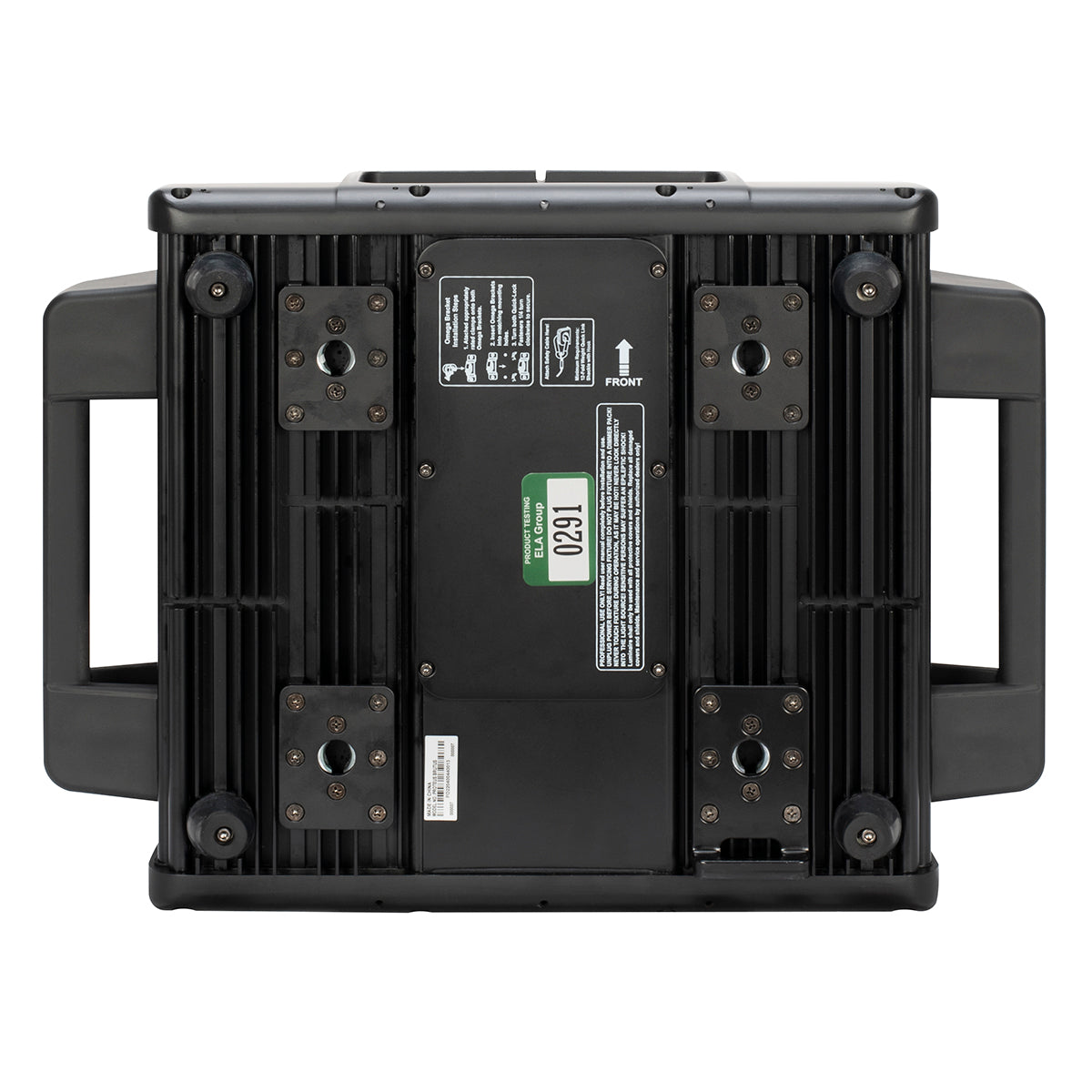

The PROTEUS BRUTUS™ an extremely bright IP65 rated LED Wash FX fixture offering high intensity wash and effects qualities in any environment.

Providing up to 70.000 lumens from its custom designed 1200W Peak Field LED engine the Proteus Brutus is the ideal fixture for any outdoor application requiring superior output, bright and powerful wash, quiet operation as well as stunning colors and effects.
Proteus Brutus provides the designer a comprehensive FX package with 6 rotating glass gobos, animation wheel, frost and a high-speed Iris. Its optional indexable framing system provides full blackout shutter cuts for precise beam shape control.

With a fast zoom range from 5° to 50° and an impressive 220mm front lens the Proteus Brutus has the power to cut through at great distances in any outdoor concert, special events and with its fully dust and waterproof design it is an ideal fixture for theme parks and cruise ships or any application that benefits from its sealed IP65 housing.

The PROTEUS BRUTUS fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included), and provides enhanced impact protection during transport.

In the Box:

  • (1) Proteus Brutus
  • (2) Omega Brackets
  • IP65 Rated 5pin DMX Cable
  • IP65 Rated RJ45 DATA Cable (Fixture to Fixture Interconnect Use Only!)
  • IP65 Rated Power Cable

Features:

  • Light Source: 1200W White LED
  • Color Temperature: 6,500K
  • CRI: 70+ (82+ with HCRI Filter)
  • Beam Angle: 5° - 50° Motorized Zoom
  • Dimming: Variable 16-bit Dimming Curve Modes
  • Refresh Rate: Variable
  • Strobe: Variable
  • Color: CMY Color Mixing and Variable CTO
  • Color Wheel: 6 Position Color Wheel, High CRI, UV filter
  • Gobo: 5 Rotating / Indexing Interchangeable Beam Shaping + FX Gobos
  • Framing Shutters: Optional Accessory
  • Effects:
    • Animation Wheel
    • Variable Frost Filter
    • Motorized Iris
  • Control Protocol: DMX, RDM, Art-NET, sACN
  • Operating Modes: DMX, Manual
  • IP Grade: IP65



Tech Specs

Optics:

Light Source Type: White LED

Light Source Wattage: 1200w

Minimum Beam Angle: 5.0°

Maximum Beam Angle: 50.0°

Control

DMX Channel Modes: 34 / 56

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 18 in

Width: 24.9 in

Height: 33.9 in

Weight: 105 lb

Electrical

Voltage Range: 200 - 240 VAC 50/60Hz

Maximum Wattage: 1650w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison

Warranty

Warranty: 2 Years
