Sku:
PRM992
Proteus Maximus
- Regular price
- $14,400.00
- Regular price
-
- Sale price
- $14,400.00
- Unit price
- per
Shipping calculated at checkout.
Vendor: Elation Professional
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
The PROTEUS MAXIMUS™ an extremely bright IP65 rated LED Profile fixture offering outstanding projection, beam and wash qualities in any environment.
Providing up to 50.000 lumens from its custom designed 950W 6,500K LED engine the Proteus Maximus is the ideal fixture for any outdoor application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors. Proteus Maximus provides the designer a comprehensive FX package with 6 rotating and 7 fixed glass gobos, full animation wheel, dual prisms, dual frost and a high-speed Iris. Its indexable framing system provides full blackout shutter cuts for precise beam shape control.
With a fast zoom range from 5.5° to 55° and an impressive 180mm front lens the Proteus Maximus has the power to cut through at great distances in any outdoor concert, special events and with its fully dust and water proof design it is an ideal fixture for theme parks and cruise ships.
The PROTEUS MAXIMUS fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included), and provides enhanced impact protection during transport.
In the Box:
- (1) Proteus Maximus

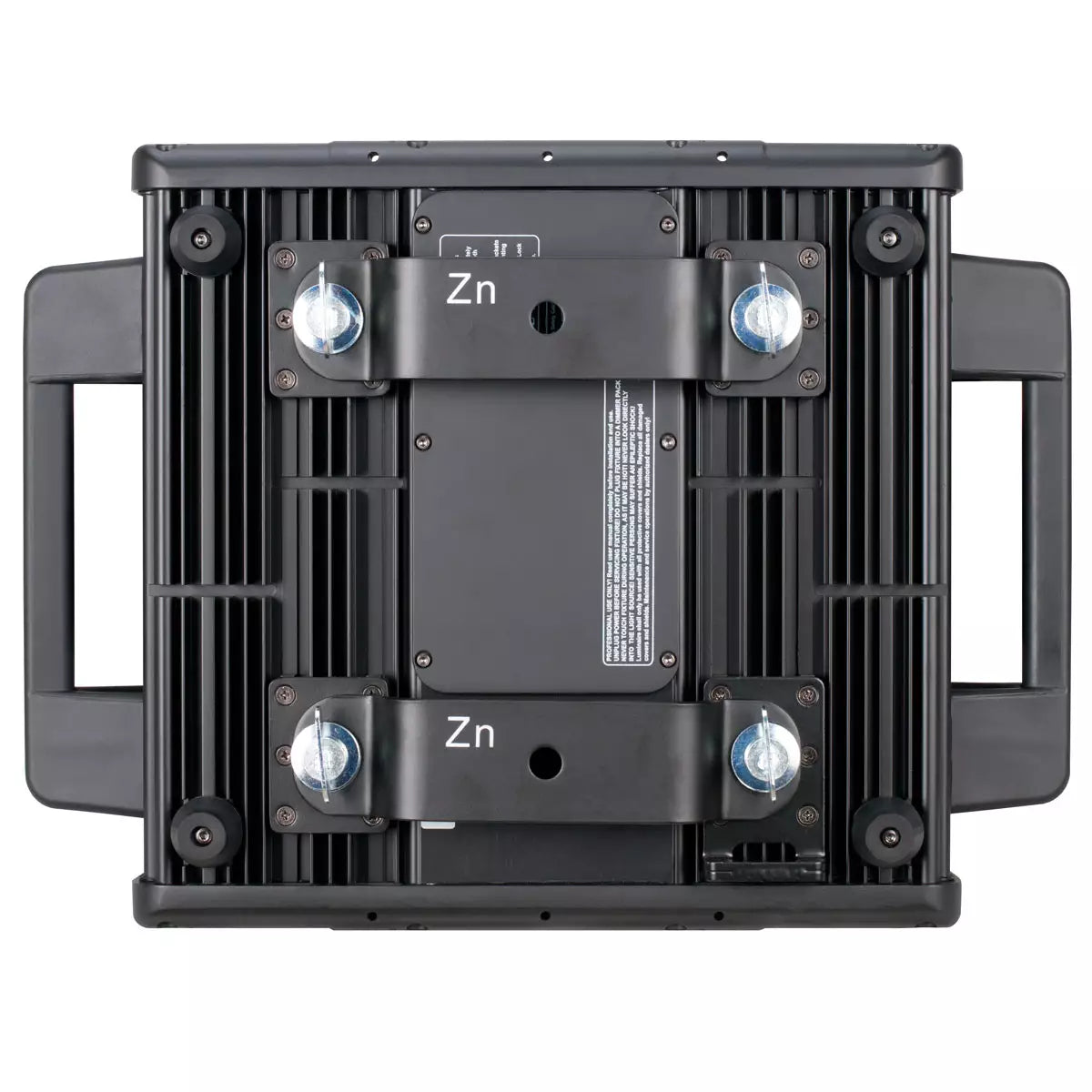

- (2) Omega Brackets
- (1) IP65 Rated 5pin DMX Cable
- (1) IP65 Rated RJ45 Cable (Fixture to Fixture Interconnect Use Only!)
- (1) IP65 Rated Power Cable
Features:
- Light Source: 950W White LED
- Color Temperature: 6,500K
- CRI: 70+ (82+ with HCRI Filter)
- Beam Angle: 5.5° to 55° Motorized Zoom
- Dimming: Variable 16-bit Dimming Curve Modes
- Refresh Rate: Variable
- Strobe: Variable
- Color: CMY Color Mixing and Variable CTO
- Color Wheel: 6 Position Color Wheel, High CRI, UV filter
- Rotating Gobo Wheel: 6 Rotating / Indexing Interchangeable Glass Gobos
- Static Gobo Wheel: 7 Static Glass Gobos
- Framing Shutter: 4 Rotating Full Blackout Framing Blades
- Effects:
- Animation Wheel
- 4-Facet and Linear Rotating Prisms
- Motorized Iris
- 2 Variable Frost Filters (Light and Wash)
- Control Protocol: DMX, RDM, Art-NET, sACN
- Operating Modes: DMX, Manual, Auto Program
- IP Grade: IP65
Tech Specs
Optics:
Light Source Type: White LED
Light Source Wattage: 950w
Minimum Beam Angle: 5.5°
Maximum Beam Angle: 55.0°
Control
DMX Channel Modes: 37 / 61
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 18 in
Width: 23.3 in
Height: 32.5 in
Weight: 117 oz
Electrical
Voltage Range: 120 - 240 VAC 50/60Hz
Maximum Wattage: 1400w
Power Cable Connector - Fixture Side: PowerCON True1
Main Power Connector on Included Cable: Edison
