Sku: PRD013

Proteus Radius

$7,309.00
$7,309.00
Sold out
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down
This compact high intensity beam fixture, will be an amazing addition to your lighting gear. A fast moving fixture with a super narrow beam, will empower you to create very impactful beam animations in the air. This fixture has been equipped with endless capabilities that won't disappoint you in any way. Get yours now!

From the Manufacturer:

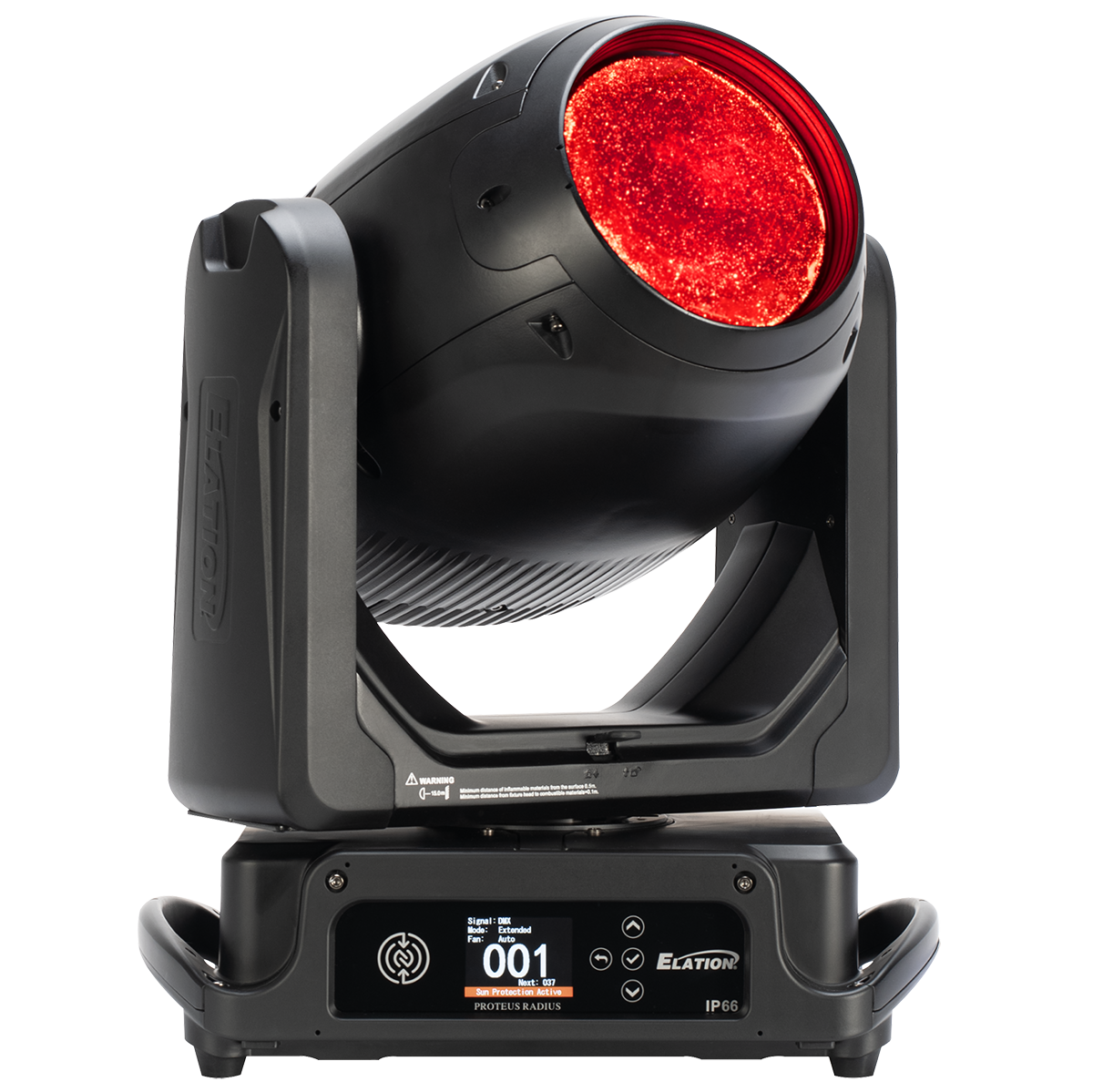

The Proteus Radius is a compact IP66 High Intensity Beam FX fixture.
Utilizing an efficient 100W Solid State Phosphor-Converted (SSPC) light engine the fixture projects narrow intense beams with incredible power at long distances.
Incredibly fast 360 Degree of Movement on both axis allow impactful beam animations, while the CMY colour mix, gobos, prisms and frost options allow the designer to compose an endless array of stunning aerial effects.

Features:

  • 100W Solid State Phosphor-Converted (SSPC) Light Engine
  • Compact and lightweight IP66 housing
  • Ultra Intense 0.9˚ Beam
  • Endless High-Speed 360 Pan and Tilt Movements
  • CMY Color Mixing CMY
  • FX Package with rotating, fixed gobo, 4 prisms and dual frost
  • NFC Support
  • FIL (Foam In Lay) Polyurethane Foam Packaging Included

      Specifications:

      Source:

      • 100W Solid State Phosphor-Converted (SSPC) Light Engine
      • 6000K, CRI 70
      • 10,000 Hour Lamp Life

      *Test lab conditions. May vary depending on several factors including but not limited to:

      Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

      Photometric Data:

      • 2700 Lumen Total Fixture Output
      • Beam Angle 0.9˚

      Effects:

      • Dual Frost
      • 4 Prisms on Dual Planes
      • CMY Colour, Gobo, Prism Macros
      • Motorized Focus
      • Digital Shutter and Strobe

      Color:

      • Full CMY Colour Mixing System
      • 25 Position Colour Wheel

      Gobos (2 Gobo Wheels)

      • 13 Interchangeable-Rotating / Indexing Metal Gobos
      • 24 Static-Stamped Metal Gobos

      Control / Connections

      • 2 DMX Channel Modes
      • (6) Button Touch Panel
      • Full Color 180° Reversible LCD Menu Display
      • DMX, RDM, Art-Net and sACN Protocol Support
      • 5pin DMX In/Out
      • RJ45 Ethernet In/Out
      • IP65 Locking Power In

        Tech Specs

        Optics:

        Light Source Type: Solid State Phosphor-Converted (SSPC) Light Engine

        Light Source Wattage: 100w

        Minimum Beam Angle: 0.9°

        Maximum Beam Angle: 0.9°

        Control

        DMX 5-Pin Connectors?: Yes

        Physical:

        Length: 15.6 in

        Width: 13.5 in

        Height: 20 in

        Weight: 41.9 lb

        Electrical

        Voltage Range: AC 100-240V 50/60Hz

        Maximum Wattage: 300Ww
