Sku: PRR052

Proteus Rayzor Blade S

Regular price
$4,400.00
Regular price
Sale price
$4,400.00
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The Proteus Rayzor Blade offers a lot in a small package.  It's a striplight, an effects light, and a strobe unit, all with pixel mapping!  And it's waterproof!

From the Manufacturer:

The Proteus Rayzor Blade S™ is a striking visual combination of Linear Wash, high intensity Strobe Lines and SparkLED FX inside a compact IP65 linear fixture design. Envisioned to provide the designer unlimited creative control of powerful colors and high-powered strobe effects from a single unit it allows unlimited placement in any outdoor and indoor environment. Protected from dust and water ingress the Rayzor Blade S is part of Elation’s industry leading Proteus Range of outdoor luminaires.

This fixture features Elation’s unique patented SparkLED™ system and allows impactful Tilt sweep motions. With its wide zoom range from 6 to 45 degrees it provides intense and well-defined mid-air beams and light curtains at over 6,600 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool from stage washes, mid-air effects or audience blinders, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

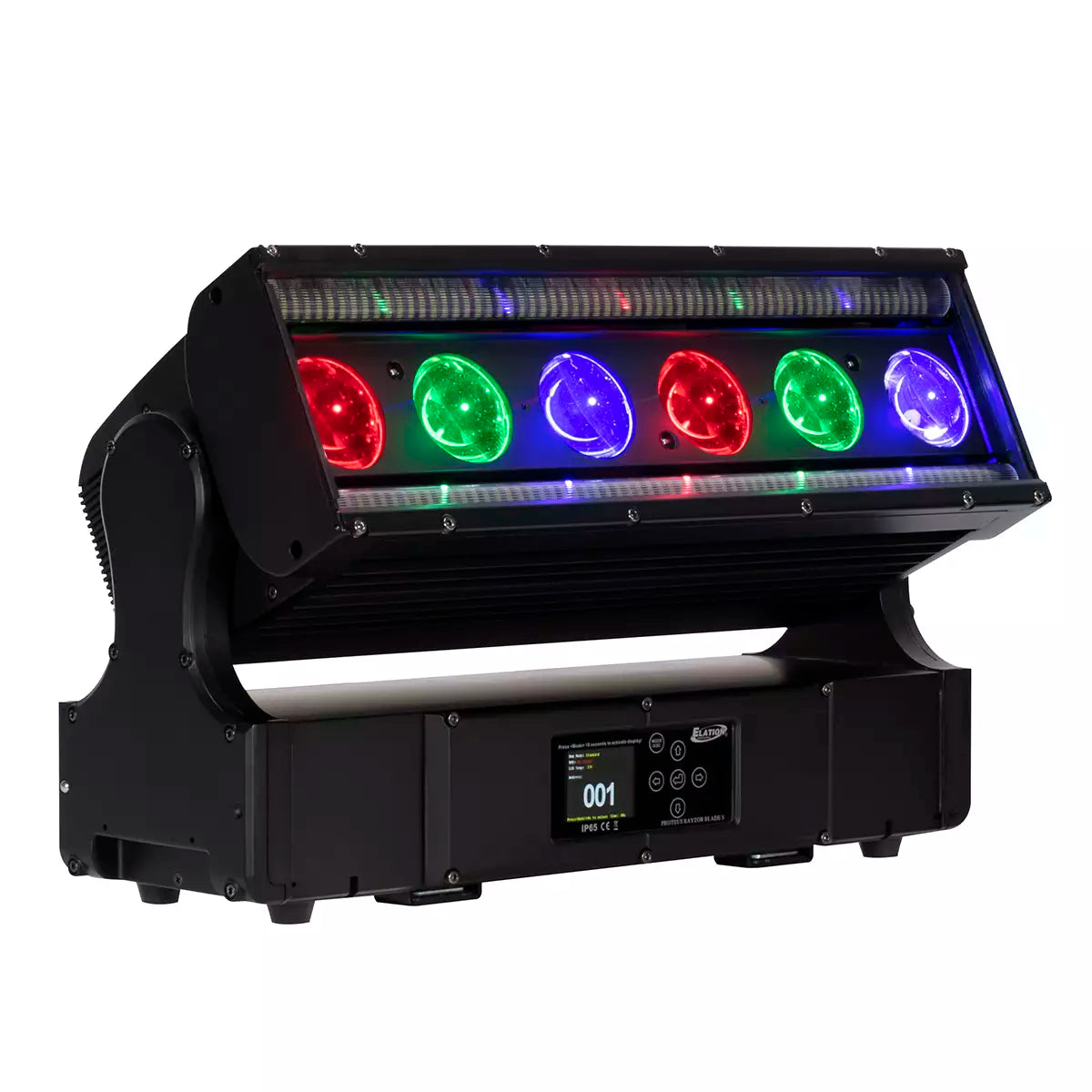

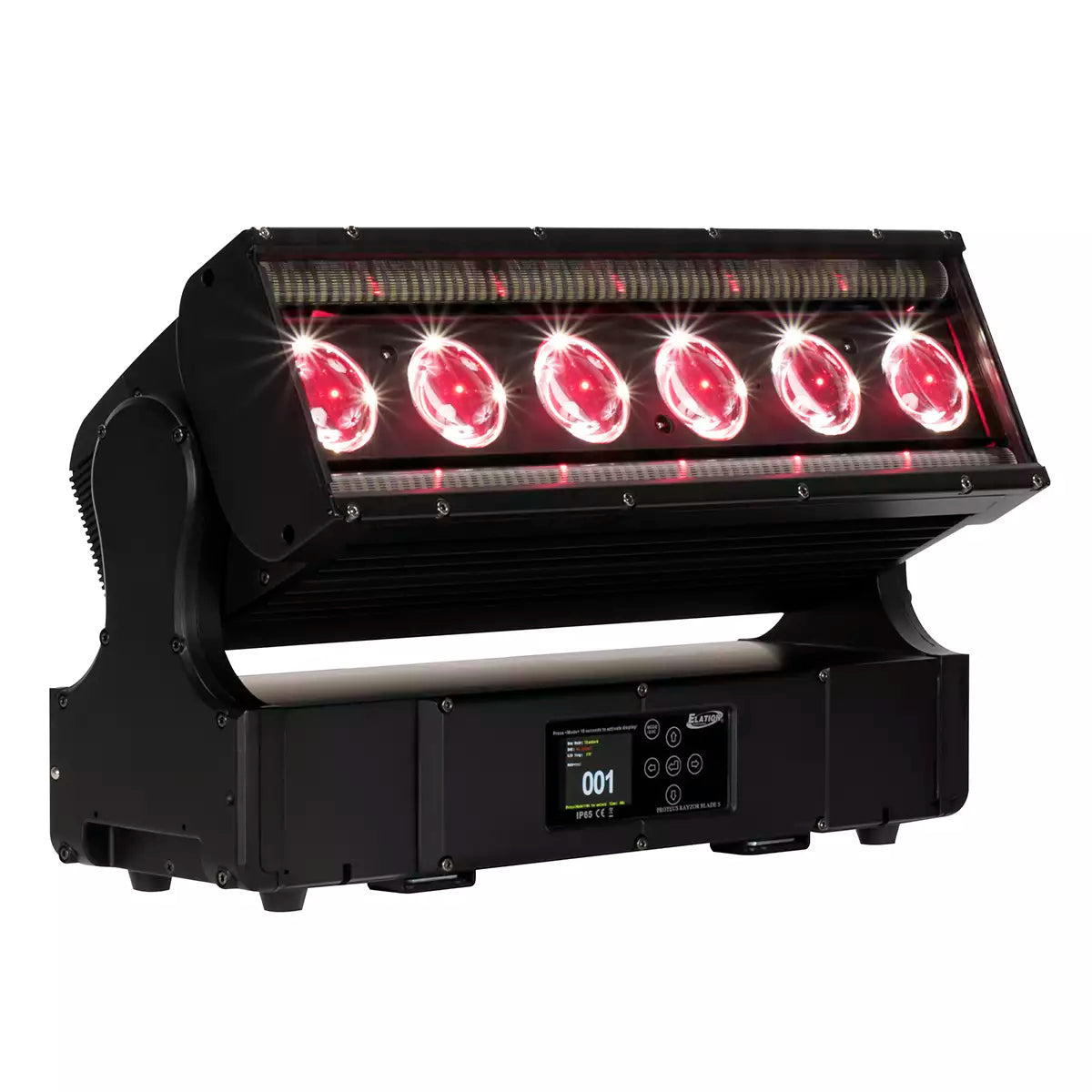

Driven by 6, independently controlled, 60W RGBW LEDs, delivering over 6,000 lumens of output with a total power of 360W, the Proteus Rayzor Blade S provides a powerful beam that stands out on any stage. The oversized front lenses create a large visual surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Proteus Rayzor fixtures offer this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.

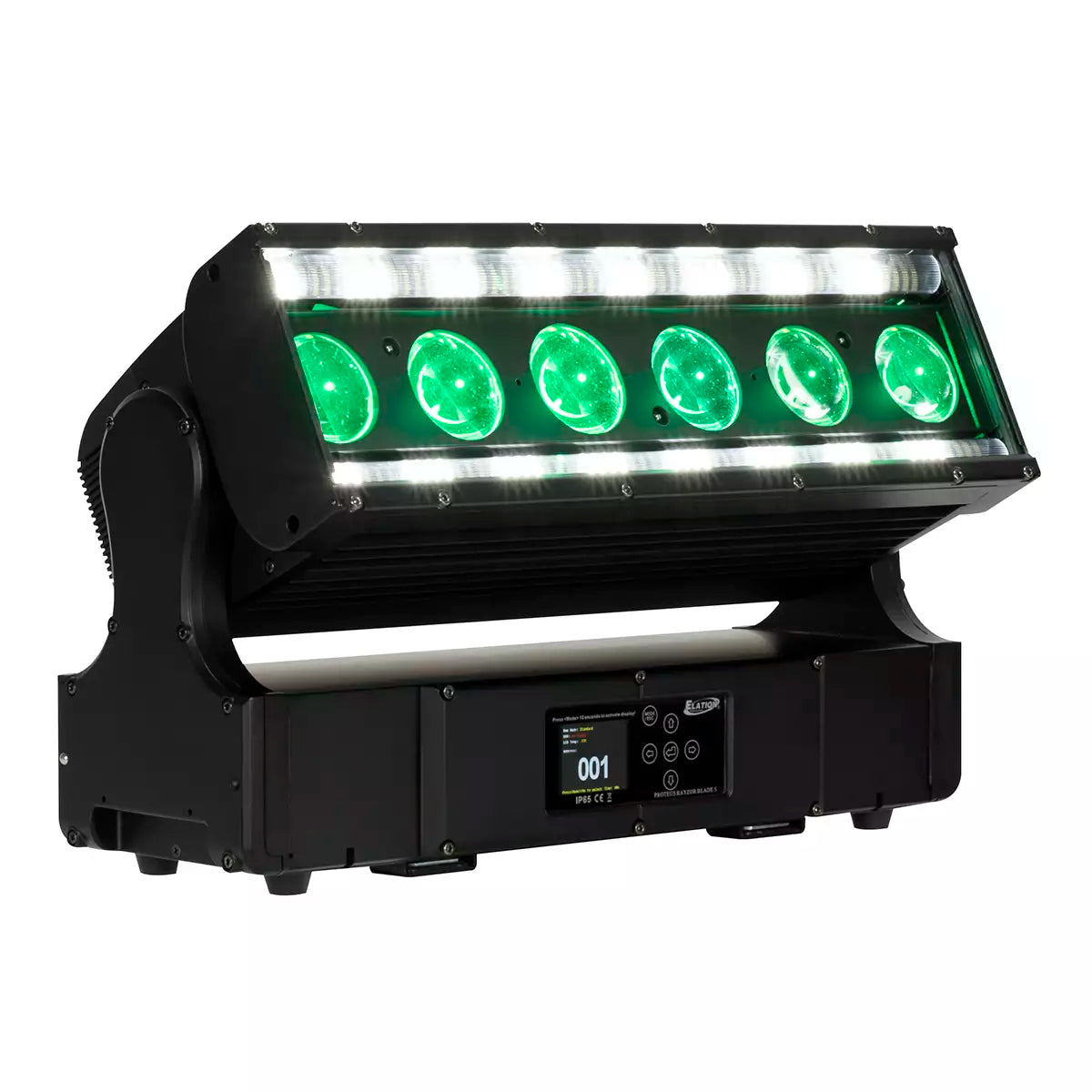

In addition to its powerful wash and SparkLED effects, the Proteus Rayzor Blade S provides two seamless high-intensity strobe lines with a total of 128 cool white LED dots. Flanking the Rayzor lenses across the entire length of the fixture these dual strobe arrays offer incredible visual effects with a multitude of integrated FX or precise pixel control from the lighting console.

From the GEAR Pro's:

There's a lot going on in this light.  First, it's a striplight with zoom and motorized tilt.  That already gives you a lot of options on how to use it - you can create beam-y, bright looks in the air, then move it and create a wall of light in haze or on a backdrop.

Second, it's a strobe.  2 lines of pixel-mapped strobe effects surround the top and bottom of this fixture.

Third, it's an FX fixture, with the warm-white pixel-mapped sparkling LED's within the strobe segments.

All of the segments are pixel mapped, which means you can essentially get (3) completely different lights out of 1 fixture.  Hardware is designed to make it simple to create long lines of these, perfectly in line.

Oh, and being a Proteus, this one is waterproof for indoor or outdoor use!

In the Box:

  • (1) Proteus Rayzor Blade S

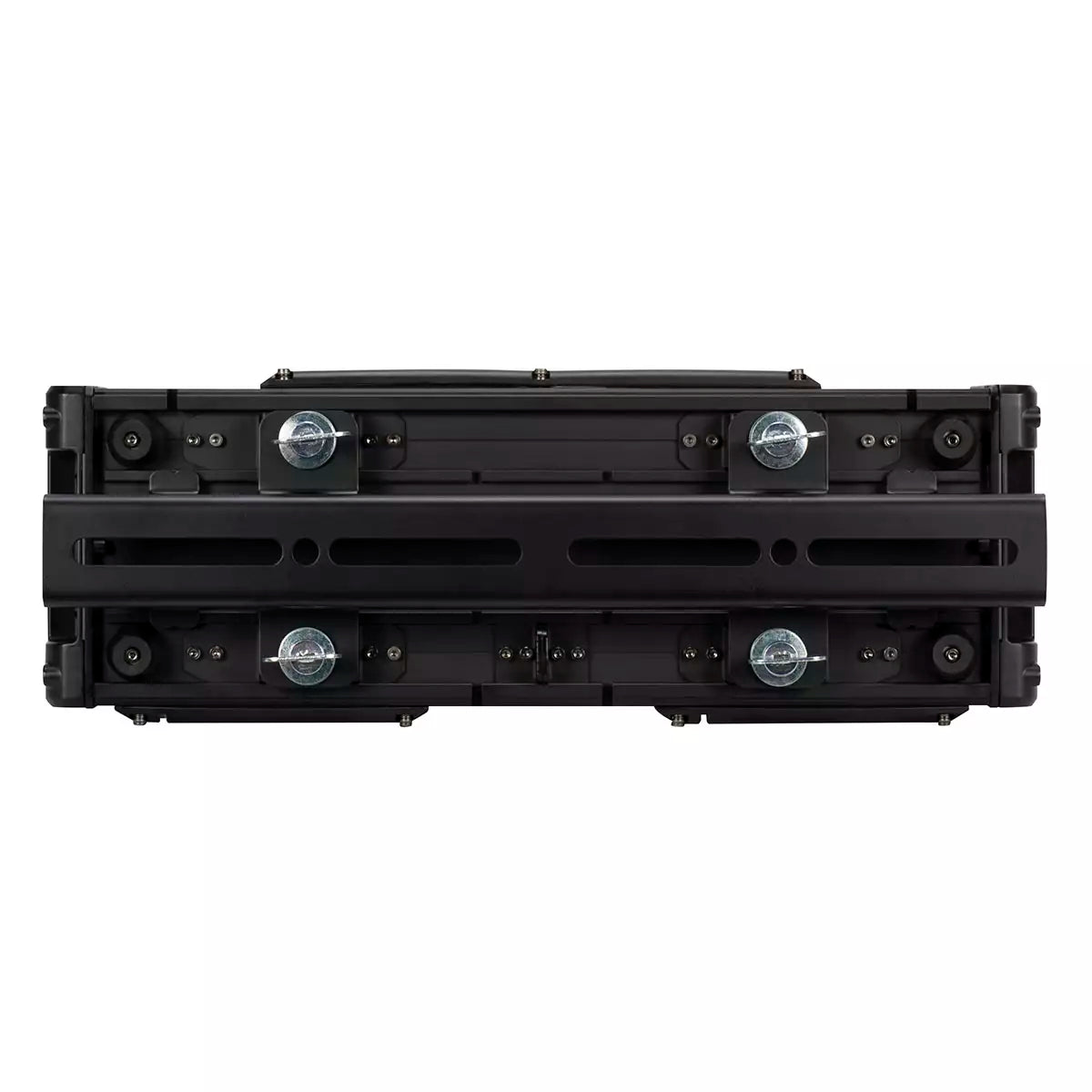

  • (2) Omega Brackets
  • (1) IP65 Rated 5pin DMX Cable
  • (1) IP65 Rated RJ45 DATA Cable (Fixture to Fixture Interconnect Use Only!)
  • (1) IP65 Rated Power Cable

Features:

  • Light Source:
    • 6x 60W RGBW LED
    • 24x 2W SparkLED
    • 64x 1W Strobe Pixel Line
  • Color Temperature:
    • RGBW LED - 2700-8000K
    • SparkLED - 4000K
    • Strobe Line - 6500K
  • CRI: 80
  • Beam Angle: 6° - 45°
  • Dimming: 16-bit Dimming
  • Refresh Rate: 900 -25000 Hz
  • Strobe: Variable
  • Color: RGBW Color Mixing
  • Effects:
    • Pixel Control
    • White SparkLED Lens Effect
    • Dual White Strobe Lines (64 pixels per side)
  • Control Protocol: DMX, RDM, Art-Net, sACN
  • Operating Modes: DMX, Manual, Auto Program
  • IP Grade: IP65



Tech Specs

Optics:

Light Source Type: RGBW LED

Light Source Wattage: 6x 60w

Minimum Beam Angle: 6.0°

Maximum Beam Angle: 45.0°

Control

DMX Channel Modes: 27 / 50 / 106

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 19.8 in

Width: 7.6 in

Height: 13.2 in

Weight: 39.4 lb

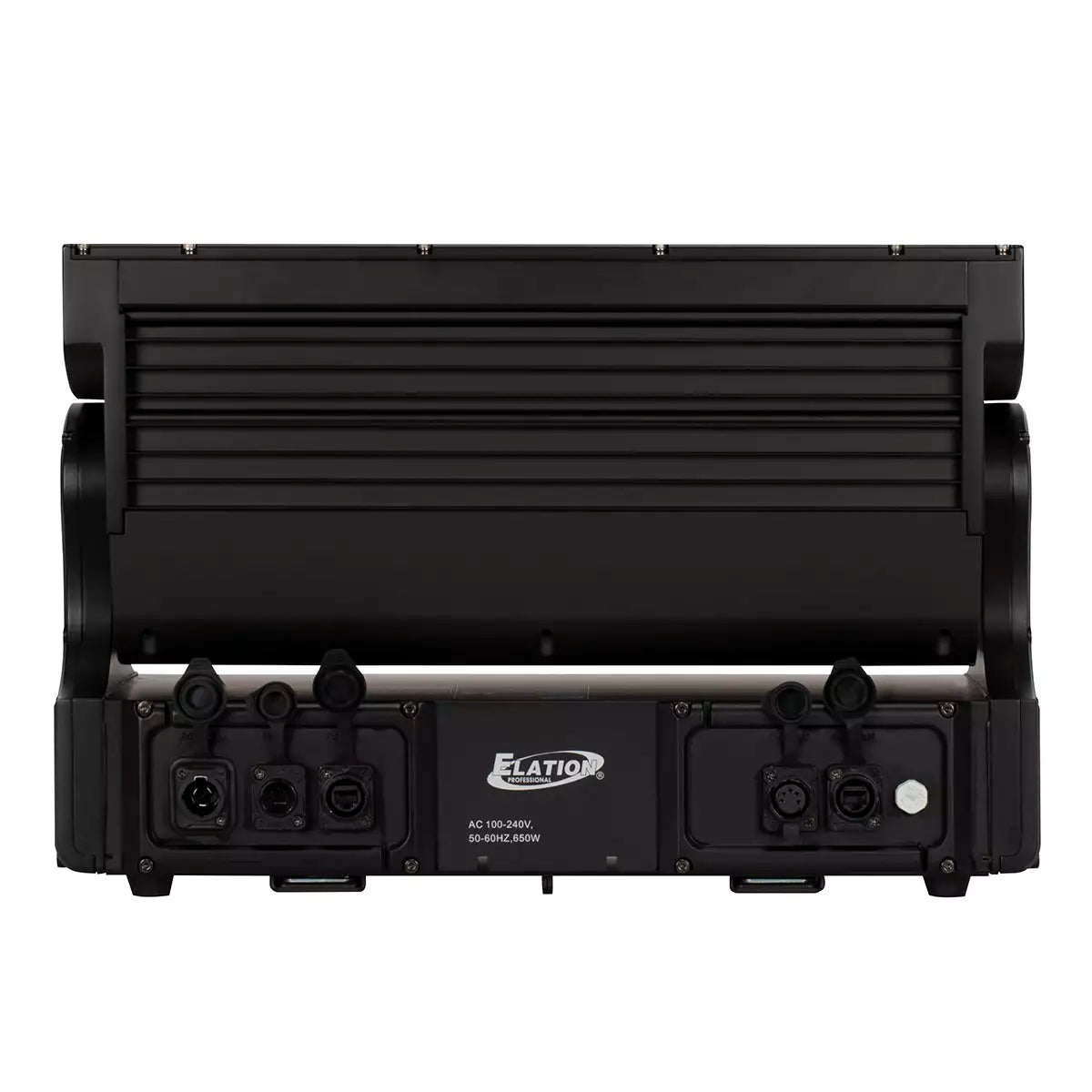

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 700w

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison
