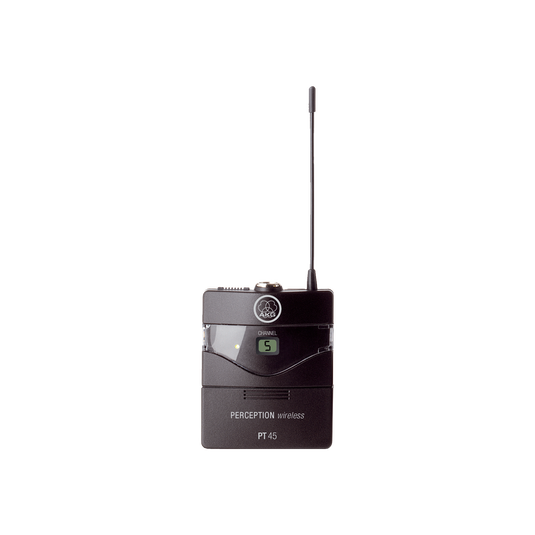

PT45 BD A

The AKG PT45 BD A is a compact wireless bodypack transmitter for AKG Perception Wireless systems. It gives performers, presenters, and instrumentalists a practical bodypack option with mini XLR connectivity, manual channel selection, and up to eight hours of operation from a single AA battery.

From The Manufacturer:

The PT45 is an analog high-performance wireless bodypack transmitter in a small, rugged housing. A professional mini XLR audio connector makes the bodypack compatible with guitars, basses, instrumental pickups, and compatible headset microphones, while gain control and a noiseless on/off/mute switch support straightforward live operation.

Key Features:

• Compact AKG Perception Wireless bodypack transmitter.
• Professional 3-pin mini XLR audio connector.
• Gain control for quick input level adjustment.
• Noiseless on/off/mute switch for live use.
• Up to 8 hours of operation from one AA battery.

Specifications:

• Audio bandwidth: 40 Hz - 20 kHz.
• Signal-to-noise ratio: 105 dB-A.
• THD at 1 kHz: 0.8% typical.
• Switching bandwidth: 30 MHz.
• Selectable frequencies: 8 fixed frequencies.
• Radio range: Up to 30 m line of sight.
• Modulation: FM.
• Operating temperature range: -10 to 55 C.

Included:

• 1 x PT45 bodypack transmitter.
• 1 x MKG L instrument cable.
• 1 x BC400 belt clip.
• 1 x AA battery.

Applications:

• Wireless instrument systems.
• Presentations and houses of worship.
• Small stages and mobile performance setups.
• Compatible AKG headset and instrument microphone systems.

Included Accessories:

• MKG L instrument cable.
• BC400 belt clip.
• AA battery.

Accessories (Not Included):

• Compatible AKG SR45 receiver.
• Compatible AKG headset, lavalier, or instrument microphone.

Size:

• Length: 60 mm.
• Height: 75.5 mm.
• Width: 30 mm.

Weight:

• Net weight: 60 g / 0.13 lb.

Electrical/Thermal

• Battery type: 1 x LR6 AA alkaline battery.
• Operating time: Up to 8 hours.

Pocket transmitter, Perception Wireless 45 single component
