Description

Caret Down
The Pulse Bar S is great at blinding and washing your audience in color on medium to large stages.  We really like how it is silently cooled and offers multiple hanging options.

From the Manufacturer:

Ignite excitement and get the crowd pumping with the new Pulse Bar S! The first in an innovative Pulse line of strobe lights, the Pulse Bar is a highly impactful strobe and visual effect bar that injects dynamism and spark into any performance!

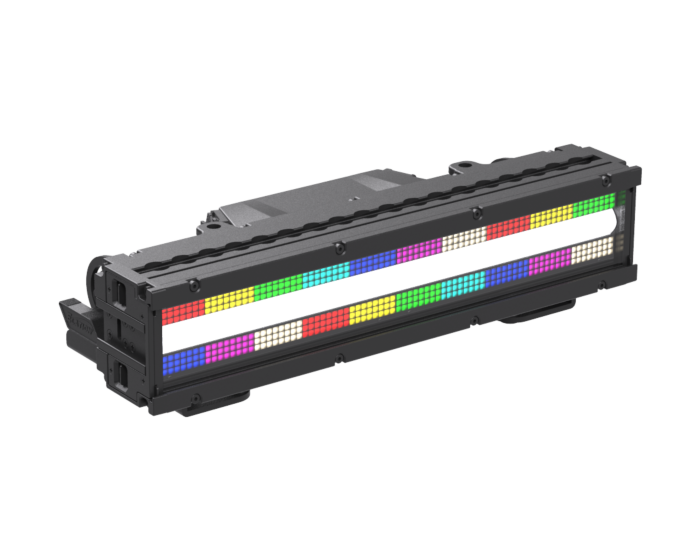

Measuring half a meter in length, the Pulse Bar S incorporates 480 1.5W RGB LEDs distributed across 20 zones along its perimeter. Additionally, it features a central strobe line equipped with 200 5W cool-white LEDs across 20 zones, complemented by 80 1.5W RGB

LEDs arranged in 10 zones at its core.

Infuse your performance with intense, attention-grabbing moments of white or colored light that enhances the energy of the moment. Add impact with rhythmic flashes that synchronize with the music or craft special effects that make for a more visually stimulating experience.

Ideal for direct view applications, zone control opens up for a myriad of design possibilities.

With fully variable color temperature adjustment (2400K - 8500K) and a virtual gel library, designers have immediate access to a diverse LED color array. The Pulse Bar S also includes a library of customizable RGB and CW strobe effects along with variable dimming modes and curves for quick programming.

Wrapped in a durable, fully IP65-rated housing, the Pulse Bar S is suitable for any environment, indoors or outdoors, and its marine grade coating adds additional protection for harsher environments- even coastal locations.

The fanless convection cooling of the Pulse Bar S guarantees silent operation, making it ideal for noise-sensitive environments. Designed for ultimate flexibility, an integrated accessory slot accommodates optional diffusion filters, ND filters and other optics.

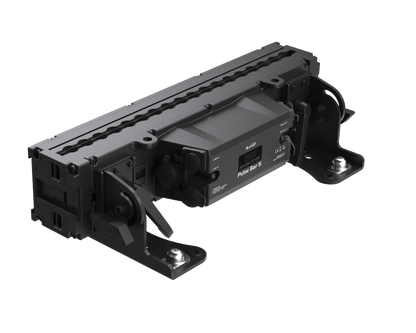

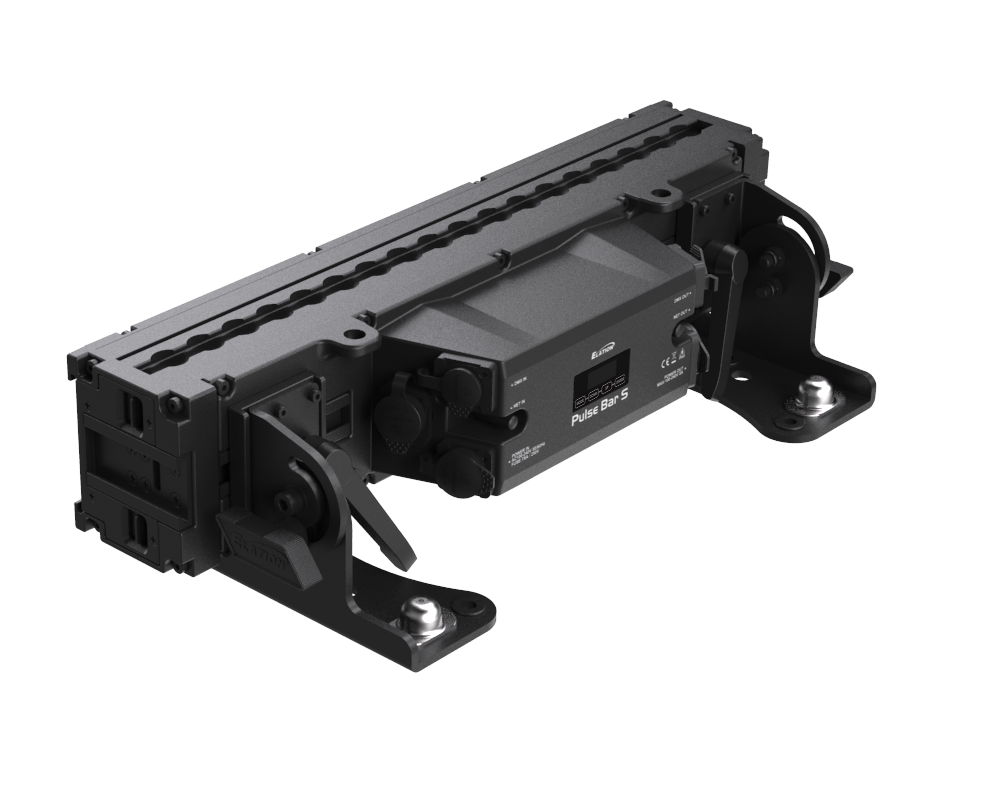

The Pulse Bar S’s innovative housing allows for end-to-end interconnection and includes integrated L track for flexible mounting and positioning. Trunnions designed for attachment to the L track can be fixed at multiple points to optimize positioning around objects or obstacles.

Controlled via DMX/RDM, Art-Net, sACN, and KlingNet protocols, the Pulse Bar S also features proprietary Aria x2 wireless device management for simplified system setup and\maintenance.

When the moment calls for high-impact bursts of light and visually striking effects, look no further. The Pulse Bar S delivers!

In the Box:

  • (1) Safety Cable
  • (1) IP65 Locking Power Cable
  • (1) Fixture Interconnect Key

Features:

  • (480) 1.5W RGB LED's in 20 Zones
  • (200) 5W CW Strobe LED's in 10 Zones
  • (80) 1.5W RGB StrobeLine LED's in 10 Zones
  • Completely Fanless Cooling
  • Integrated L Track for Flexible Mounting
  • Unique End-to-End Interconnection System
  • Art-Net, sACN and KlingNet Support
  • IP65 Rated

Size / Weight:

  • Length: 19.69" (500mm)
  • Width: 4.13” (105mm)
  • Vertical Height: 8.11” (206mm)
  • Weight: TBD

Electrical / Thermal:

  • AC 100-240V - 50/60Hz
  • Max Power Consumption TBD
  • Power Thru Capacity: @110V: TBD; @240V: TBD
  • 5°F to 113°F (-15°C to 45°C)
  • BTU/hr (+/- 10%) TBD

Approvals / Ratings:

  • CE | cETLus(pend) | UL | IP65c| FCC | UKCA
Control / Connections
  • 9 DMX Channel Modes (3ch, 12ch, 24ch, 36ch, 52ch, 124ch, 79ch, 134ch, 110ch)
  • 4 Button Control Panel, LED Display
  • Aria x2 Wireless Device Management
  • RDM (Remote Device Management)
  • IP65 5 pin XLR DMX In/Out
  • IP65 RJ45 Ethernet In/Out (Art-Net, sACN, KlingNet)
  • IP65 Locking Power Cable In/Out

Colour:

  • RGB Color Array
  • Variable CCT 2400K - 8500K
  • Virtual Gel Swatch Book

Effects:

  • 20 Zones of RGB Plate LEDs (10 x 2)
  • 20 Zones of CW Strobe LEDs (10 x 2)
  • 10 Zones of RGB StrobeLine LED's (10 x 1)
  • 1- 20Hz Strobe Rate
  • Library of Customizable RGB and CW Strobe Effects
  • Variable Dimming Modes and Curves

Tech Specs

Optics:

Light Source Type: RGB LEDs & CW Strobe LEDs

Light Source Wattage: 1.5 & 5w

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: No

Main Power Connector on Included Cable: Edison
