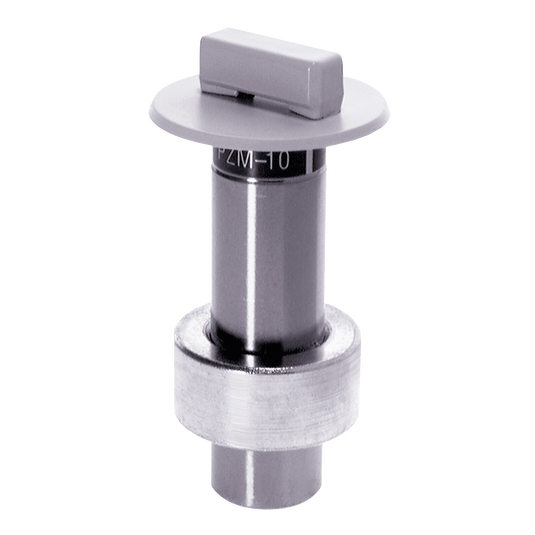

PZM10

The PZM10 is a discreet boundary microphone designed for security, surveillance, and conference use. It mounts easily into tables, walls, or ceilings and offers clear, consistent pickup with a smooth, wide frequency response.

From The Manufacturer:

The PZM10, part of the Pressure Zone Microphone® line, is designed for security, surveillance, and conference-table use. The special housing design allows the microphone to be mounted into tables, walls or ceilings easily and inconspicuously. Using Pressure Zone Microphone® technology, the PZM10 is highly sensitive and delivers a wide and smooth frequency response. Thus the PZM10 is characterized by excellent clarity and a consistent pickup anywhere around the mic.

Specification:

• Audio frequency bandwidth

• 80 - 20000 Hz

• Equivalent noise level

• 26 dB-A

• Sensitivity

• 2.5 mV/Pa

• Signal to Noise

• 68 dB-A

• Recommended load impedance

• 2000 Ohms

• Height

• 72 mm

• Diameter

• 39 mm

• Net Weight

• 74 g

• Finish

• off-white

• Audio Output

• Balanced XLR (Male)

• Contacts

• 3-pin

• Voltage

• 12 to 48 V
