PZM30 D

First-class boundary layer microphone, ideal for speaking & music recording, XLR version.

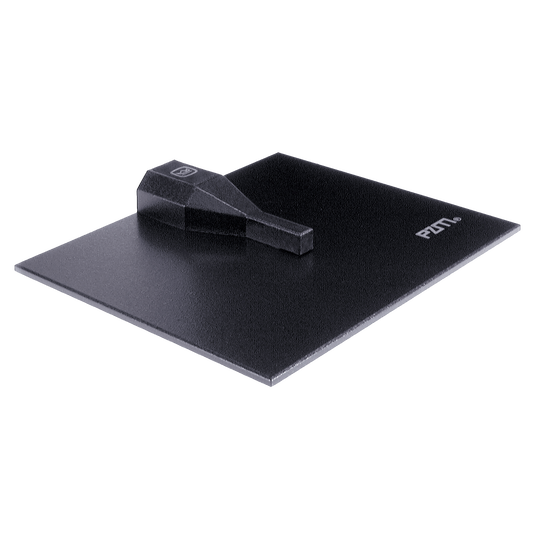

The AKG PZM30 D is a high-performance hemispherical boundary layer microphone ideal for recording and broadcasting applications.

From the Manufacturer:

The PZM30 D high-performance hemispherical boundary layer microphone is a Pressure Zone Microphone® designed for professional recording, sound reinforcement and broadcasting. The capsule is mounted in the “pressure zone”, an area where direct sound and reflected sound are in phase, which provides a 6dB higher sensitivity. Two selectable frequency responses (flat/rising) provide greater flexibility in mic placement and sonic character. The rising position of the frequency switch adds brilliance and a crisp attack on percussion, drums, or piano. The PZM30 D comes in a very rugged, low-profile, metal housing with detachable cable that makes it sturdy and reliable for heavy duty applications.

Features:

• Hemispherical polar pattern
• Pressure Zone Microphone® design prevents coloration from surface sound
• reflections
• Switchable dual-frequency response offers a choice of flat response or rising
• high-frequency response
• PZM® -30D uses a rugged detachable cable.

Specifications:

• General Specifications
  • Audio frequency bandwidth: 20 - 20000 Hz
  • Sensitivity: 7 mV/Pa
  • Signal to Noise: 74 dB-A
• Dimensions
  • Length: 152 mm
  • Width: 127 mm
  • Height: 19 mm
• Design
  • Finish: black
• Audio Output
  • Type: Balanced XLR
  • Gender: Male
  • Contacts: 3-pin
• Powering Interface
  • Voltage: 12 to 48 V
• Application
  • Sound Reinforcement
  • Retail
• Device: Boundary Layer Microphone
