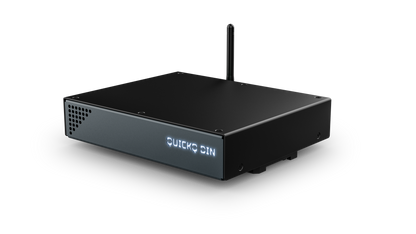

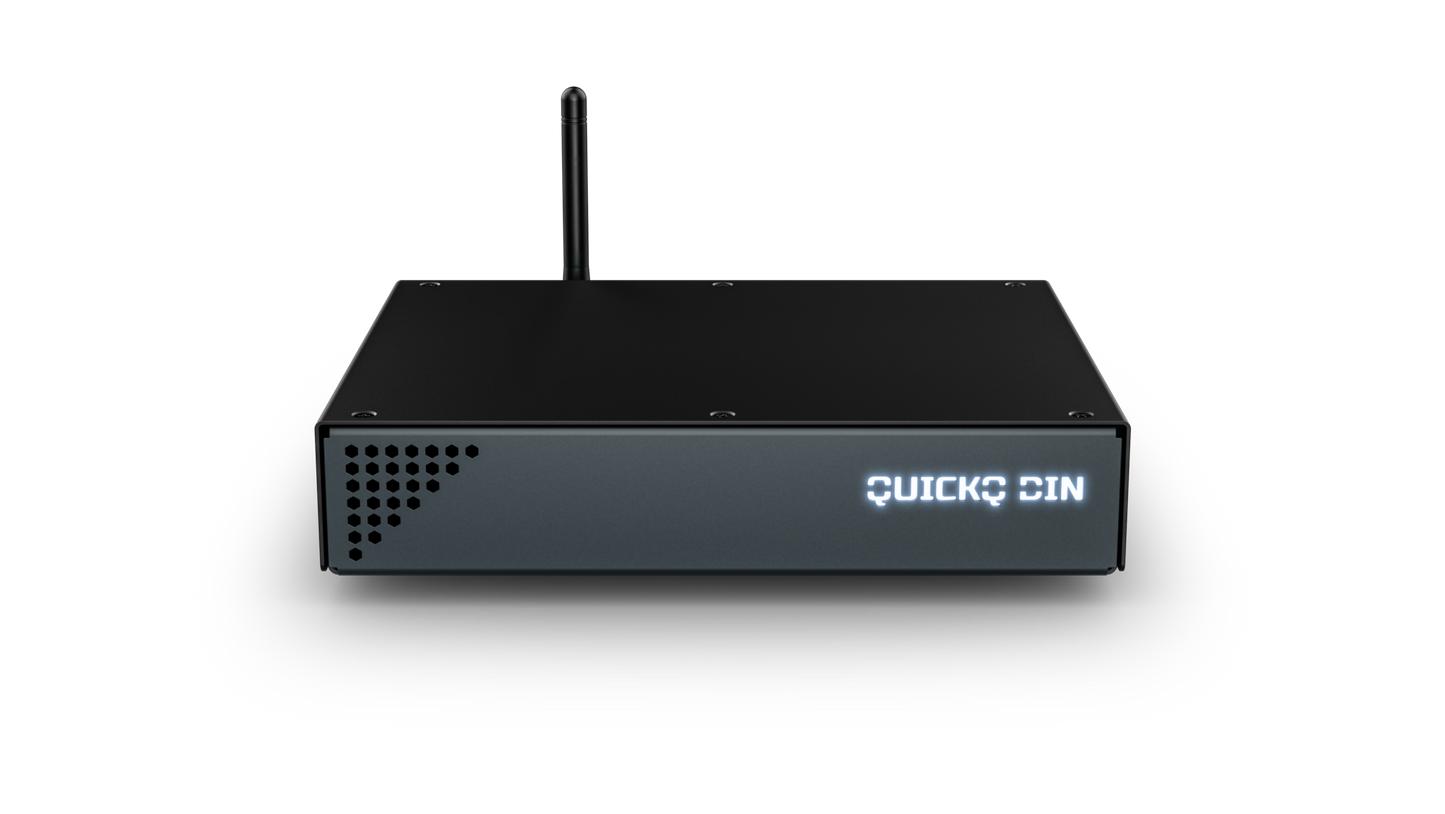

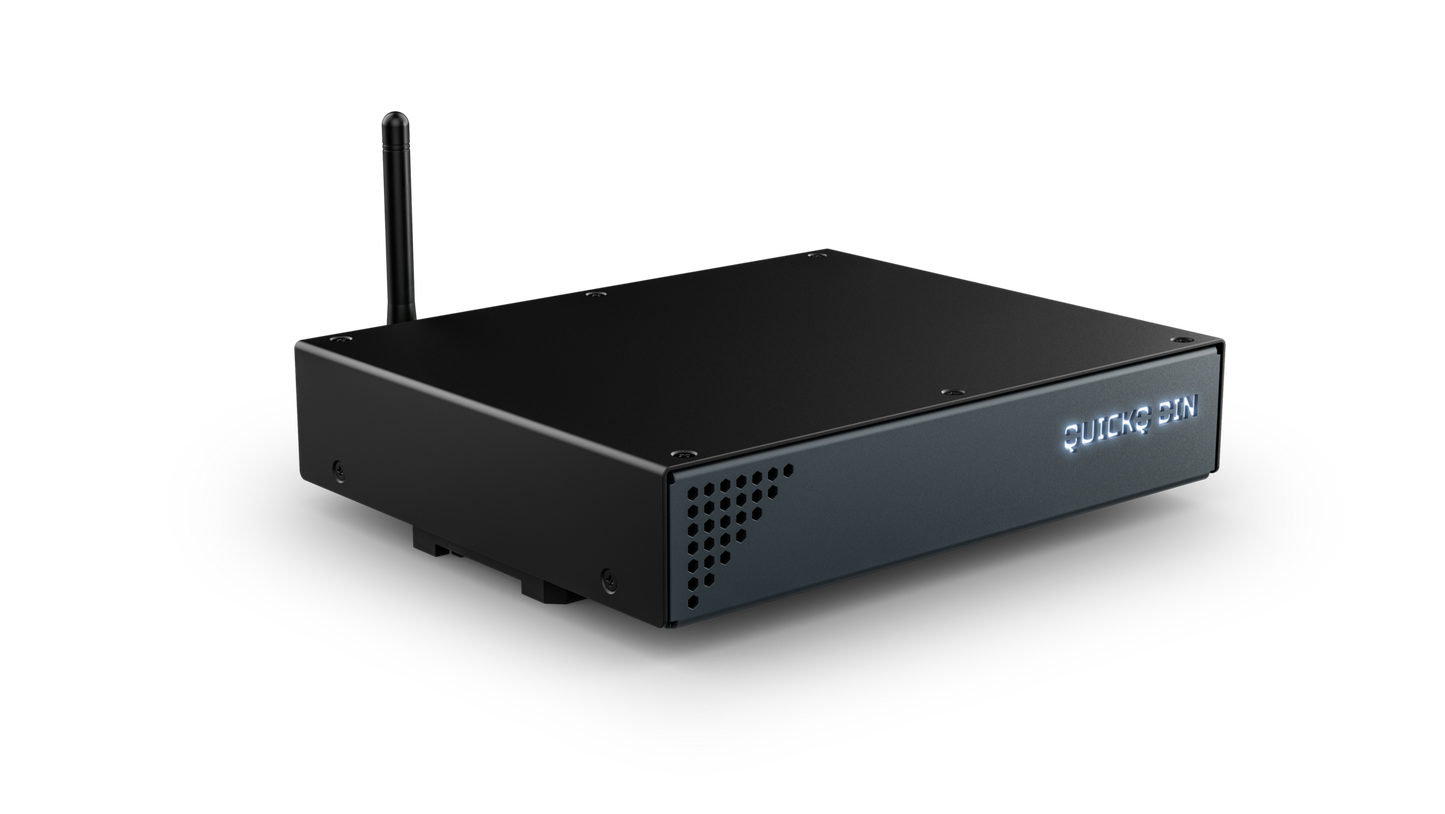

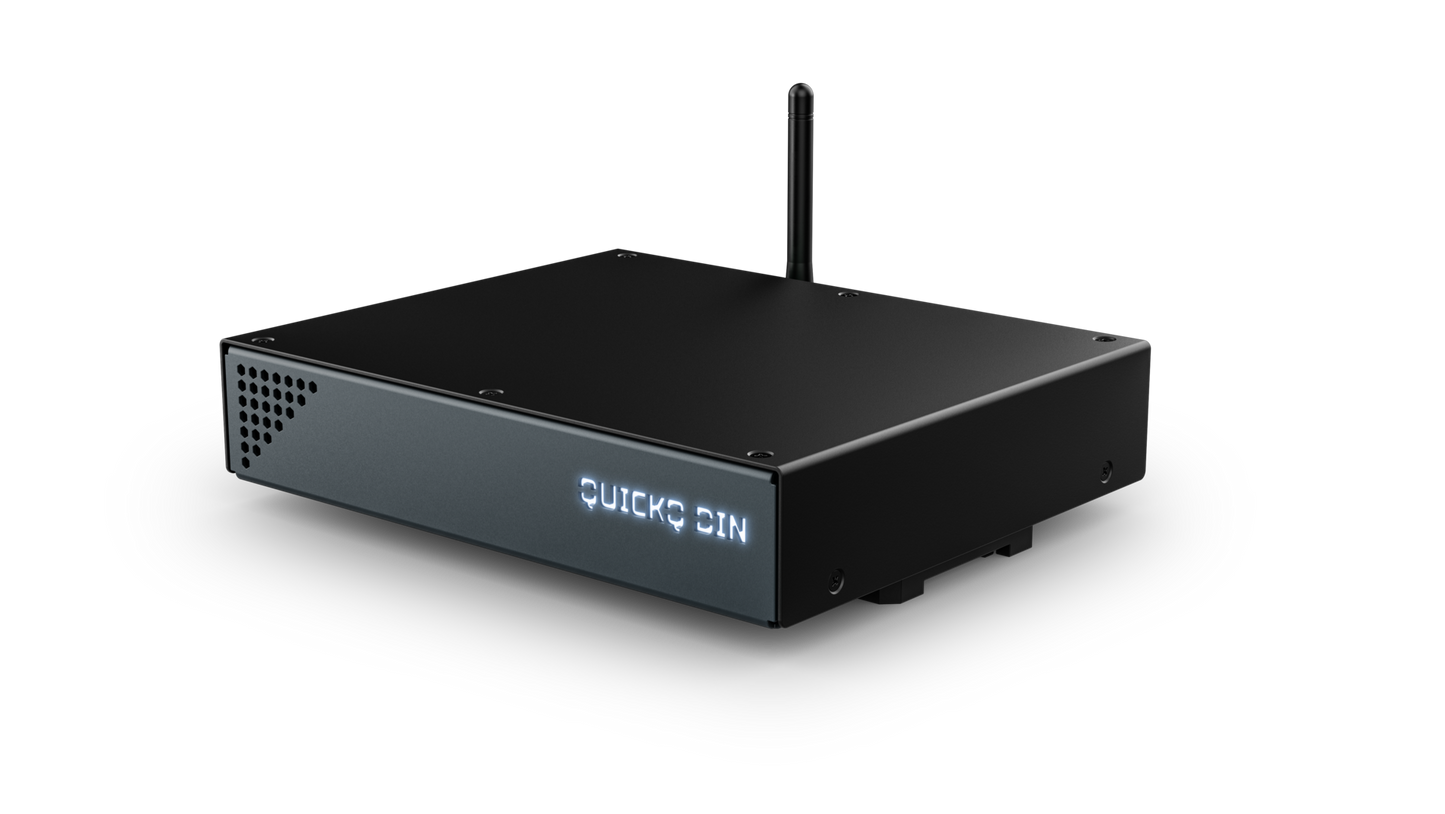

QuickQ DIN

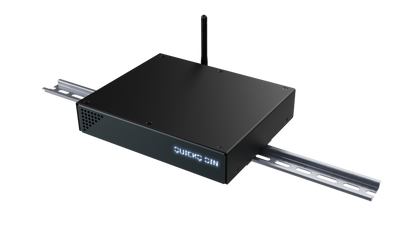

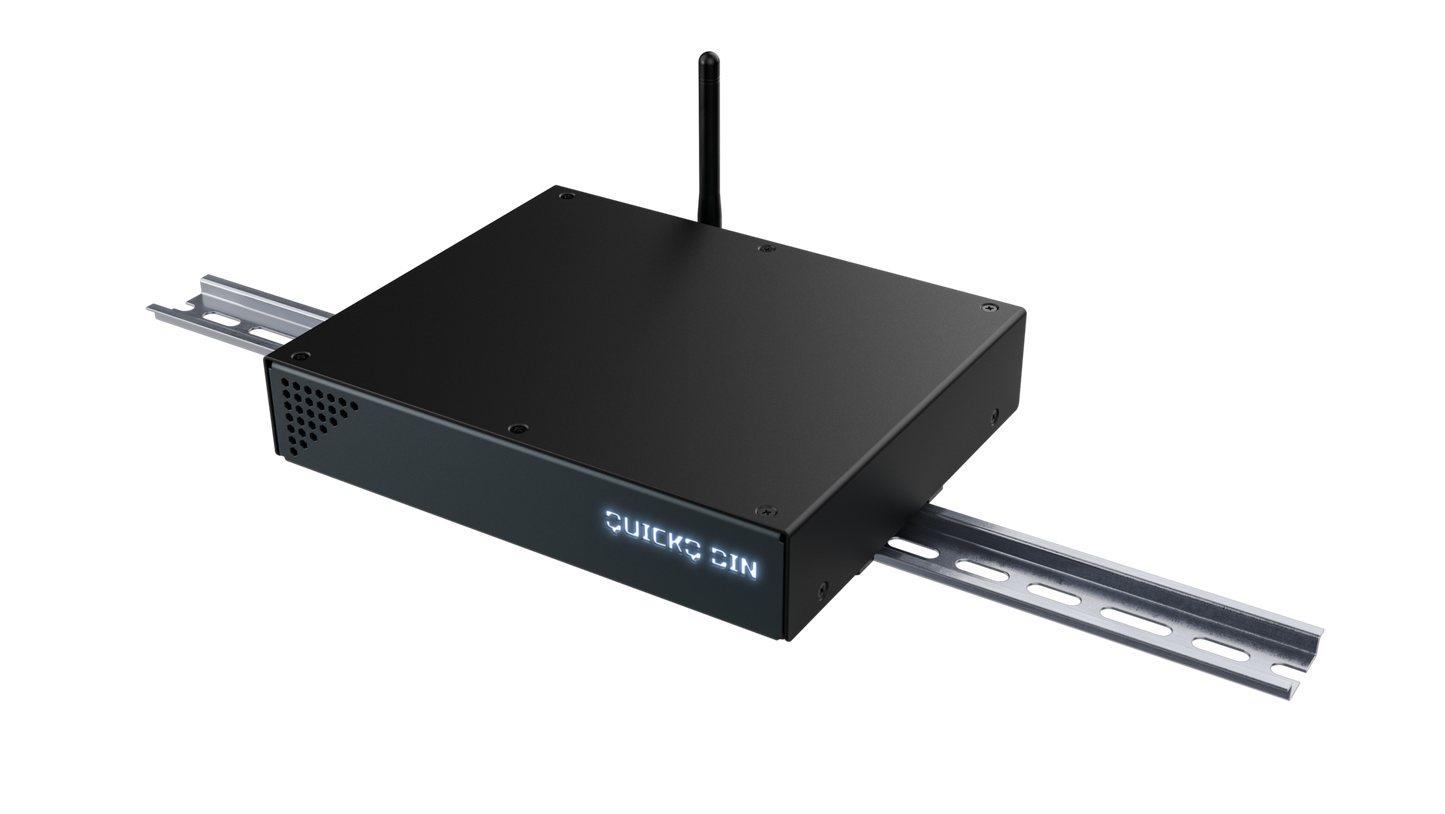

The QuickQ DIN is a space saving DIN rail mountable solution for venues that are looking for a capable lighting solution. It is an easy to use system that features up to 10 playbacks making it work well with their wall plate interfaces.

From the Manufacturer:

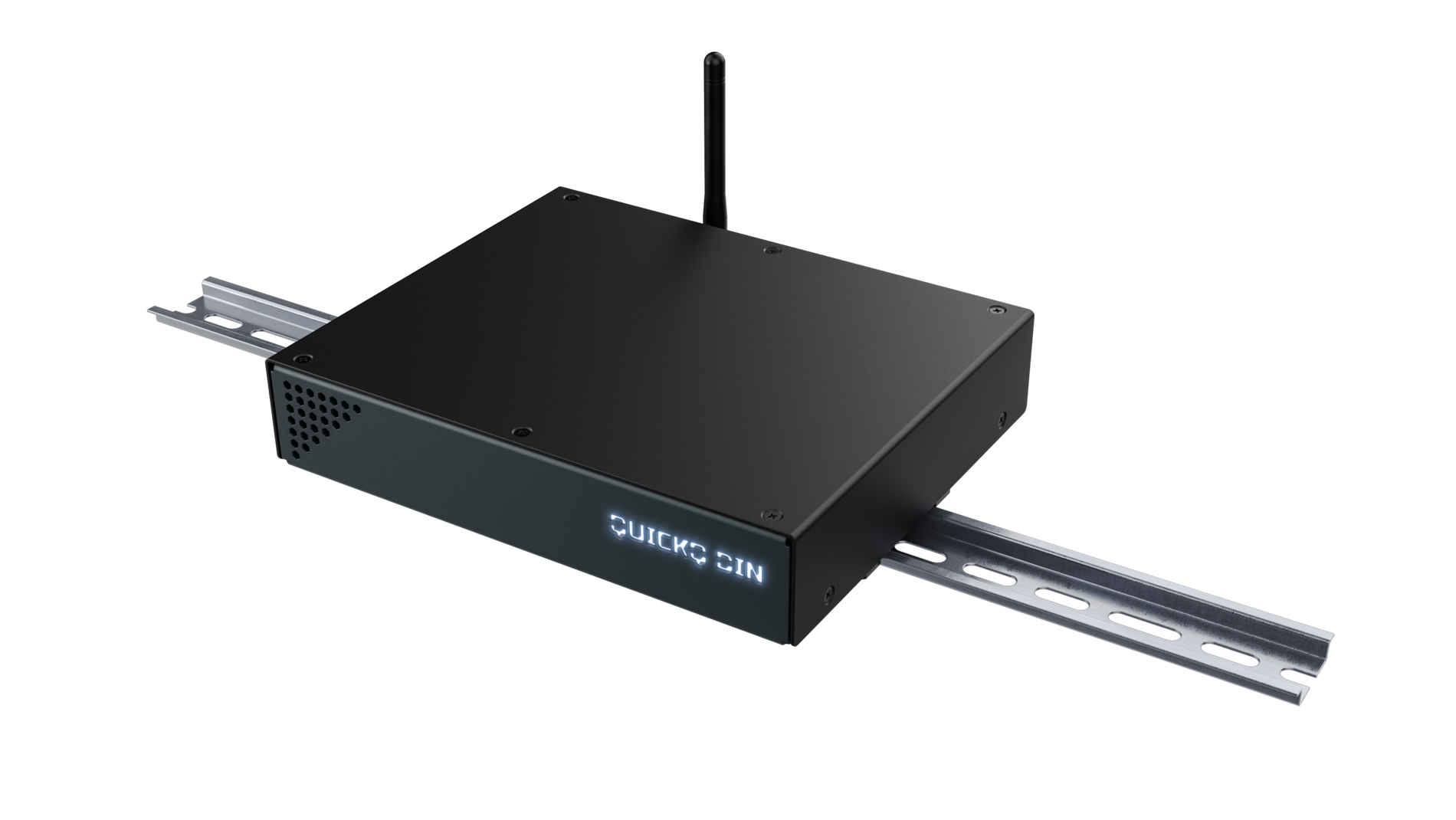

The intuitive simplicity of QuickQ software in a space-saving DIN rail mount solution.

QuickQ DIN supports all QuickQ features including Events, 10Scene and Executes, making it ideal for any installation where space is at a premium and control in a small package is required.

Control up to 4 universes from the device via Art-Net or sACN, the QuickQ DIN also features two RDM-enabled DMX outputs. Easily build installed lighting control systems with connectivity features that include inbuilt Wi-Fi for programming and remote control, and four 10Scene ports for connecting up to forty 10Scene wall plates.

Overview:

• Ideal for installations and architectural settings

• Featuring four Universes of DMX output

• Two RDM enabled DMX outputs

• Inbuilt Wi-Fi for programming and remote control

• Four 10Scene ports for connection of up to forty 10Scene wall plate

• Features the same intuitive software as QuickQ Consoles

• Simple Hot-Takeover mode allowing an external console to take control

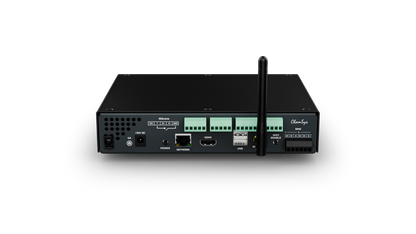

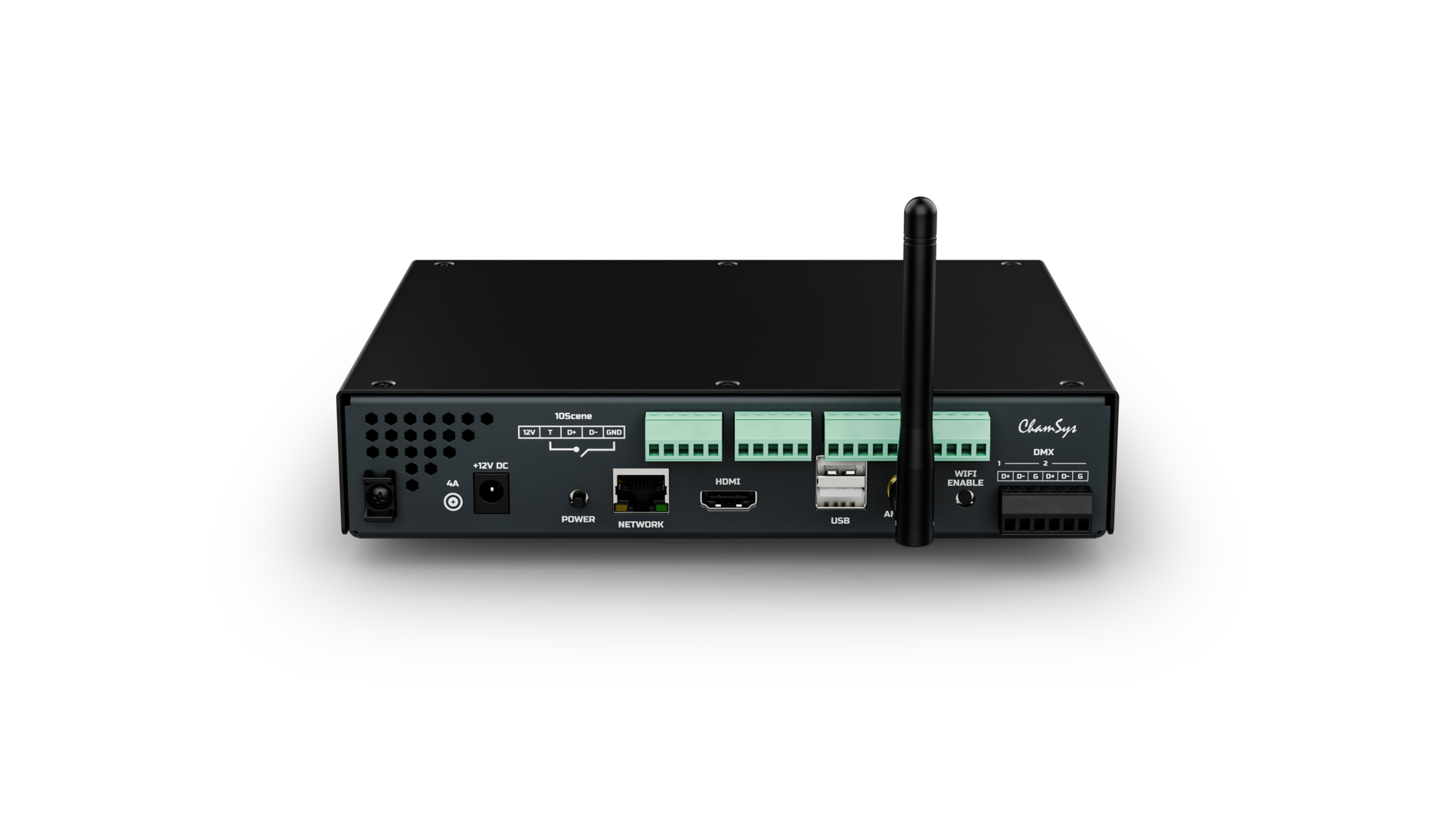

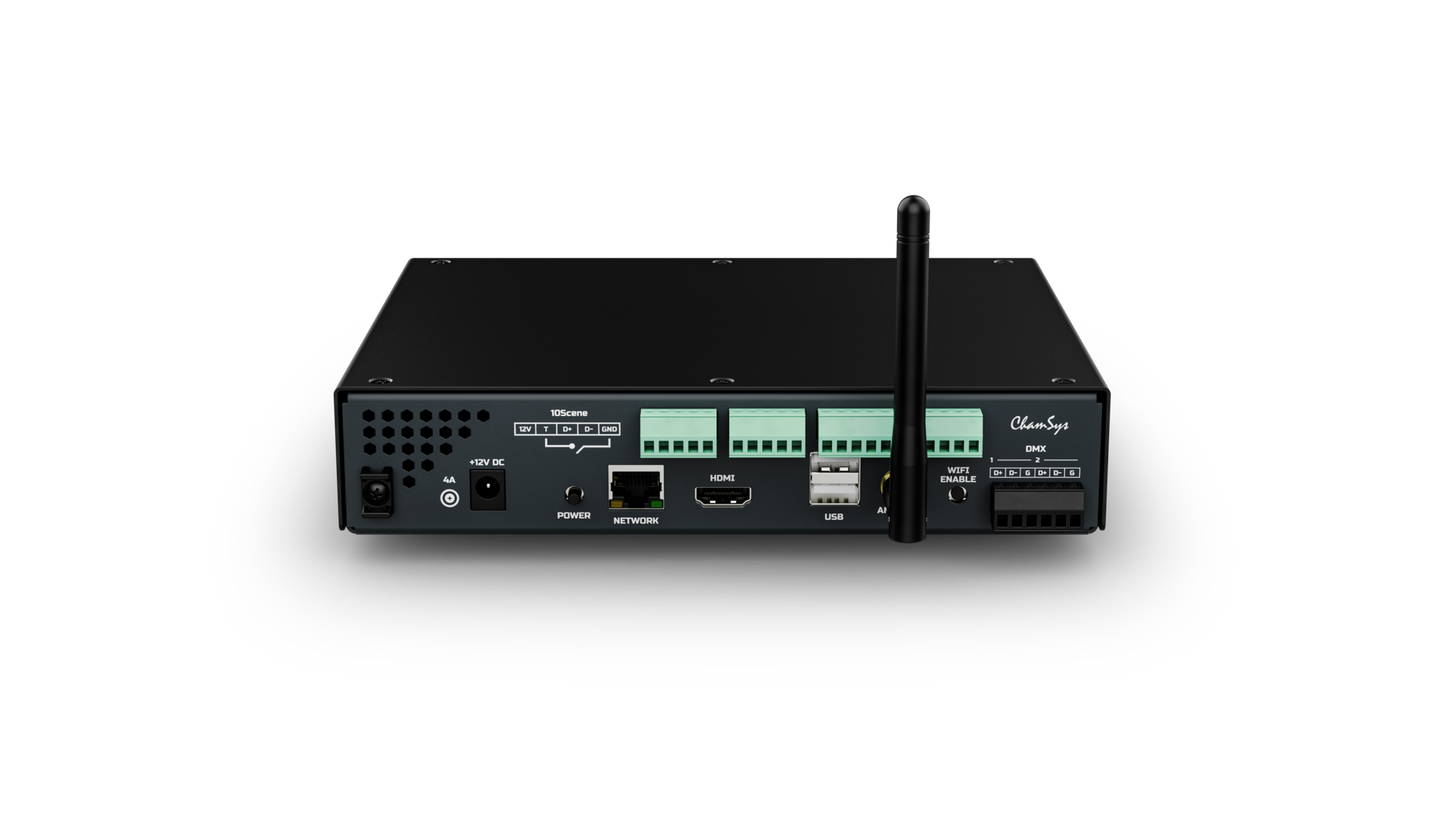

Hardware Specifications:

• Universes supported: 4

• Direct DMX Outputs Pheonix Screw Terminal: 2

• External Monitor: 1920 x 1080 HDMI

• Inbuilt Wi-Fi: Yes

• Network Port: 1

• USB Ports: 2

• Power Input: 12v DC

• Width : 200mm (7.8 inches)

• Depth: 165mm (6.5 inches)

• Height: 40mm (1.6 inches)

• Weight: 0.65kg (1.43lb)

Included Accessories:

• Wi-Fi Antenna: 1

• DIN Rail Mount Clips: 2

• 10Scene Connectors: 4

• 12v Power Supply: 1
