RA4000/EW ANTENNA

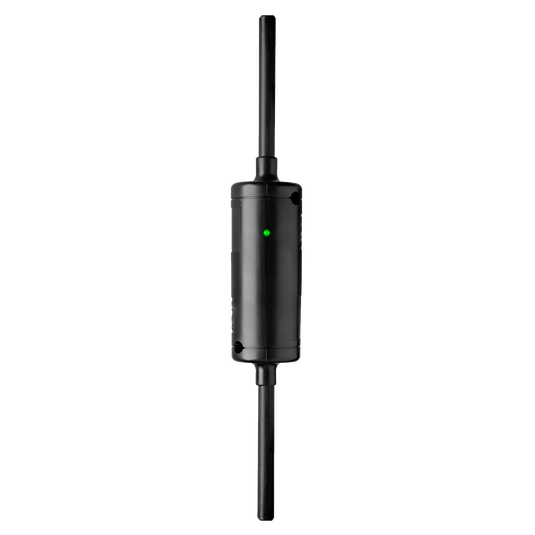

The RA4000 B/EW is an active omnidirectional UHF receiving antenna designed for wireless microphone systems. Covering 470–952 MHz with 360° reception and integrated signal boosting, it ensures strong, reliable performance even with long cable runs.

From The Manufacturer:

The RA4000 B/EW is an active omnidirectional wide-band UHF receiving antenna for use with wireless microphone systems. It operates in a frequency range from 470MHz to 952MHz, providing a covering angle of 360° and a total gain of 18dB. The RA4000 B/EW has a built-in amplifier to compensate for long cable runs.

Features:

• Integrated High-Performance antenna booster

• Remote Powering Via the Antenna Cable

• Operates in an ultrawide frequency

Specification:

• Switching bandwidth (from/to)

• 470 to 952 MHz

• Antenna gain

• 17 dBi

• Covering angle

• 360 Grad

• Length

• 220 mm

• Width

• 38 mm

• Net Weight

• 65 g

• Recommended load impedance

• 50 Ohms

• Body

• plastic

• Finish

• black

• Powering Interface

• BNC

• Voltage

• 8 to 8 V

Included:

• 1 x RA4000 B/EW antenna

• 1 x Stand adapter
