Sku: RAY760

Rayzor 760

Regular price
$3,996.00
Regular price
Sale price
$3,996.00
Shipping calculated at checkout.
Vendor: Elation Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Meta Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

Description

Caret Down

When you need a bright, fast, moving wash light with great colors and some cool features, the Rayzor 760 is definitely worth a look!

From the Manufacturer:

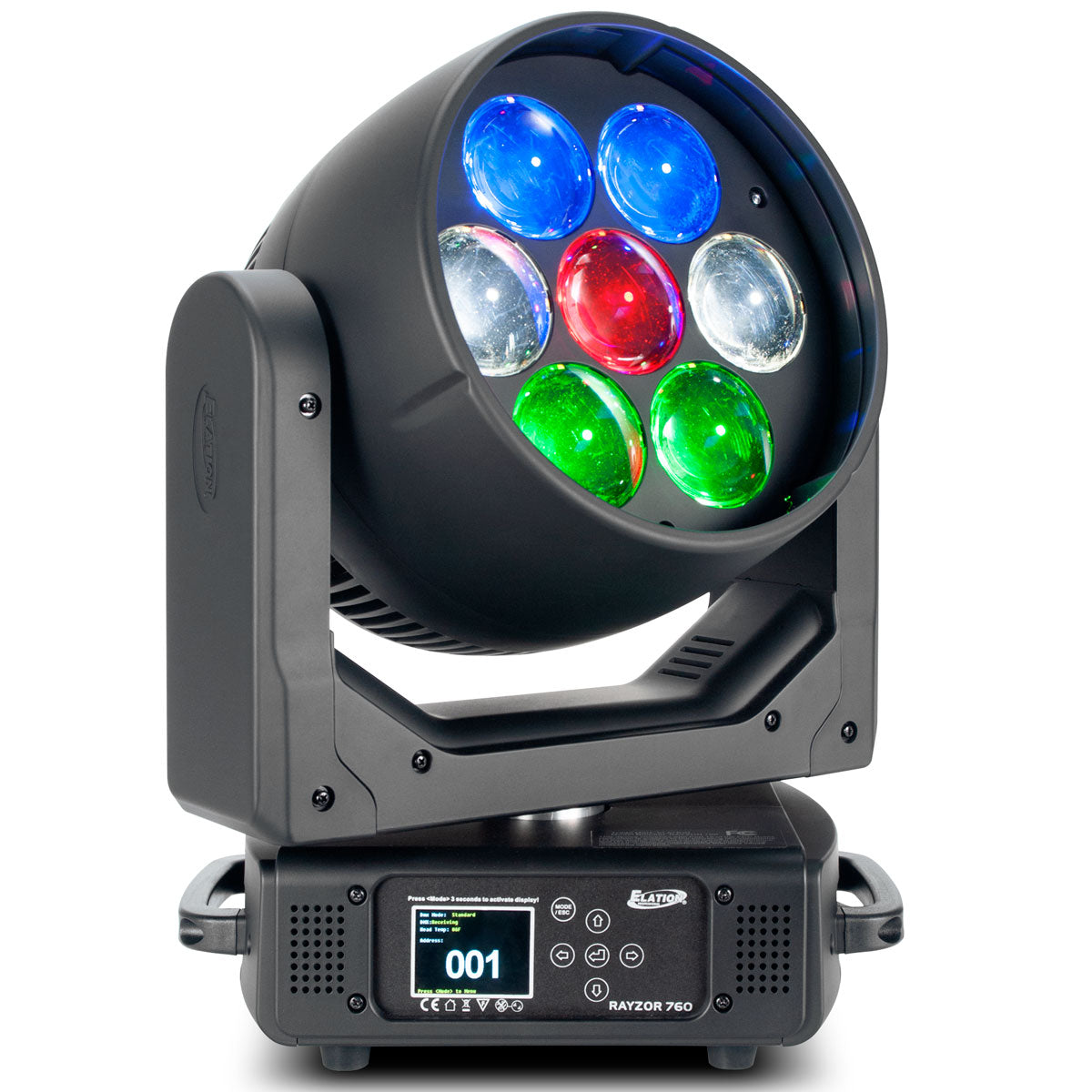

The Rayzor 760™ is a compact yet extremely powerful Wash Effects fixture featuring Elation’s unique SparkLED™ system and fast continuous Pan and Tilt motion. With its wide zoom range from 5° to 77° it provides intense and well-defined mid-air beams at over 8,000 lumens as well as an exceptionally wide and even wash coverage, making it a perfect tool for any application, even in adverse outdoor conditions. SparkLEDs offer a prominent and innovative LED pixel effect with dedicated high brightness pixels inside the large front lenses for additional layers of creativity.

Driven by 7, independently controlled, 60W RGBW LEDs, delivering over 8,000 lumens of output with a total power of 420W, the Rayzor 760 provides a powerful beam that stands out on any stage. The oversized front lenses create a large surface on the fixture that is enhanced by the exclusive patent pending SparkLEDs technology. SparkLEDs consists of 28 individual white LEDs, strategically placed inside the lens itself to create a unique additional layer, allowing designers access to a new and innovative way of creating interest on the stage. Rayzor 760 offers this never seen before style of internal lens illumination for depth and visual impact. SparkLEDs are controllable by the lighting console or driven by a multitude of internal FX patterns.

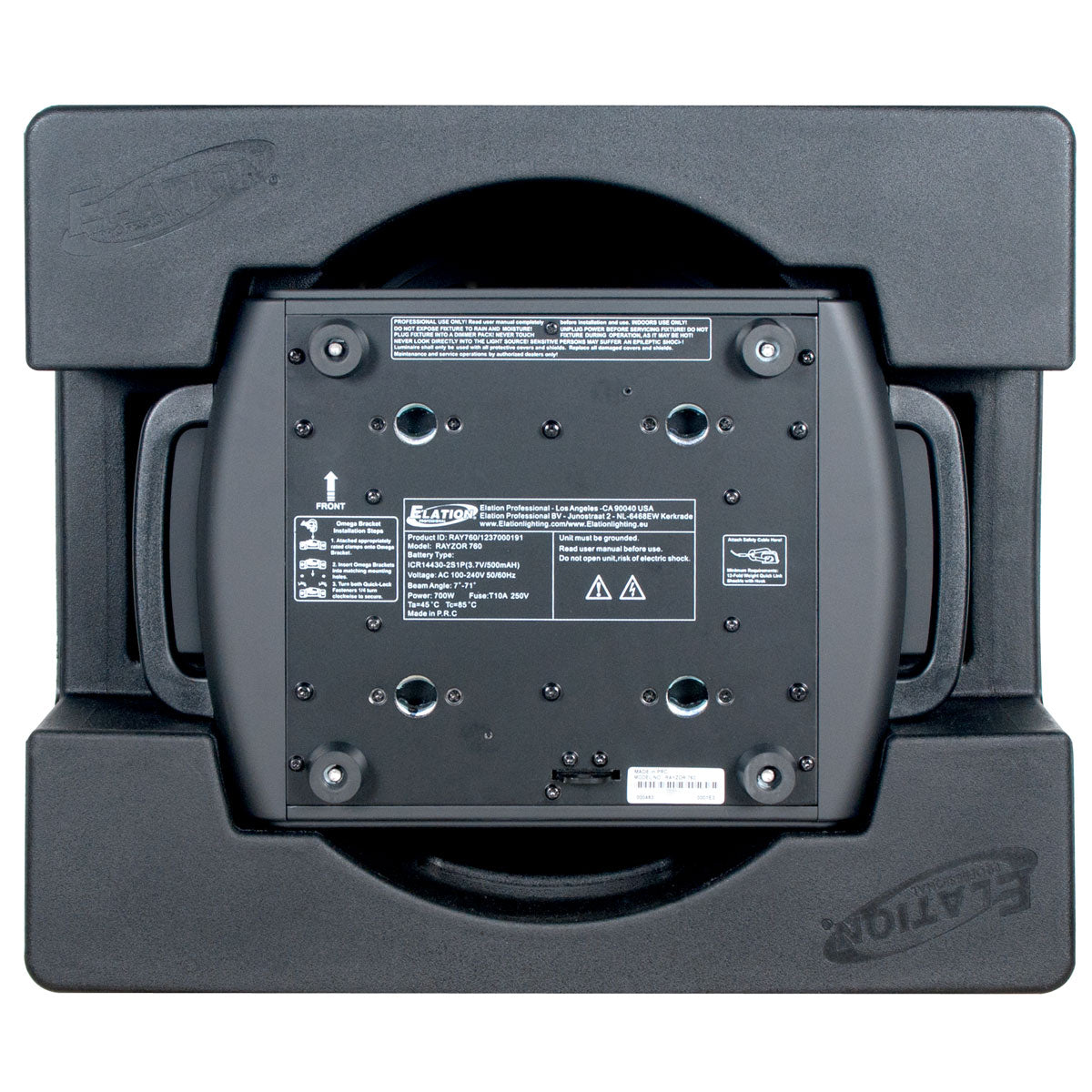

The Rayzor 760™ fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into any custom sized flight case (not included), and provides enhanced impact protection during transport.

From the GEAR Pro's:

Full pixel mapping, BRIGHT, RGBW LED's, 360 degree rotation and the SparkLED system give this fixture a lot of power as a backlight and effects fixture.

It can do a lot, and it does it well.   It has a very big zoom range, and won't disappoint!

 In the Box:

  • (1) Rayzor 760

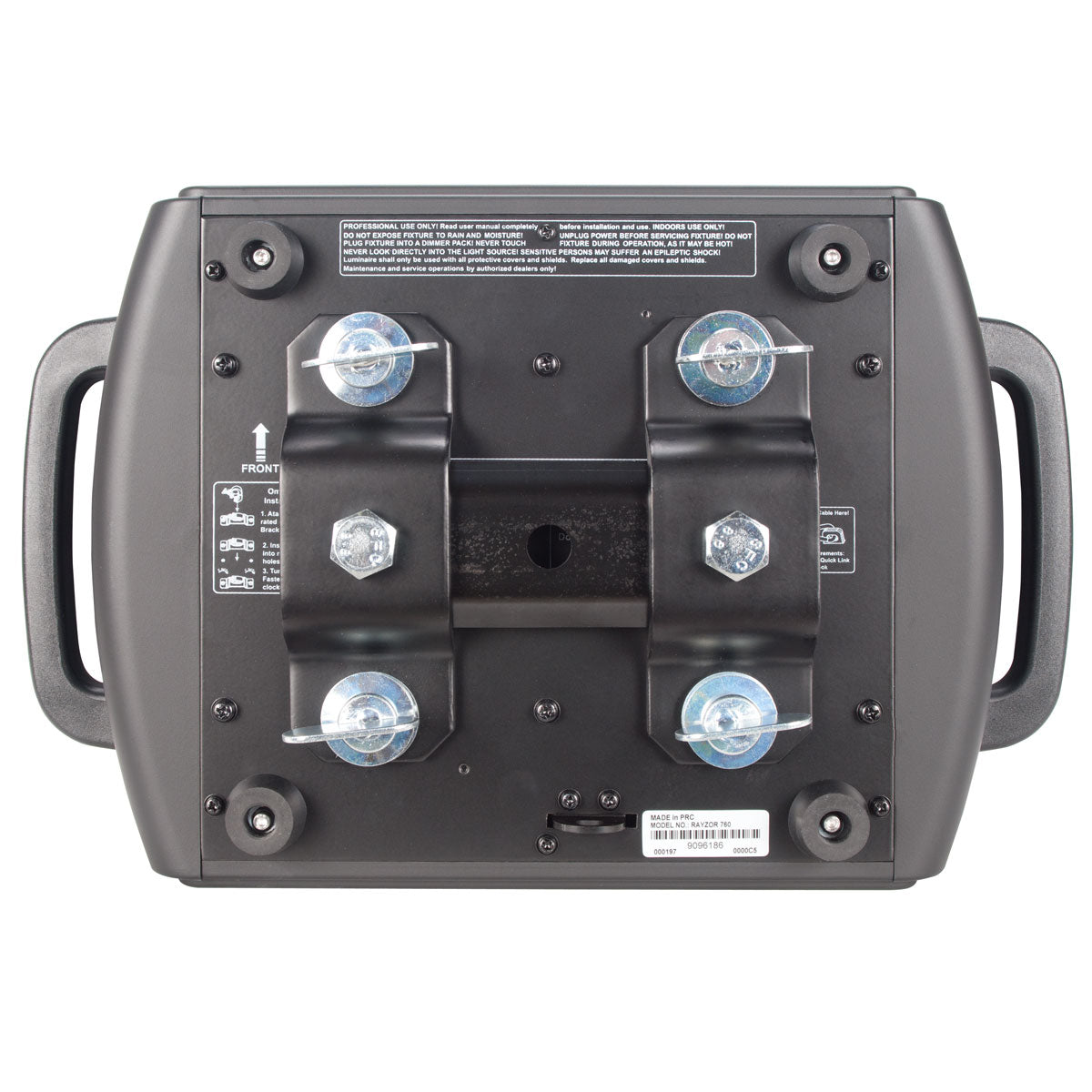

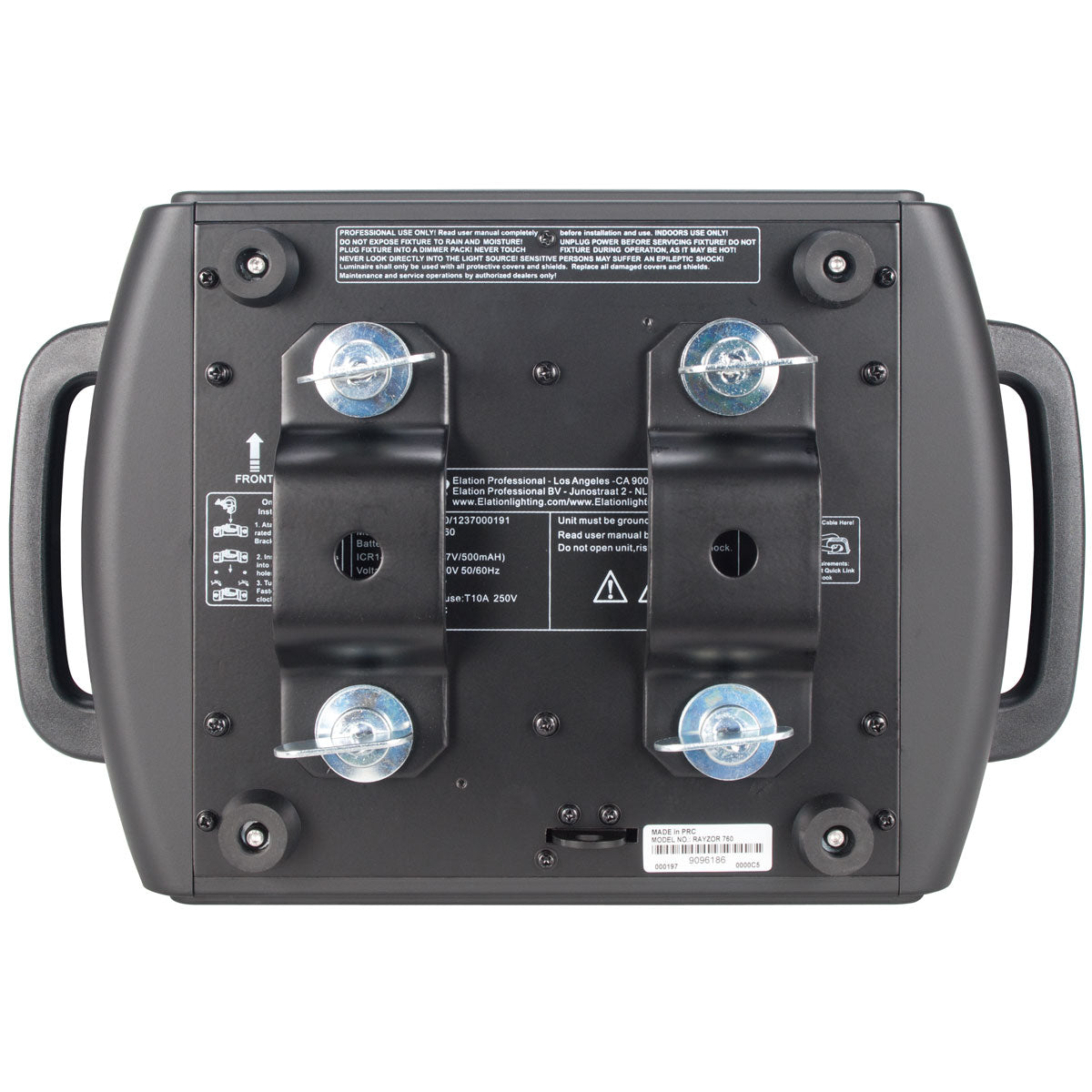

  • (2) Omega Bracket
  • (1) Single Clamp Bracket
  • (1) IP65 Locking Power Cable

Features:

  • Light Source:
    • 7x 60W RGBW LEDs
    • 28x 2W SparkLEDs
  • Color Temperature: 2,700 - 8,000K
  • CRI: 80
  • Beam Angle: 5° - 77° Motorized Zoom
  • Dimming: 16bit Dimming
  • Refresh Rate: Variable
  • Strobe: Variable
  • Color: RGBW
  • Effects: Pixel Control, SparkLED Lens Effect, Continuous Pan/Tilt
  • Control Protocol: DMX, RDM, Art-NET, sACN
  • Operating Modes: DMX, Manual, Auto Program
  • IP Grade: IP20



Tech Specs

Optics:

Light Source Type: RGBW LED

Light Source Wattage: 7x 60w

Minimum Beam Angle: 5.0°

Maximum Beam Angle: 77.0°

Control

DMX Channel Modes: 25 / 52 / 80

DMX 3-Pin Connectors?: No

DMX 5-Pin Connectors?: Yes

Physical:

Length: 13.4 in

Width: 8.58 in

Height: 16.67 in

Weight: 27 lb

Electrical

Voltage Range: 100 - 240 VAC 50/60Hz

Maximum Wattage: 700w

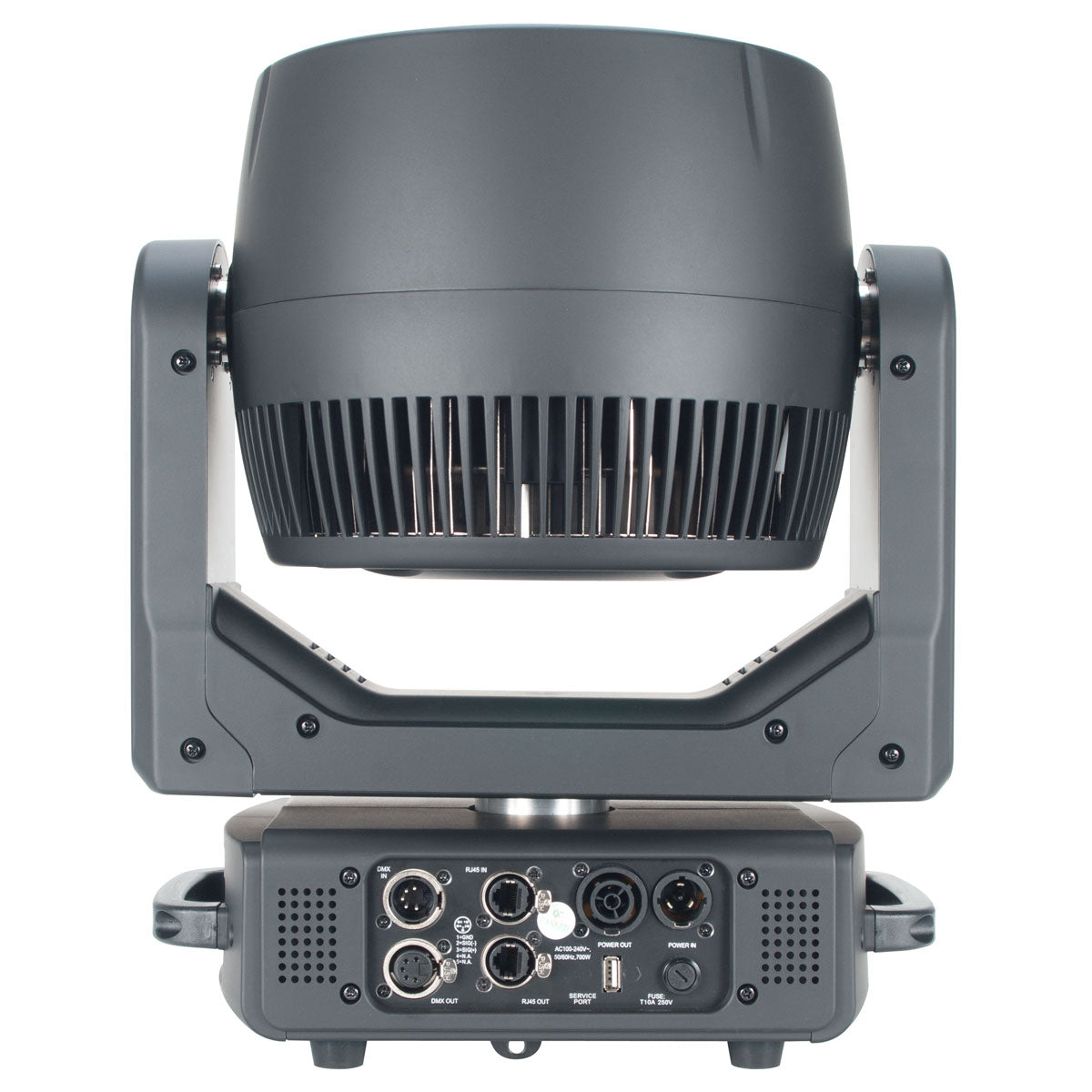

Power Cable Connector - Fixture Side: PowerCON True1

Main Power Connector on Included Cable: Edison
