Description
Description
A 2-port DMX node that's also a splitter? Sign me up!
From the Manufacturer:

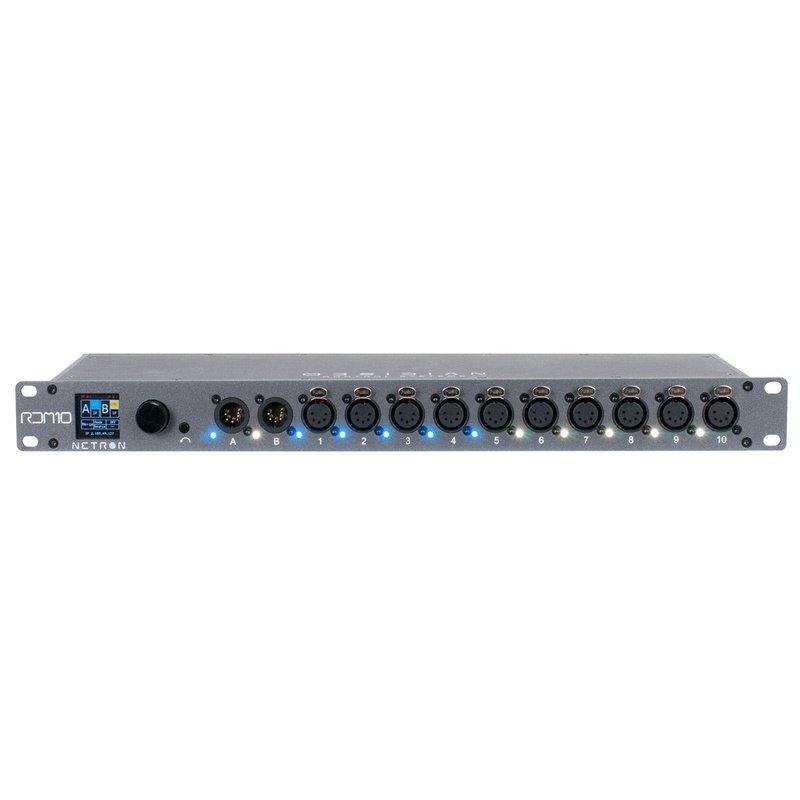

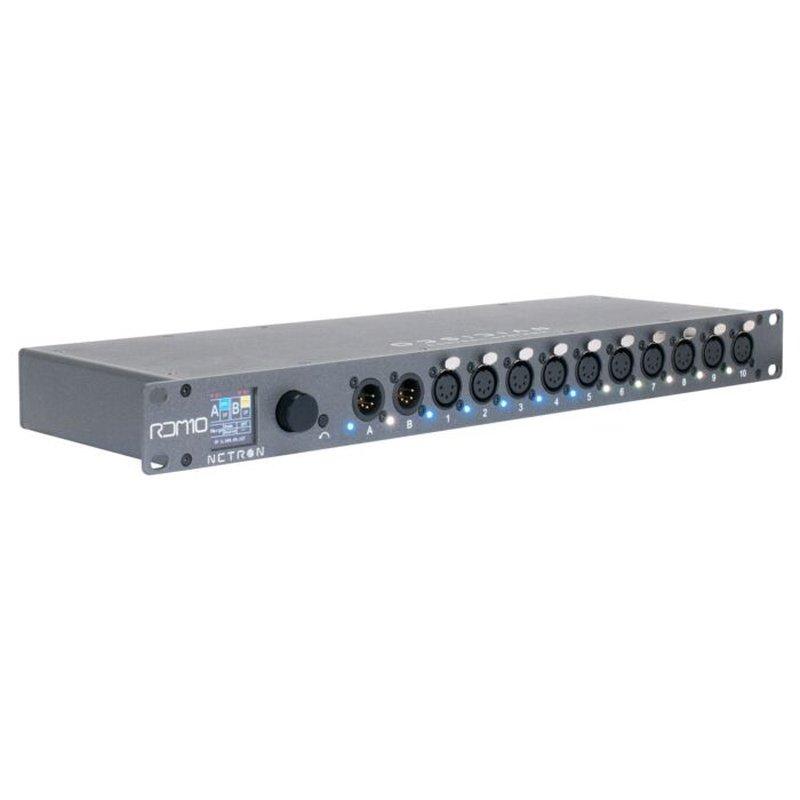

The NETRON RDM 10 is a first of its kind hybrid splitter. Dual DMX input, 10 port RDM Splitter, Merger and EtherDMX Gateway are unified into the RDM10, with an advanced feature set to cover a wide variety of applications. 99 internal cues, factory and user presets plus external contact closures provide a unique combination of multiple devices to solve many required tasks in one powerful unit.
From the GEAR Pro's:
These are just plain cool. The fact that you get a DMX node and splitter in the same rack unit just makes so much sense, and the way this one is designed just plain works well. And it unlocks (4) universes in ONYX on a PC? Yep, that too!
Video Review:
How to Set up the RDM10:
In the Box:
- (1) Netron RDM 10
- (1) 1.5m Locking power cable (EU or US version)
Features:
- 10 assignable DMX outputs
- Integrated 2 Universe Artnet/sACN node
- Configurable DMX refresh rate
- Dual DMX Inputs for backup and signal loss options
- Remote configuration via internal webpage
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Contact closures for cue or preset recall
- Powder-coated aluminum rackmount housing
- Unlocks ONYX NOVA 4 Universe License
Tech Specs
Control
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: Yes
Physical:
Length: 19 in
Width: 5.7 in
Height: 1.7 in
Weight: 4 lb
Electrical
Voltage Range: 100 - 240 VAC 50/60Hz / PoE 802.3af
Power Cable Connector - Fixture Side: Seetronic
Main Power Connector on Included Cable: Edison
