Sku:
NRD112
RDM 645 DMX Splitter
- Regular price
- $496.00
- Regular price
-
- Sale price
- $496.00
- Unit price
- / per
Vendor: OBSIDIAN Control Systems
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description
It's a 6-port DMX splitter with RDM support. This one uses RJ-45 connectors and a True1 in and thru for power! Great for installs!
From the Manufacturer:

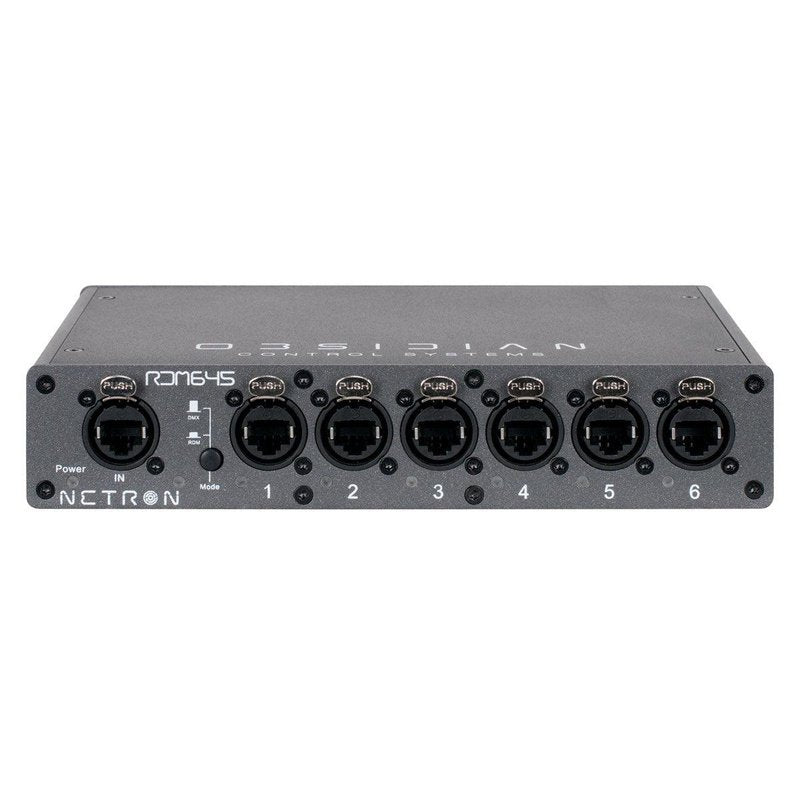

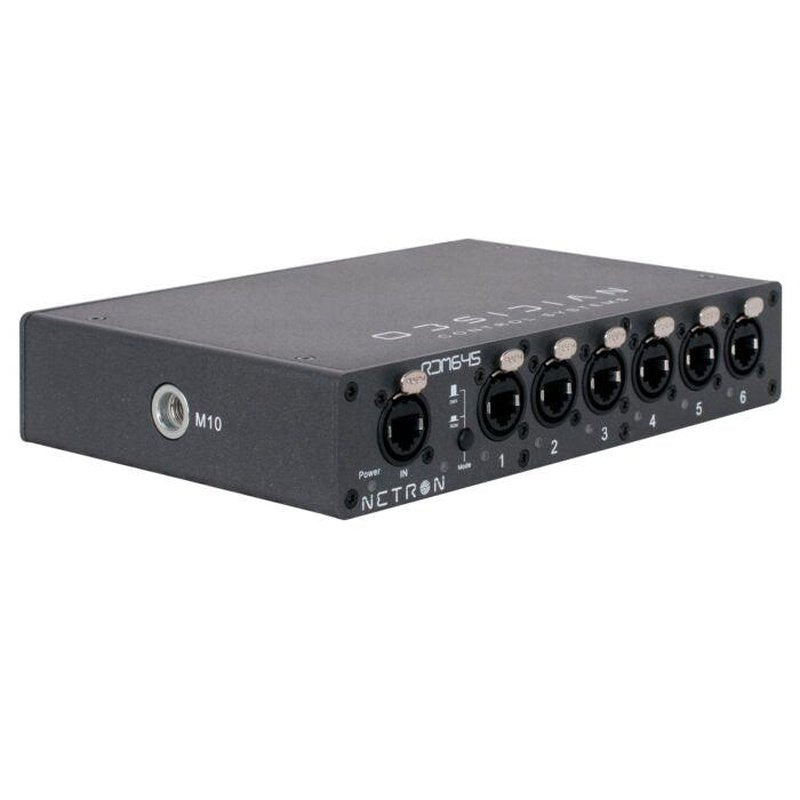

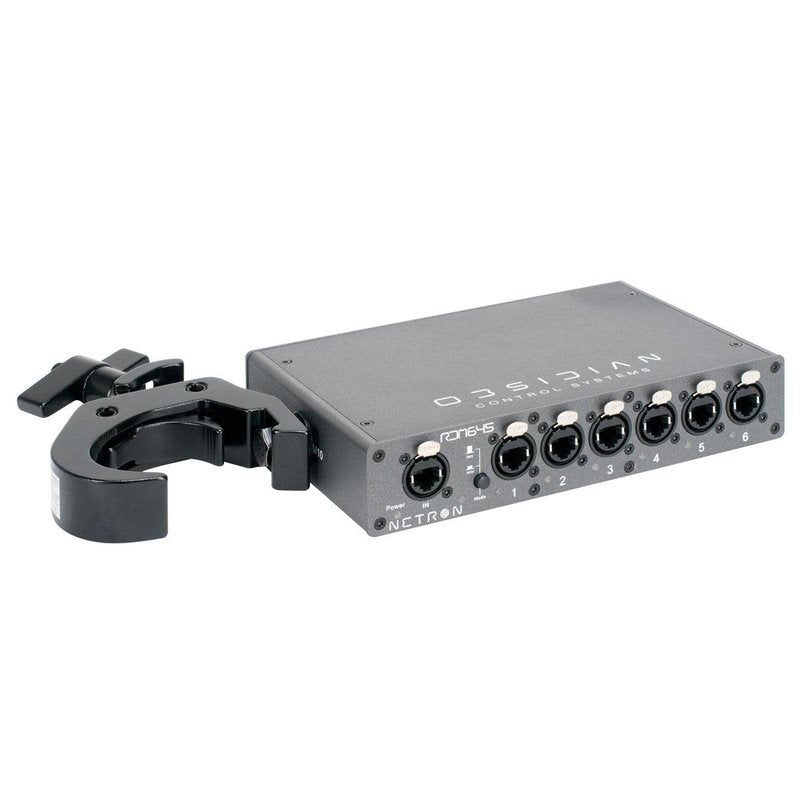

The Netron RDM 645 is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated RJ45 DMX outputs and flexible mounting options to cover any situation.
In the Box:
- (1) Netron RDM 645
- (1) 1.5m Locking power cable (EU or US version)

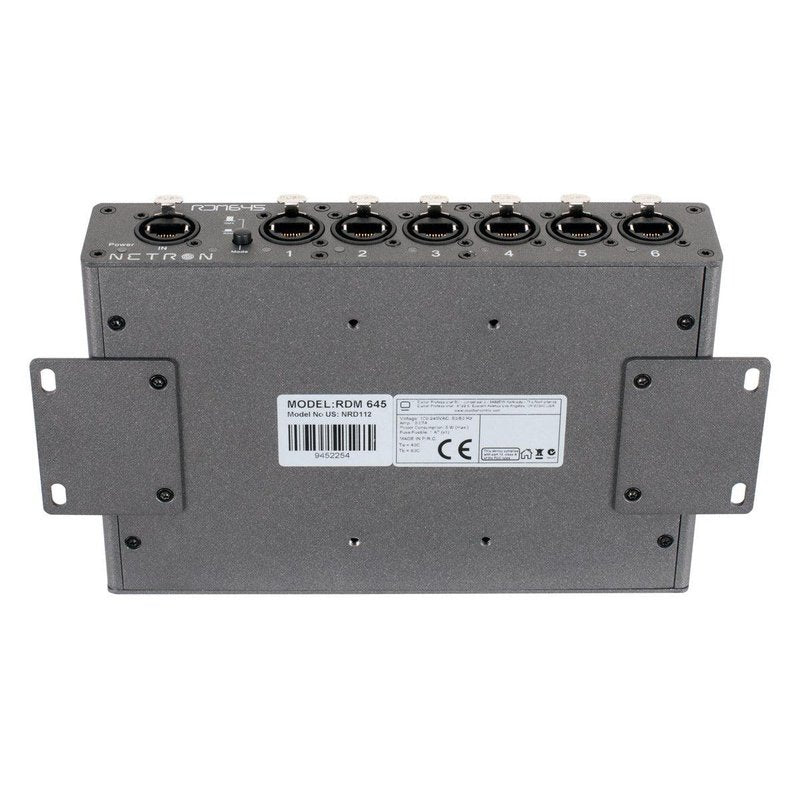

- (2) Wallmount plates

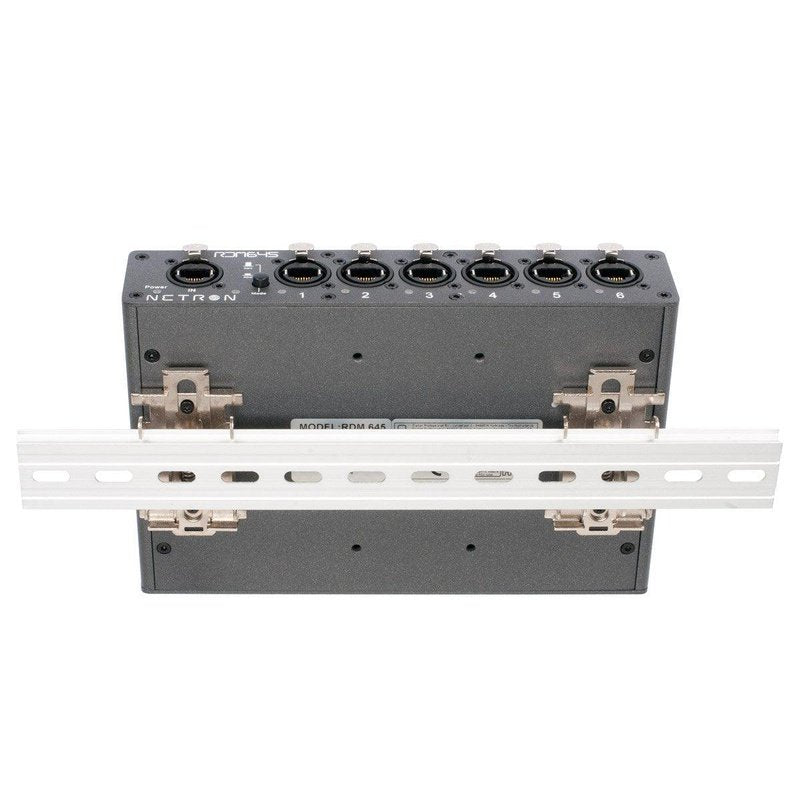

- (2) DIN-Rail clamps
Features:
- (6) Locking RJ45 Ethernet DMX outputs
- DMX and RDM compliant
- Optically isolated ports

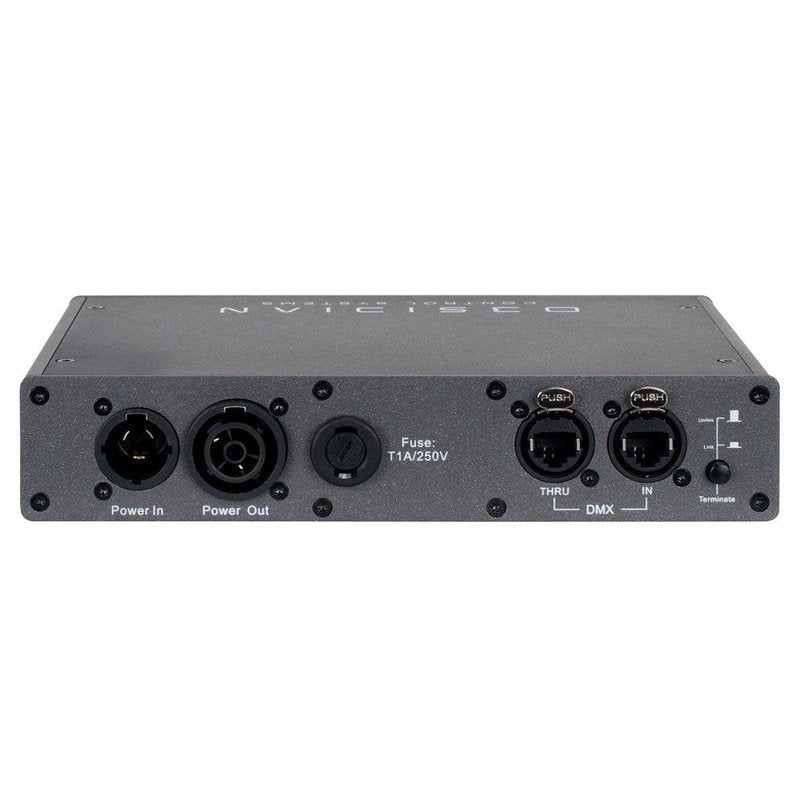

- Power / DMX Through connectors
- Powder-coated aluminum ½ rack housing
Tech Specs
DMX 3-Pin Connectors?: No
DMX 5-Pin Connectors?: No
Physical:
Length: 8.5 in
Width: 5.5 in
Height: 1.65 in
Weight: 2.2 lb
Electrical
Voltage Range: 100 - 240 VAC 50/60Hz
Maximum Wattage: 10w
Power Cable Connector - Fixture Side: Seetronic
Main Power Connector on Included Cable: Edison
