RDM XS8

The ADJ RDMX XS8 is a 19-inch rack mount 8-way DMX and RDM data splitter. This is a great option for medium sized stages.

From the Manufacturer:

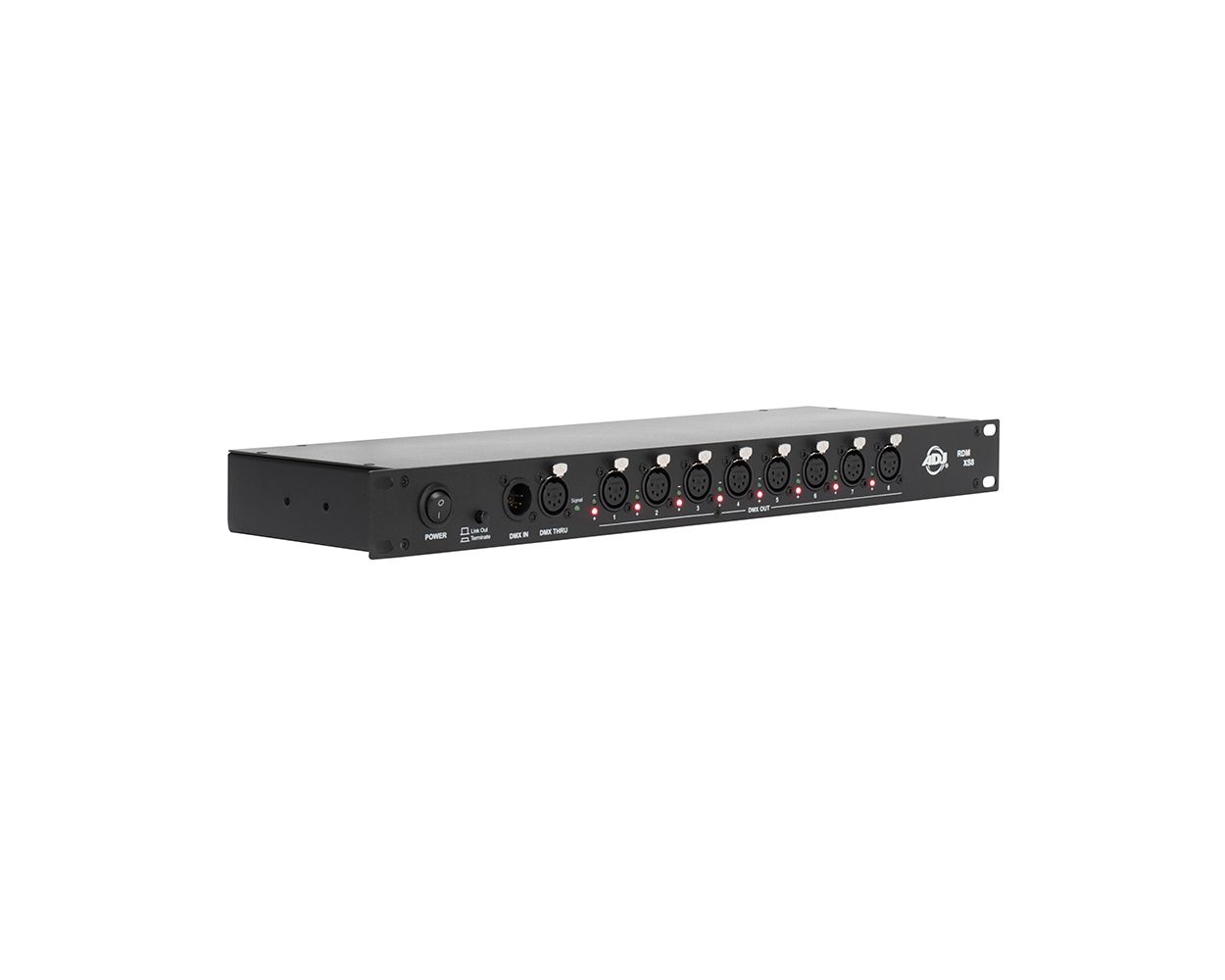

The ADJ Lighting RDM XS8 is a 19-inch rack mount, 8-way DMX and RDM data splitter. With one (1) 5-pin input, one (1) 5-pin thru and eight (8) 5-pin outputs, the RDM XS8 makes running DMX cables easier and more efficient.

Details:

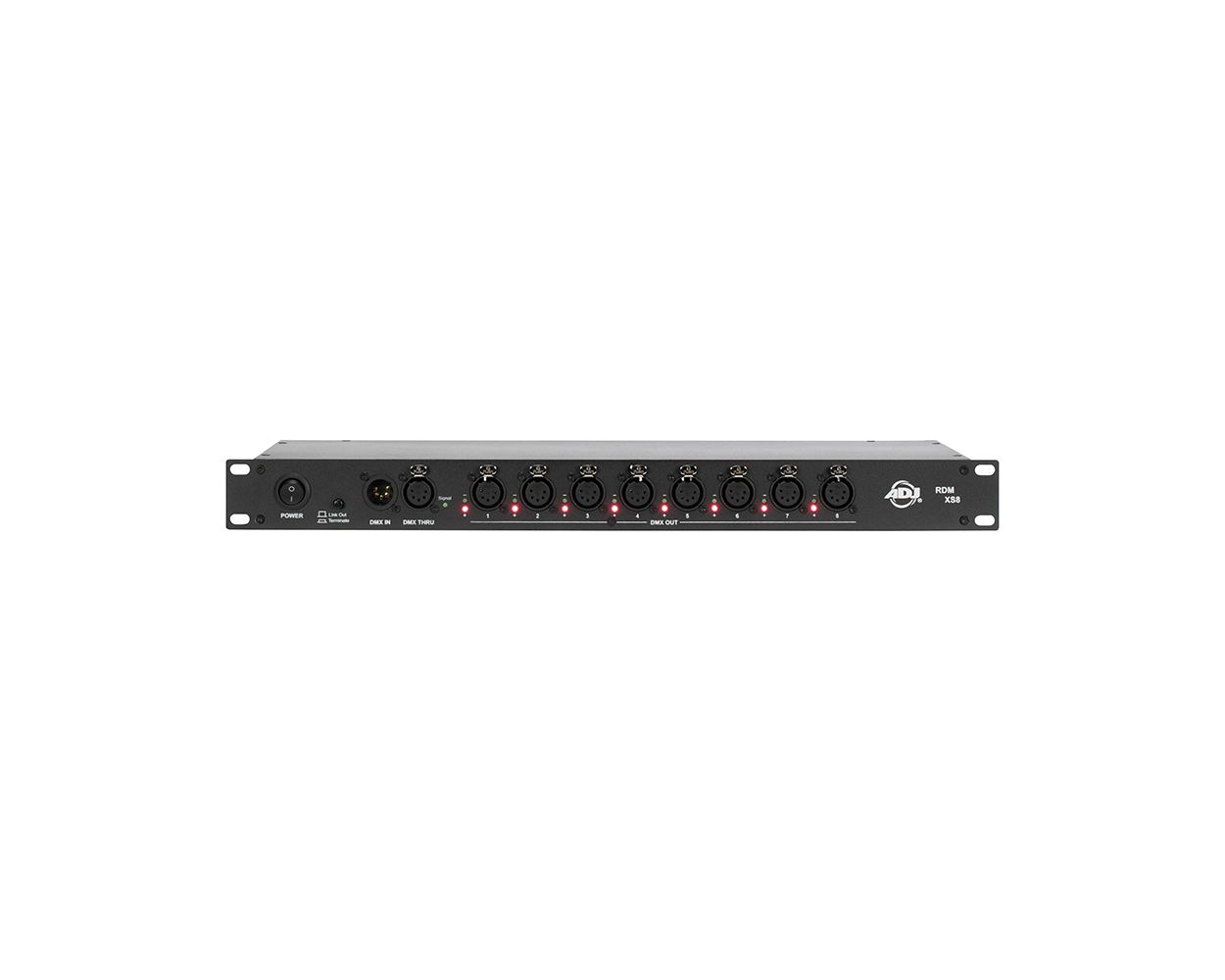

The ADJ Lighting RDM XS8 is a versatile and compact solution for streamlined DMX512 and RDM signal distribution. Designed for seamless integration into your lighting setup, this data splitter ensures reliable and convenient installation into a 19-inch rack mount cabinet. Its slim one rack configuration includes 1x indoor 5-pin XLR input, 1x indoor 5-pin XLR thru, 8x indoor 5-pin XLR outputs, plus a Link Out Termination Switch and a DMX/RDM Protocol Switch.

Specifications:

• Protocols:

• DMX512

• RDM

• Physical:

• 19" Rack Mount

• 1x Indoor 5pin XLR Input

• 1x Indoor 5pin XLR Thru

• 8x Indoor 5pin XLR Outputs

• Link Out Termination Switch

• DMX / RDM Protocol Switch

• Dimensions & Weight:

• Length: 6" (152.4mm)

• Width: 19" (482mm)

• Height: 1.73" (44mm)

• Weight: 4.87lbs. (2.21kg)

• Power:

• AC Input: 100-240V 50/60Hz

• Power Consumption: 3.1W @ 120V and 3.3W @ 230V

• Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)

• Thermal:

• Ambient Operational Temperature: 32°F to 113°F (0°C to 45°C)

• Humidity: <75%

• Storage Temperature: 77°F (25°C)

• Certifications & IP Rating:

• CE

• cETLus

• UKCA

• FCC

• IP20
