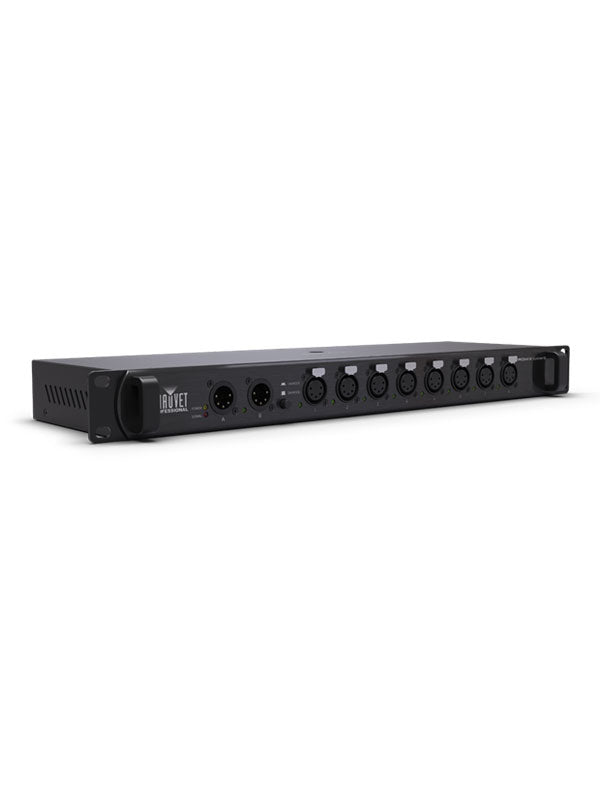

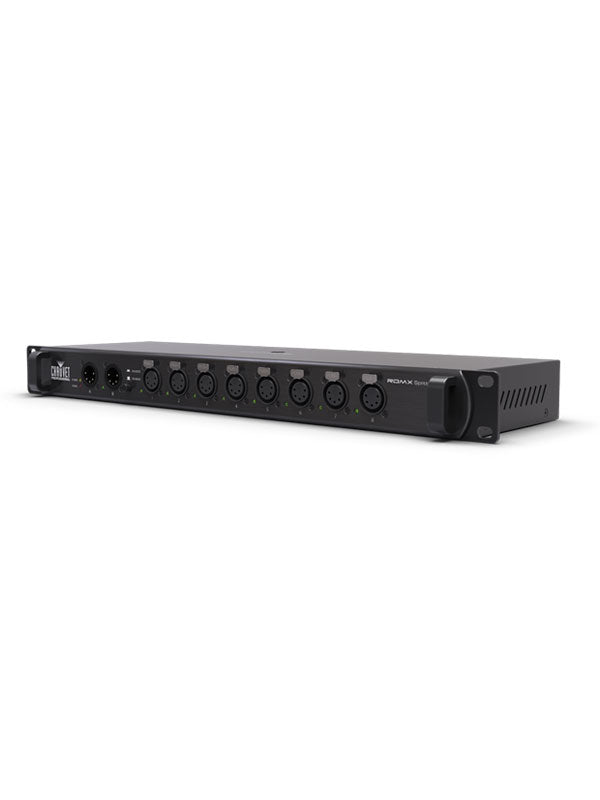

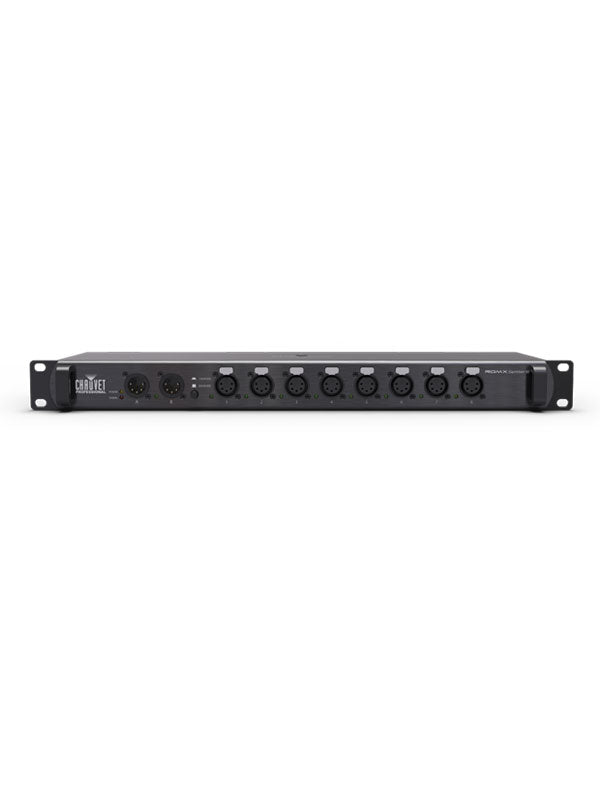

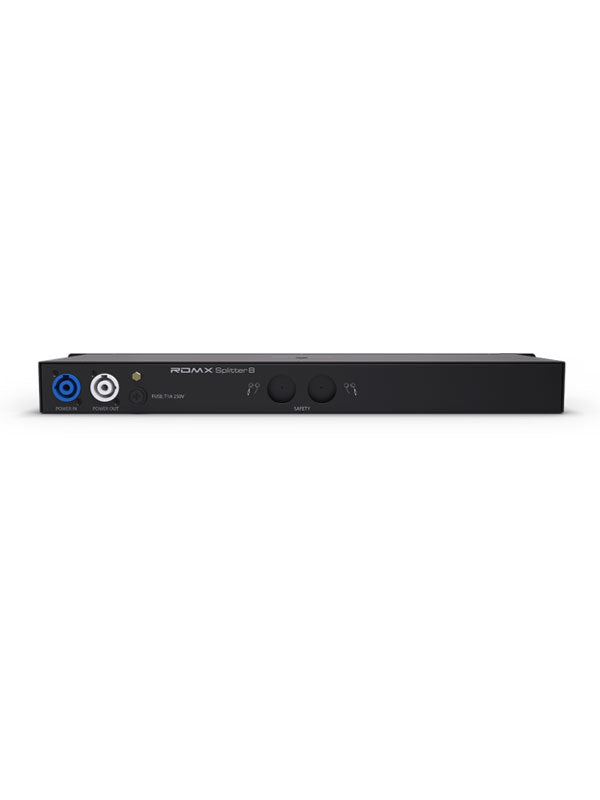

RDMX Splitter 8

This is a great option if you are looking for a new 5-pin DMX Splitter. It has a rugged design and features 8 outputs and 2 inputs. It also supports PowerCON power linking. Further this splitter can be rack or trust-mounted.

From the Manufacturer:

RDMX Splitter 8 is a versatile RDM and 5-pin DMX opto-splitter with rugged, durable housing. It features 8 outputs and 2 inputs, so it can instantly go from a 1×8 splitter to a 2×4 splitter for two different universes. To simplify installation next to existing fixtures, PowerCON power linking is also supported to make it easier than ever to isolate, amplify and split a signal. For added versatility, the unit can be either rack or trust-mounted and supports electrical isolation between inputs and outputs up to 1000 V between ports.

Features:

• Universal RDM E1.20 compliant 5-pin DMX opto-splitter that supports either 1x8 (single universe) or 2x4 (dual universes) modes with the press of a button; or functions as a 2x4 A/B splitter

• Includes power linking to make it easy to install next to existing fixtures, so isolating, amplifying, and splitting signal are now easier than ever

• Rugged reinforced housing supports 1U rackmount and mounting to pipe and truss without additional accessories

• Electrical isolation between inputs and outputs up to 1,000 V between ports

• PowerCON power linking supported to make it easy to split signal at a fixture, where power and data are already present

Construction/Physical:

• Dimensions: 19 x 5.75 x 1.77 in (483 x 146 x 45 mm)

• Weight: 4.2 lb (1.9 kg)

• Exterior Color: Black

• Housing Material: Steel and aluminum

• Rackmount: 1U
