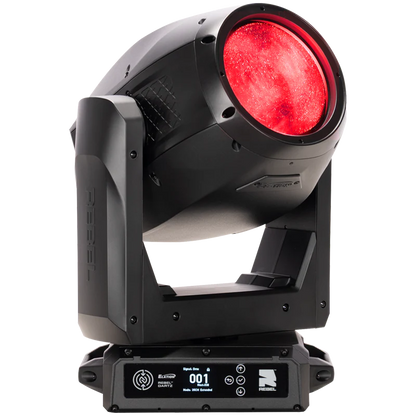

REBEL DARTZ

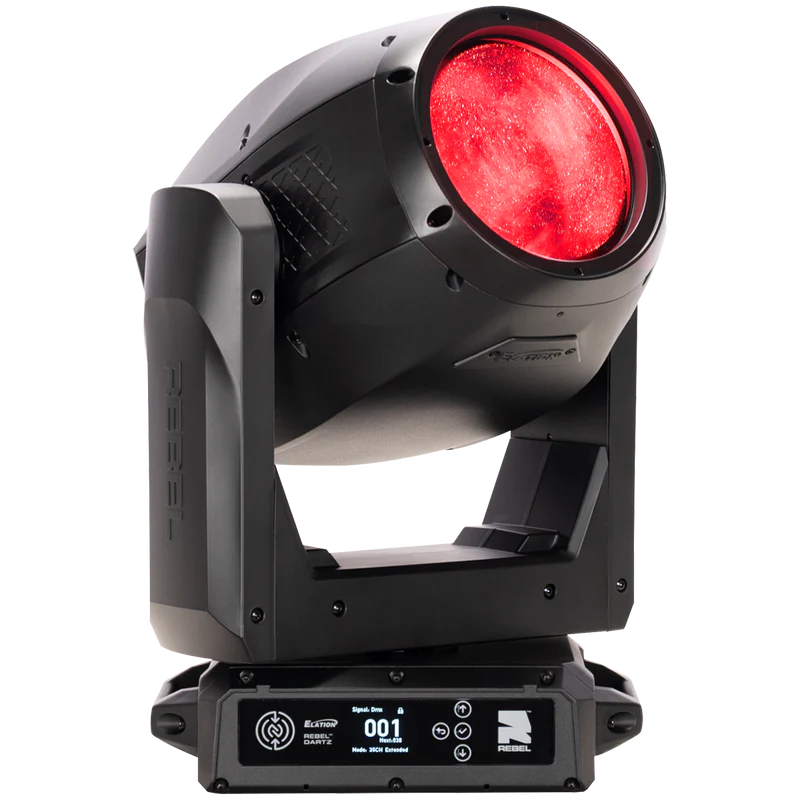

The Elation Professional REBEL DARTZ is a compact, high-impact beam FX moving head built for designers who demand speed, precision, and reliability in any environment.

From the Manufacturer

The REBEL DARTZ channels the unapologetic REBEL spirit into a compact, high-impact beam FX mover built for designers who demand speed, precision, and reliability in any environment. Its fierce 150W RBL engine drives an ultra-narrow 1.5° beam — sharp enough to carve the air and powerful enough to cut through dense atmospherics with ease.

With 360° continuous pan and tilt, REBEL DARTZ unleashes unbound motion with kinetic energy. Its dual gobo wheels, layered prisms, and frost equip designers with a deep creative arsenal in a deceptively small footprint.

With an RBL LED engine, REBEL DARTZ produces a wide, punchy spectrum with smooth output and rich saturation, while a dedicated True Green filter adds even more versatility for building dynamic color-pairings.

As the long-awaited update to the community-favorite DARTZ 360, the REBEL DARTZ boasts four times the brightness and more gobos, all in a compact, weather-resistant, IP65-rated design. It rigs fast, travels light, and thrives anywhere the show demands — and with Aria X2 wireless DMX and RDM, NFC configuration, and five selectable fan modes, including a silent setting, it keeps setup, service, and noise control firmly dialed in.

Built to hit harder, shine sharper, and leave a mark that makes every design unmistakably REBEL, the REBEL DARTZ is a fixture that refuses to blend in.

Features

• 150W RBL LED engine with a 1.5° ultra-narrow beam angle
• 125,475 lux @ 5M output
• True Green color filter for extended color-pairing versatility
• FX package with rotating & fixed gobos, dual stacking prisms, and frost
• Variable CCT from 3200K – 16000K
• Endless high-speed 360° pan and tilt movement
• NFC and Aria x2 wireless device management
• IP65-rated, weather-resistant construction
• 2 gobo wheels with 10 interchangeable rotating/indexing metal gobos and 16 static-stamped metal gobos
• Dual independent stacking prisms (6-facet linear & 8-facet circular)
• Variable strobe rate from 1–20Hz
• Remote focus and heavy frost filter
• Variable 16-bit dim curve modes with DMX-controllable LED refresh rate
• Virtual gel swatch book
• DMX, RDM, Art-Net, and sACN protocol support
• 180° reversible LCD menu display with 4-button touch panel
• Hibernation mode for power saving
• Recommended use: Touring, festivals, concerts, outdoor and weather-exposed events, and any application requiring a compact, high-output beam FX fixture

Specifications

Source

• LED Engine: 150W RBL LED
• LED Life: 20,000 hour average (test lab conditions; may vary with environmental conditions, power/voltage, usage patterns, control, and dimming)

Photometric Data

• Total Lumen Output: 1,785 (Integrating Sphere)
• Illuminance: 125,475 lux @ 5M
• Beam Angle: 1.5°

Effects

• Variable Strobe Rate: 1–20Hz
• Remote focus
• Heavy frost filter
• Dual independent stacking prisms (6-facet linear & 8-facet circular)
• Variable 16-bit dim curve modes
• DMX-controllable LED refresh rate
• Pan Angle: 360°/540°
• Tilt Angle: 360°/270°
• Continuous 360° pan and tilt rotation

Color

• RBL color array
• True Green color filter
• Variable CCT: 3200K – 16000K
• Virtual gel swatch book

Gobos

• 2 gobo wheels
• 10 interchangeable rotating/indexing metal gobos
• 16 static-stamped metal gobos

Control / Connections

• 2 DMX channel modes
• (4) button touch panel

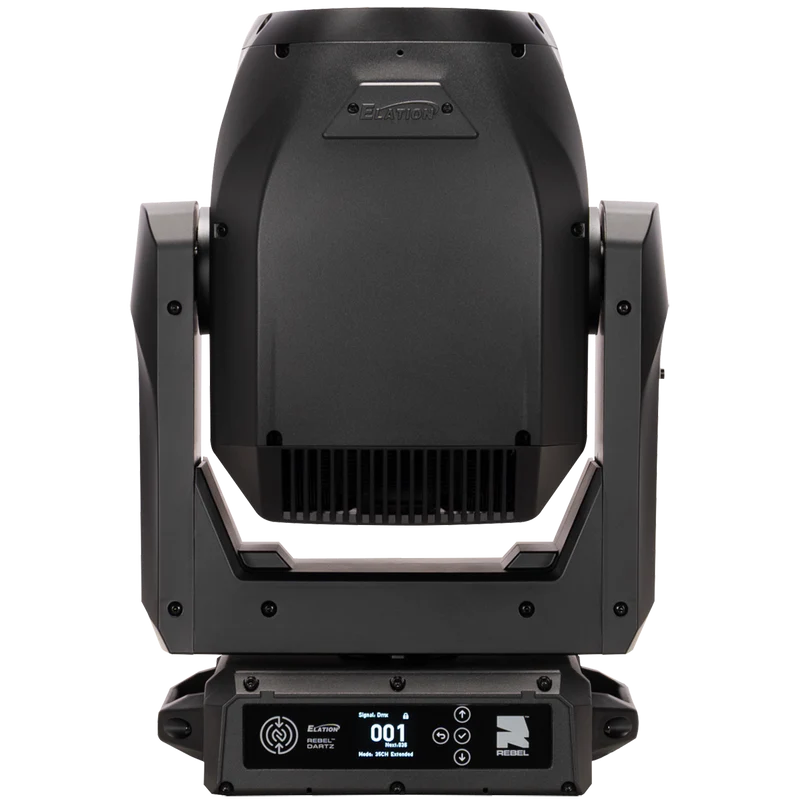

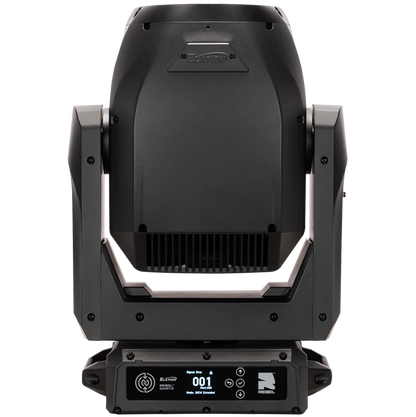

• 180° reversible LCD menu display
• Hibernation mode (power save)
• DMX, RDM, Art-Net, and sACN protocol support
• Aria x2 wireless device management
• NFC configuration

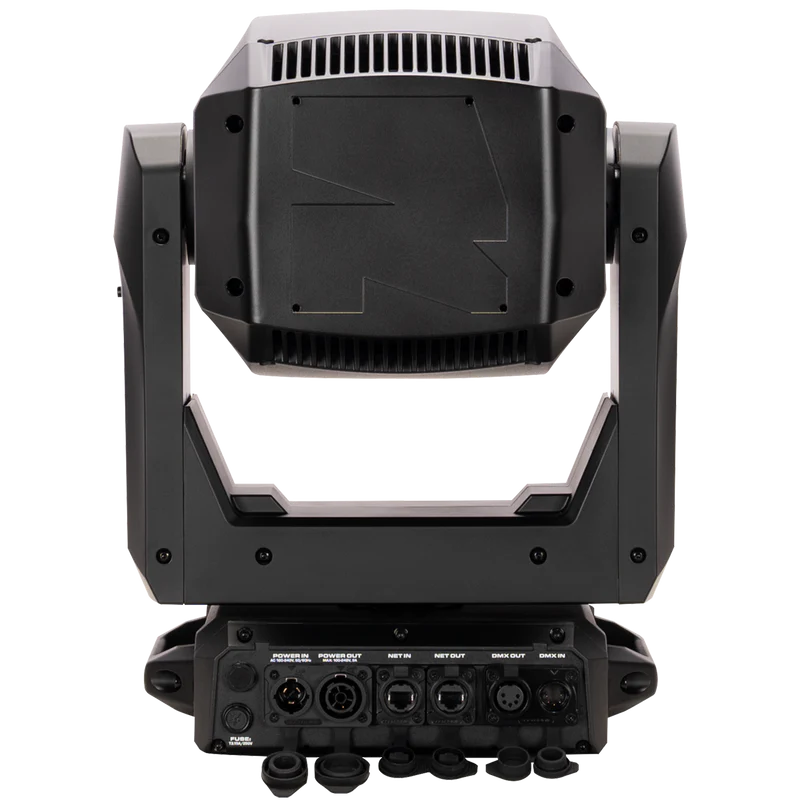

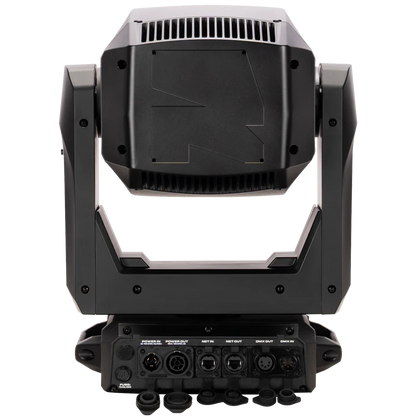

• IP65 5-pin DMX In/Out
• IP65 RJ45 Ethernet In/Out
• IP65 locking Power In/Out

Size / Weight

• Length: 13.3 in. (337mm)
• Width: 8.6 in. (219mm)
• Height: 18.8 in. (478mm)
• Weight: 35 lbs. (15.9kg)

Electrical / Thermal

• AC 100–240V, 50/60Hz
• 240W max power consumption
• Power Thru Capacity: 10A (4 units @115V, 9 units @240V)
• Operating Temperature: -4°F to 113°F (-20°C to 45°C)

Approvals / Ratings

• CE | cETLus | IP65 | FCC
