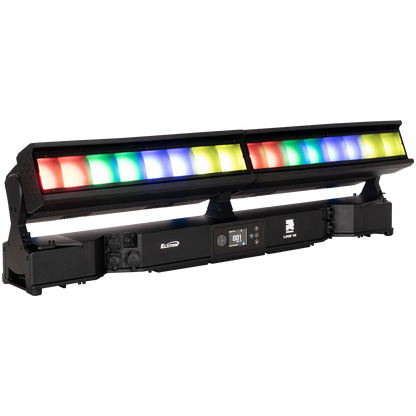

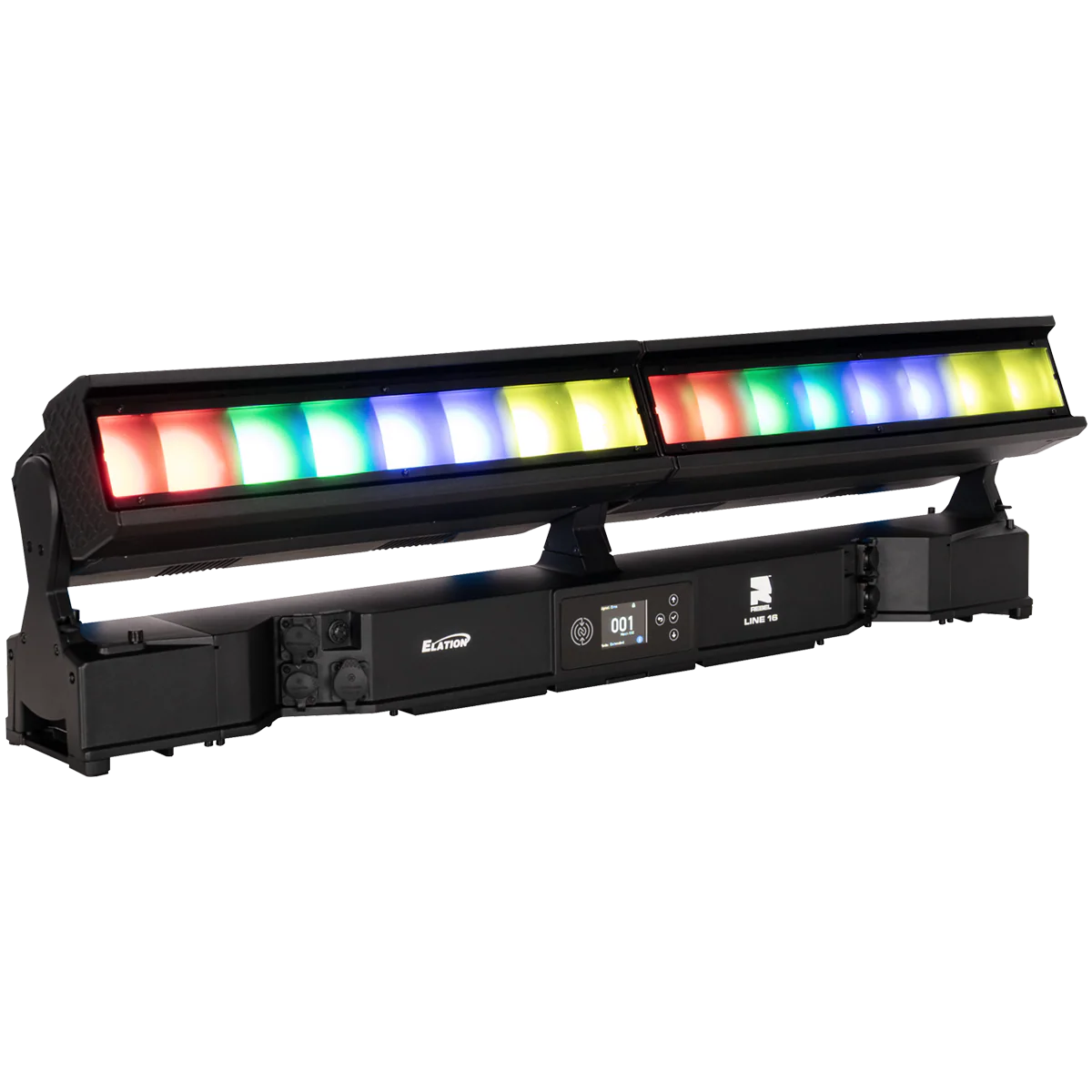

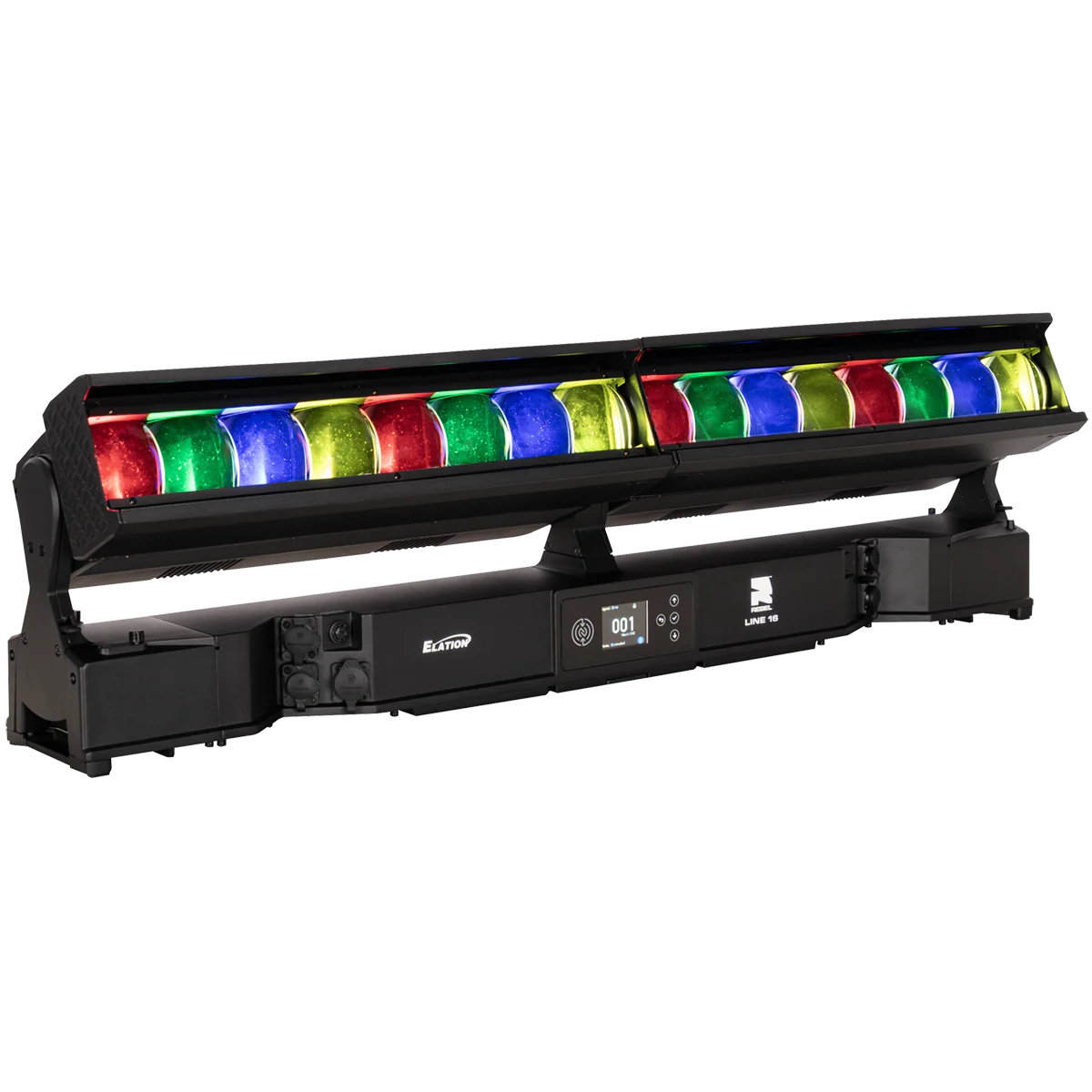

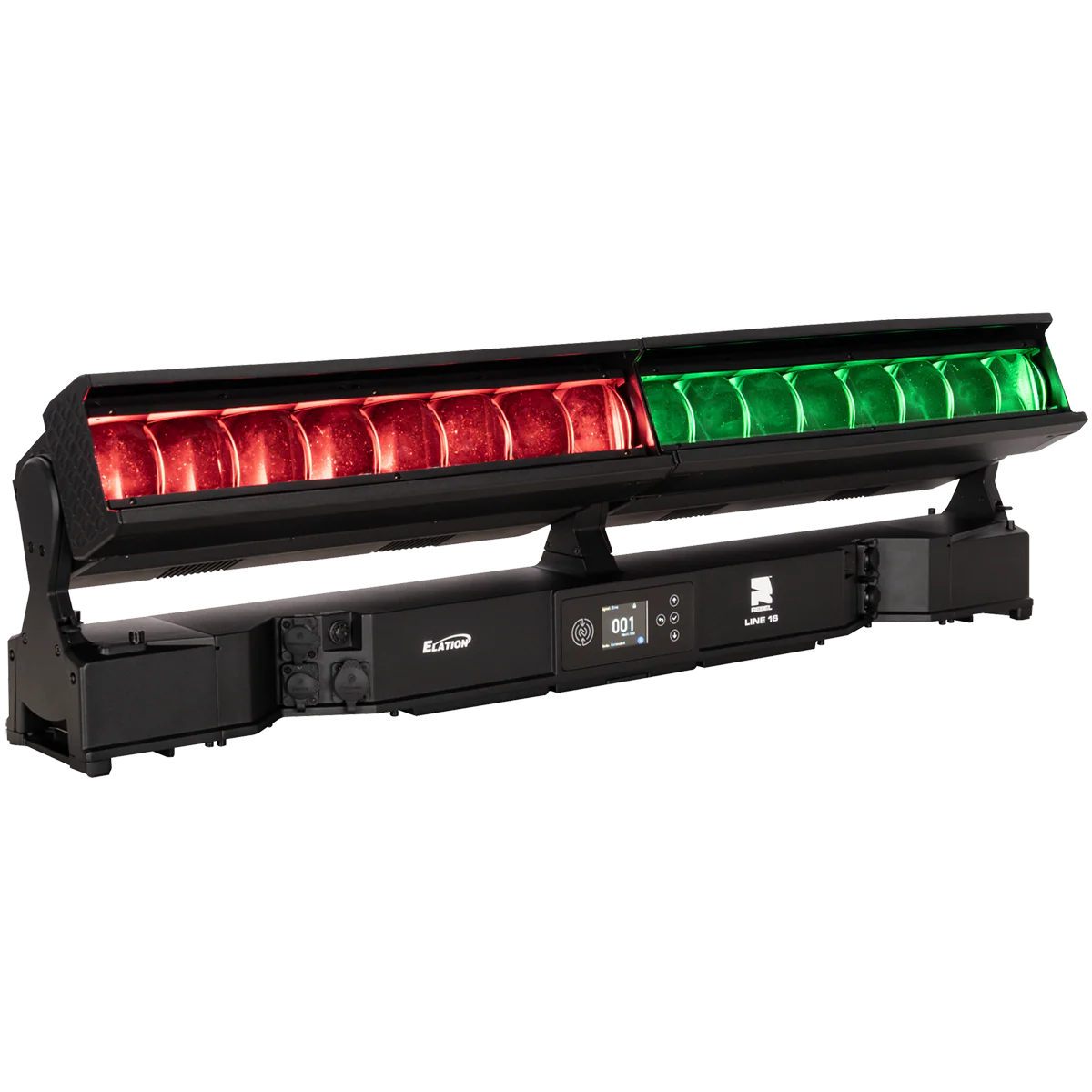

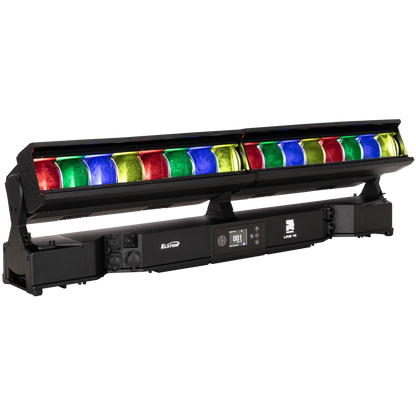

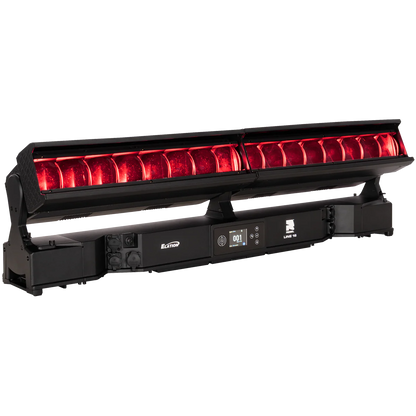

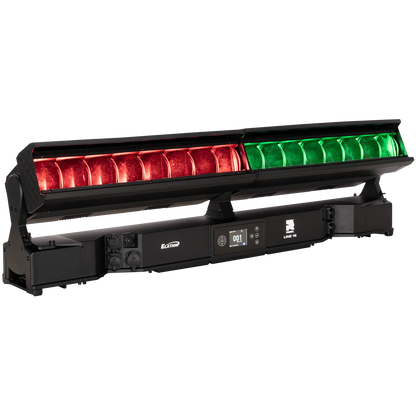

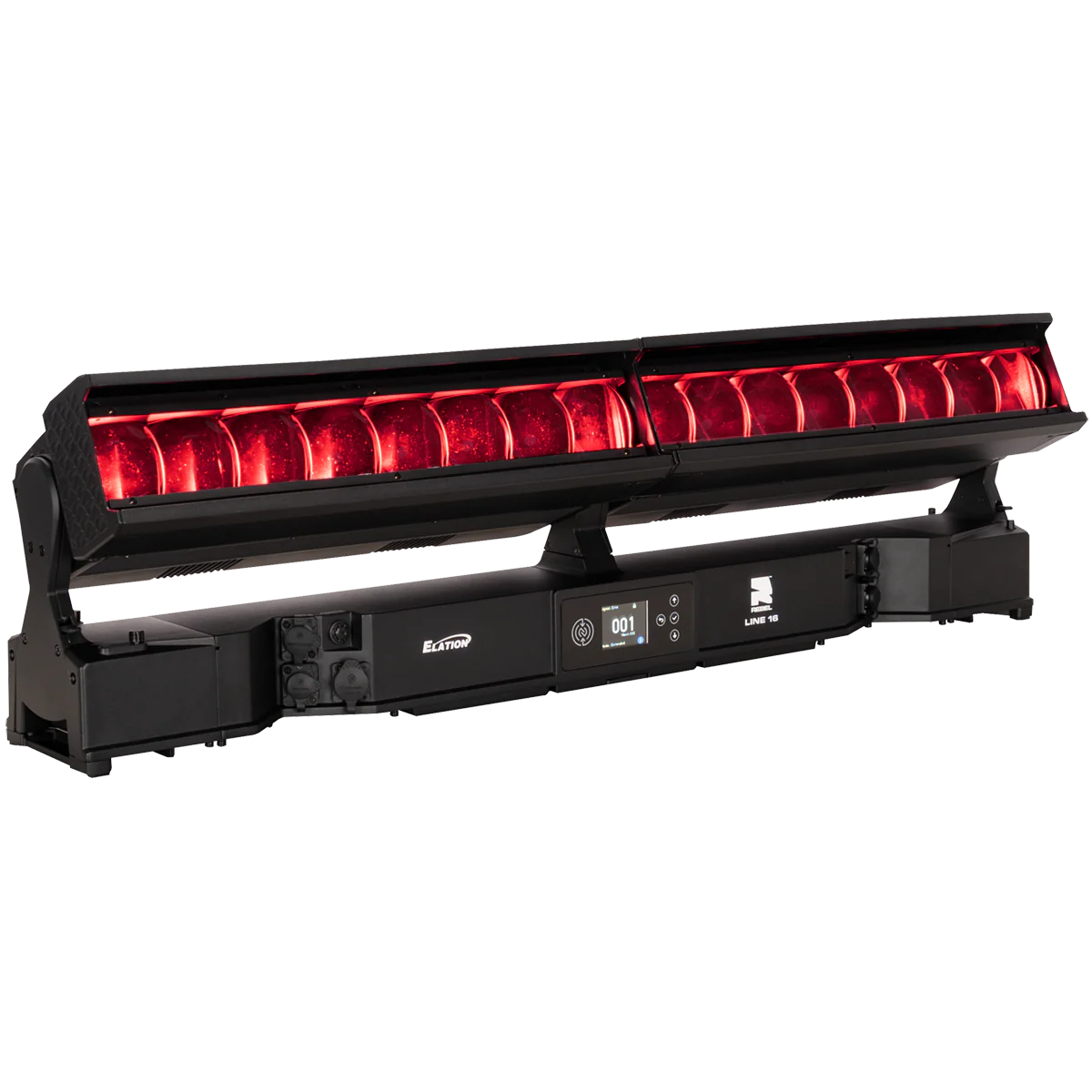

REBEL LINE 16

The Elation Professional REBEL LINE 16 is a 16-cell linear pixel FX fixture delivering massive output, precision optics, and a rich full-spectrum palette inside a rugged IP55 chassis.

From the Manufacturer

The REBEL LINE 16 amplifies the force of the Rebel Series with a commanding 16-cell format — delivering massive output, precision optics, and a rich, full-spectrum palette inside a rugged IP55 chassis. Sixteen high-intensity 60W RGBL engines and thirty-two CW SparkX pixels surge together to unleash 25,355 lumens of relentless color and cool-white punch for designers who push their rigs harder.

A seamless linear lensing system and fast 210° tilt movement drive dynamic, fluid looks — ranging from razor-sharp sub-4° beams that cut through the air to immersive 35°+ washes that fill a stage with ease. With integrated SparkX, the REBEL LINE 16 adds dimensional texture and atmospheric detail, its cool-white crossing beams carving crisp, unmistakable lines through the haze.

A built-in mechanical alignment system allows the REBEL LINE 16 to lock effortlessly with other LINE fixtures — including the LINE 8 — forming continuous beams and high-resolution pixel arrays at any scale. With its tour-ready build and expansive pixel density, the REBEL LINE 16 is engineered for productions that demand bold intensity, sweeping kinetic motion, and advanced pixel artistry built to command the biggest stages.

Features

• (16) 60W RGBL LEDs with pixel control
• (32) 5W CW SparkX LEDs with pixel control
• 25,355 total fixture lumen output (Sphere)
• 4° – 35° beam angle with motorized zoom
• Fast and precise 210° tilt rotation
• IP55-rated tilt FX fixture
• Full pixel LED control
• SparkX LED beam effect
• Electronic dimmer and strobe with variable 16-bit dimming modes and curves
• Variable CCT from 2400K – 8500K
• Virtual gel swatch book
• Built-in mechanical alignment system for locking with other LINE fixtures (including the LINE 8) to form continuous beams and pixel arrays
• Aria x2 wireless device management and NFC configuration
• DMX, RDM, Art-Net, and sACN protocol support
• Recommended use: Touring, festivals, concerts, and large-scale productions requiring high-output linear pixel beams, dynamic washes, and modular fixture alignment

Specifications

Source

• (16) 60W RGBL LEDs
• (32) 5W CW SparkX LED pixels
• LED Life: 30,000 hour average (test lab conditions; may vary with environmental conditions, power/voltage, usage patterns, control, and dimming)

Photometric Data

• Total Lumen Output (Integrating Sphere): All LED: 25,355 lumens | RGBL LED: 13,865 lumens | CW LED: 11,546 lumens
• CRI: 82
• Zoom Range: 4° – 35°

Effects

• Motorized zoom
• Full pixel LED control
• SparkX LED beam effect
• Electronic dimmer and strobe
• Variable 16-bit dimming modes and curves
• Tilt Angle: 210°

Color

• RGBL LED array
• CW SparkX LED array
• Variable CCT: 2400K – 8500K
• Virtual gel swatch book

Control / Connections

• 6 DMX channel modes (24, 31, 122, 2x 22, 2x 30, 2x 70 channels)
• DMX Adjustable Refresh Rate: 900 – 25000 Hz
• 4-button control panel with LED display
• Aria x2 wireless device management
• NFC configuration
• DMX, RDM, Art-Net, and sACN protocol support
• IP65 locking 5-pin XLR connector In/Out
• IP65 locking RJ45 Ethernet connector In/Out
• IP65 locking power cable In/Out

Size / Weight

• Length: 39.5 in. (1004mm)
• Width: 5.5 in. (140mm)
• Height (head up): 13.2 in. (336mm)
• Height (head 90 degrees): 10 in. (254mm)
• Weight: 29.3 lb (13.3 kg)

Electrical / Thermal

• AC 100–240V, 50/60Hz
• 1690W max power consumption
• Ambient Temperature Range: -4ºF to 113ºF (-20ºC to 45ºC)
• BTU/hr (+/- 10%): 5,762.9

Approvals / Ratings

• CE | cETLus | IP55 | FCC | UKCA

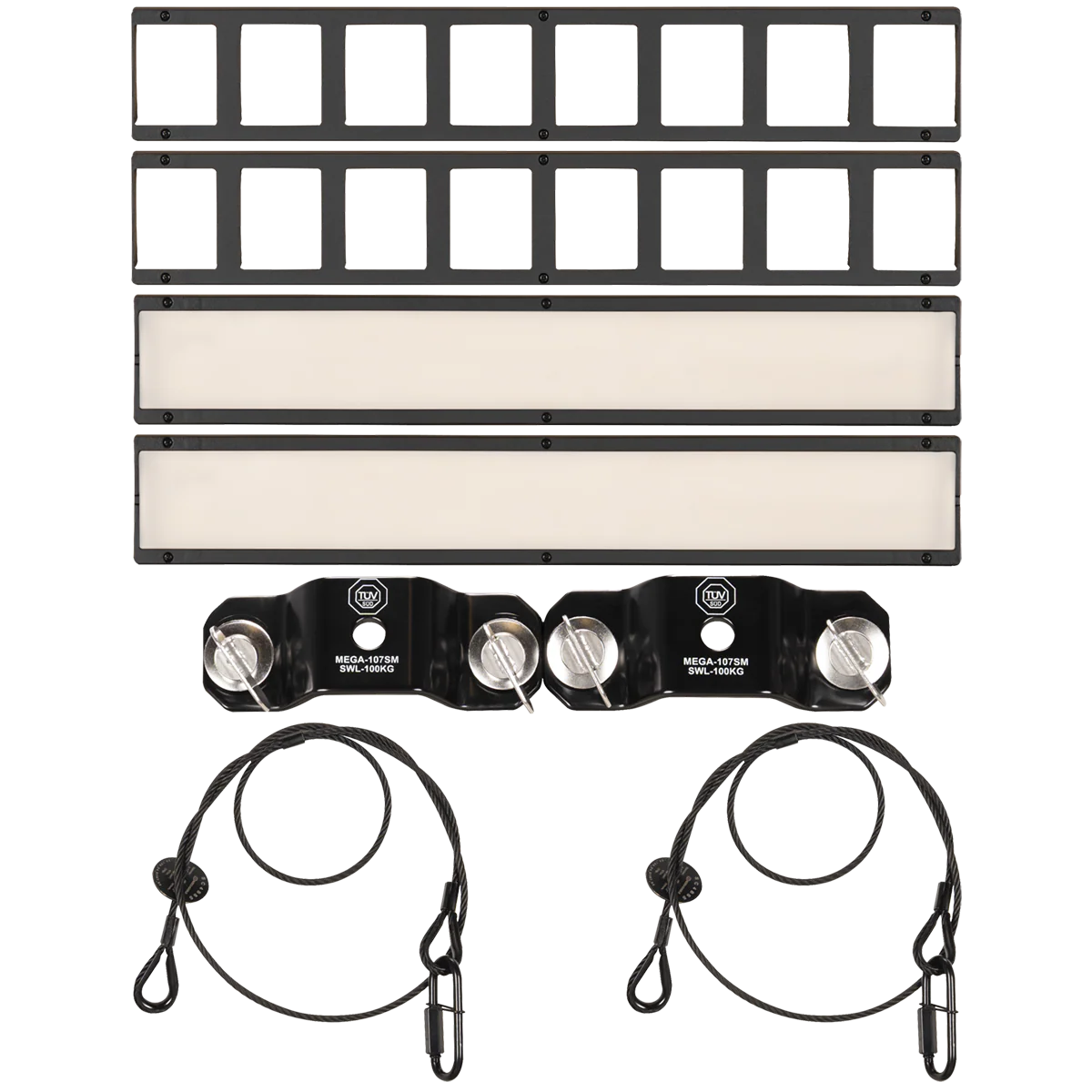

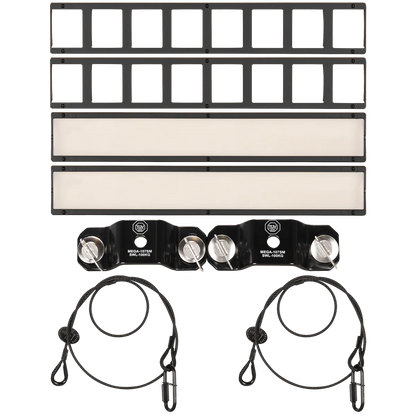

What's in the Box

• Omega Brackets (x2)
• Blank Name Plate
• Front Louver/Grid (x2)
• Diffusion Filter (x2)
• Safety Cable, IP65 Rated
• IP65 Locking Power Cable
