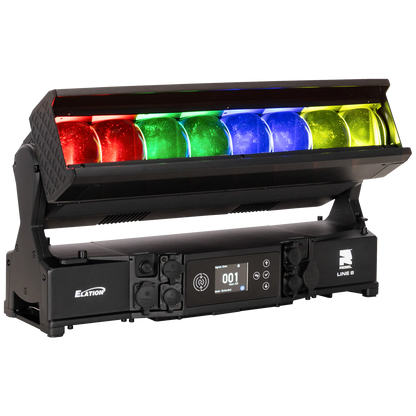

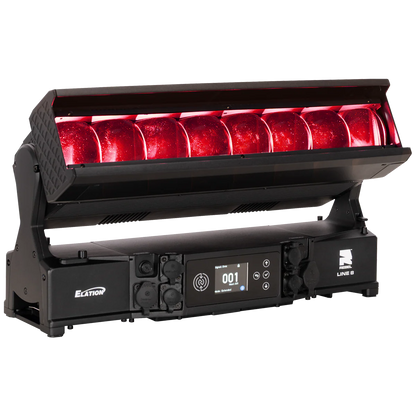

REBEL LINE 8

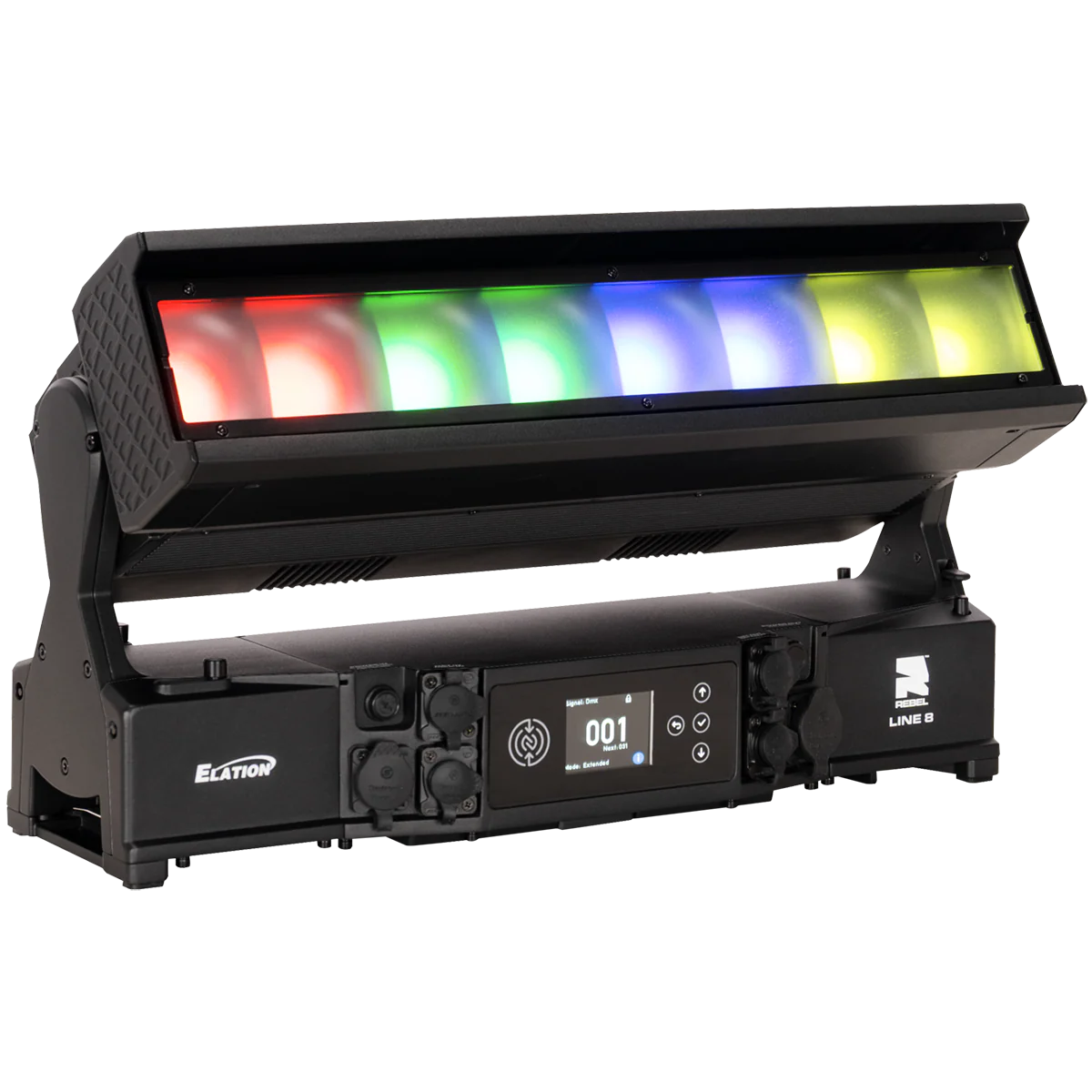

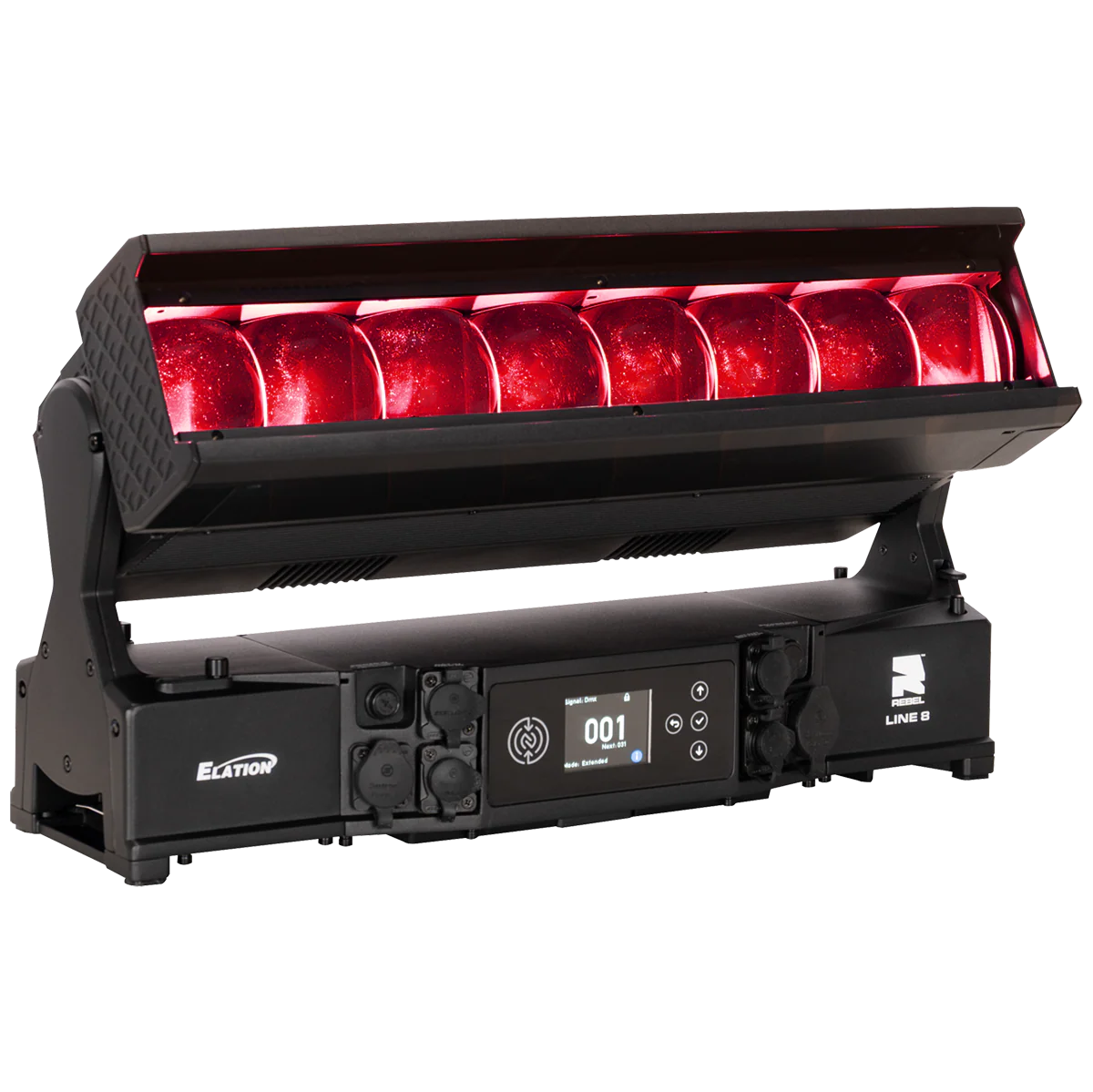

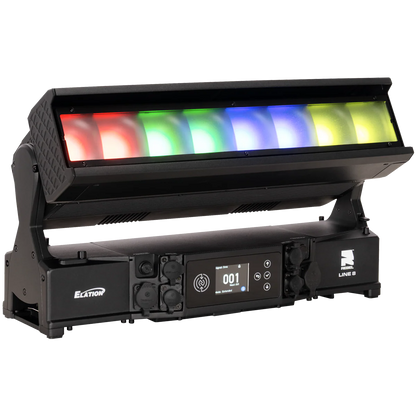

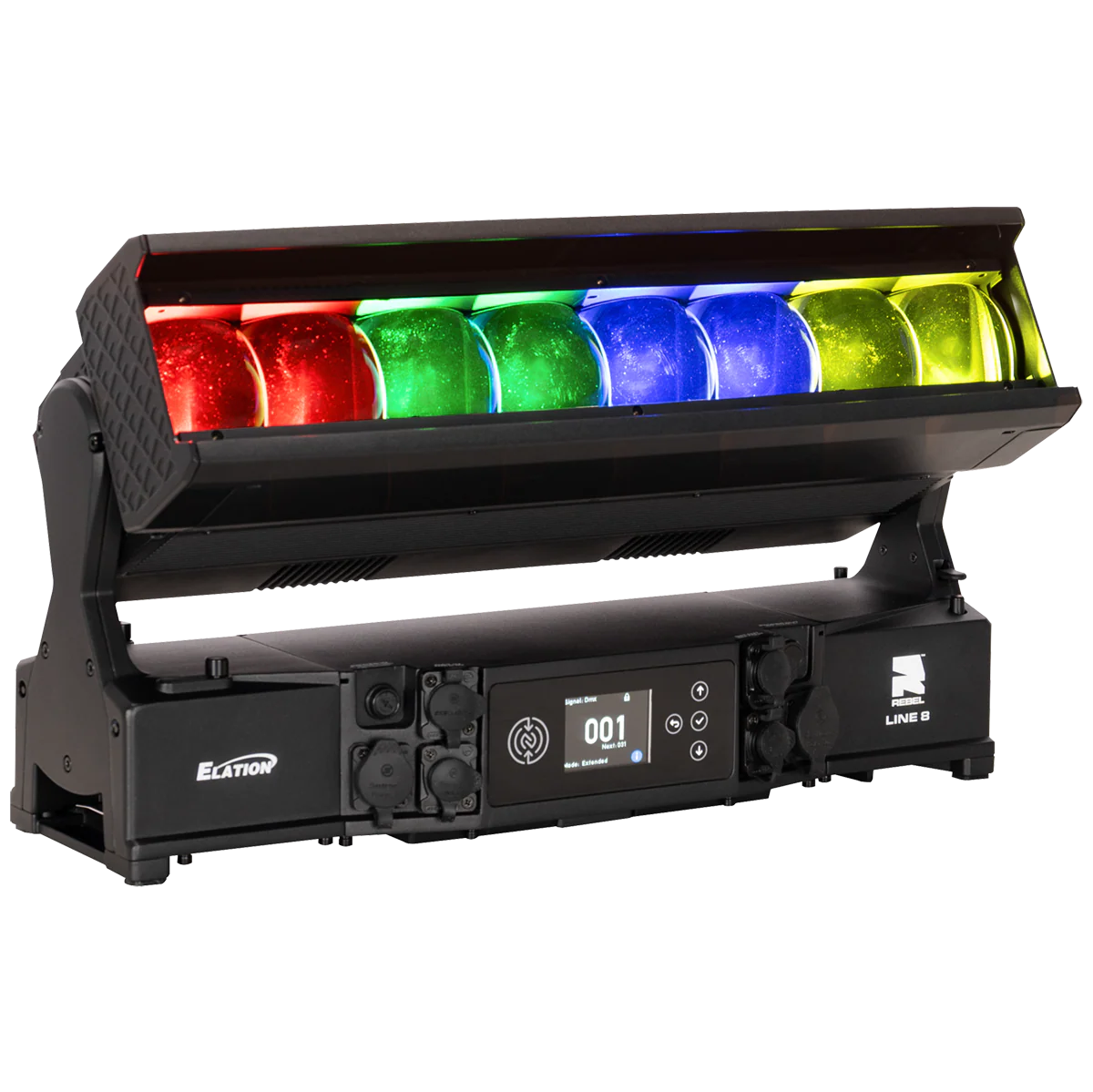

The Elation Professional REBEL LINE 8 is a compact 8-cell linear pixel fixture delivering high-intensity RGBL color mixing and SparkX beam effects for touring, stage, and live event productions.

From the Manufacturer

The REBEL LINE 8 defies expectations for linear lighting in a compact 8-cell format, delivering impressive output, precision, and color consistency in a versatile IP55 design. Its eight high-intensity 60W RGBL engines and sixteen CW SparkX pixels ignite the stage with 11,548 lumens of relentless, full-spectrum brilliance.

A seamless linear lens system and rapid 210° tilt movement create bold, continuous beams that transform effortlessly from razor-sharp aerials to a smooth, enveloping wash. The integrated Sparkle Beam FX adds refined texture, while the SparkX cool-white crossing beams cut through the scene with crisp, unmistakable definition.

A built-in mechanical alignment system allows the REBEL LINE 8 to connect together with other LINE fixtures, forming flawless beam lines and high-impact pixel effects that read as one continuous visual element across any stage. Paired with its rugged IP55 construction and compact, tour-ready form, the REBEL LINE 8 is built for environments demanding bold intensity, sweeping kinetic motion, and advanced pixel artistry for any stage.

Features

• (8) 60W RGBL LEDs with pixel control
• (16) 5W CW SparkX LEDs with pixel control
• 11,548 total fixture lumen output (integrating sphere)
• 4° - 35° motorized zoom beam angle
• Fast and precise 210° tilt rotation
• IP55 rated tilt FX fixture for indoor or outdoor use
• Full pixel LED control across RGBL and SparkX arrays
• SparkX LED beam effect for crisp, cool-white crossing beams
• Electronic dimmer and strobe with variable 16-bit dimming modes and curves
• Variable CCT from 2400K to 8500K with virtual gel swatch book
• Built-in mechanical alignment system for connecting multiple LINE fixtures into continuous beam lines
• Aria x2 wireless device management and NFC configuration
• DMX, RDM, Art-Net, and sACN protocol support
• Recommended use: Touring, concert lighting, live events, stage design, broadcast, themed environments

Specifications

Source

• (8) 60W RGBL LEDs
• (16) 5W CW SparkX LED pixels
• 30,000 hour average LED life*

*Test lab conditions. May vary depending on several factors including but not limited to: environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Photometric Data

• Total Lumen Output (Integrating Sphere): All LED: 11,548 lumens; RGBL LED: 7,128 lumens; CW LED: 4,752 lumens
• CRI: 82
• Zoom Range: 4° - 35°

Effects

• Motorized zoom
• Full pixel LED control
• SparkX LED beam effect
• Electronic dimmer and strobe
• Variable 16-bit dimming modes and curves
• Tilt Angle: 210°

Color

• RGBL LED array
• CW SparkX LED array
• Variable CCT: 2400K - 8500K
• Virtual gel swatch book

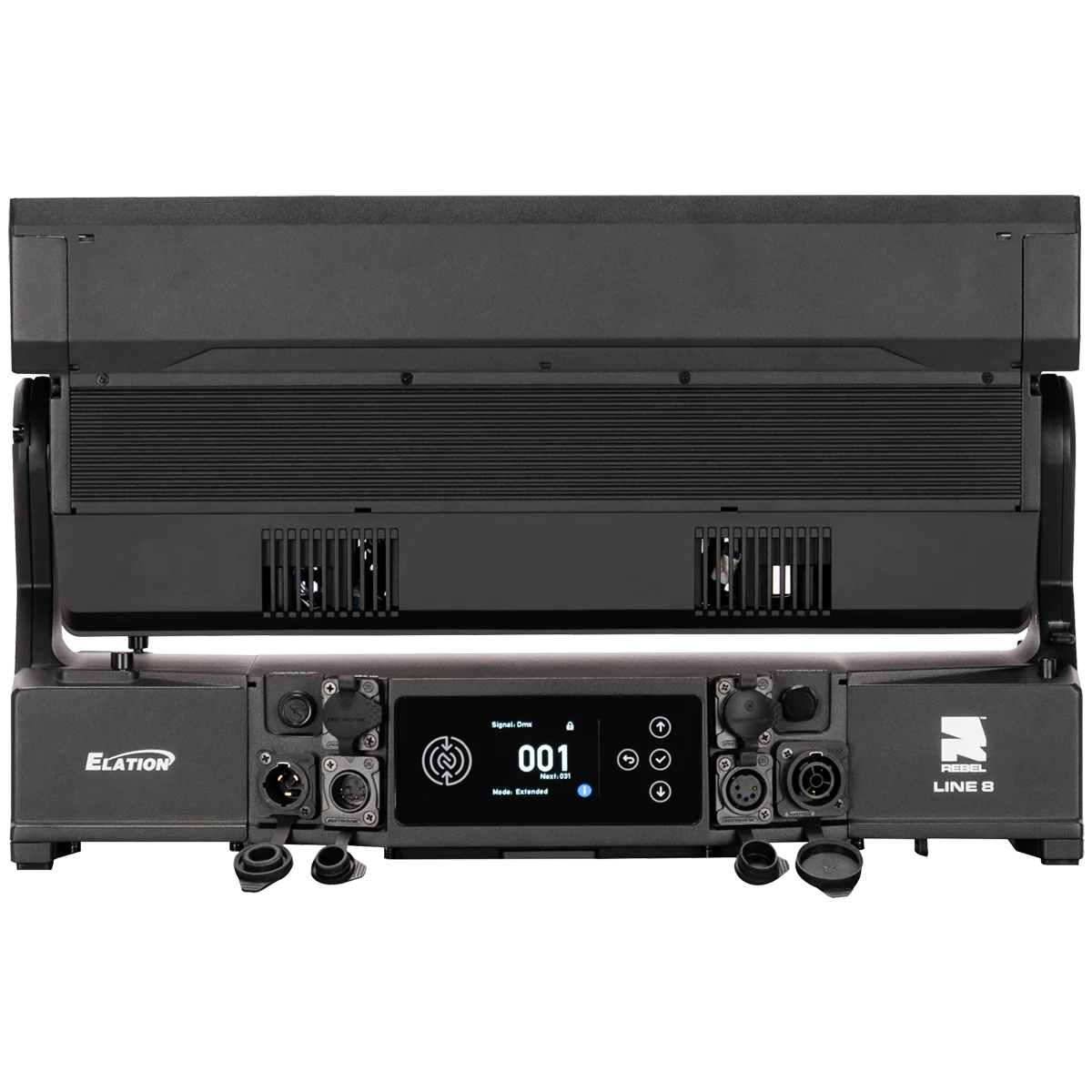

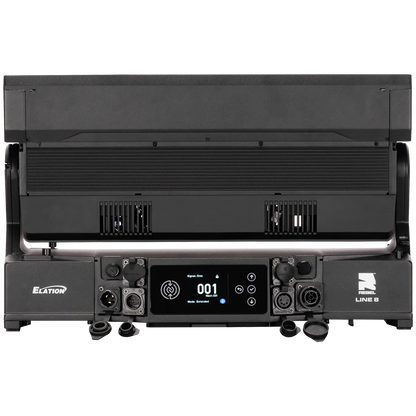

Control / Connections

• 3 DMX channel modes (22/30/70 channels)
• DMX Adjustable Refresh Rate: 900 - 25000 Hz
• 4 button control panel with LED display
• Aria x2 wireless device management
• NFC configuration
• DMX, RDM, Art-Net, sACN protocol support
• IP65 locking 5-pin XLR connector in/out
• IP65 locking RJ45 Ethernet connector in/out
• IP65 locking power cable in/out

Size / Weight

• Length: 19.8 in (502mm)
• Width: 6.5 in (164mm)
• Height (head up): 13.2 in (336mm)
• Height (head 90°): 10 in (254mm)
• Weight: 29.3 lb (13.3 kg)

Electrical / Thermal

• Power: AC 100-240V 50/60Hz
• Max Power Consumption: 810W
• Ambient Temperature Range: -4°F to 113°F (-20°C to 45°C)
• BTU/hr (+/- 10%): 2762.1

Approvals / Ratings

• CE | cETLus | IP55 | FCC | UKCA

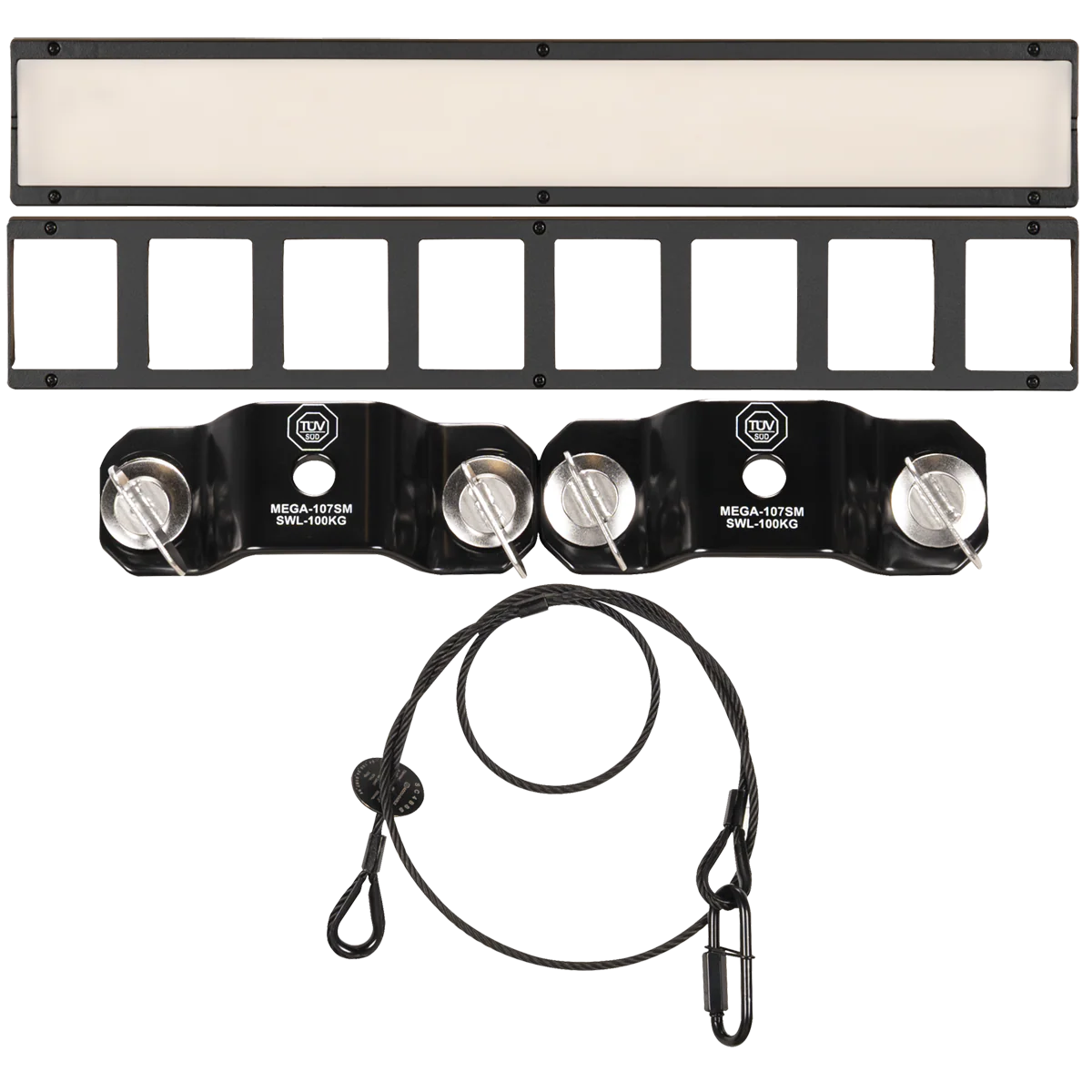

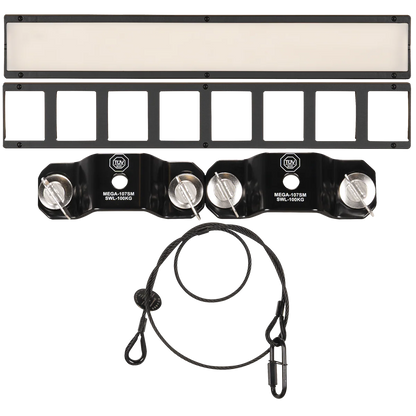

What's in the Box

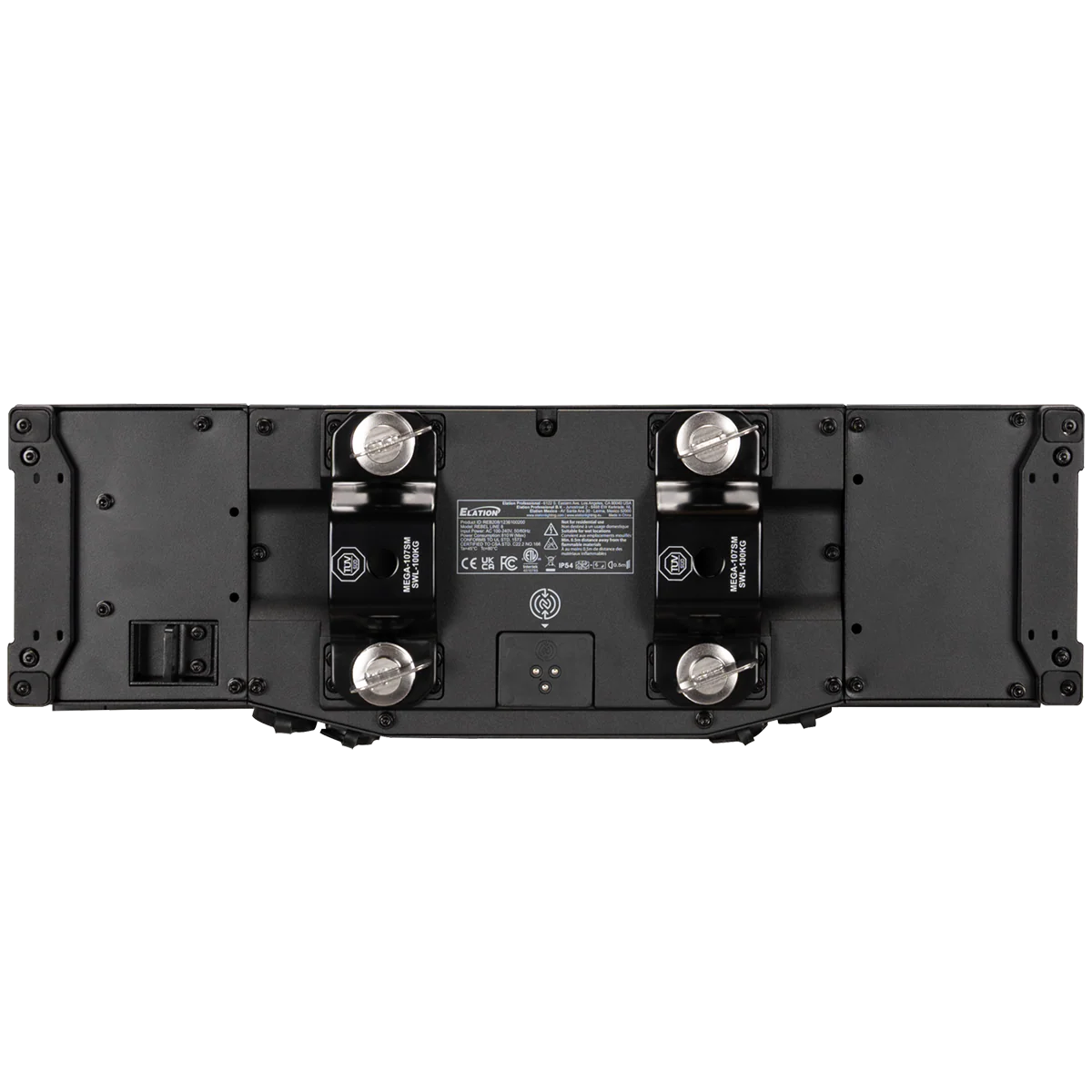

• Omega Brackets (x2)
• Blank Name Plate
• Front Louver/Grid
• Diffusion Filter
• Safety Cable, IP65 Rated
• IP65 Locking Power Cable
