REBEL Profile

The Elation Rebel Profile is a compact framing profile fixture, IP65-rated for indoor and temporary outdoor applications.

From the Manufacturer:

The REBEL Profile™ combines power and versatility in a compact IP65-rated design, perfect for indoor and outdoor applications. Its Peak Field 500W 6,500K LED engine produces a dazzling 22,000 lumens, delivering high-intensity beams, sharp projections, and dynamic mid-air effects.

A full-featured graphics suite includes 15 glass gobos, a complete animation wheel, dual prisms, dual frost, and a high-speed iris.

The indexable framing system ensures precise control with blackout shutter cuts, while a zoom range of 3.5° to 51° enhances its flexibility.

Features:

• IP65 for temporary outdoor applications
• Peak field 500W 6,500K White LED Engine
• Up to 22000 Total Lumens Fixture Output
• CMY Color Mixing and Variable CTO
• 7-Position Color Wheel with dual High CRI Filters
• Comprehensive Visual FX System featuring Rotating and Fixed Gobo Wheel, Animation, Iris, Dual Prism, Dual Frost
• Indexable Full Blackout Framing System
• Wide Zoom Range from 3.5° to 51°

Specifications:

• SOURCE
  • 500W 6,500K Bright White Peak Field LED Engine
  • 20,000 Hour Average LED Life*
    *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
• PHOTOMETRIC DATA
  • 22000 Total Lumen Fixture Output
  • CRI 70+ (80 or 90 with HCRI Filter)
  • 2:1Hotspot Ratio
  • Zoom Range 3.5° - 51°
  • Beam Angle
  • Field Angle
• EFFECTS
  • Motorized Zoom
  • 4 Rotating Full Blackout Framing Blades
  • +/-60° Framing Module Index
  • Full 360° Bi-Directional Animation Wheel
  • 4-Facet Round and 6 Facet Linear Rotating Prisms
  • 2 Variable Frost Filters (Light and Wash)
  • Motorized Iris with Variable Pulse Effects
  • Variable 16-bit Dimming Curves
  • High Speed Electronic Shutter and Strobe
  • DMX Controllable LED Refresh Rate
  • Pan Angle: 540°
  • Tilt Angle: 270°
  • Continuous 360° Pan Rotation
• COLOR
  • CMY Color Mixing
  • Linear CTO Color Correction (2400K)
  • 7 Dichroic Colors, including CRI 80, CRI 90 and UV
• GOBOS
  • 2 Gobo Wheels
  • 7 Rotating Glass Gobos
  • 8 Static Glass Gobos

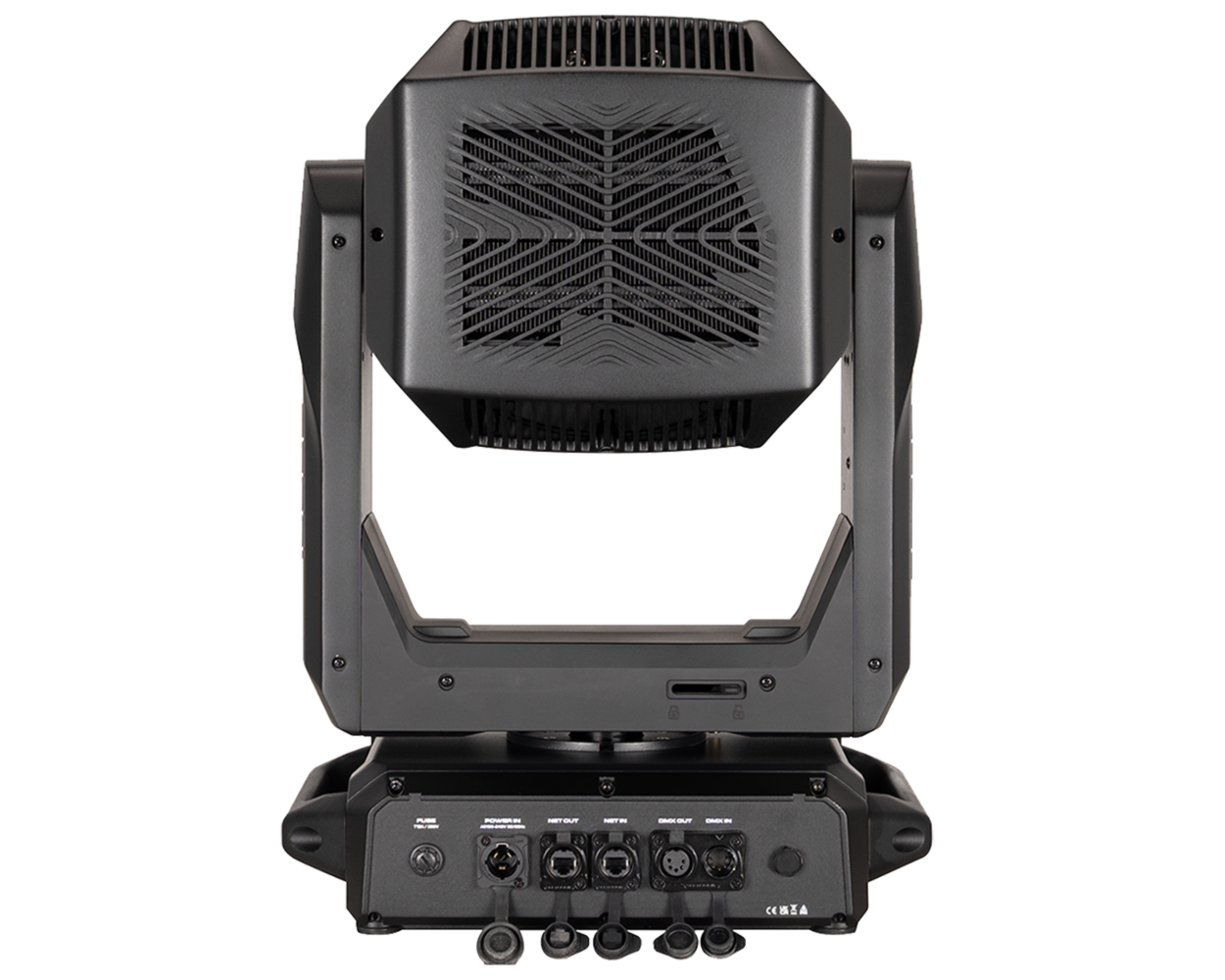

• CONTROL / CONNECTIONS
  • 2 DMX Channel Modes
  • DMX, RDM, Art-NET, sACN Protocol Support
  • (5) Button Touch Control Panel
  • Full Color 180° Reversible LCD Menu Display
  • Hibernation Mode (Power Save)
  • IP65 Locking 5pin XLR Connector In/Out
  • IP65 Locking RJ45 Ethernet Connector In/Out
  • IP65 Locking Power Connector In
• SIZE / WEIGHT
  • Length: 15.65 in (398mm)
  • Width: 11.06 in (281mm)
  • Height: 26.2 in (666mm)
  • Center-to-Center Spacing in (mm)
  • Weight: 66 lbs. (29.9 kg)
• ELECTRICAL
  • AC 100-240V 50/60Hz
  • Max Power Consumption 1026W
  • -4° to 113°F (-20°C to 45°C)
  • 3509 BTU/hr (+/- 10%)

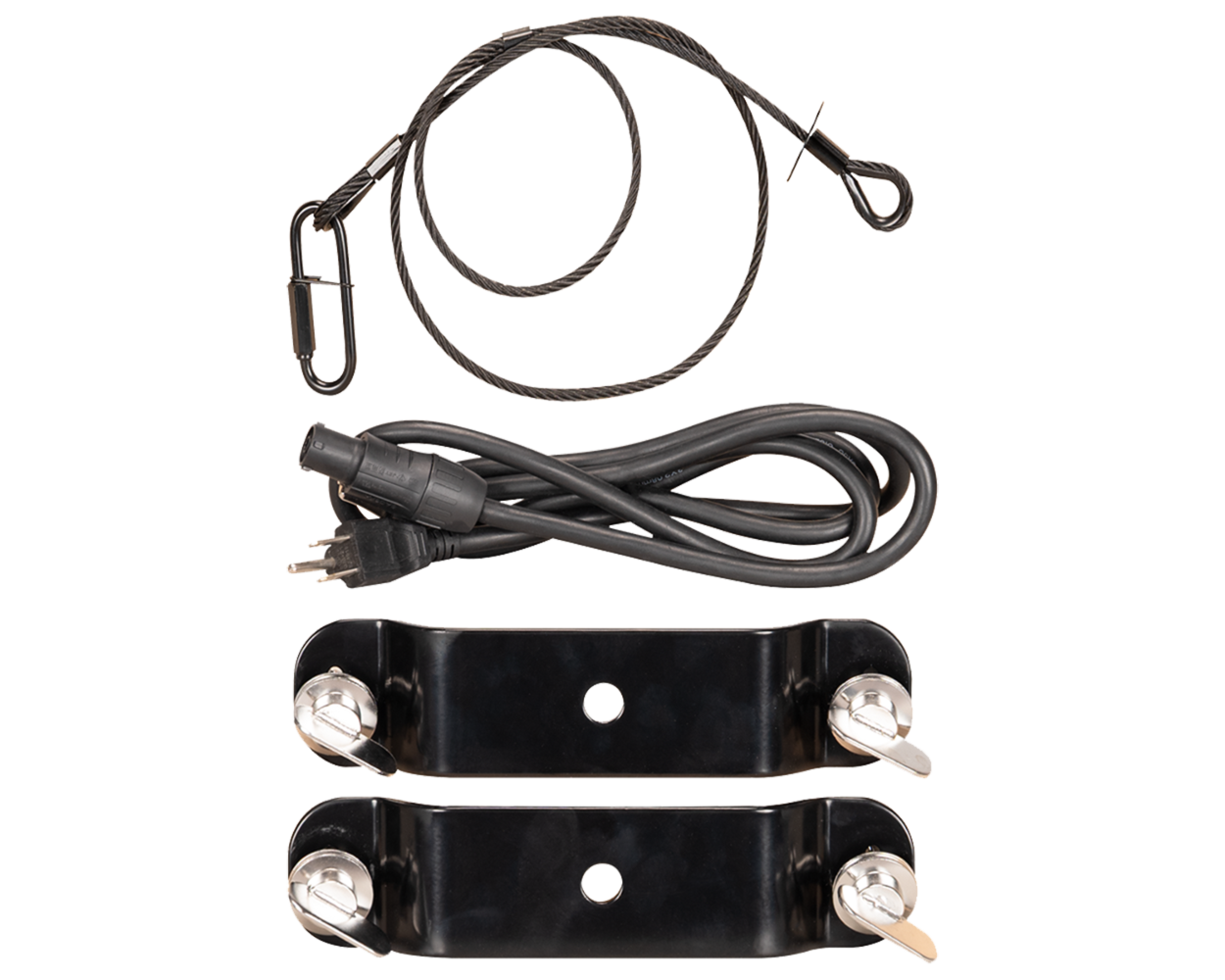

• INCLUDED ITEMS
  • Omega Brackets (x2)
  • Safety Cable
  • IP65 Rated Locking Power Cable
• APPROVALS / RATINGS: CE | cETLus | FCC | UKCA | IP65
