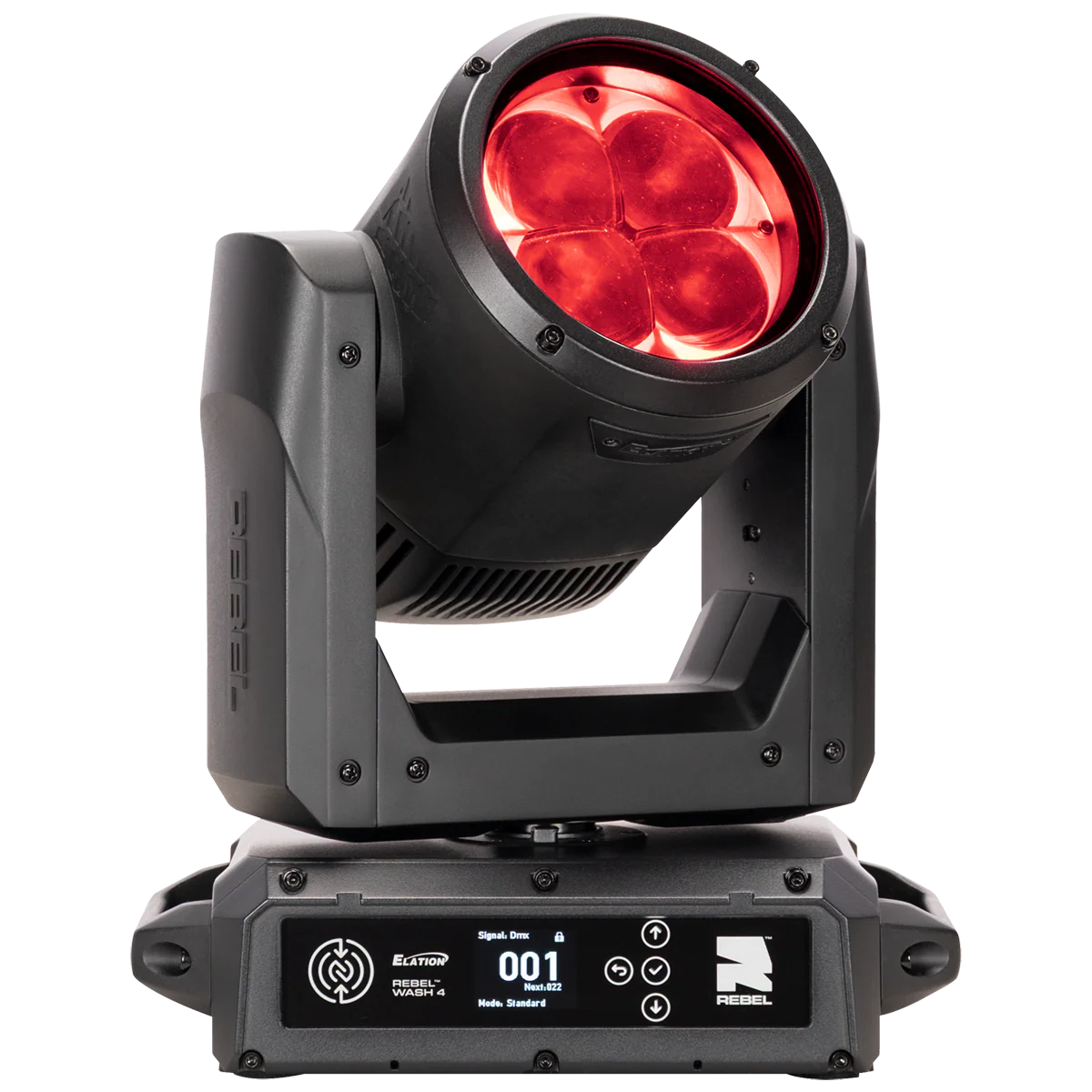

REBEL Wash 4

The REBEL WASH 4™ is a powerful IP65-rated LED wash fixture for a wide range of interior and exterior applications.

From the Manufacturer

The REBEL WASH 4™ is a powerful IP65-rated LED wash for many interior and exterior applications. Projecting up to 4000 lumens output from 4 60W RGBL emitters, the REBEL WASH 4™ is the ideal work horse luminaire providing high output with powerful beams or wide washes, with excellent color quality. From intense primary colors to excellent white color quality with high CRI and calibrated color temperatures, the fixture is the perfect choice for a wide variety of applications. Pixel control or simple uniform access provide additional levels of excitement and effects, and the 360° endless Pan and Tilt rotation allows the fixture to add another layer of creativity.

With a fast zoom range from 5° to 40° out of a compact fixture design, the REBEL WASH 4™ has the complete feature set for a wide variety of shows and events. Fully sealed from dust and water, it is a flexible fixture ready to perform in short-term outdoor applications or any indoor environment.

Features

• IP65 rated for temporary outdoor applications
• (4) 60W RGBL LED array
• Up to 4000 total lumens fixture output
• Pixel control
• Calibrated color temperature control
• Wide zoom range from 5° to 40°
• Recommended use: Concert touring, live events, corporate exhibitions, hospitality, house of worship, theatre, themed environments, cruise ships, broadcast, temporary outdoor installations

Specifications

Source

• LED Array: (4) 60W RGBL LED
• Average LED Life: 30,000 hours*

*Test lab conditions. May vary depending on several factors including but not limited to environmental conditions, power/voltage, usage patterns (on-off cycling), control, and dimming.

Photometric Data

• Total Lumen Fixture Output: 4000 lumens
• CRI: 83.4
• TLCI: 67
• Zoom Range: 5° – 40°
• Beam Angle: 5° – 40°
• Field Angle: 8.5° – 56.5°

Effects

• Zoom: Motorized
• Pixel Control: Yes
• Dimming Curves: Variable 16-bit
• Shutter/Strobe: High speed electronic shutter and strobe
• LED Refresh Rate: DMX controllable
• Pan Angle: 360°/540°
• Tilt Angle: 360°/270°
• Pan/Tilt Rotation: Continuous 360°

Color

• Color Array: RGBL
• Variable CCT: 2400K – 8500K
• Virtual Gel Swatch Book: Yes

Control / Connections

• DMX Channel Modes: 3
• Protocol Support: DMX, RDM, Art-Net, sACN
• Control Panel: (4) button touch control panel

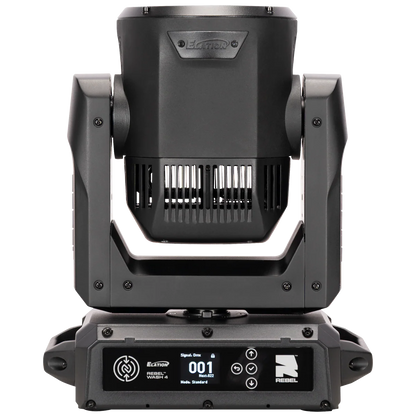

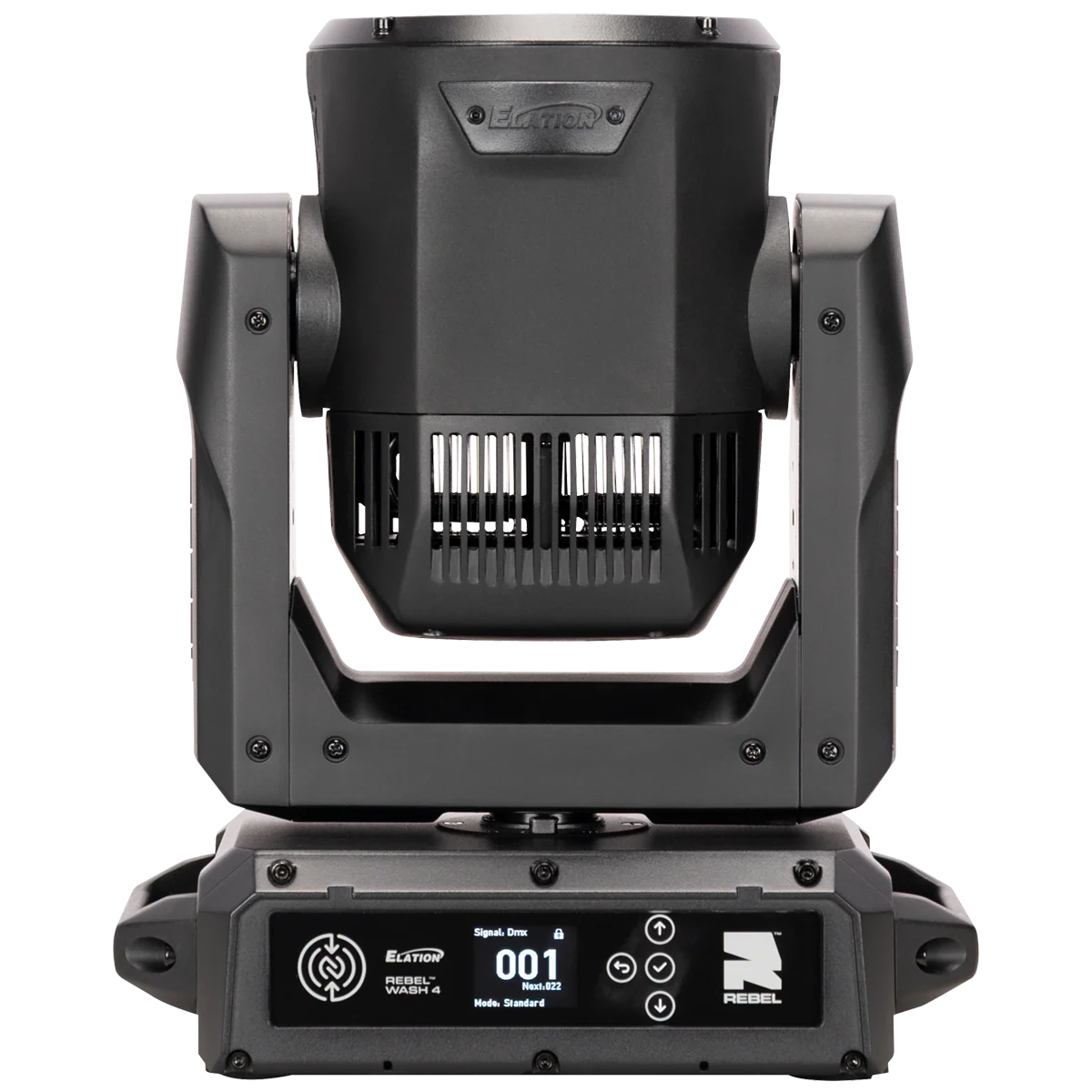

• Display: Full color 180° reversible LCD menu display
• Power Save: Hibernation mode
• Wireless Device Management: Aria x2
• NFC Configuration: Yes

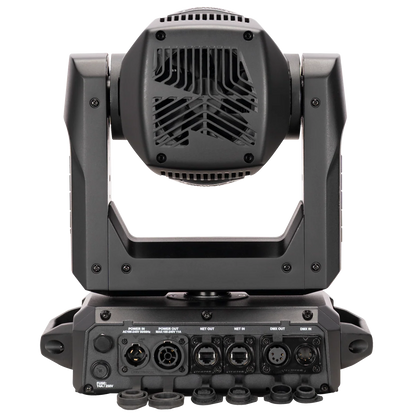

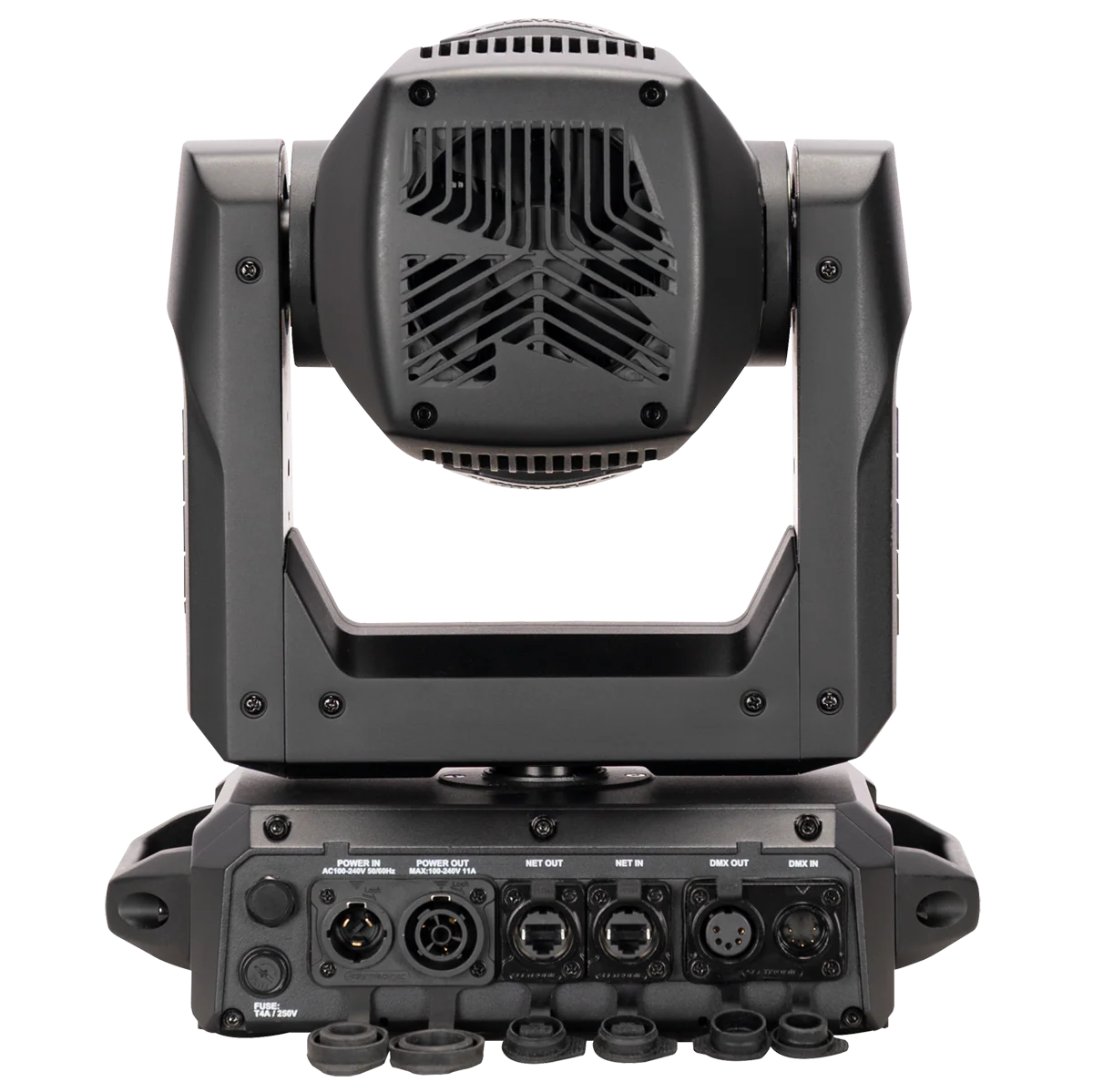

• Connectors: IP65 locking 5-pin XLR in/out, IP65 locking RJ45 Ethernet in/out, IP65 locking power connector in/thru

Size / Weight

• Length: 11.7 in (298 mm)
• Width: 8.1 in (205 mm)
• Height: 14.2 in (360 mm)
• Weight: 19 lbs. (8.6 kg)

Electrical

• Power Supply: AC 100–240V, 50/60Hz
• Max Power Consumption: 340W
• Power Thru Capacity: 8A (2 units @115V, 5 units @240V)
• Operating Temperature: -4° to 113°F (-20°C to 45°C)
• BTU/hr: 1159.4 (±10%)

Approvals / Ratings

• CE | cETLus | FCC | UKCA | IP65

What's in the Box

• REBEL WASH 4
• Omega Brackets (x2)
• Safety Cable
• IP65 Rated Locking Power Cable
