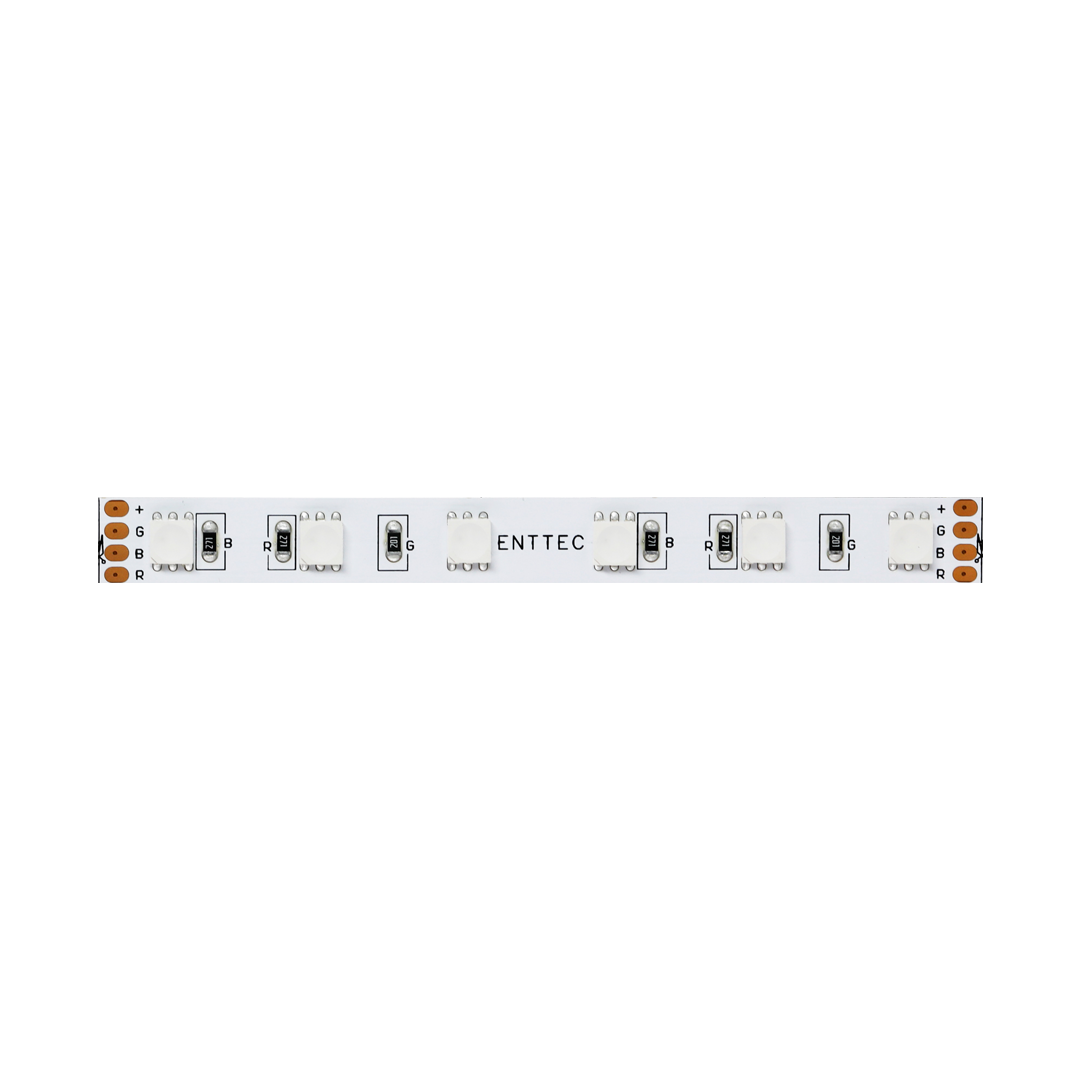

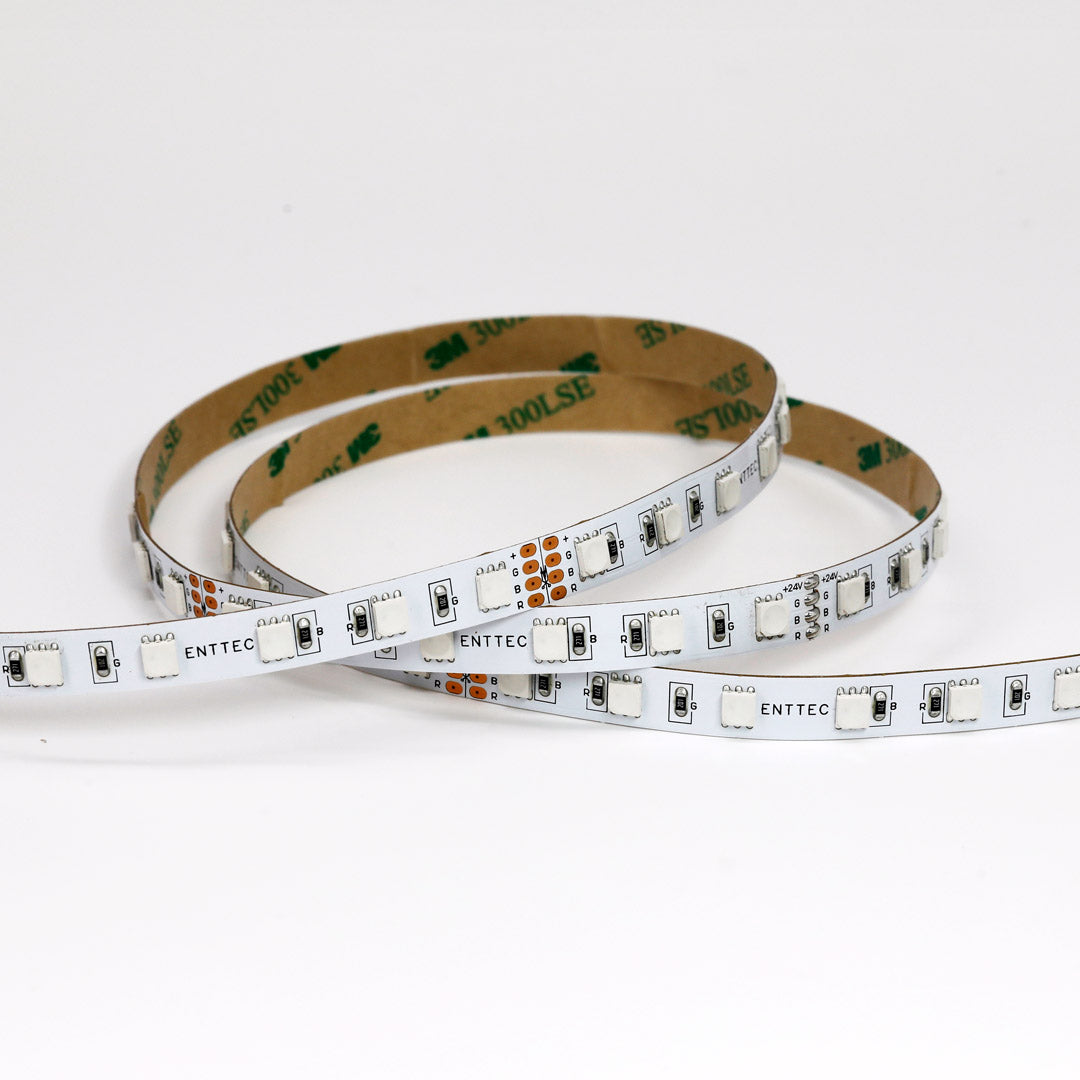

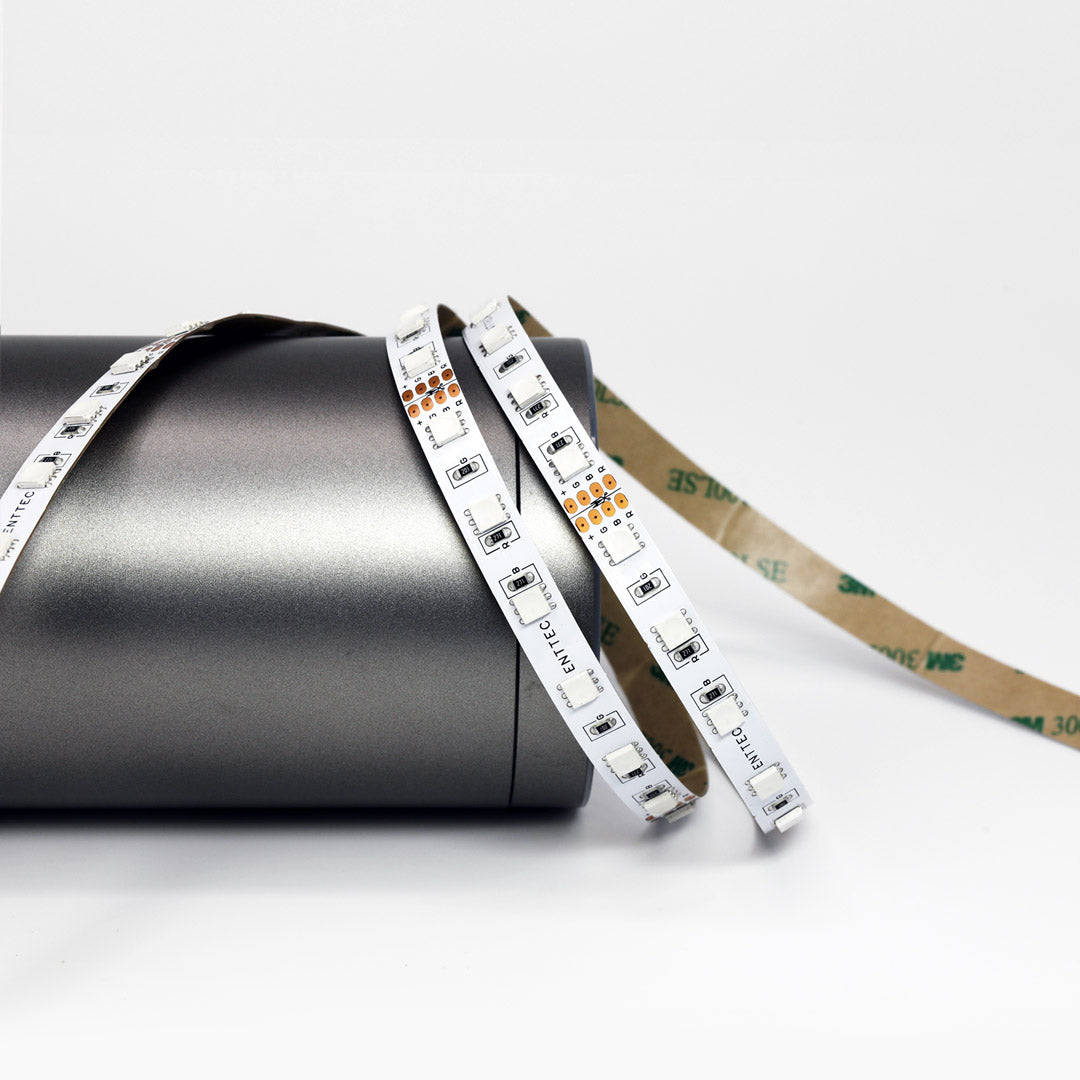

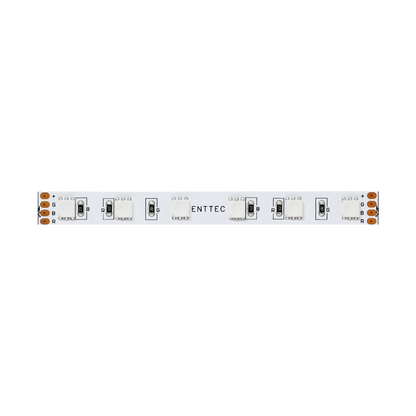

RGB CV Tape 24V 10M

The ENTTEC RGB Constant Voltage LED Strip (NA4) is a high-performance, non-addressable 24V RGB LED strip for professional architectural, entertainment, retail, and decorative installations.

From the Manufacturer

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. The NA4 RGB CV strip delivers rich, vibrant colors with exceptional saturation and smooth blending, featuring 60 white-body SMD5050 LEDs per meter built on a robust 4oz copper substrate for superior durability and performance. White-body LEDs provide more consistent blended output and reduced color fringing, resulting in cleaner color transitions and more refined visual output — especially beneficial for retail alcoves, hospitality lighting, entertainment installations, and feature accents.

Unlike standard 1oz–2oz LED strips, the NA4's heavy-duty 4oz copper FPC provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation, improved LED longevity, and greater mechanical strength and bending reliability. With improved electrical efficiency, the NA4 offers run lengths of up to 10m with dual injection and 8m with single injection, simplifying installation layouts and reducing the number of drivers and injection points required. The strip can be cut every 100mm (6 LEDs) and features easy solder-tab connections and 3M adhesive backing for flexible installation.

Features

• Rich, vibrant RGB color with exceptional saturation and smooth channel blending
• White-body SMD5050 LEDs for more consistent blended output and reduced color fringing
• 4oz copper FPC substrate — higher current capacity, reduced voltage drop, better thermal regulation, and greater mechanical durability vs. standard 1oz–2oz strips
• Up to 10m run length with dual injection; up to 8m with single injection
• Cuttable every 100mm (6 LEDs per cutting unit) for flexible installation layouts
• Easy solder-tab connections with 3M adhesive backing
• White PCB finish
• Compatible with ENTTEC CVC4 constant-voltage dimmer for smooth, flicker-free dimming and precise brightness control
• LED lifetime L70: >36,000 hours
• UL Listed; also compliant with FCC, UKCA, CE/WEEE, and RCM standards
• Recommended use: Entertainment installations, stages, themed attractions, retail, decorative color washes

Specifications

Light Source

• LED Type: SMD5050
• LED Color: RGB
• LED/Meter: 60 LEDs/m
• Beam Angle: 120°
• Lumens/Meter: 611 lm/m
• LED Lifetime L70: >36,000 hours

Electrical

• Input Voltage: 24V
• Power/Meter: 14.4W/m
• Efficacy: 42.43 lm/W
• Dimming Method: LED dimmable by ENTTEC CVC4 (73926)
• Connectors: 4-pin solder tabs

Physical

• PCB Color: White
• PCB Width: 10mm / 0.39"
• Spacing Between Cuttable Sections: 100mm / 3.94"
• LEDs per Cutting Unit: 6 LEDs
• Min. Bend Radius: 30mm / 1.2"
• IP Rating: IP20
• Working Temperature: -30°C to 55°C
• Storage Temperature: 0°C to 60°C
• Operating Humidity: 5–95% (non-condensing)

Shipping

• Shipping Weight (10m roll): 0.25 kg / 0.55 lbs
• Shipping Dimensions (single roll): 250 x 255 x 30mm / 9.84 x 10.04 x 1.18"

Compliance & Warranty

• Compliance: UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 1-year return to base manufacturer warranty
