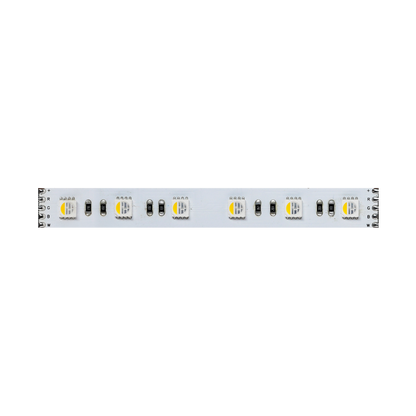

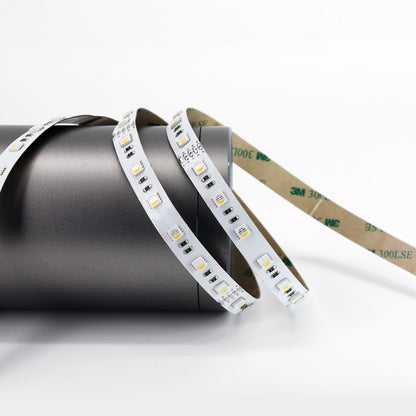

RGBW 4000K CV Tape 24V 10M

The ENTTEC RGBW Constant Voltage LED Strip (NA3) is a high-density, non-addressable 24V RGBW LED strip for professional architectural, entertainment, retail, and hospitality installations requiring both vibrant color and high-quality white light.

From the Manufacturer

ENTTEC designs and manufactures a complete range of high-quality LED strips to suit any desired mood or effect. The NA3 RGBW CV strip delivers rich, vibrant colors and crisp, high-quality 4000K white light with 60 white-body SMD5050 4-in-1 LEDs per meter, built on a robust 4oz copper substrate for superior durability and performance. The dedicated white channel offers natural color rendering with CRI > 90, R9 > 50, and SDCM < 3 — specification-grade color quality ideal for hospitality, retail, galleries, and high-end commercial projects requiring consistent, flattering illumination.

Unlike standard 1oz–2oz LED strips, the NA3's heavy-duty 4oz copper FPC provides higher current-carrying capacity, reduced voltage drop over long distances, better thermal regulation, improved LED longevity, and greater mechanical strength and bending reliability. With improved electrical efficiency, the NA3 offers run lengths of up to 10m with dual injection and 8m with single injection, simplifying installation layouts and reducing the number of drivers and injection points required. The strip can be cut every 100mm (6 LEDs) and features easy solder-tab connections and 3M adhesive backing for flexible installation.

Features

• RGBW color mixing with 4000K white channel — shift effortlessly between dynamic color and functional white illumination
• White-body SMD5050 4-in-1 LEDs for more consistent blended output and reduced color fringing
• Exceptional color accuracy: CRI > 90, R9 > 50, SDCM < 3
• 4oz copper FPC substrate — higher current capacity, reduced voltage drop, better thermal regulation, and greater mechanical durability vs. standard 1oz–2oz strips
• Up to 10m run length with dual injection; up to 8m with single injection
• Cuttable every 100mm (6 LEDs per cutting unit) for flexible installation layouts
• Easy solder-tab connections with 3M adhesive backing
• White PCB finish
• Compatible with ENTTEC CVC4 constant-voltage dimmer for smooth, flicker-free dimming and precise brightness control
• LED lifetime L70: >36,000 hours
• UL Listed; also compliant with FCC, UKCA, CE/WEEE, and RCM standards
• Recommended use: Venues, bars, retail accents, architectural color effects, hospitality lighting, entertainment installations

Specifications

Light Source

• LED Type: SMD5050 (4-in-1)
• LED Color (CCT): RGBW (4000K)
• LED/Meter: 60 LEDs/m
• Beam Angle: 120°
• Lumens/Meter: 1,111 lm/m
• CRI: > 90
• R9: > 50
• SDCM: < 3
• LED Lifetime L70: >36,000 hours

Electrical

• Input Voltage: 24V
• Power/Meter: 18W/m
• Efficacy: 61.72 lm/W
• Dimming Method: LED dimmable by ENTTEC CVC4 (73926)
• Connectors: 5-pin solder tabs

Physical

• PCB Color: White
• PCB Width: 12mm / 0.47"
• Spacing Between Cuttable Sections: 100mm / 3.94"
• LEDs per Cutting Unit: 6 LEDs
• Min. Bend Radius: 30mm / 1.18"
• IP Rating: IP20
• Working Temperature: -30°C to 55°C
• Storage Temperature: 0°C to 60°C
• Operating Humidity: 5–95% (non-condensing)

Shipping

• Shipping Weight (10m roll): 0.25 kg / 0.55 lbs
• Shipping Dimensions (single roll): 250 x 255 x 30mm / 9.84 x 10.04 x 1.18"

Compliance & Warranty

• Compliance: UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA)
• Warranty: 1-year return to base manufacturer warranty
