Sku:
RGB406
RGBW4C IR
- Regular price
- $79.99
- Regular price
-
- Sale price
- $79.99
- Unit price
- per
Shipping calculated at checkout.
Vendor: ADJ
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

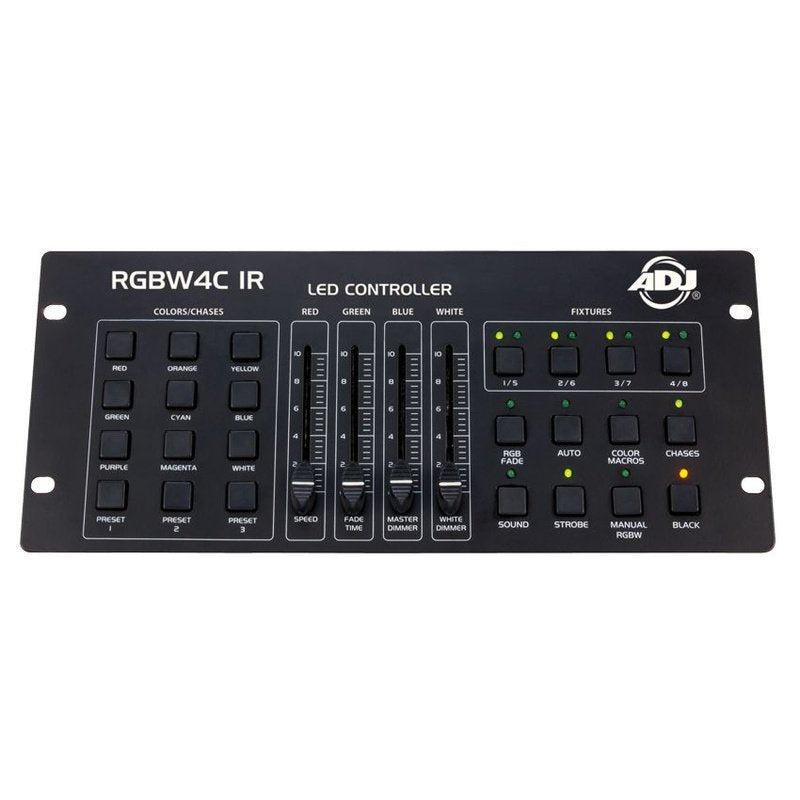

The RGBW4C IR is a 32-channel RGB, RGBW or RGBA LED controller. It was designed to control any standard 3 or 4 channel group of LED fixtures where channel 1 is Red, channel 2 is Green, channel 3 is Blue and channel 4 is White or Amber.
Up to 8 LED fixtures or fixture groups can independently be controlled via four fixture buttons. All LED fixtures or fixture groups must be set to run in DMX mode and be addressed four channels apart for independent control.
In the Box:
- (1) RGBW4C IR
- (1) DC Power Supply (12v 500mA)
Features:
- Compact DMX512 controller for RGB, RGBW and RGBA LED fixtures
- Control up to 8 individual fixtures or fixture groups
- 3 user programmable color preset, direct access buttons
- 9 Color preset/Chase program direct access buttons
- Color Macro playback mode
- Manual RGBW intensity control mode
- RGB and Auto modes
- On the fly Speed & Fade control of all chase programs
- Sound active mode via internal microphone
- Variable strobe
- Blackout button
- ADJ LED RC2 Compatible (Sold Separately)
Tech Specs
Control

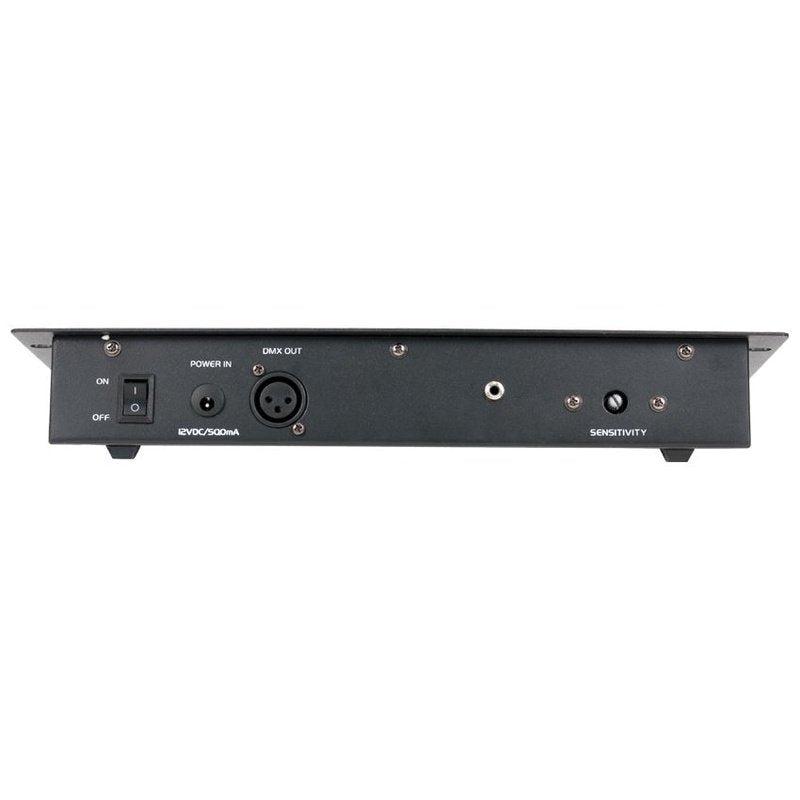

DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: No
Physical:
Length: 12.9 in
Width: 5.5 in
Height: 1.9 in
Weight: 2.4 lb
Electrical
Voltage Range: 12 VDC
Maximum Wattage: 3.6w
Power Cable Connector - Fixture Side: DC Plug
Main Power Connector on Included Cable: DC Power Adapter
