Description

Caret Down

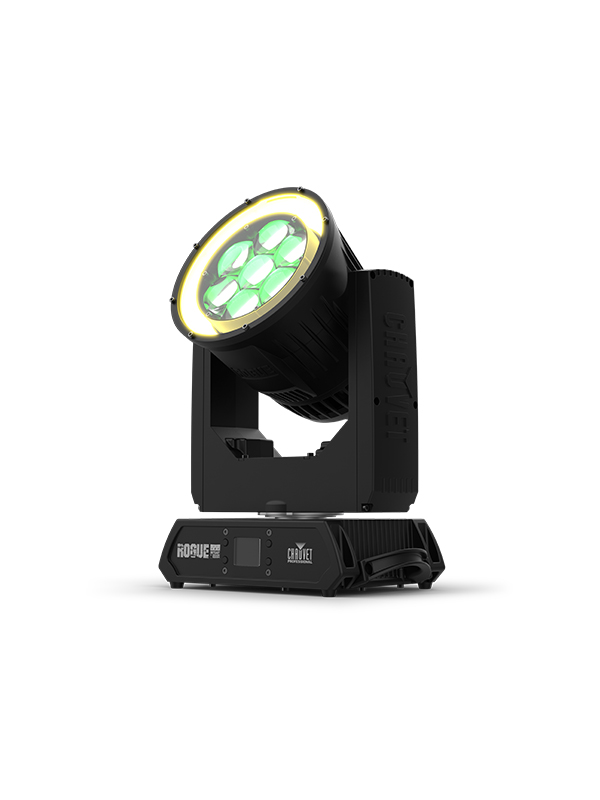

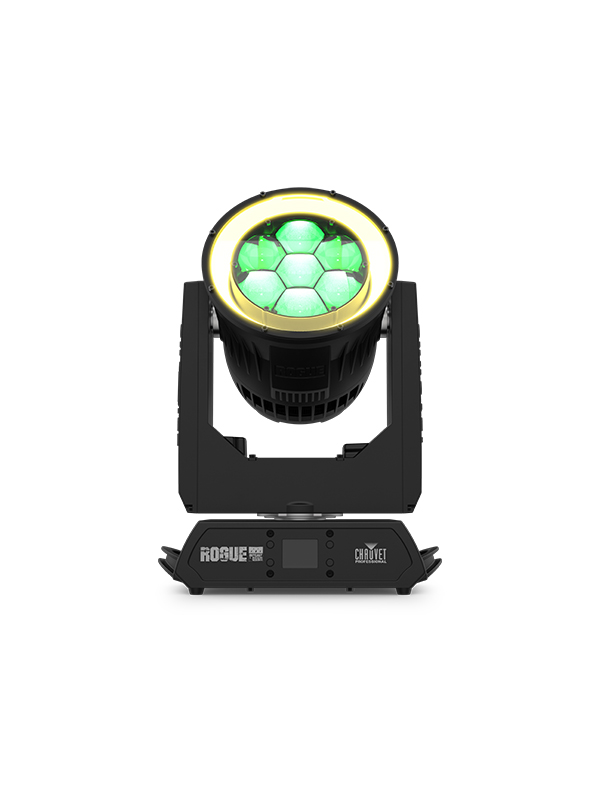

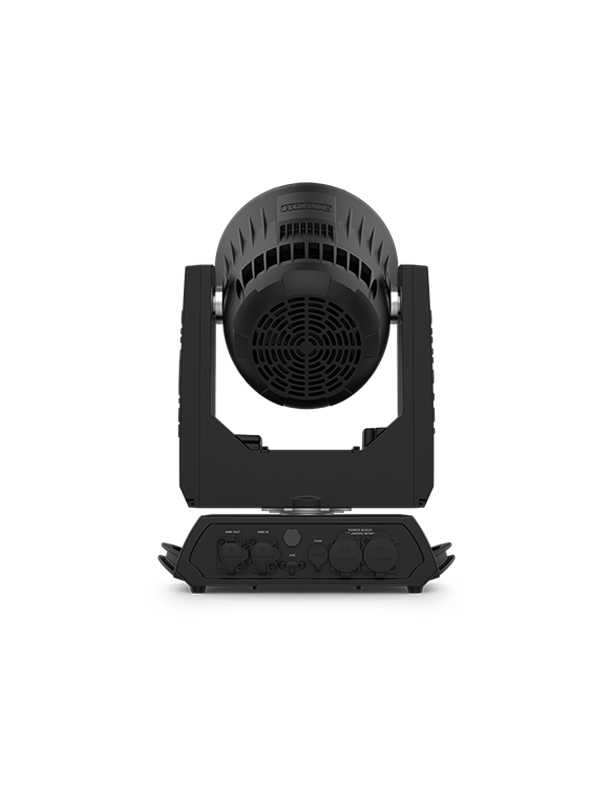

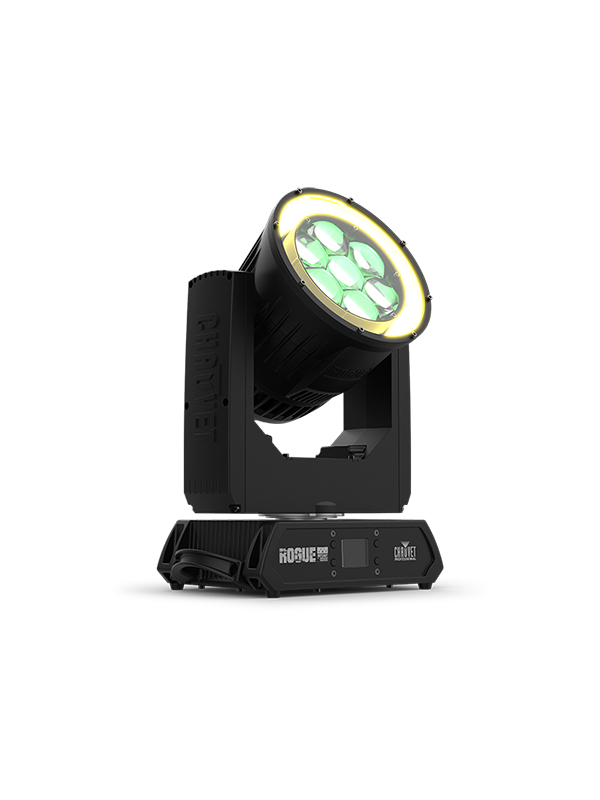

Chauvet Professional's Rogue Outcast 1 BeamWash is an IP65-rated LED beam and wash fixture with a pixel-mappable LED ring surrounding its face. This lightweight fixture has seven 45W RGBW LEDs, a 3.9° to 55.3° zoom range, color mixing, 16-bit dimming, and numerous dimming modes for complex control. Furthermore, beneath its smoked stealth filter, the Rogue Outcast 1 BeamWash's outer ring houses 12 pixel-mappable RGB LED zones. Use the prebuilt programs with ease or control the DMX and RDM protocols as you see appropriate.

From the Manufacturer:

Rogue Outcast 1 BeamWash is a lightweight, IP65 rated, LED Beam & Wash fixture enhanced with a pixel-mappable LED ring around it’s face. A unique lens design developed for tight beam effects allows for a wide zoom range of 3.9° to 55.3° for maximum coverage. Seven 45W RGBW LED’s combine excellent color mixing with a punchy output featuring 16-bit dimming and several dimming modes for advanced control.
The outer ring comprises of 12 pixel-mappable RGB LED zones underneath a smoked stealth filter. Easily create eye-catching effects with prebuilt programs for the ring with the ability to control dimming, rate, foreground and background colors. This compact fixture weighs only 20lbs and features a rugged IP65 casing that is proven to withstand all of the harshest elements. Control as you see fit with multiple profiles with simple and advanced control modes compatible with DMX & RDM protocols. Update software easily with an onboard USB-C port.

At a glance

  • Fully featured RGBW LED IP 65 rated yoke wash fixture with zoom and RGB LED ring

  • 16-bit dimming of master dimmer as well as individual colors for smooth control of fades

  • 7 RGBW LEDs, 45 W each

  • 12 zone pixel-mappable RGB LED outer ring under a stealth filter for added effect possibilities

  • Prebuilt programs for outer LED ring with the ability to easily control dimming, rate, foreground and background colors

  • 5-pin DMX input/output connections

  • Unique lens design for excellent color blending and tight beam effects

  • Extremely fast, smooth pan and tilt movement

  • RDM enabled for remote addressing and trouble shooting

  • Selectable PWM settings for camera operation

  • Zoom Range: 3.9° to 55.3° for maximum coverage

  • User selectable calibrated white for 7500 K at full output

  • 6 distinct dimming modes for advanced control

  • Easy to read OLED display with simple, effective menu options

  • Simple and complex DMX channel profiles for programming versatility

  • USB-C port for uploading software

In the Box:

  • (1) Rogue Outcast 1 BeamWash
  • (1) Seetronic Powerkon IP65 power cord
  • (2) Omega brackets with mounting hardware

     Features:

    • Light Source:  45W RGBW LEDs
    • Color Temperature:  7500 K
    • Beam Angle:  5.9° to 49.8°
    • Strobe: 0 to 20 Hz
    • Color: RGBW
    • Control Protocol:  DMX, RDM
    • Operating Modes:  6 personalities (15, 24, 30, 64, 111, 135)
    • IP Grade:  IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve

    Tech Specs

    Optics:

    Light Source Type: LED

    Light Source Wattage: 45 Ww

    Minimum Beam Angle: 5.9°

    Maximum Beam Angle: 49.8°

    Control

    DMX Channel Modes: 6 personalities (15, 24, 30, 64, 111, 135)

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 11.92 in

    Width: 7.58 in

    Height: 15.75 in

    Weight: 20.2 oz

    Electrical

    Voltage Range: 100 to 240 VAC

    Power Cable Connector - Fixture Side: Seetronic Powerkon IP65

    Main Power Connector on Included Cable: Edison plug to Seetronic Powerkon IP65
