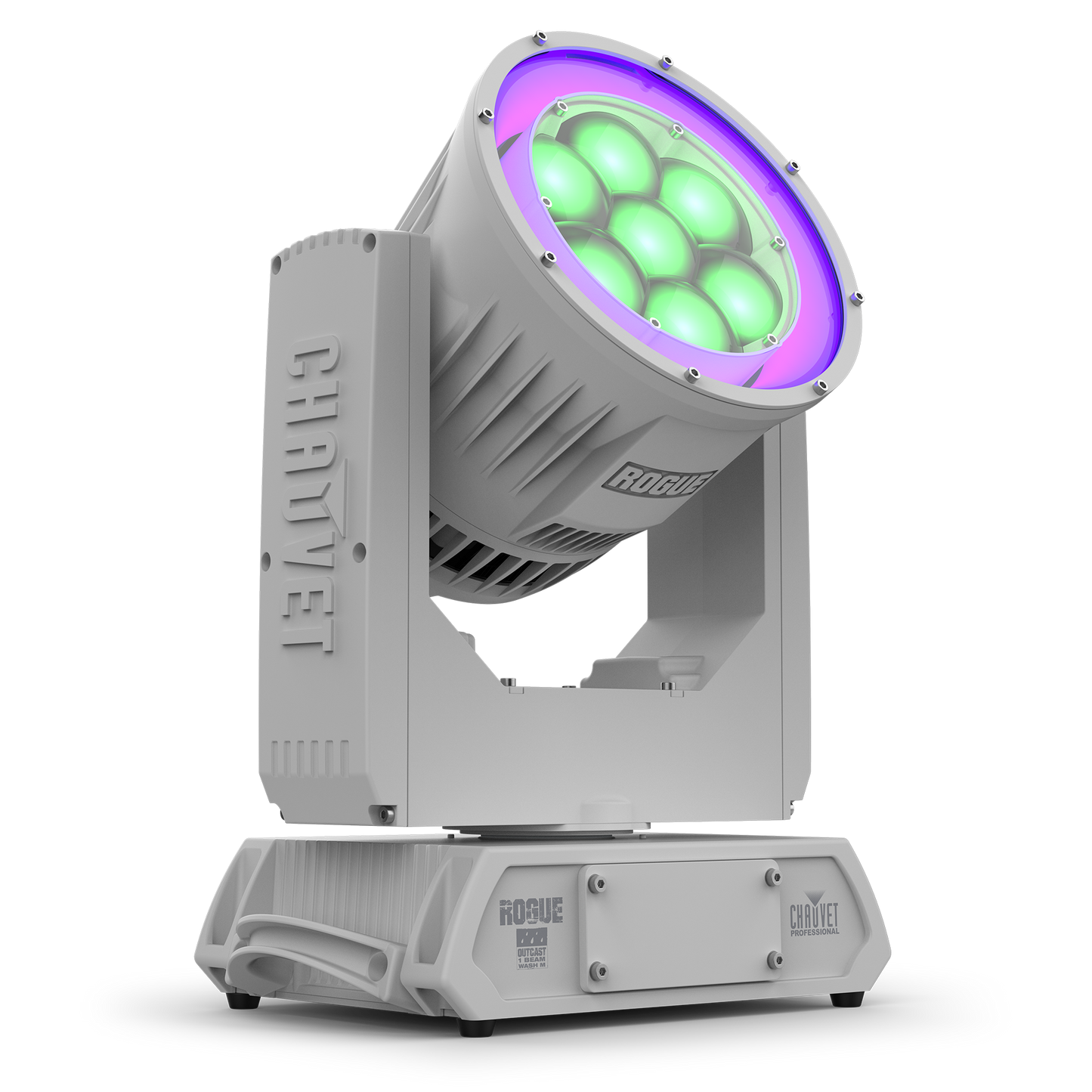

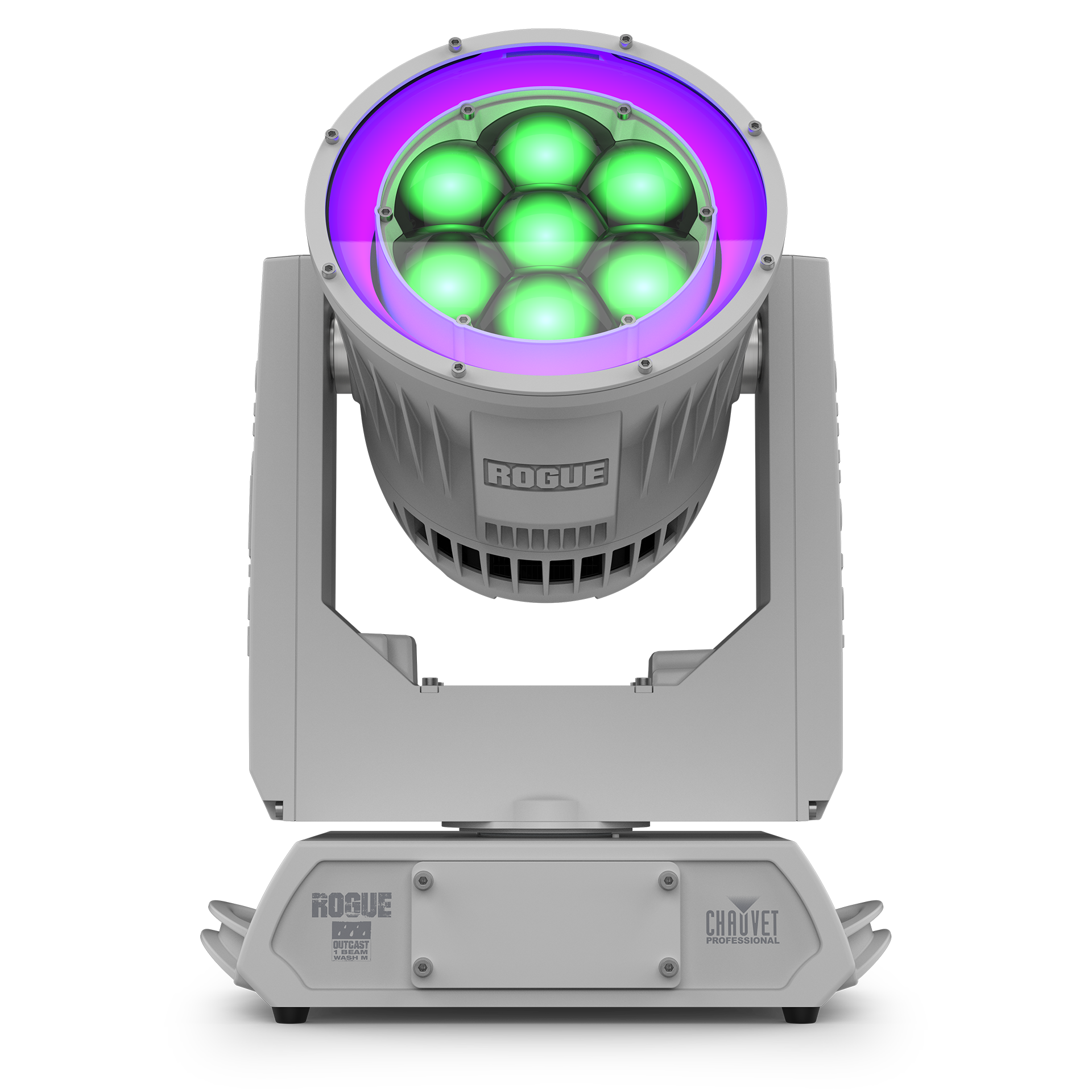

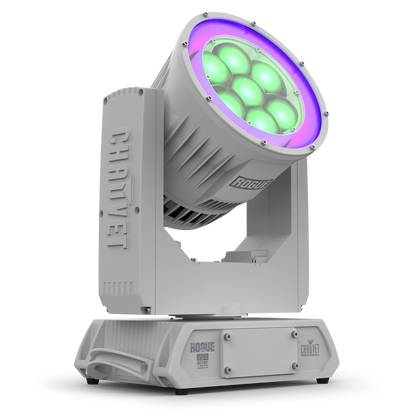

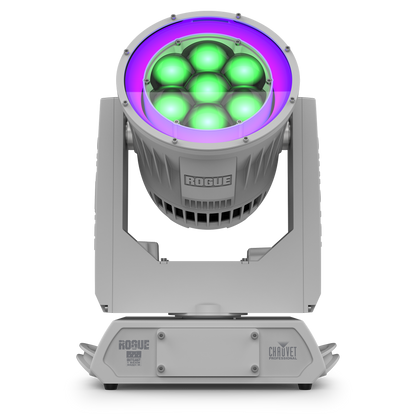

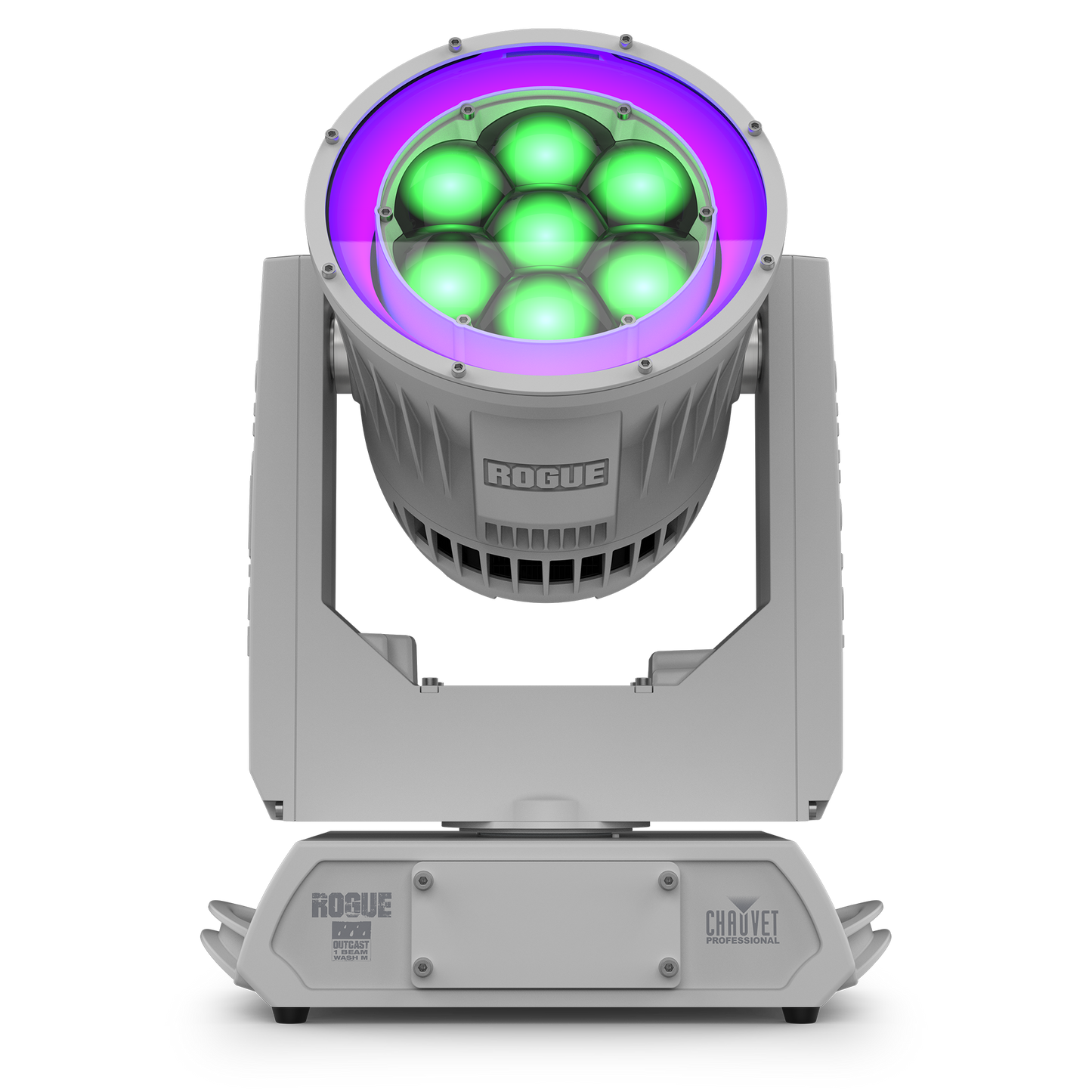

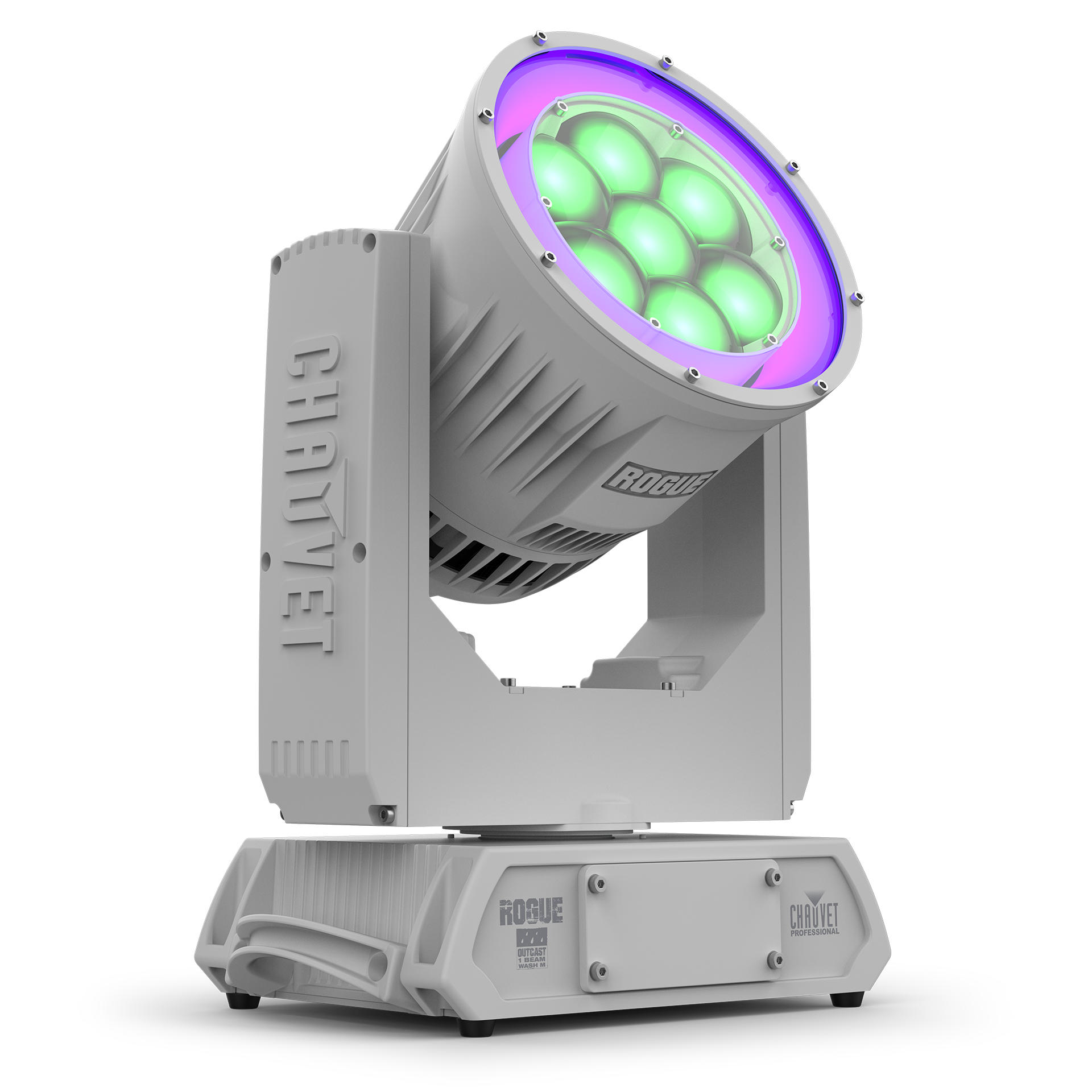

Rogue Outcast 1 BeamWash M

The CHAUVET Professional Rogue Outcast 1 BeamWash M is a rugged, IP66-rated beam and wash moving head with a C5M marine-grade finish, delivering versatile effects through seven powerful RGBW LEDs and a 12-zone pixel-mappable outer ring designed for the most demanding environments.

From the Manufacturer

Rogue Outcast 1 BeamWash M brings layers of external corrosion resistance with its full aluminum construction, C5M marine-grade finish, and rugged IP66 build engineered with the enhanced protections needed to perform extended duty in and near marine environments. Seven 45W high-powered RGBW LEDs and a unique lens design deliver smoothly blended color washes and tight beam effects, while a 12-zone pixel-mappable outer ring provides limitless creative possibilities. Create dynamic looks while withstanding the most demanding environments — whether on tour, cruise ships, or lighting theme park and architectural exteriors.

Features

• 7 quad-color RGBW LEDs (45W each) plus 97-LED tri-color RGB outer ring for bold washes and beam effects
• 12-zone pixel-mappable RGB outer ring with prebuilt effect programs under a stealth filter
• IP66-rated housing with C5M marine-grade paint, full aluminum construction, and stainless steel hardware
• Included display cover enhances durability for extended outdoor and marine use
• Wide 3.9° to 55.3° zoom range for tight beams or broad wash coverage
• 540° pan / 260° tilt with selectable range limits
• 16-bit dimming of master and individual color channels for smooth fades
• 6 dimming modes and 4 dim curves
• Selectable calibrated white at 7500 K
• Selectable PWM (600 Hz to 15,000 Hz) for flicker-free on-camera performance
• 6 DMX personalities (15, 24, 30, 64, 111, or 135 channels)
• DMX and RDM control, USB-C port for firmware updates, easy-to-read OLED display
• Recommended use: Touring, cruise ships, theme parks, architectural exteriors, marine environments, permanent outdoor installations

Specifications

Optical

• Light Source (Main): 7 LEDs (quad-color RGBW), 45 W each, 50,000 hours life expectancy
• Light Source (Outer Ring): 97 LEDs (tri-color RGB), 0.2 W each, 50,000 hours life expectancy
• Color Temperature Range: 2800 to 10,000 K
• Beam Angle: 9.1° to 32.3°
• Field Angle: 11.2° to 49.2°
• Zoom Range: 3.9° to 55.3°
• Lumens (Source): 5,900
• Lumens (Output): 4,073
• Illuminance: 15,308 lux @ 5 m (3.9°) / 473 lux @ 5 m (55.3°)
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Movement

• Pan: 540° (selectable: 180°, 360°, 540°)
• Tilt: 260° (selectable: 90°, 180°, 260°)
• Zoom: Motorized

Dynamic Effects

• Dimmer: Electronic, 16-bit
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 6
• Dim Curves: 4
• Built-in Automated Programs: Yes

Construction

• Dimensions: 11.92 x 7.58 x 15.75 in (303 x 192 x 391 mm)
• Weight: 20.2 lb (9.16 kg)
• Exterior Color: White
• Housing Material: Aluminum (full aluminum construction, stainless steel hardware)
• IP Rating: IP66 (temporary outdoor/wet use, with pressure-equalizing M12 GORE valve)
• Surface Finish: C5M marine-grade paint process

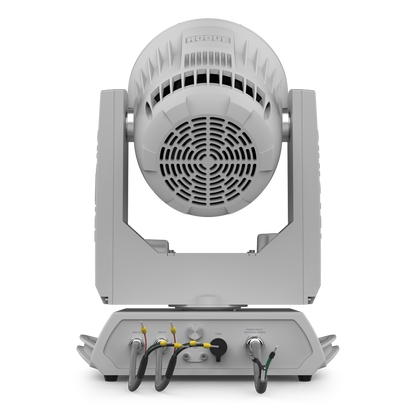

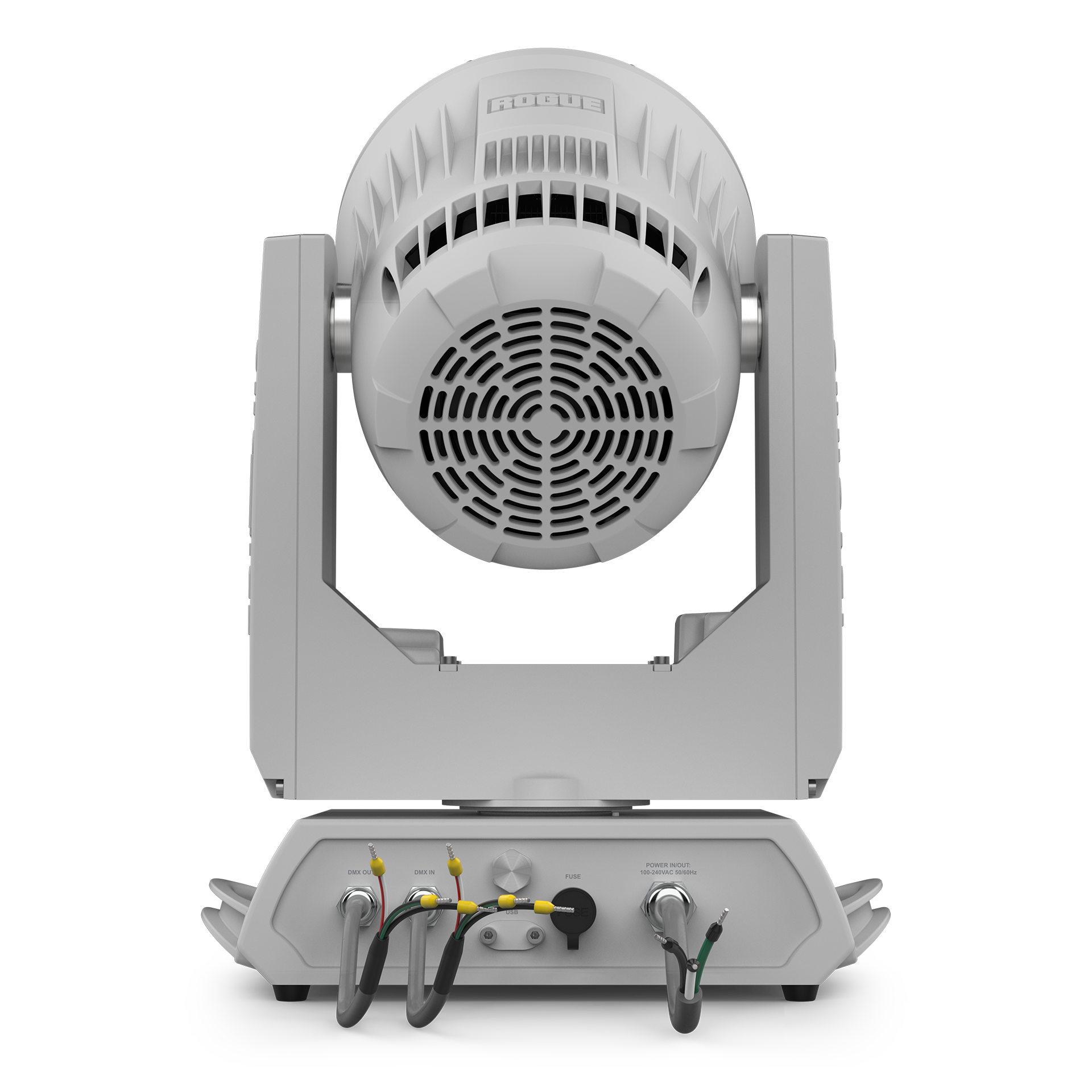

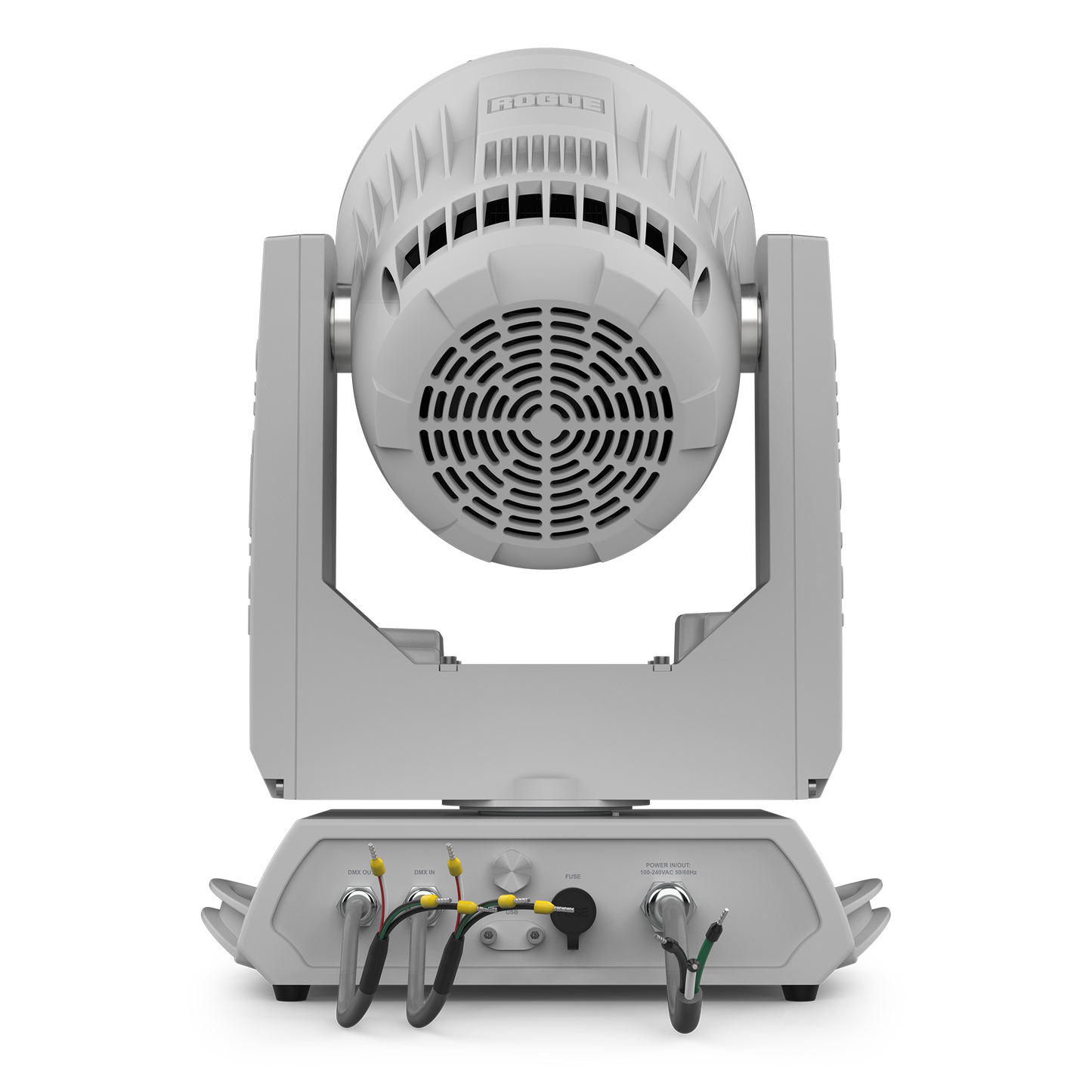

Connections

• Power: Seetronic PowerKON IP65
• Data: 5-pin XLR
• Power Cable Length: 5 ft (1.5 m)
• Signal Cable Length: 5 ft (1.5 m)
• Software Port: USB-C

Control

• Control Protocol: DMX, RDM
• DMX Personalities: 6 (15, 24, 30, 64, 111, or 135 channels)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 385 W @ 120 V / 376 W @ 208 V / 372 W @ 230 V
• Power Linking: 3 units @ 120 V  |  6 units @ 208 V  |  7 units @ 230 V
• Fuse: 8A, 250 V

Certifications

• Compliance: CE, MET, FCC, UKCA
• Operating Temperature: −4°F to 113°F (−20°C to 45°C)

Optional Accessories

• CTC-50HC – Professional Clamp
• CTC-50HCN – Professional Clamp, Narrow Profile
• SC-07 – Safety Cable
• UPLOAD 08 – Software Uploader
• RIGLINK DMX Cables
• RIGLINK IP65 DMX Cables

What's in the Box

• Rogue Outcast 1 BeamWash M
• 2x Omega brackets with mounting hardware (2 Allen key bolts)
• Display cover
