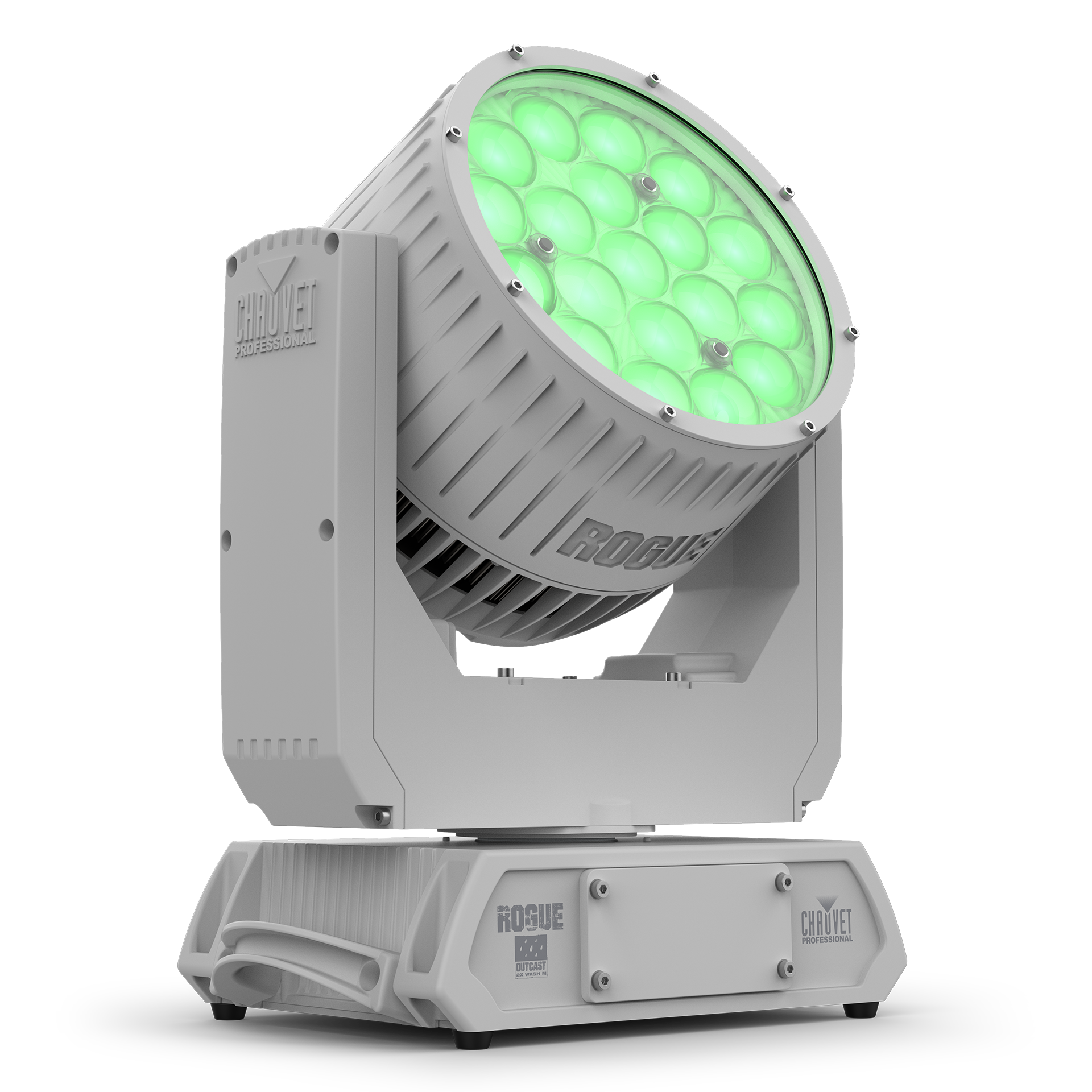

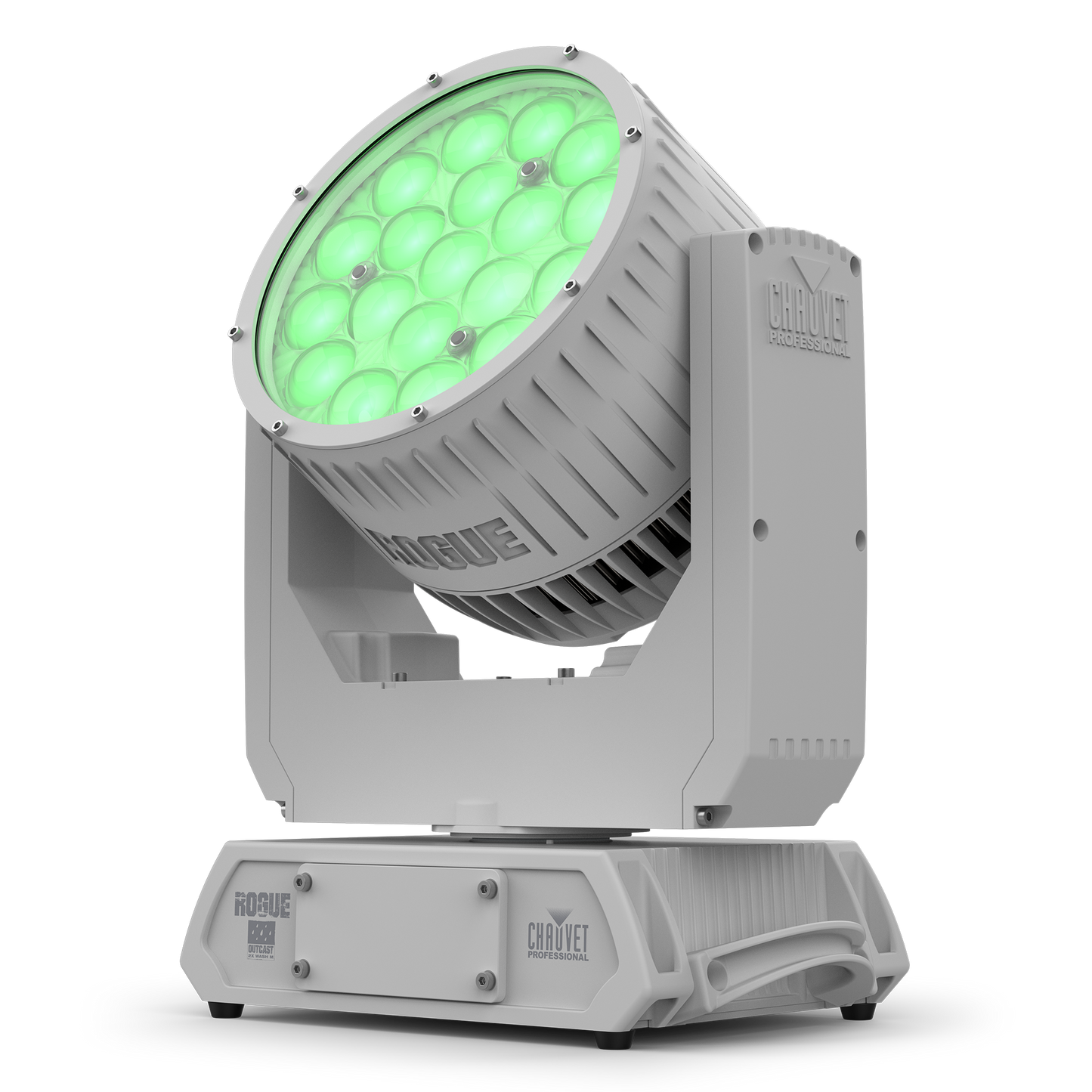

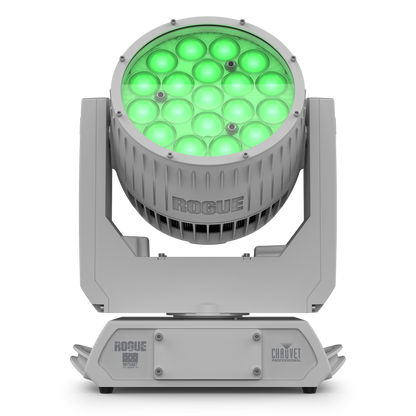

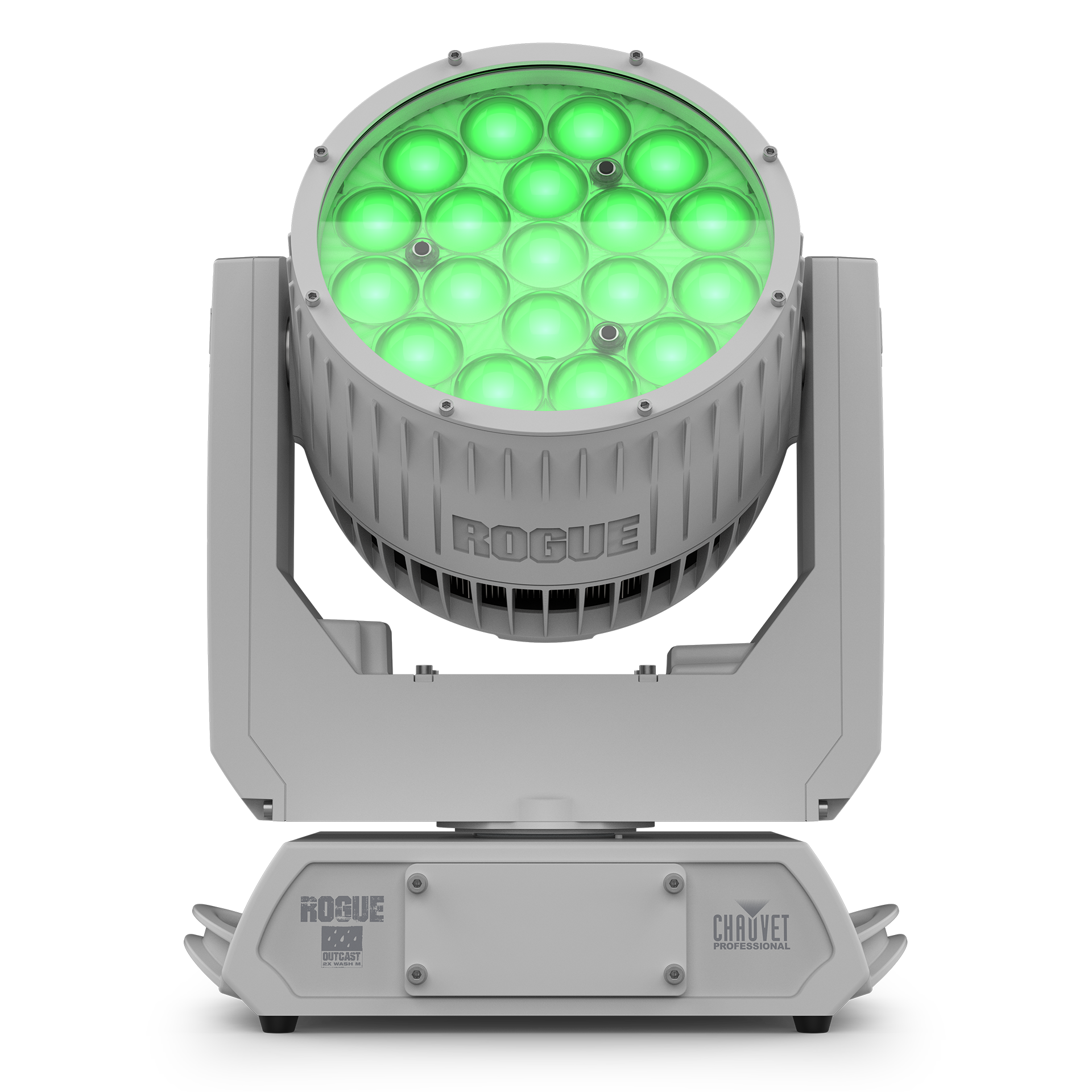

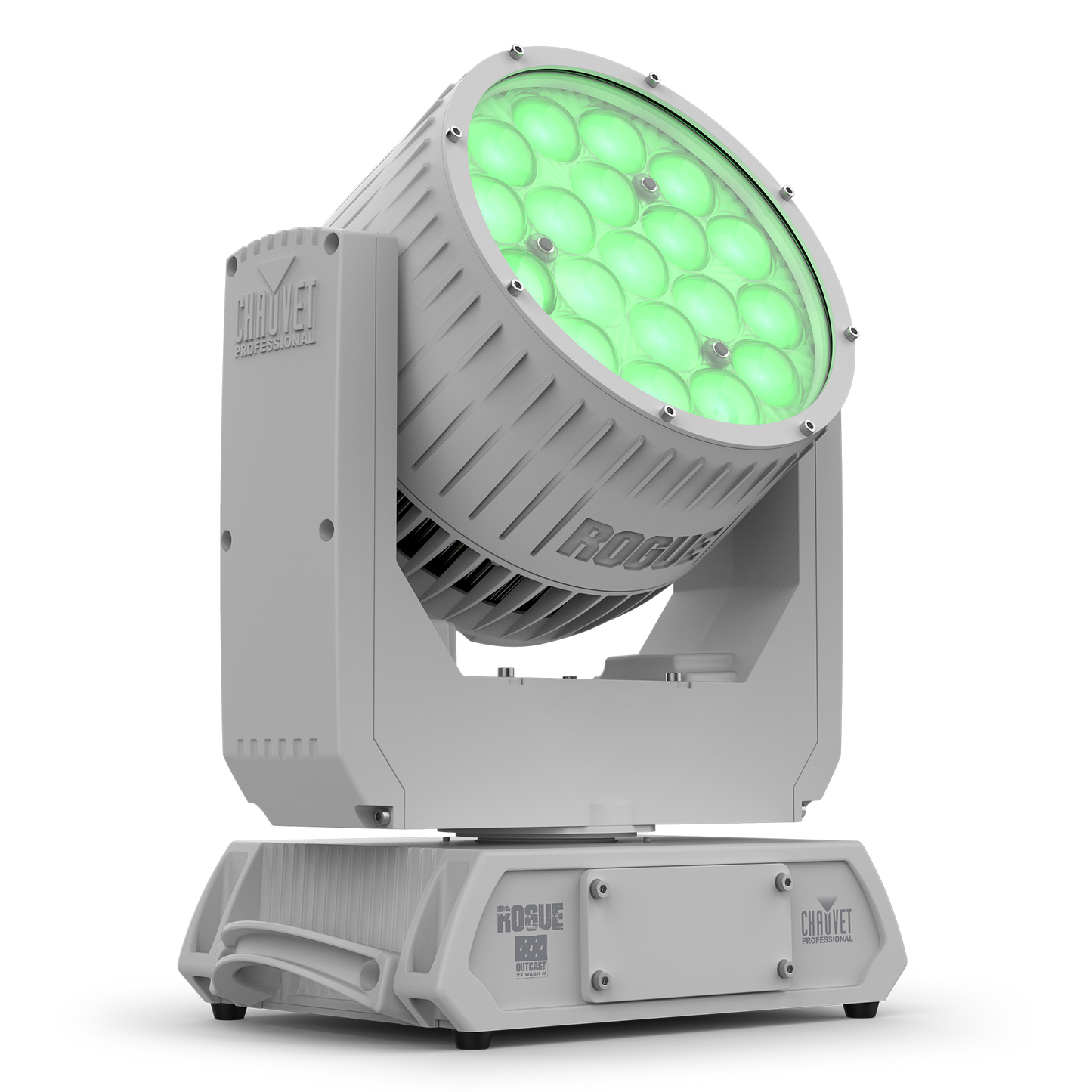

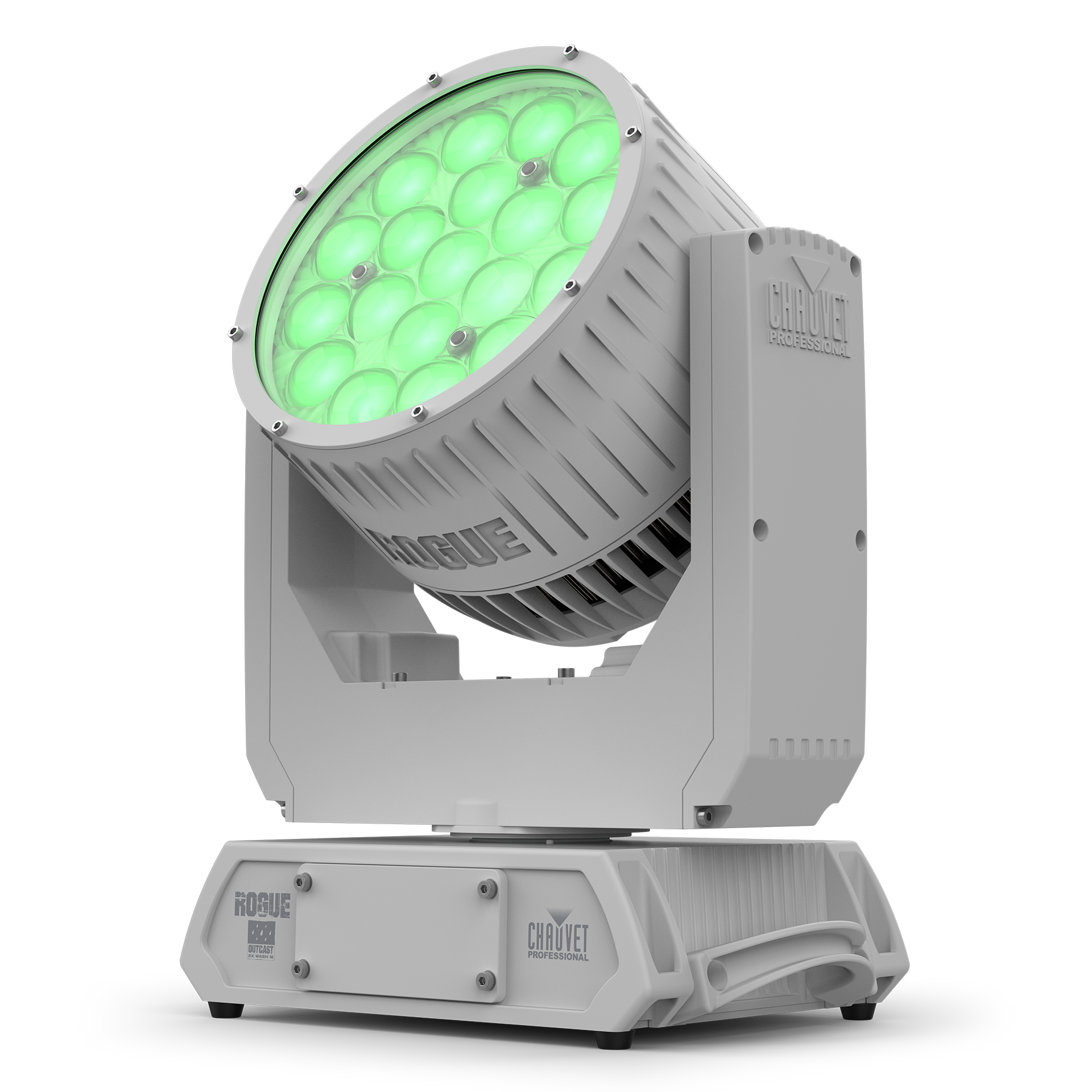

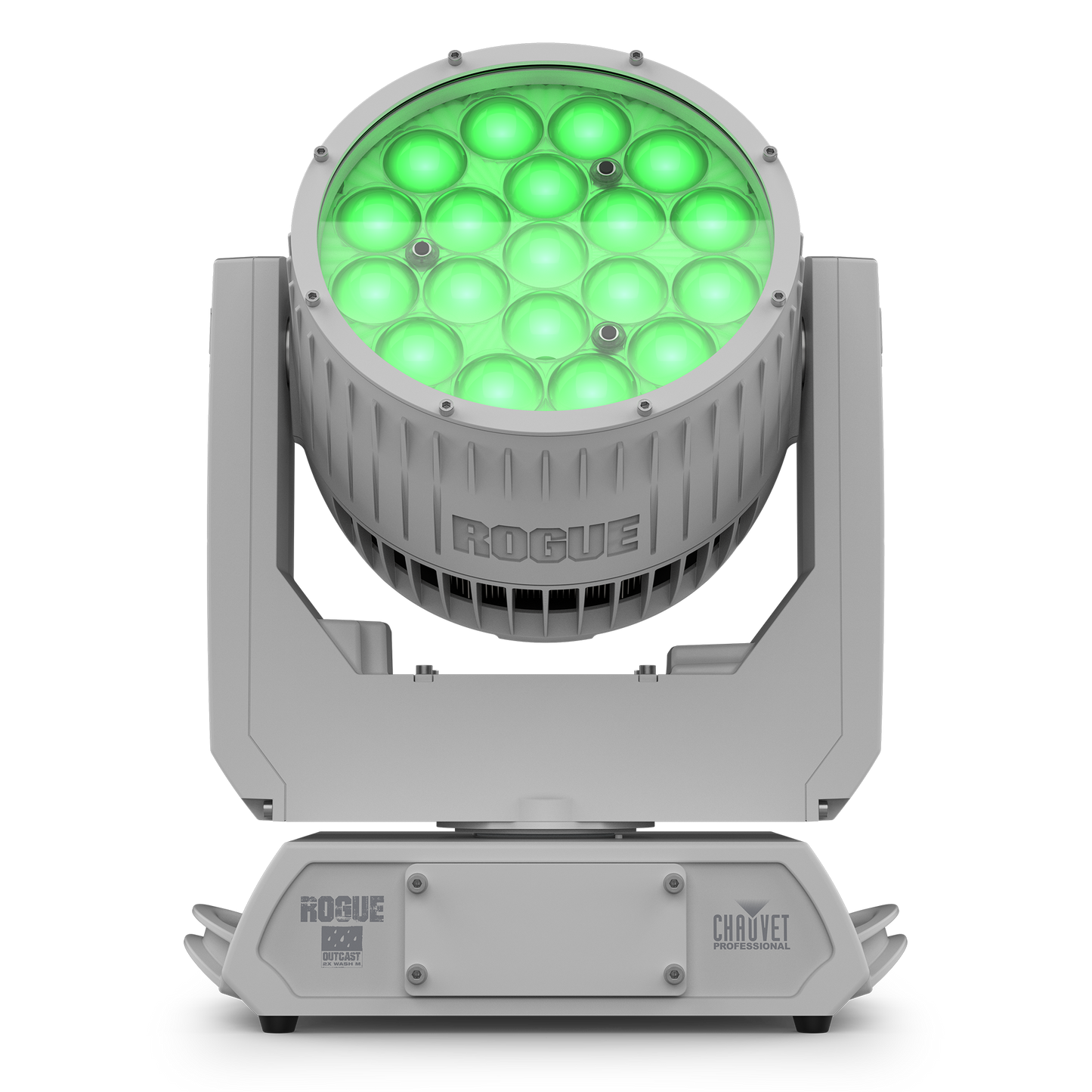

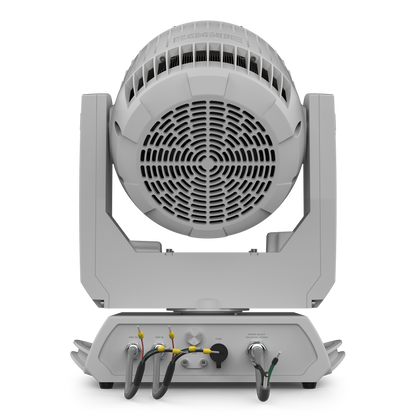

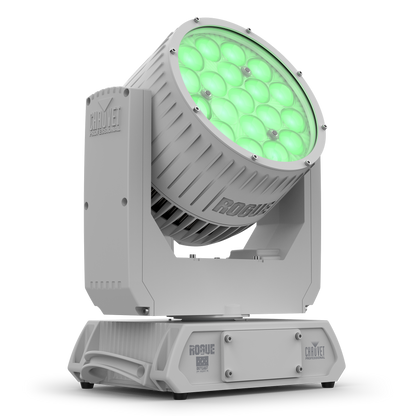

Rogue Outcast 2X Wash M

The CHAUVET Professional Rogue Outcast 2X Wash M is a rugged, IP66-rated moving head wash with a C5M marine-grade finish, featuring 19 pixel-mappable RGBW LEDs and a wide zoom range for versatile, high-output wash effects in the most demanding environments.

From the Manufacturer

With its full aluminum construction and C5M marine-grade finish, Rogue Outcast 2X Wash M brings layers of external corrosion resistance in a rugged IP66 build engineered with the enhanced protection needed to perform extended duty in and near marine environments. 19 bright 25W RGBW LEDs occupy 5 pixel-mappable zones and produce excellent color blending and fades with 16-bit master and individual dimming. With a wide zoom range and fast pan/tilt movement, this versatile workhorse brings bold wash effects and durable performance to the most demanding environments — whether on tour, cruise ships, or lighting theme park and architectural exteriors.

Features

• 19 quad-color RGBW LEDs (25W each) across 5 independently controllable pixel-mapping zones
• IP66-rated housing with C5M marine-grade paint, full aluminum construction
• Included display cover for extended outdoor and marine durability
• Wide 7.9° to 63.7° zoom range for tight beams or broad washes
• 540° pan / 270° tilt with selectable range limits
• 16-bit master and individual color dimming for exceptionally smooth fades
• 6 dimming curves and customizable programs with recall
• Selectable calibrated white at 7500 K
• Selectable PWM (600 Hz to 15,000 Hz) for flicker-free on-camera performance
• 8 DMX personalities (15, 17, 22, 23, 33, 54, 55, or 56 channels)
• DMX and RDM control, USB-C firmware port, OLED display
• Recommended use: Touring, cruise ships, theme parks, architectural exteriors, permanent outdoor and marine installations

Specifications

Optical

• Light Source: 19 LEDs (quad-color RGBW), 25 W each, 50,000 hours life expectancy
• Color Temperature Range: 2800 to 10,000 K
• Beam Angle: 7.9° to 35.3°
• Field Angle: 11.6° to 50.5°
• Zoom Range: 7.9° to 63.7°
• Lumens (Output): 5,371
• Illuminance: 7,632 lux @ 5 m (7.9°) / 639 lux @ 5 m (63.7°)
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

Movement

• Pan: 540° (selectable: 180°, 360°, 540°)
• Tilt: 270° (selectable: 90°, 180°, 270°)
• Zoom: Motorized

Dynamic Effects

• Dimmer: Electronic, 16-bit
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 6
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

Construction

• Dimensions: 11.92 x 8.58 x 14.1 in (303 x 218 x 361 mm)
• Weight: 21.2 lb (9.6 kg)
• Exterior Color: White
• Housing Material: Aluminum
• IP Rating: IP66 (temporary outdoor/wet use, with pressure-equalizing M12 GORE valve)
• Surface Finish: C5M marine-grade paint process

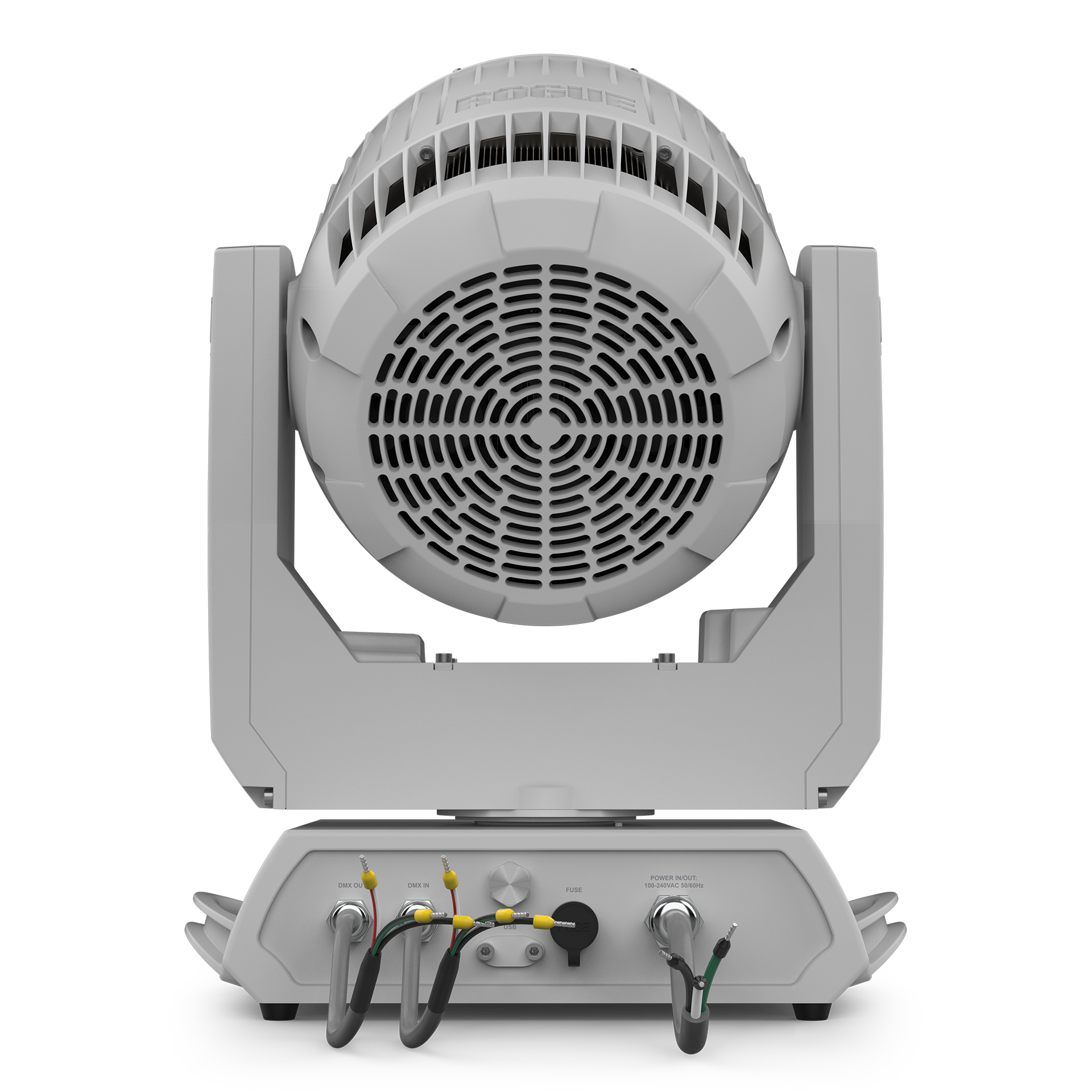

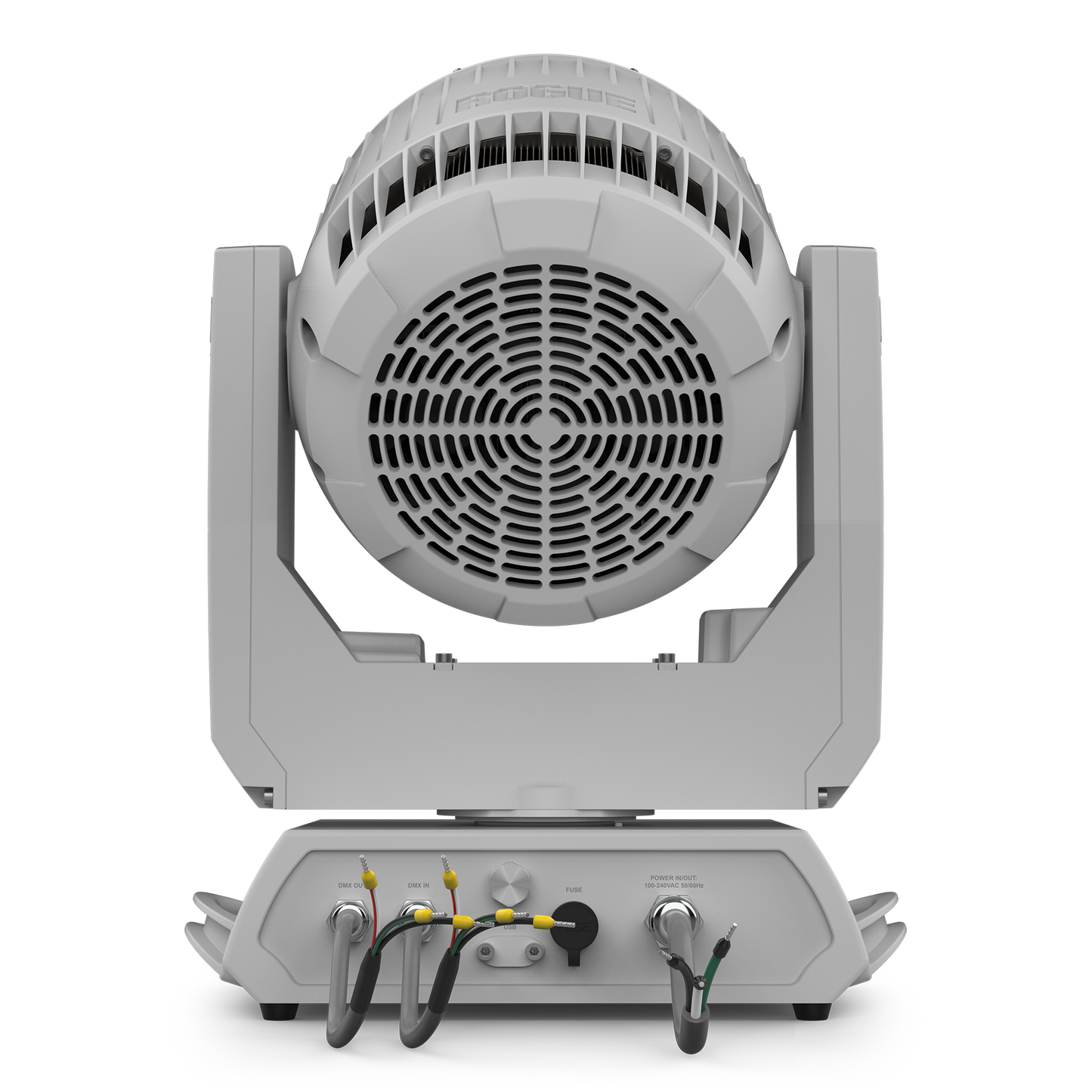

Connections

• Power: Termination-ready bare-ended
• Data In/Out: Termination-ready bare-ended
• Power Cable Length: 5 ft (1.5 m)
• Signal Cable Length: 5 ft (1.5 m)
• Software Port: USB-C

Control

• Control Protocol: DMX, RDM
• DMX Personalities: 8 (15, 17, 22, 23, 33, 54, 55, or 56 channels)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Consumption: 291 W @ 120 V / 284 W @ 208 V / 282 W @ 230 V
• Power Linking: 5 units @ 120 V  |  9 units @ 208 V  |  10 units @ 230 V

Certifications

• Compliance: CE, MET, FCC, UKCA
• IP Rating: IP66

Optional Accessories

• CTC-50HC – Professional Clamp
• CTC-50HCN – Professional Clamp, Narrow Profile
• SC-08 – Safety Cable
• UPLOAD 08 – Software Uploader

What's in the Box

• Rogue Outcast 2X Wash M
• 2x Omega brackets with mounting hardware (2 Allen key bolts)
• Display cover
