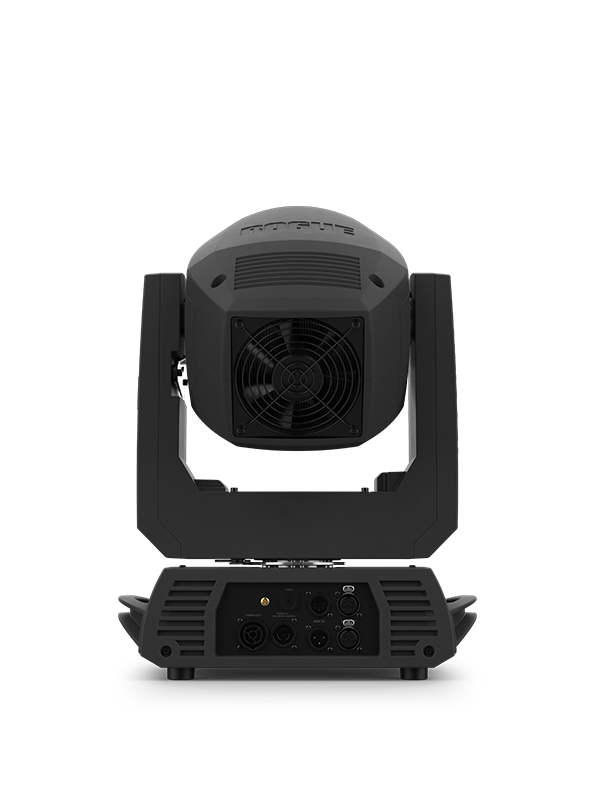

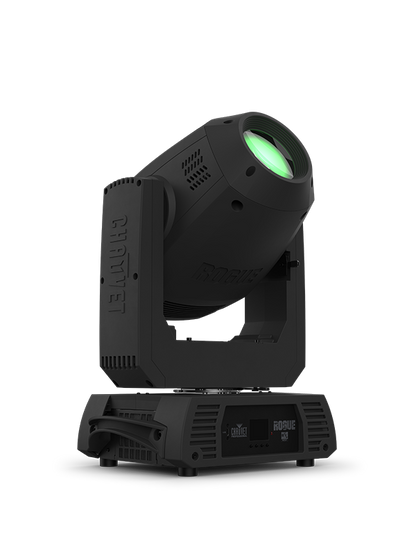

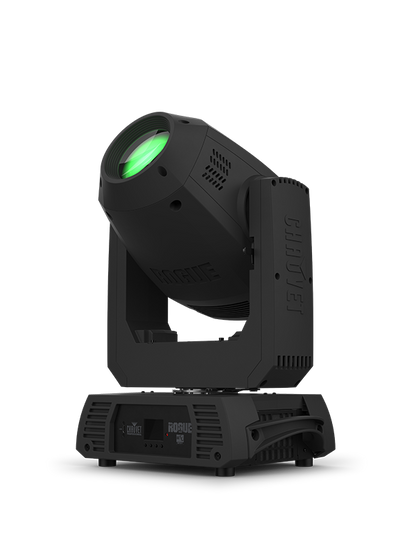

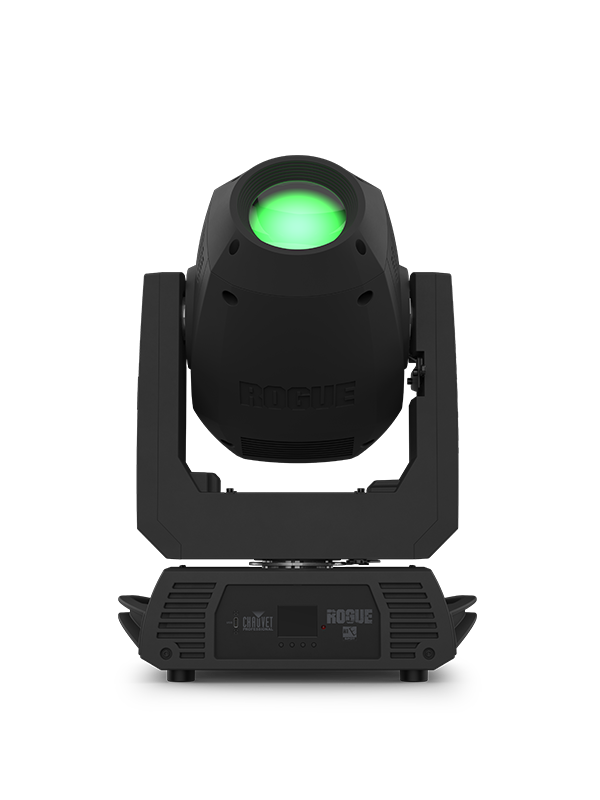

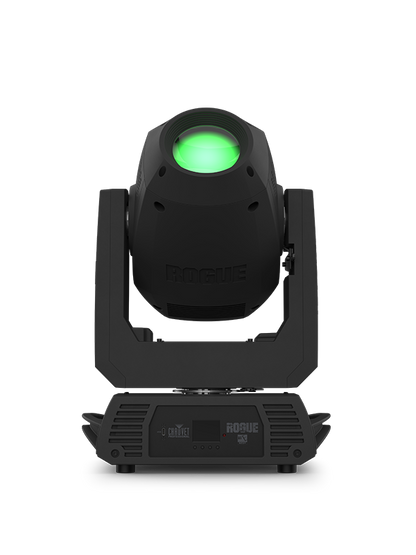

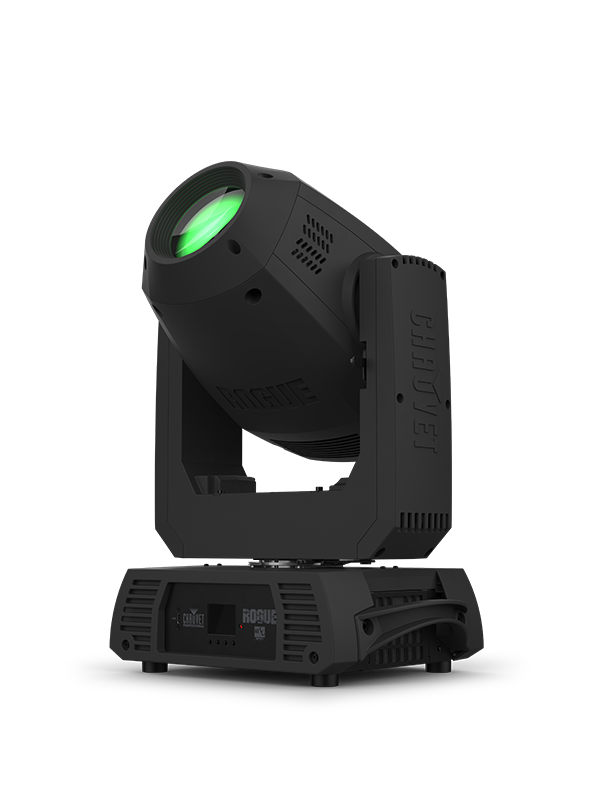

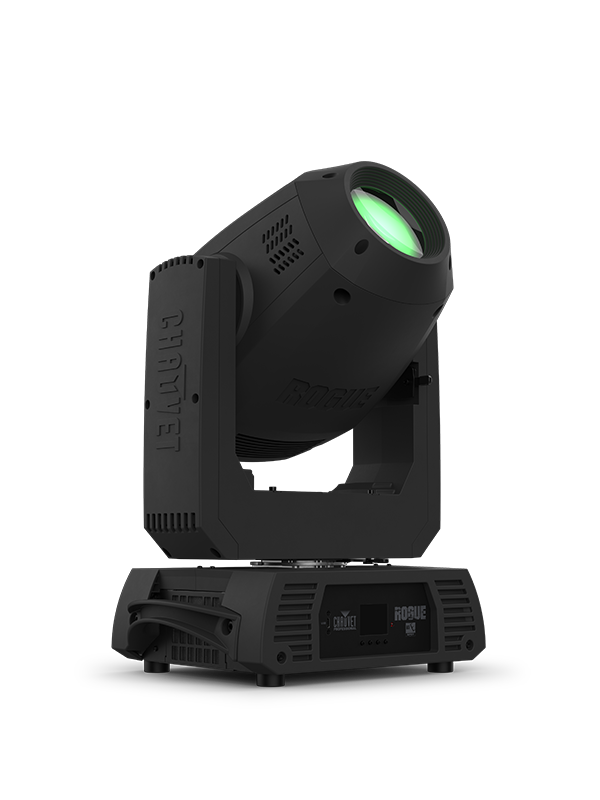

Rogue R1 E Spot

The Rogue R1E Spot is a compact moving yoke spot with a 200W LED engine, featuring a 3-facet rotating prism, motorized iris and frost, dual gobo wheels, and a color wheel with eight colors. It offers intense output and versatile effects with a 15° beam angle.

From The Manufacturer:

Rogue R1E Spot is a compact, lightweight moving yoke spot that delivers intense output from its 200W LED light engine and a fully featured wheelhouse: 3-facet rotating prism for stunning aerial effects; motorized iris and frost for beam shaping; dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; and a color wheel with eight brilliant colors + white + split colors. Its 15°

Features:

• A fully featured compact and lightweight moving yoke spot fixture with an Intense 200 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and a color wheel.
• 16-bit dimming of master dimmer for smooth control of fades
• Perfect gobo morphing between gobo wheels
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
• Iris, 3-facet prism, and frost for beam control
• True 1 compatible power input/output connections for power linking.
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and troubleshooting.
• Selectable LED maximum output to match legacy Rogue R1X Spots
• Selectable PWM settings to maintain flicker-free operation on camera.
• Simple and complex DMX channel profiles for programming versatility

Physical:

• Dimensions (single unit): 14.01 x 9.44 x 20.47 in (356 x 240 x 520 mm)
• Weight (single unit): 31.2 lb (14.2 kg)
• Exterior Color: BlackHousing Material: Aluminum die-cast, High-impact flame-retardant polymer
• SteelSoftware update: USB-C

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8units @ 230 V
• Power and Current: 315 W, 2.63 A @ 120 V, 60 Hz
• Power and Current: 306 W, 1.50 A @ 208 V, 60Power and Current: 303 W, 1.36 A @ 230 V, 50 Hz

Certifications / Qualifications:

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location

What’s Included:

• Rogue R1E Spot
• Seetronic PowerKon power cord
• 2 140D Omega brackets with mounting hardware

Optional Accessories:

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik powerCON cables
• DMX Cables
• Flight Cases
• CP Rack
