Rogue R2 E Spot

The Rogue R2E Spot is a compact moving yoke spot with a 350W LED engine, dual gobo and color wheels, and various effects like gobo morphing and color splitting. It offers beam shaping options and brightness matching with legacy Rogue R2X Spots.

From The Manufacturer:

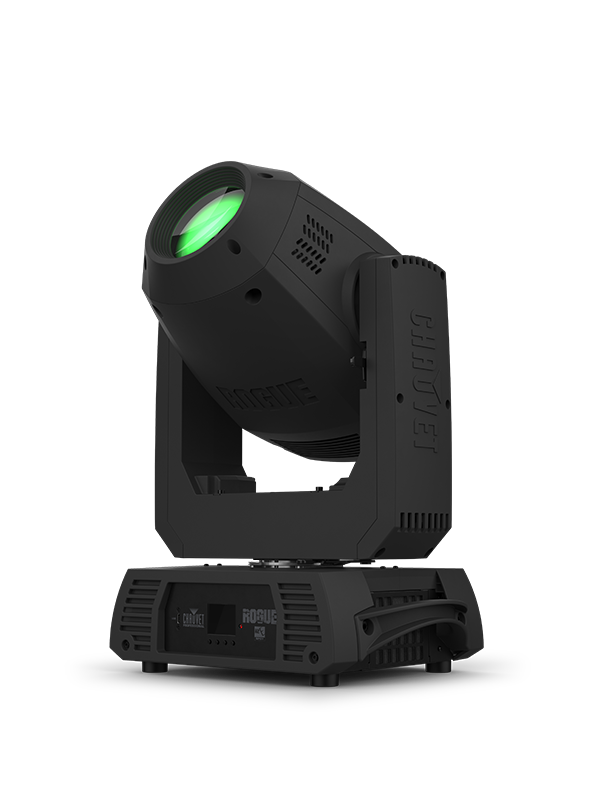

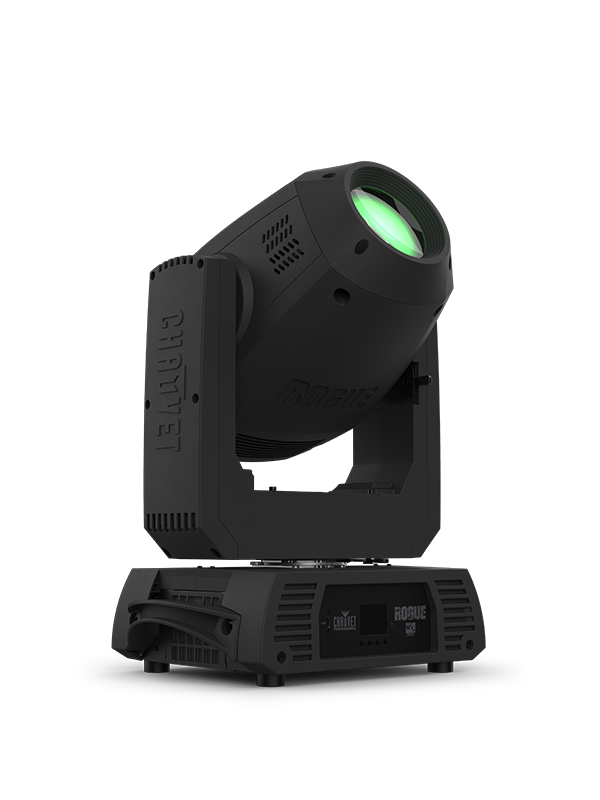

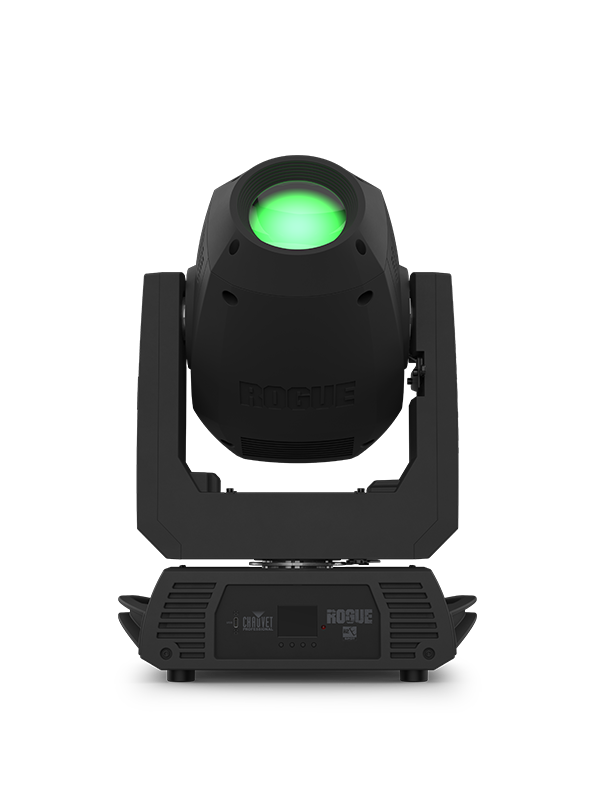

Two gobo wheels and two color wheels pair up in the fully featured Rogue R2E Spot. This compact, lightweight moving yoke spot delivers intense output from its 350W LED light engine and brings a packed wheelhouse: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Its 15° beam angle delivers crisp gobo projections and a selectable LED max output setting enables matching brightness with legacy Rogue R2X Spots in your rig.

Features:

• A fully featured compact and lightweight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, and two color wheels.
• 16-bit dimming of master dimmer for smooth control of fades
• Perfect gobo morphing between gobo wheels
• Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel.
• Iris, 3-facet prism, and frost for beam control
• True 1 compatible power input/output connections for power linking.
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and troubleshooting.
• Selectable LED maximum output to match legacy Rogue R2X Spots
• Selectable PWM settings to maintain flicker-free operation on camera.
• Simple and complex DMX channel profiles for programming versatility

Physical:

• Dimensions (single unit):
• Length: 14.01 in (356mm)
• Width: 9.44 in (240mm)
• Height: 20.47 in (520 mm)
• Weight (single unit): 31.2 lb (14.2 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2; 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
• Power and Current: 481 W, 4.05 A @ 120 V, 60 Hz
• Power and Current: 472 W, 2.32 A @ 208 V, 60 Hz
• Power and Current: 469 W, 2.13 A @ 230 V, 50 Hz

Certifications / Qualifications:

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location

What’s Included:

• (1) Rogue R2E Spot
• (1) Neutrik powerCON power cord
• (2) 140D Omega brackets with mounting hardware

Optional Accessories:

• Clamps
• Neutrik powerCON cables
• DMX Cables
• Flight Cases
• Flight Cases CP rack
