Rogue R2X Wash
Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!
Description
Description

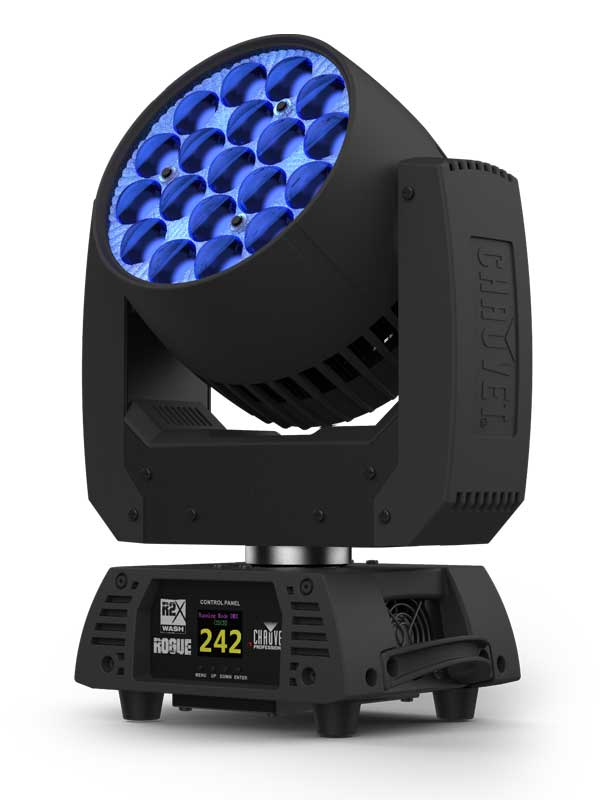

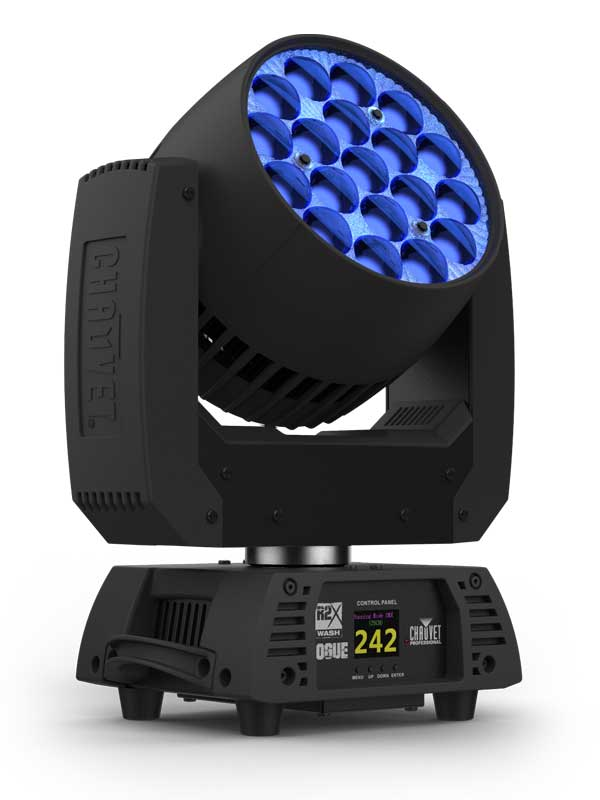

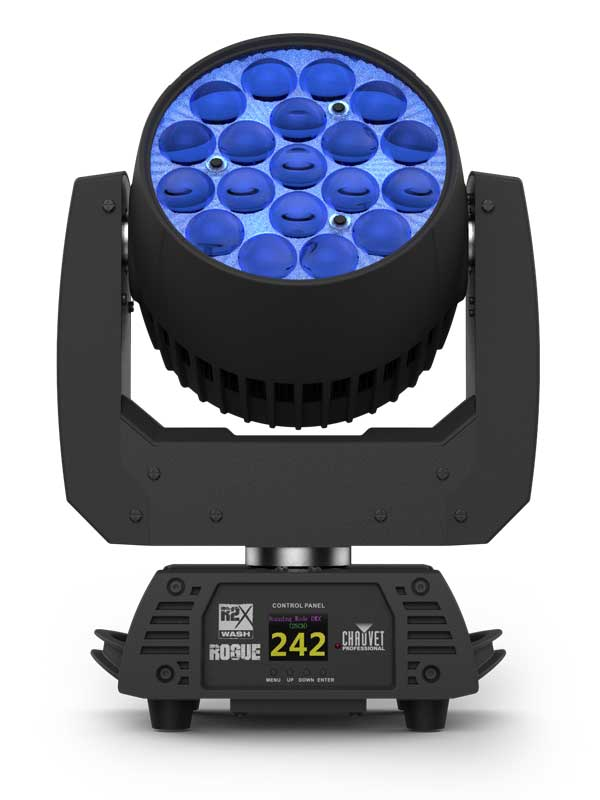

The Chauvet Professional Rouge R2X Wash is a workhorse of moving wash lights, making it a vital addition to rental and production stocks. This robust, long-lasting bulb emits brilliant, intense light and includes five zones of LED control for pixel mapping its 19 (25 W) RGBW quad-LEDs.
The Rouge R2X Wash has an impressive zoom range of 12° to 49°, allowing it to cover even the largest areas. It's no surprise that this fixture is a standout performer in any context, with seamless color mixing, simple and complicated DMX channel settings, and powerCON in and out.
From the Manufacturer:
-
Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
-
16-bit dimming of master dimmer as well as individual colors for smooth control of fades
-
19 RGBW LEDs, 25 W each
-
3- and 5-pin DMX input/output connections
-
5 zones of LED control for pixel mapping control
-
Unique lens design for excellent color blending
-
Fast, smooth pan and tilt movement
-
RDM enabled for remote addressing and trouble shooting
-
Selectable LED maximum output to match legacy Rogue R2 Washes
-
Selectable PWM options for camera operation
-
6 distinct dimming modes for advanced control
-
Omega mounting bracket, fits all Rogue and Maverick fixtures
-
Easy to read OLED display with simple, effective menu options
-
Simple and complex DMX channel profiles for programming versatility
In the Box:
- (1) Rogue R2X Wash
- (1) Neutrik® powerCON® power cord
- (1) Omega bracket with mounting hardware
Features:
- Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A)
- Color Temperature: 2800 to 10000 K
- Beam Angle: 7.3° to 35.2°
- Dimming: 16-bit
- Strobe: Electronic | 0 to 20 Hz
- Color: RGBW
- Control Protocol: DMX, RDM
- Operating Modes: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
- IP Grade: IP20, dry location
Tech Specs
Optics:
Light Source Type: LEDs
Light Source Wattage: 25 W (1.5 A)w
Minimum Beam Angle: 7.3°
Maximum Beam Angle: 35.2°
Control
DMX Channel Modes: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)
DMX 3-Pin Connectors?: Yes
DMX 5-Pin Connectors?: Yes
Physical:
Length: 8.58 in
Width: 10.05 in
Height: 15.67 in
Weight: 22.8 oz
Electrical
Voltage Range: 100 to 240 VAC

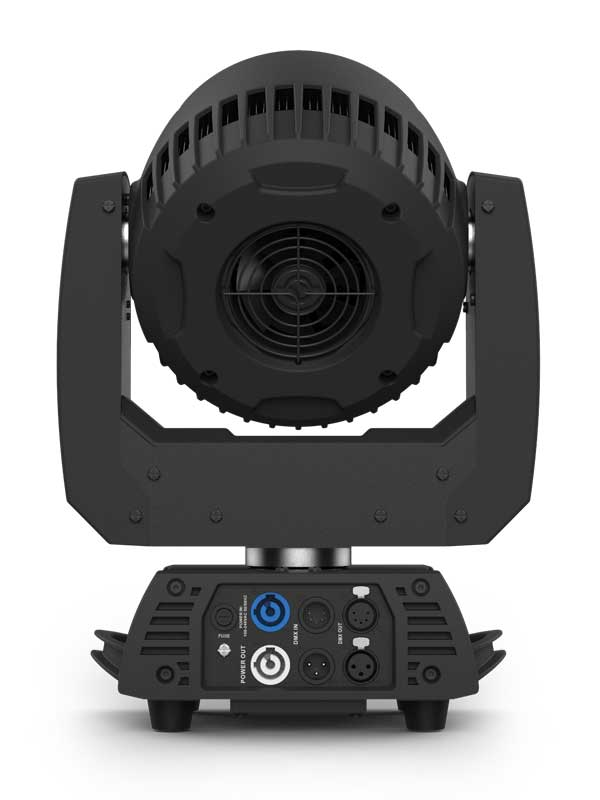

Power Cable Connector - Fixture Side: Neutrik® powerCON®
Main Power Connector on Included Cable: Edison (Local) plug to Neutrik® powerCON®
View full details
