Sku: ROGUER3BEAM

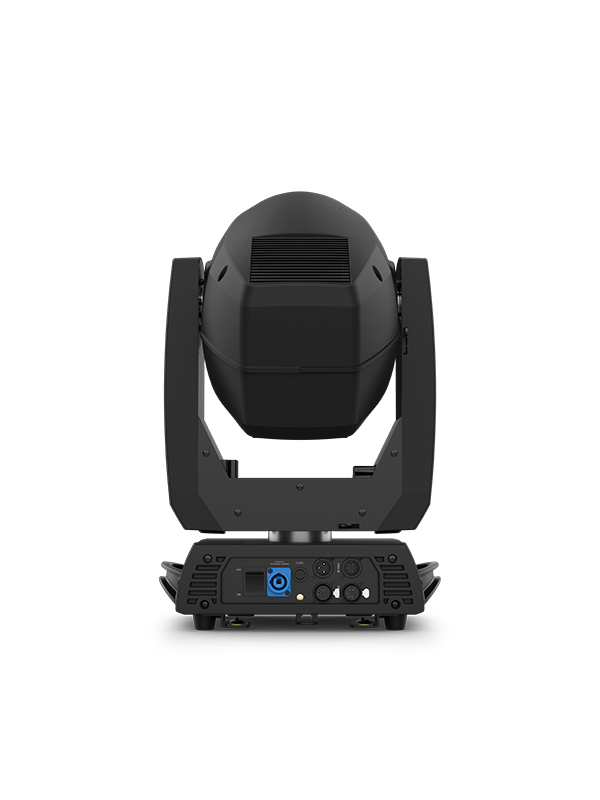

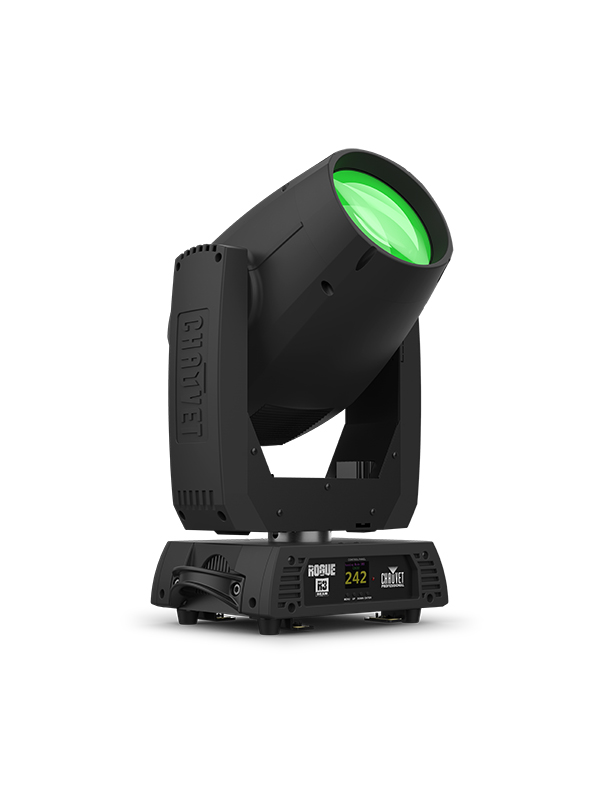

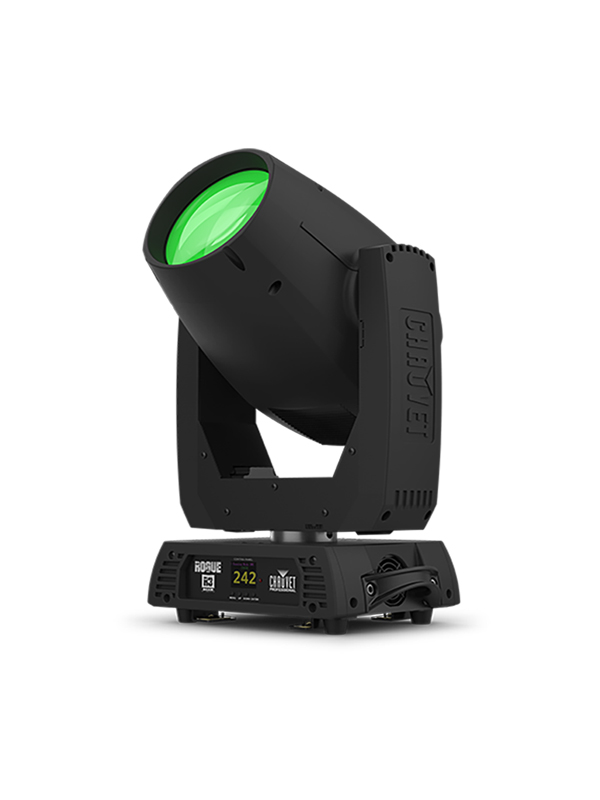

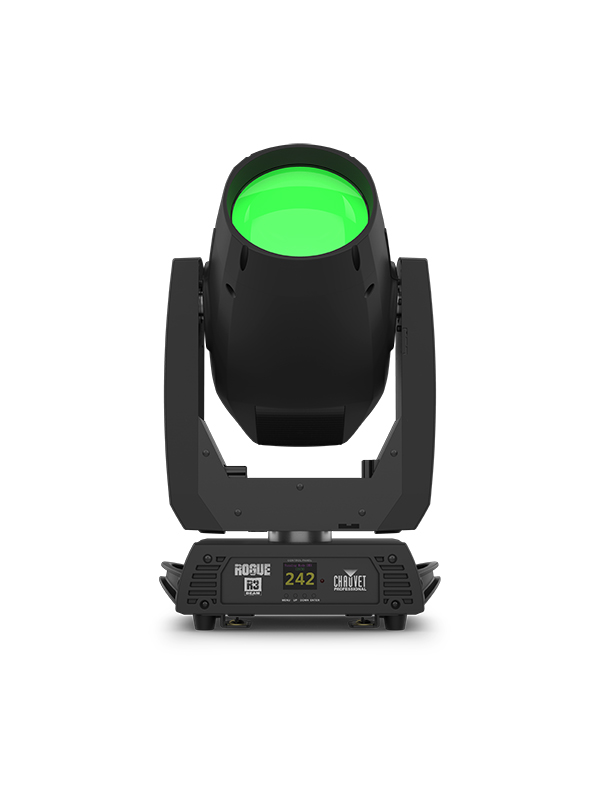

Rogue R3 Beam

$1,835.00
$1,835.00
Sold out
Shipping calculated at checkout.
Vendor: Chauvet Professional

Usually ships in 1-3 business days. Fill out a quote request and we'll check if it's backordered!

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Description

Caret Down

The Rogue R3 Beam is the brightest star in the series, with a breathtaking output of 208,000 lux at 15 meters. The extreme focus capabilities (down to 0.8°) provides for memorable focused aerial effects. If you can imagine anything, you can make it with 17 inbuilt gobos and a 14-color color wheel. Both wheels can be scrolled at different speeds.

You'll never run out of distinctive beam looks with independently overlapping 8 and 24-facet prisms. The unit also includes RDM and DMX protocols, as well as numerous control personalities.

From the Manufacturer:

Rogue R3 Beam is the light cannon of the Rogue series, outputting over 208,000 lux at 15 meters from its 300 W Ushio NSL lamp. This fully-featured beam can be focused down to 0.8° degrees for extremely focused aerial effects alongside motorized frost and focus options. A color wheel equipped with 14 colors complimented by a gobo wheel with 17 gobos give you a wealth of dynamic effects, and both wheels are fully scrollable at variable speeds. Additionally, the unit features individually overlapping 8 and 24-facet prisms for an endless supply of creative beam looks. The unit is equipped with RDM and DMX protocols and features multiple control personalities.

At a glance

  • Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life

  • Fast and precise movement of pan and tilt functions

  • Individually controllable and layerable 8- and 24-facet prisms

  • Frost for even light distribution

  • Tight 0.8° beam for extremely focused areal effects

  • RDM enabled for remote addressing and troubleshooting

  • 17 static gobos for massive visual impact

In the Box:
  • (1) Rogue R3 Beam
  • (1) Neutrik powerCON power cord
  • (2) Omega brackets with mounting hardware

     Features:

    • Light Source:  300W NSL Ushio lamp
    • Color Temperature: 8000K
    • CRI:80.8
    • Beam Angle:  0.8°
    • Dimming:  Motorized
    • Strobe: 0 to 15 Hz
    • Color:  14 + white, split colors, continuous scroll at variable speeds
    • Gobo:  17 + open (17 metal), continuous scroll at variable speeds
    • Effects:
      • Prism: 8 facets, motorized, rotating
      • Prism: 24 facets, motorized, rotating
    • Control Protocol:  DMX, RDM
    • Operating Modes:  2 personalities (16, 19)
    • IP Grade:  IP20, dry location

    Tech Specs

    Optics:

    Light Source Type: Ushio lamp

    Light Source Wattage: 300Ww

    Minimum Beam Angle: 0.8°

    Maximum Beam Angle: 0.8°

    Control

    DMX Channel Modes: 2 personalities (16, 19)

    DMX 3-Pin Connectors?: Yes

    DMX 5-Pin Connectors?: Yes

    Physical:

    Length: 12.79 in

    Width: 8.66 in

    Height: 21.65 in

    Weight: 34.4 lb

    Electrical

    Voltage Range: 100 to 240 VAC

    Power Cable Connector - Fixture Side: Neutrik powerCON

    Main Power Connector on Included Cable: Edison (Local) plug to Neutrik powerCON
