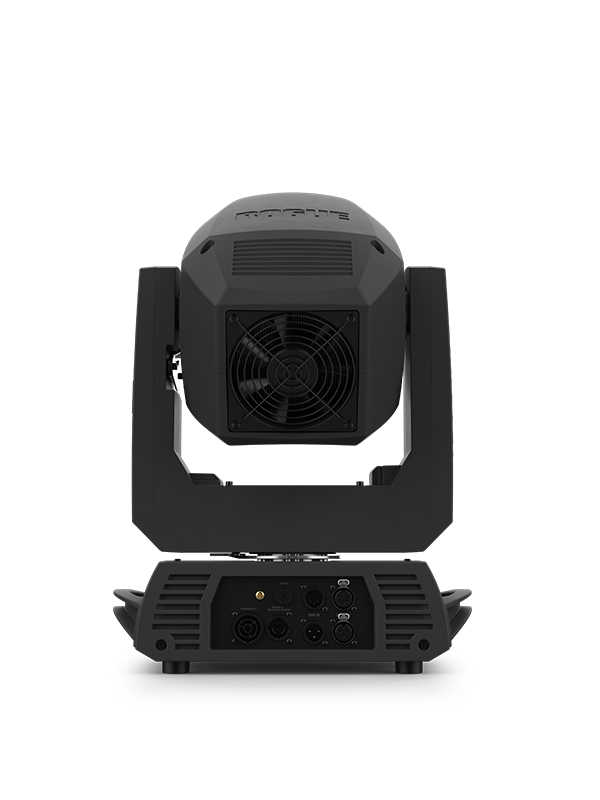

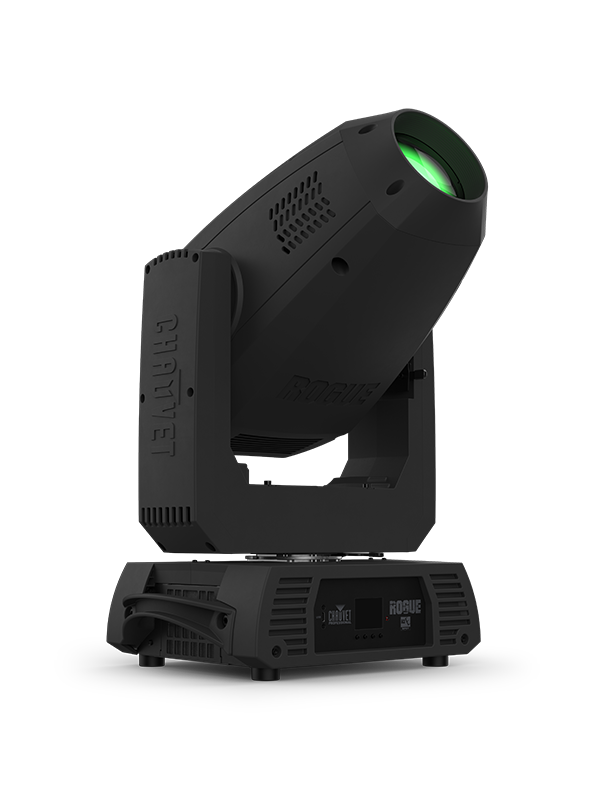

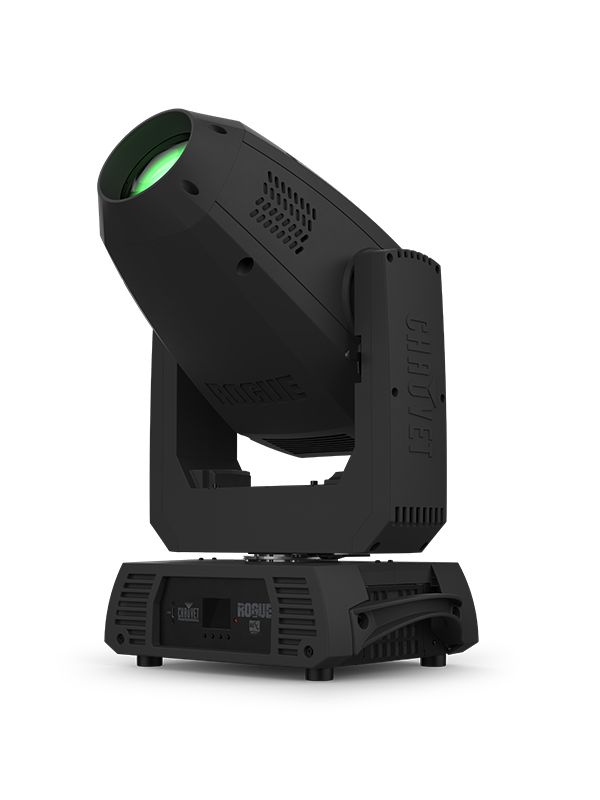

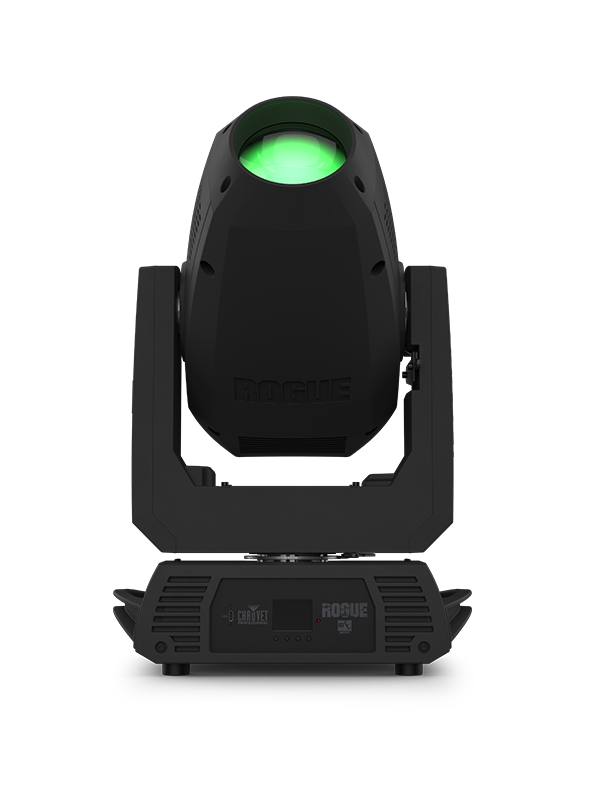

Rogue R3E Spot

The Rogue R3E Spot is a compact moving yoke spot with a 350W LED engine, offering a zoom range from 8.4° to 42.8°. It features dual gobo wheels, dual color wheels, a 3-facet rotating prism, motorized iris, and frost, providing a versatile lighting solution with selectable LED max output settings for brightness matching.

From The Manufacturer:

Rogue R3E Spot features an expansive 8.4° to 42.8° zoom in a compact, lightweight moving yoke spot. Its intensely bright 350W LED light engine combines high output with a full effects arsenal: dual gobo wheels (one rotating with interchangeable gobos + one static) for creating custom gobo morphing looks; dual color wheels each with eight brilliant colors + white + split colors; 3-facet rotating prism for stunning aerial effects; and motorized iris and frost for beam shaping. Selectable LED max output settings enable matching brightness with legacy Rogue movers in your rig.

Features:

• A fully featured compact and lightweight moving yoke spot fixture with an Intense 350 W LED light engine, two gobo wheels, one rotating, and one static, a 3-facet prism wheel, frost, Zoom and two color wheels.
• 16-bit dimming of master dimmer for smooth control of fades
• Perfect gobo morphing between gobo wheels
• Two color wheels with 8 colors, split color ability, and continuous variable speed scrolling
• Two gobo wheels: one fixed scrolling wheel and one rotating, interchangeable, scrolling wheel
• Iris, 3-facet prism, and frost for beam control
• 8.4° to 42.8° Zoom range
• True 1 compatible power input/output connections for power linking.
• 3- and 5-pin DMX input/output connections
• RDM enabled for remote addressing and troubleshooting.
• Selectable LED maximum output to match legacy Rogue R1X Spots
• Selectable PWM settings to maintain flicker-free operation on camera.
• Simple and complex DMX channel profiles for programming versatilit

Physical:

• Dimensions: 13.77 x 9.44 x 23.03 in (350 x 240 x 585 mm)
• Weight: 34 lb (15.4 kg)
• Exterior Color: Black Housing
• Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel
• Software update: USB-C

Electrical:

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 8 units @ 208 V; 8 units @ 230 V; 9 units @ 240 V
• Power and Current: 535 W, 4.541 A @ 120 V, 60
• Power and Current: 522 W, 2.576 A @ 208 V, 60 Hz
• Power and Current: 523 W, 2.345 A @ 230 V, 50 Hz

Certifications / Qualifications:

• CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

What’s Included:

• (1) Rogue R3E Spot
• (1) Seetronic PowerKon power cord
• (2) 140D Omega brackets with mounting hardware
