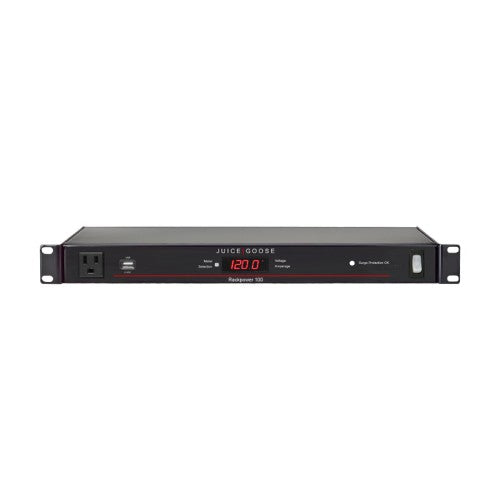

RP100-20RX

The RP100-20RX is a surge protection and filtration unit with power metering capabilities.

From the Manufacturer:

Rackpower 100-RX combines clean, protected power with professional grade power distribution features for recording, live sound and commercial AV installations, including digital metering of power line voltage and amperage and USB power ports on the front and back of the chassis

Features:

• RX Series Protection

• Tested and proven circuitry limits voltage surge energy between line and neutral and also on the ground. The RP-100RX provides protection against AC power surges as well as high frequency line noise and external wiring faults. Hybrid protection technology limits surges on both normal mode (line to neutral) and common mode (ground line) paths.

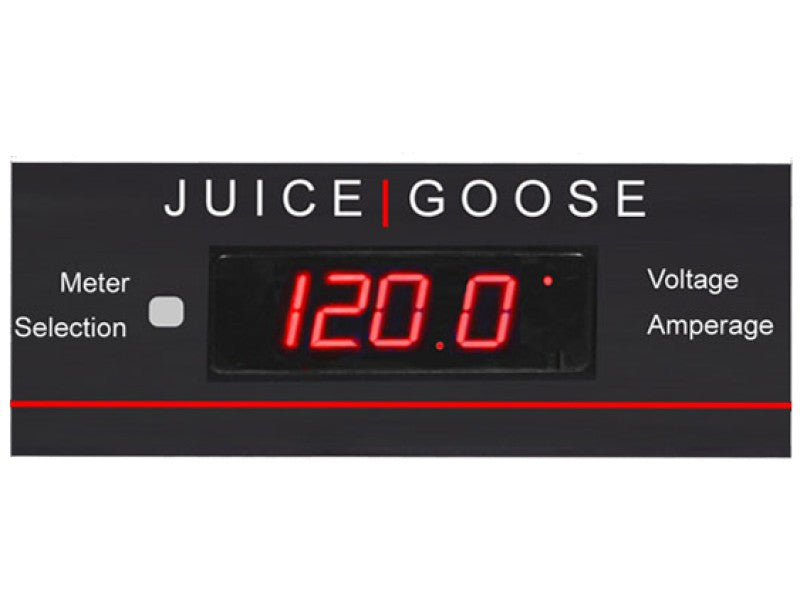

• Power Meter

• The two function meter reports in easy to read LED numerals the status of your power supply and consumption. Toggle between volts and amps with a convenient push button on the front of the chassis. Voltage and amperage are measured to the nearest 0.10 unit. Amperage is measured in a range from 0.20 to 25.0 amps.

• USB Ports

• Usable for convenient LED rack lighting or to charge accessories, one USB port is provided on the front and one on the back of the chassis.

• AC Power Receptacles

• One AC outlet is located on the front. Nine are on the back. The rear outlets are rotated to accommodate wall warts and include extra generous spacing between four of them.

• Tour Class (TM) Chassis

• This professional grade, seven inch deep enclosure is formed from a single piece of cold rolled steel. Reinforced brackets and a flush fitting top complete a package that's been used to mount other products weighing over 200 pounds.

Specifications:

• Chassis

• 16 gauge “unibody” steel with 11 gauge rack mount brackets

• Dimensions

• 1.75”H x19”W x 7”D

• Weight

• 12 lbs

• Current Overload Protection (breaker/power switch on the front of the chassis)

•  RP100-15RX = 15 amps with a technical current rating of 12 amps

• RP100-20RX = 20 amps with a technical current rating of 16 amps

• Power Input (Seven foot (7’), three conductor power cord)

• RP100-15RX = 14/3 SJT with NEMA 5-15P

• RP100-20RX = 12/3 SJT with NEMA 5-20P

• Power Output (Rotated to fit AC adapters) (All switched)

• Front = One NEMA 5/15R (15 amp)

• Rear RP100-15RX = Nine NEMA 5/15R (15 amp)

• Rear RP100-20RX = Eight NEMA5-15R (15 amp), One NEMA5-20R (20 amp)

• Input Voltage

• 120 VAC @ 60Hz

• Monitor Features

• Voltage Nominal 120 VAC scale. Reports to nearest 0.10 volts

• Amperage From 0.25 to 25.0 amps. Reports to nearest 0.10 amps

• Surge Protection

• LED indicator on front panel

• Warranty

• Three years
